2 Function Wireless Control System for Dump Trailer

$308.00

1/8

2 Function Wireless Control System for Dump Trailer

PS002TS

$308.00

In Stock

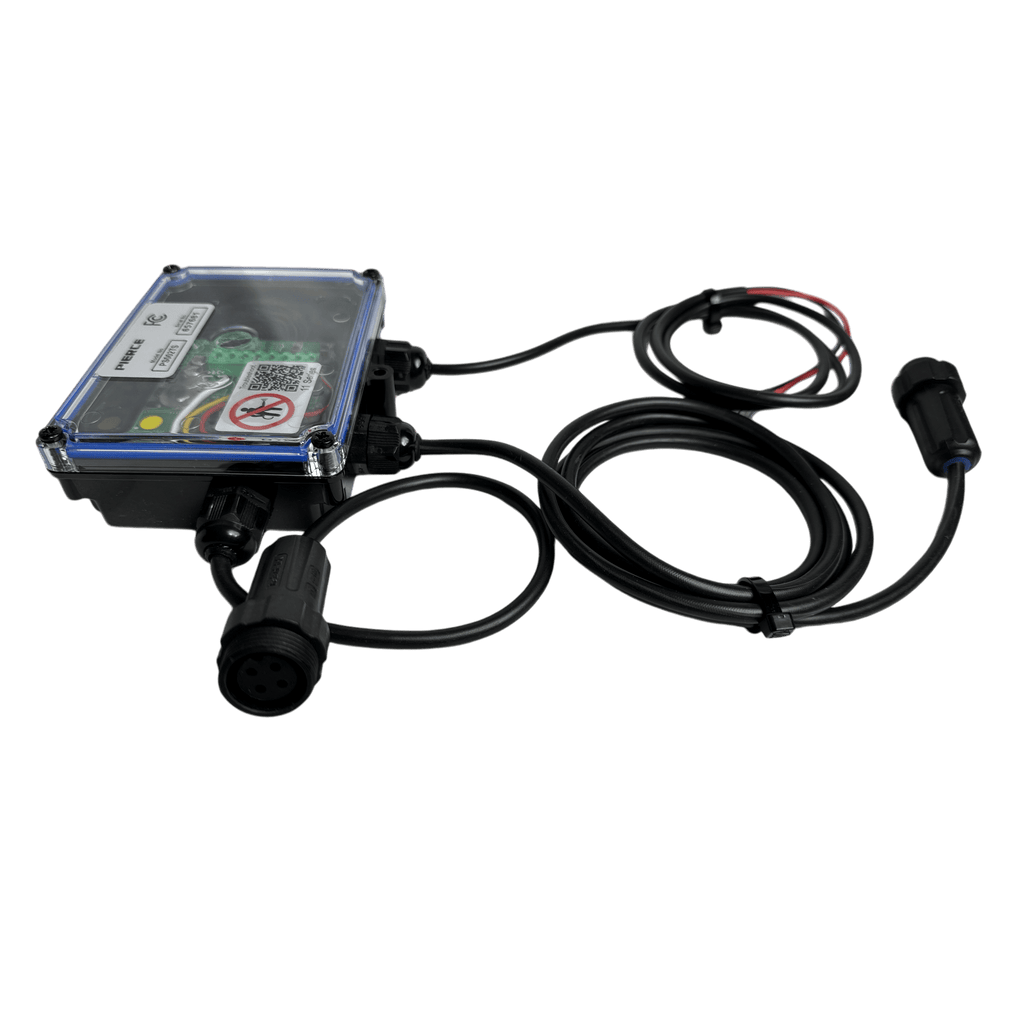

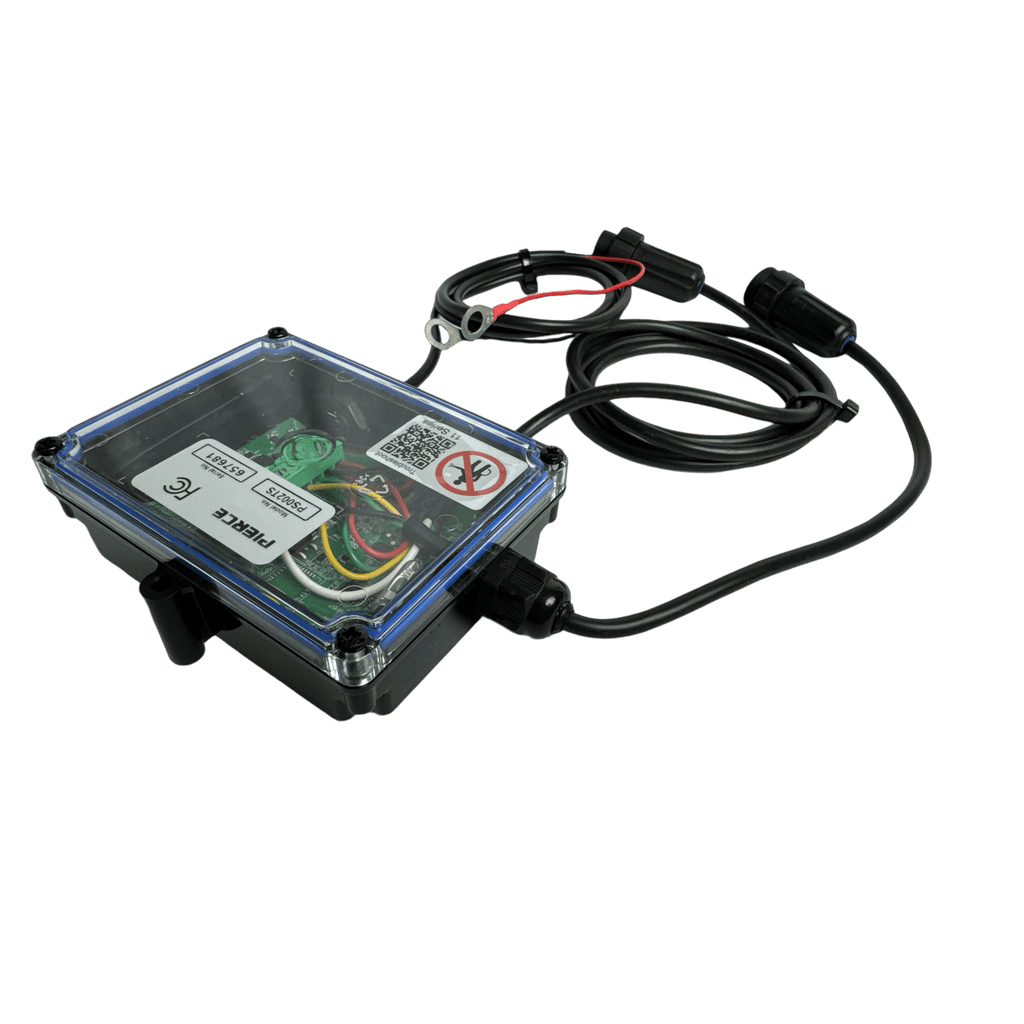

The PIERCE 2 function wireless system is designed for easy plug and play installation for dump trailers with KTI® hydraulic pumps. It operates on 12/24 Volts DC and has a range of 150 ft. (45 m.). The transmitter has an IP rating of 65 and the receiver has an IP rating of 67.

PIERCE Wireless Series Options:

The PIERCE Wireless system is especially made for trailers, winches, and dump hoists but will work with just about any 12/24-volt application.

Lodar LTD 2 Function Wireless Remote Control System: yellow, operates at 433 MHz with two buttons and a clear case, features a cable and visible circuit board—perfect for 12/24V solenoid-operated equipment.

2 Function - Standard Wiring Harness PS002

-($33.00)

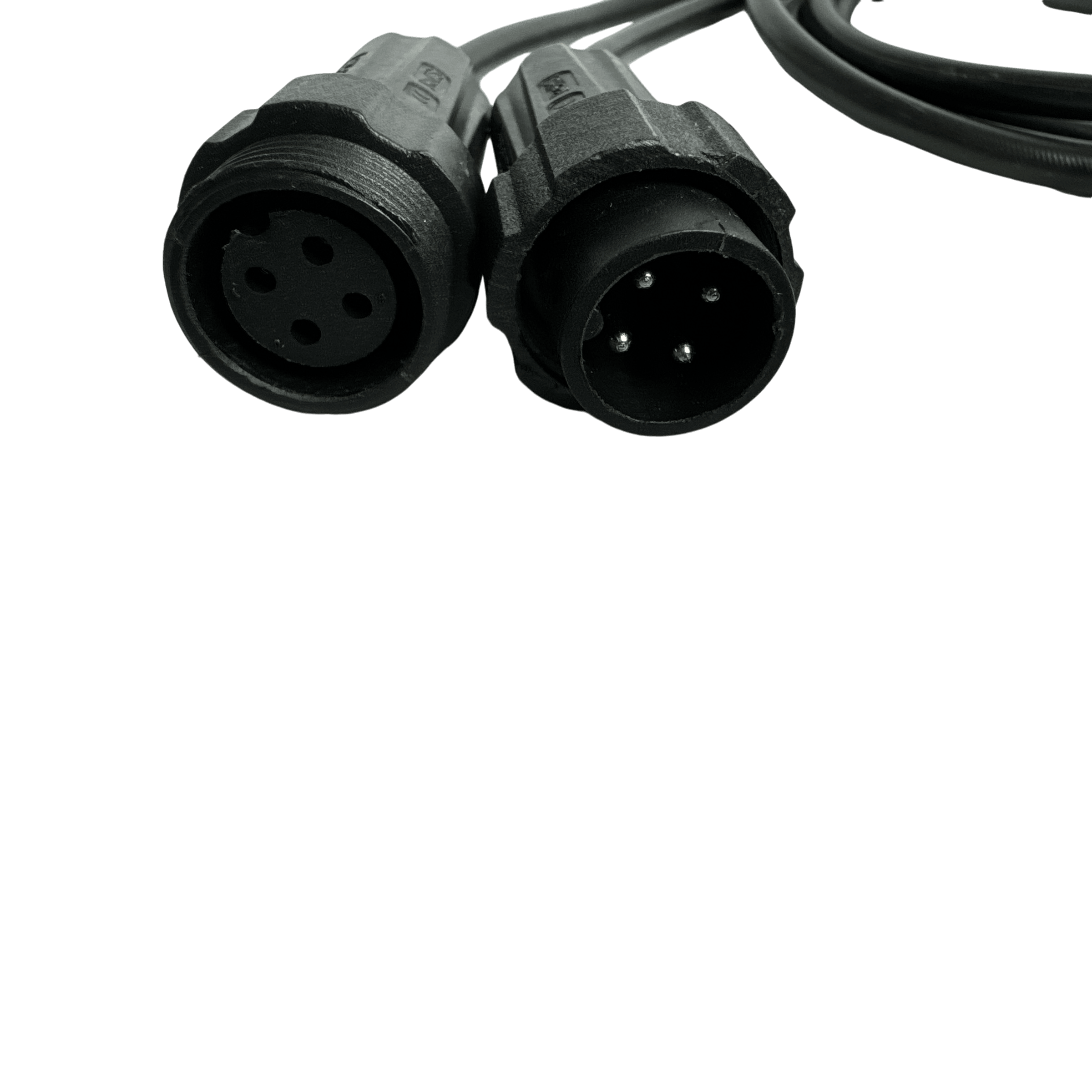

2 Function - KTI® Pump Wiring Harness PS002TS

Transmitter

Mini

Functions

Operating Voltage

12/24 Volts DC

Transmitter IP Rating

IP 67

Receiver IP Rating

IP 67

Operating Distance

150 ft. (45 m.)

Master Output

Yes

Max Amps

Transmitter Batteries

AAA x 2

Special Features

Dump Trailer Wiring Harness (Compatible with KTI® pumps.)

Channel

Wide Band, Fixed

Frequency

433 MHz

Type

Full System

Operating Temperature Range

-22ºF to 149ºF (-30ºC to 65ºC)

Wiring Included

12 in. Wired Control Lead / 42 in. Battery Lead / 60 in. Pump Lead

Switch Type

Silicone Rubber Keypad with Carbon Pill

2F Wireless Remote TransmitterSKU: PS002T

$103.00

PS002TS - Wiring Instructions Instructions

Great device. Easy to pair great customer service also. Thanks

Thank you for letting us know! We will share with the team. :)

Nothing but QUALITY parts. It works great every time

Great to hear! 😃

Kit Complete and fast shipping

I purchased as a replacement remote and worked as good as the first one. However, the old and new have a good range of about 35'. When I stand at the end of the trailer 40' away, it has a problem staying connected while going up or down. The connection gets interrupted and it skips until I walk closer to the receiver.

Thank you for your review! The 35' range limit you are experiencing indicates something isn't working as it should. There are several things that can cause this and I'll list out here the most common causes in descending order.

- The biggest factor can be the mounting placement of the receiver itself. If it is in a very thick toolbox or behind a bunch of power cables, etc, it is possible it is experiencing interference.
- The transmitter having low batteries can also be a common issue, but it sounds like you can rule that one out since this is the second transmitter.
- Cold weather can cause issues but it would need to be very cold to cut the range more than half like you are experiencing? Unless you are in Antartica this is probably not the case either.
- It could be that there is another device on the truck itself operating on the 418Mhz band? Rarely some other products will operate on the same licensed band but that is not common.

Hopefully these can help resolve what is happening, but if they don't, reach out to us. We can work on evaluating the complete system for any repair/replacement under warranty that might be needed.
