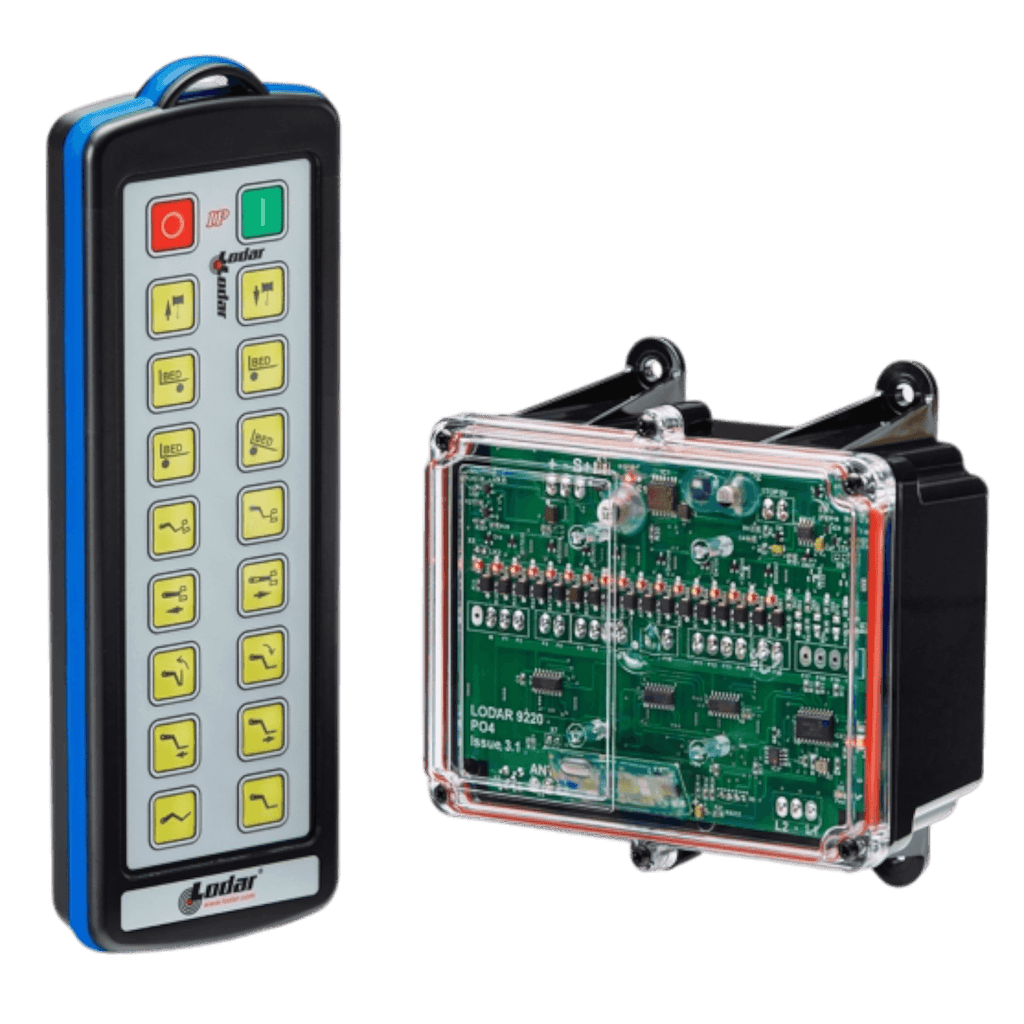

The 16 Function IP Wireless Control System, part of the 92 Series from Lodar LTD, includes a transmitter with 16 functionalities. This device has buttons positioned alongside a circuit board in a transparent casing, making it ideal for controlling solenoid operated equipment within an industrial wireless control system.

16 Function IP Wireless Control System | 92 Series | FET Receiver

$2,186.00
Skip to product information
The 16 Function IP Wireless Control System, part of the 92 Series from Lodar LTD, includes a transmitter with 16 functionalities. This device has buttons positioned alongside a circuit board in a transparent casing, making it ideal for controlling solenoid operated equipment within an industrial wireless control system.
1/2
  • The 16 Function IP Wireless Control System, part of the 92 Series from Lodar LTD, includes a transmitter with 16 functionalities. This device has buttons positioned alongside a circuit board in a transparent casing, making it ideal for controlling solenoid operated equipment within an industrial wireless control system.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • The 16 Function IP Wireless Control System, part of the 92 Series from Lodar LTD, includes a transmitter with 16 functionalities. This device has buttons positioned alongside a circuit board in a transparent casing, making it ideal for controlling solenoid operated equipment within an industrial wireless control system.
  • Pairing the 92 Series Lodar Remote & Transmitter
16 Function IP Wireless Control System | 92 Series | FET Receiver

16 Function IP Wireless Control System | 92 Series | FET Receiver

92216-8
$2,186.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select
F9 Click to select
F10 Click to select
F11 Click to select
F12 Click to select
F13 Click to select
F14 Click to select
F15 Click to select
F16 Click to select
In Stock

The 16 Function Lodar Industrial Wireless Control System is designed for larger hydraulic or electrical circuits. Featuring IP65-rated transmitter and receiver, it provides rugged wireless switching of solenoids, relays, or electric-over-hydraulic valves in demanding applications.

  • 16 functions of wireless control
  • Momentary output switching as default
  • Industrial handheld transmitter (IP65)
  • Receiver sealed to IP65
  • Supports solenoids, relays, or electric-over-hydraulic valves

Applications: Recovery rigs, municipal equipment, and industrial fleets requiring multiple function control.

For even larger systems, consider the 24-function Industrial system. For smaller jobs, see the 10-function version.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Specifications
Transmitter
Industrial Pro
Functions
16
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 65
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Channel
Wide Band, Fixed
Frequency
418 MHz
Wiring Included
None
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
16 Function Lodar Replacement IP Transmitter | 9000 Series
16 Function Lodar Replacement IP Transmitter | 9000 SeriesSKU: 92216TX-8
$553.00
16 Function 12/24 Volt Lodar Replacement Receiver | 92 Series
16 Function 12/24 Volt Lodar Replacement Receiver | 92 SeriesSKU: 9216RX-8
$1,634.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources
92216 - 16 Function with IP Transmitter Spec Sheet 92-93 Series - Wiring Instructions for 10, 16, 20 Function Receivers Wiring Diagram 92-93 Series - Instructions IP Transmitter Coding Instructions
92216 - 16 Function with IP Transmitter
Spec Sheet
92-93 Series - Wiring Instructions for 10, 16, 20 Function Receivers
Wiring Diagram
92-93 Series - Instructions IP Transmitter Coding
Instructions
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
