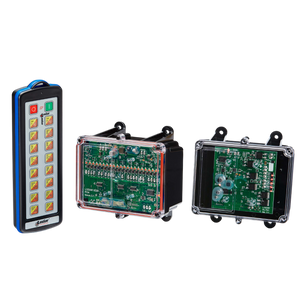

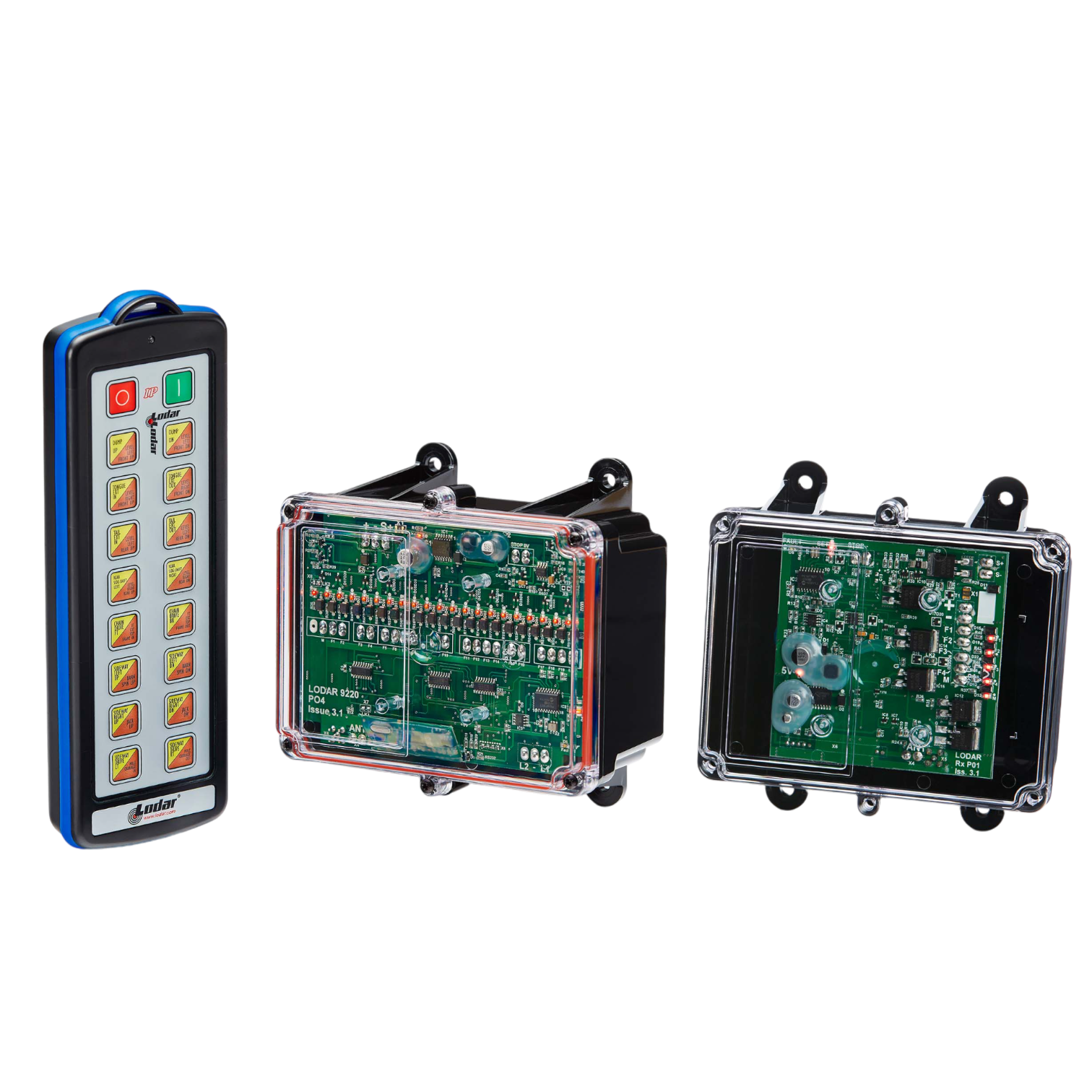

Against a sleek black backdrop rests a sophisticated 24 Function controller, accompanied by its remote control and two electronic circuit boards encased in transparent covers. This arrangement showcases the advanced capabilities of Lodar LTD's 92 Series IP SHIFT Wireless Control System, expertly incorporating cutting-edge firmware technology for precise operation.

24 Function IP SHIFT Wireless Control System | 92 Series | FET Receiver

Name: 24 Function IP SHIFT Wireless Control System | 92 Series | FET Receiver
Price: 3130.0 USD
Rating: 5 (1 reviews)

92324-8

$3,130.00

Quantity

Pre-order

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

24 Function IP SHIFT Wireless Control System | 92 Series | FET Receiver

'

Description

The 24 Function Lodar Industrial Wireless Control System uses SHIFT software to double output capacity. Each key operates on an A and B side, giving a total of 24 functions for switching solenoids, relays, or electric-over-hydraulic valves. With rugged IP65 protection, this system is built for demanding environments.

24 functions with SHIFT A/B programming
Each button controls two outputs depending on side selection
Default output behavior is momentary switching
Industrial transmitter (IP65) and sealed receiver (IP65)
Designed for solenoids, relays, or electric-over-hydraulic valves

Applications: Large wreckers, industrial hydraulics, and multi-function trucks requiring wireless switching of high-output circuits.

Need more functions? See the 30-function SHIFT system. For fewer outputs, check the 26-function version.

Included

1 x [92316TX-8] - 32 Function Lodar IP SHIFT Transmitter | 9000 Series

1 x [9220RX-8] - 20 Function 12/24V Lodar FET Receiver | 92 Series

1 x [9204RX-8] - 4 Function Lodar FET Receiver | 92 Series

1 x Instructions

1 x Lanyard

Specifications

Specification	Details
CHANNEL	Wide Band, Fixed
FREQUENCY	418 MHz
FUNCTIONS	24
MASTER OUTPUT	Yes
MAX AMPS	15
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 65
SERIES	9000 Series
SPECIAL FEATURES	Shift Transmitter
TRANSMITTER	Industrial Pro SHIFT
TRANSMITTER BATTERIES	AAA x 4
WIRING INCLUDED	None

Resources

92324 - 24 Function and IP TRansmitter with Shift

Spec Sheet

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
