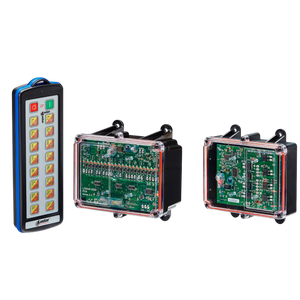

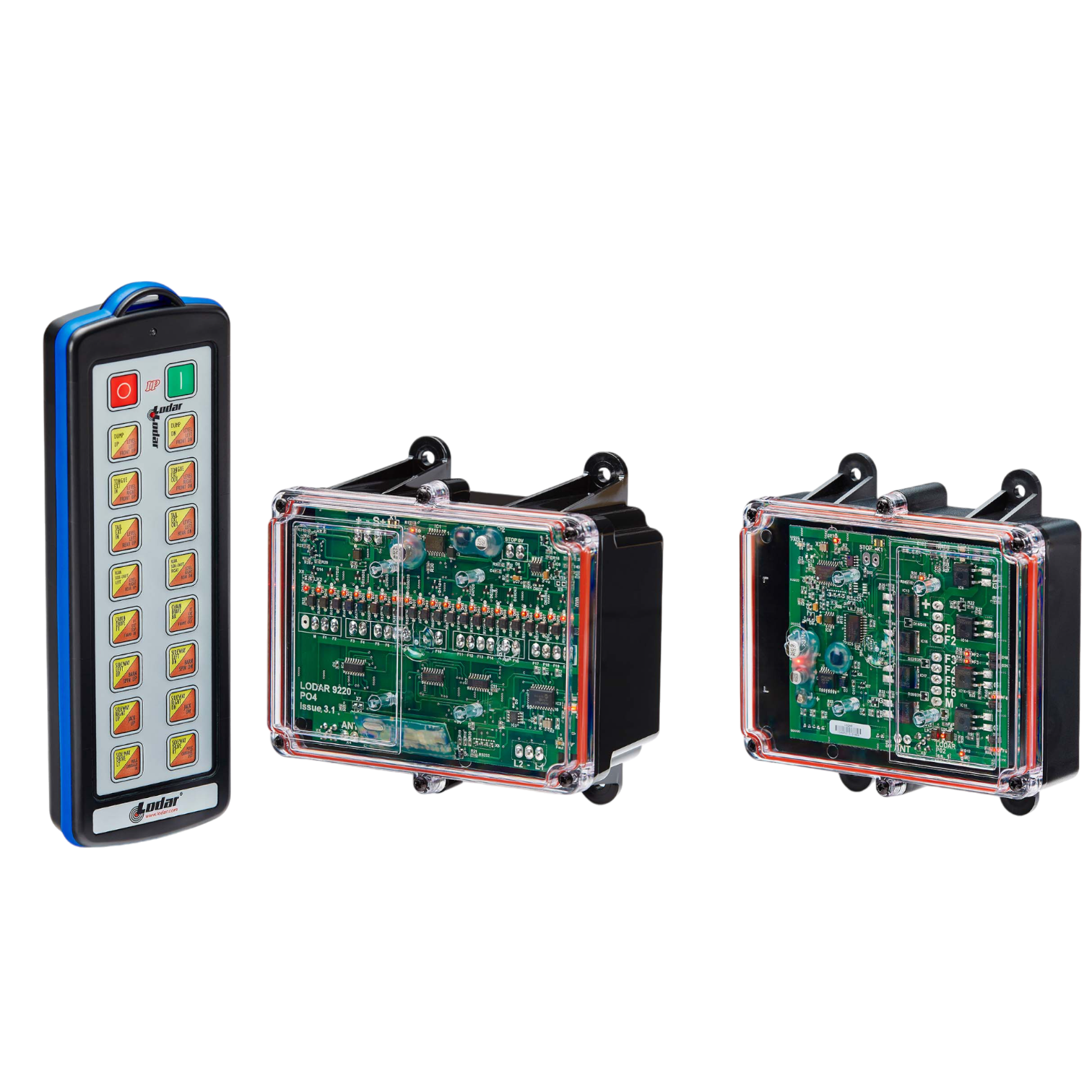

A 26 Function IP SHIFT Wireless Control System featuring a Lodar LTD controller with 16 buttons and two electronic circuit boards in transparent cases lies on a black background, highlighting the efficiency of the Lodar LTD system.

26 Function IP SHIFT Wireless Control System | 92 Series | FET Receiver

Name: 26 Function IP SHIFT Wireless Control System | 92 Series | FET Receiver
Price: 3293.0 USD
Rating: 5 (1 reviews)

92326-8

$3,293.00

Quantity

Pre-order

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

26 Function IP SHIFT Wireless Control System | 92 Series | FET Receiver

'

Description

The 26 Function Lodar Industrial Wireless Control System offers powerful wireless switching for complex electrical or hydraulic setups. SHIFT software assigns each key an A and B side, providing 26 functions in total. Built with IP65-rated components, it reliably drives solenoids, relays, or electric-over-hydraulic valves in harsh-duty applications.

26 functions = 13 buttons with SHIFT A/B operation
Momentary output switching by default
Industrial transmitter (IP65)
Sealed receiver (IP65)
Compatible with solenoids, relays, or electric-over-hydraulic valves

Applications: Complex recovery trucks, specialty hydraulics, and industrial fleets needing high-output wireless control.

For maximum outputs, see the 30-function SHIFT system. For fewer, check the 24-function version.

Included

1 x [92316TX-8] - 32 Function Lodar IP SHIFT Transmitter | 9000 Series

1 x [9220RX-8] - 20 Function 12/24V Lodar FET Receiver | 92 Series

1 x Instructions

1 x Lanyard

1 x 9210RX

Specifications

Specification	Details
CHANNEL	Wide Band, Fixed
FREQUENCY	418 MHz
FUNCTIONS	26
MASTER OUTPUT	Yes
MAX AMPS	15
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 65
SERIES	9000 Series
SPECIAL FEATURES	Shift Transmitter
TRANSMITTER	Industrial Pro SHIFT
TRANSMITTER BATTERIES	AAA x 4
WIRING INCLUDED	None

Resources

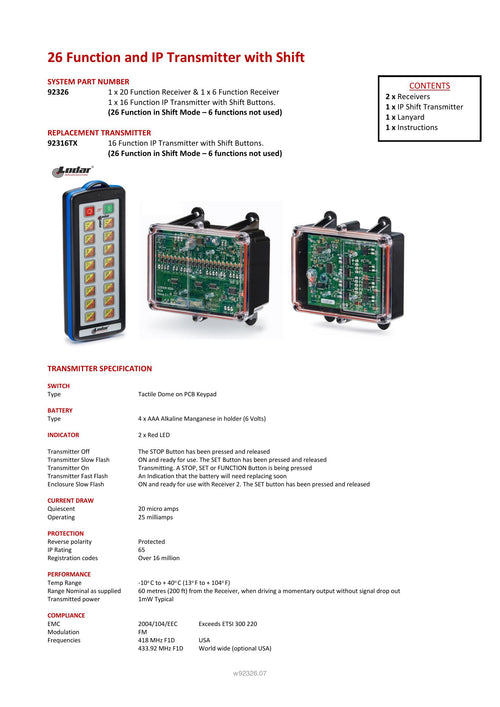

92326 - 26 Function and IP Transmitter with Shift

Spec Sheet

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
