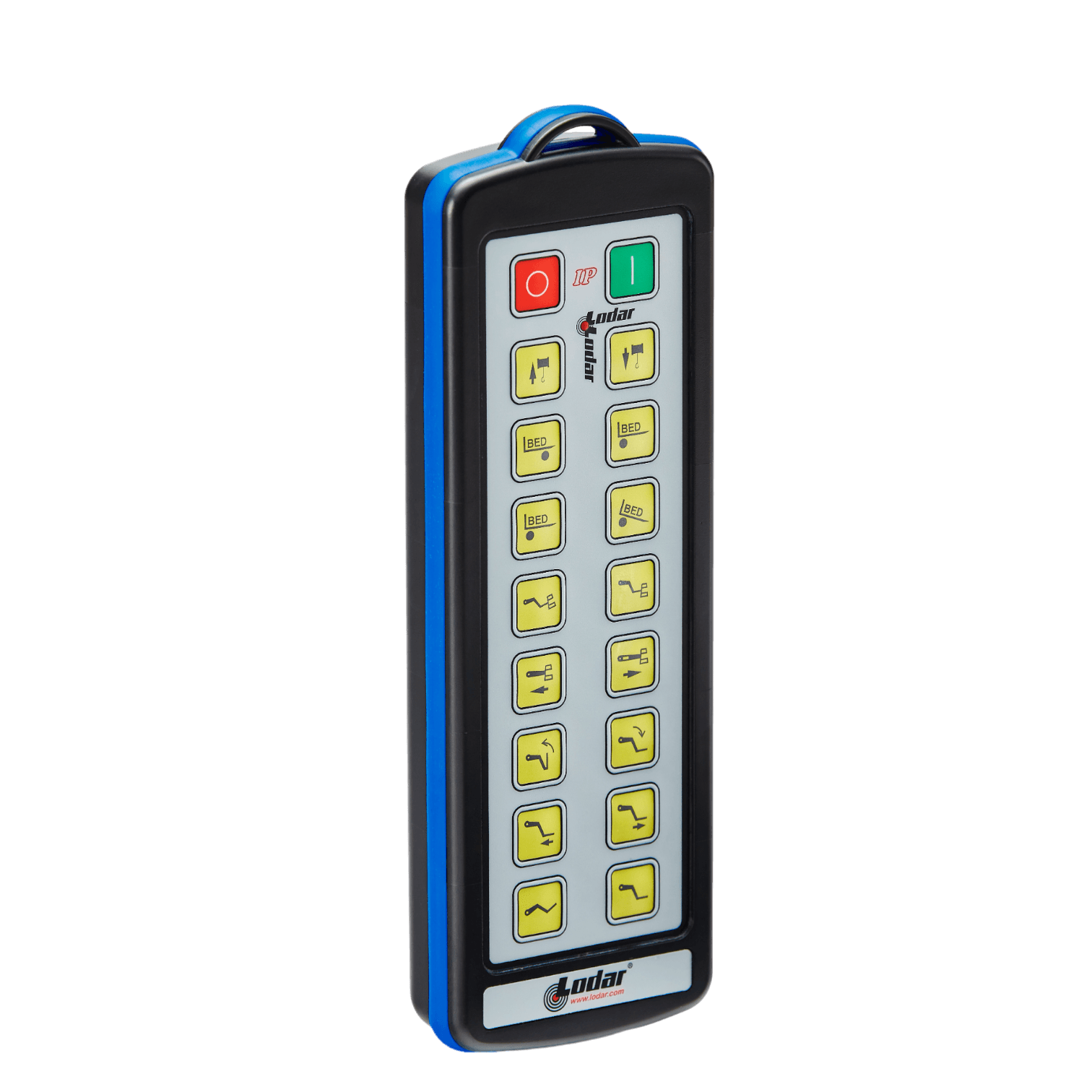

The 16 Function Lodar Replacement IP Transmitter from the 9000 Series by Lodar LTD features blue edges and multiple yellow buttons, as well as a distinctive red and green button at the top. It is a reliable backup transmitter with versatile 16-function capabilities.
Pairing the 92 Series Lodar Remote & Transmitter

16 Function Lodar IP Transmitter | 9 Series

92216TX-8

(2)
$553.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select
F9 Click to select
F10 Click to select
F11 Click to select
F12 Click to select
F13 Click to select
F14 Click to select
F15 Click to select
F16 Click to select

In Stock

Replacement transmitter for an existing Lodar 9 Series wireless system — a transmitter is the handheld unit and is not a standalone product. It pairs with a matching receiver on the same series and function count.

The 16 Function Lodar IP Transmitter (92216TX-8) is the Industrial Pro (IP) handheld for a Lodar 9 Series system, sending 16 functions of control to the receiver on your equipment. It has a tactile dome PCB keypad with label pockets, carries an IP 65 rating, runs on 4× AAA batteries, and reaches a 200 ft (61 m) operating range.

Will this transmitter work with my receiver?

Match three things: the series (9 Series), the function count (16), and the receiver it was coded to. Transmitters and receivers are paired on the same RF band, so replace a 9 Series transmitter with a 9 Series transmitter. If you are replacing a lost or damaged handset, confirm the receiver model before ordering.

  • 16 functions of control
  • IP transmitter — tactile dome PCB keypad with label pockets
  • IP 65 rated, operates 13°F to 104°F (-10°C to 40°C)
  • Powered by 4× AAA batteries
  • 200 ft (61 m) operating range
  • Lodar SKU 92216TX-8

Match the trailing code. Lodar 9 Series transmitters and receivers carry a trailing match number. Check the unit you are replacing: no number means -8, the most common code we carry, and some systems use -3. If your existing system or part is coded anything other than -8, contact us so we send the correct unit.

This is a replacement part — it goes on the 16-function 9 Series wireless system. See the complete 16 Function IP Wireless Control System or 16 Function IP Wireless Actuator Control System or 16 Function Direct Mount Wireless Air System – Miller (Gresen Valves). Pair it with the matching 16 Function receiver on the same system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.
What's Included

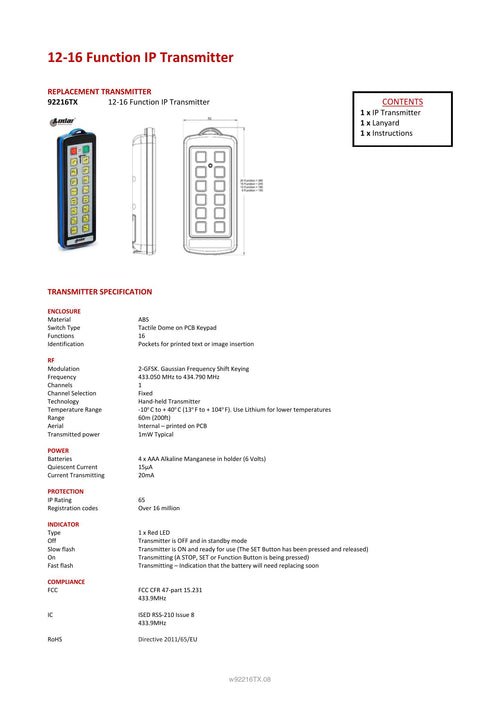

Specifications
Transmitter
Industrial Pro
Functions
16
Transmitter IP Rating
IP 65
Operating Distance
200 ft. (61 m.)
Series
9000 Series
Transmitter Batteries
AAA x 4
Type
Transmitter Only
Operating Temperature Range
13ºF - 104ºF (-10ºC to 40ªC)
Switch Type
Tactile Dome on PCB Keypad (Pockets for Text or Image Insertion)
Warranty
Videos (1)

Pairing the 92 Series Lodar Remote & Transmitter

Resources
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
