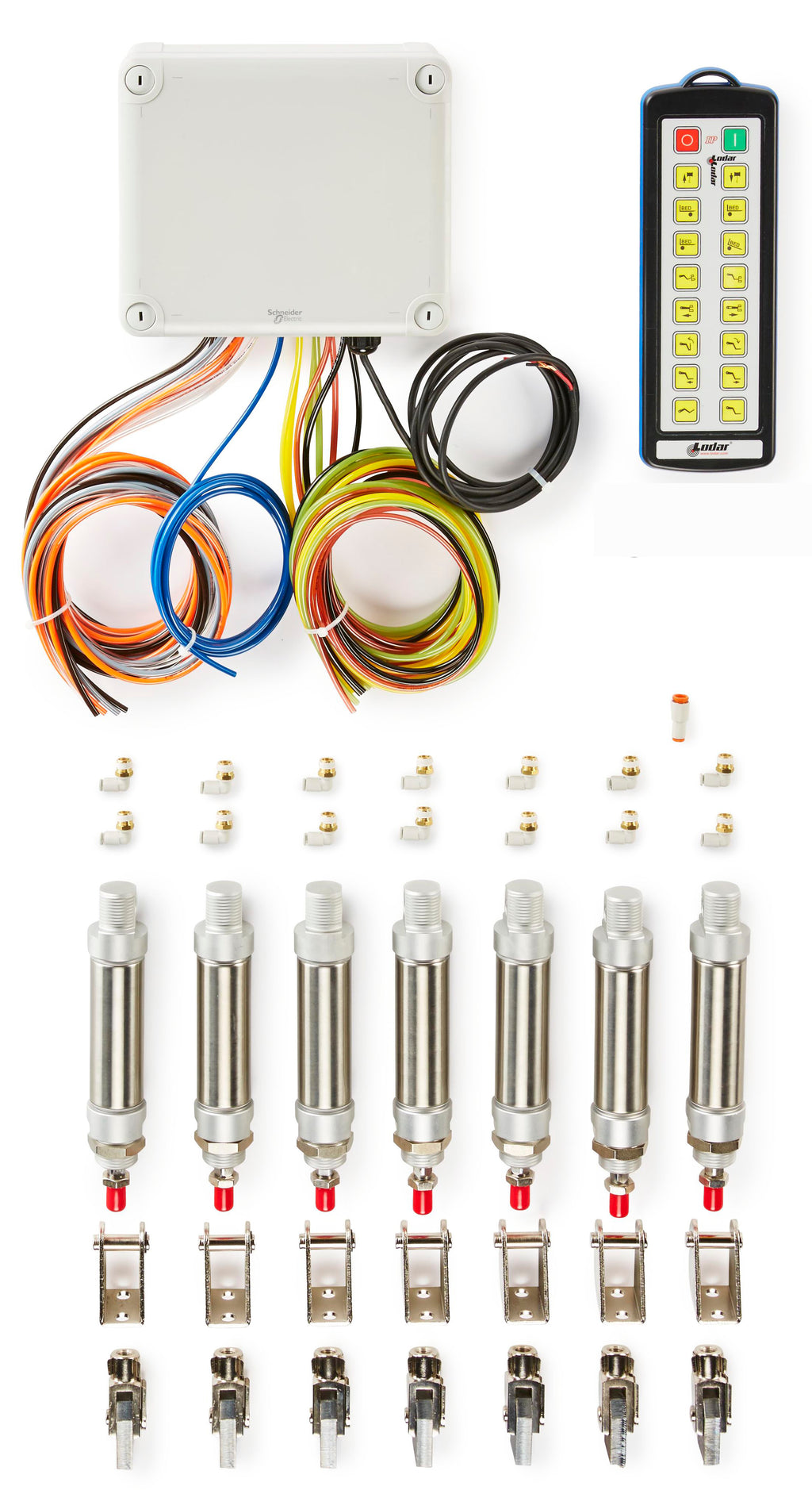

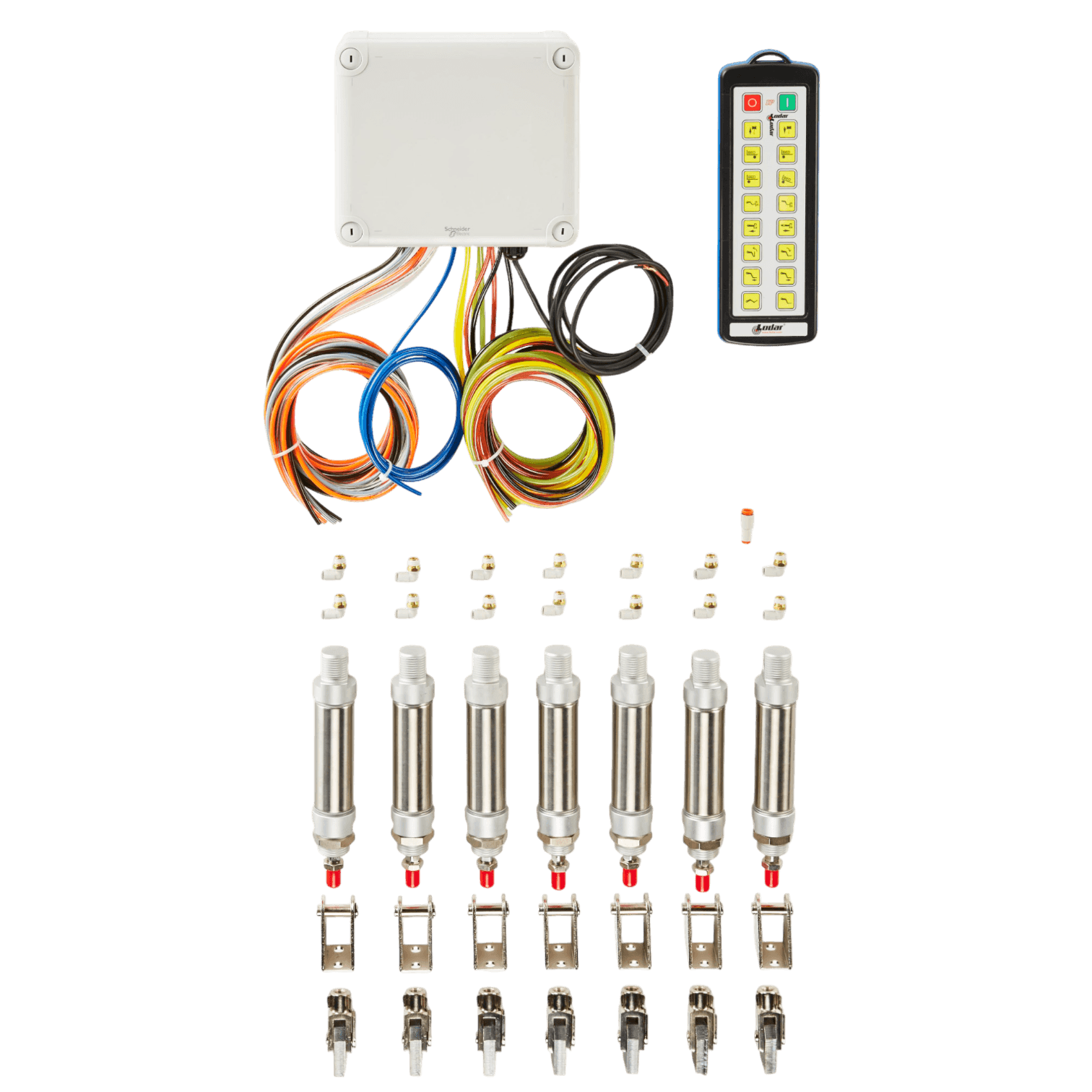

Lodar Service 16 Function IP Wireless Actuator Control System (92 Series, FET Air Receiver) includes wires, remote, sensors, and connectors—ideal for pneumatic actuators and compatible with Lodar wireless systems.

16 Function Lodar Standard Wireless Air System | 9 Series FET

$4,724.00
Skip to product information
Lodar Service 16 Function IP Wireless Actuator Control System (92 Series, FET Air Receiver) includes wires, remote, sensors, and connectors—ideal for pneumatic actuators and compatible with Lodar wireless systems.
1/2
  • Lodar Service 16 Function IP Wireless Actuator Control System (92 Series, FET Air Receiver) includes wires, remote, sensors, and connectors—ideal for pneumatic actuators and compatible with Lodar wireless systems.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • Lodar Service 16 Function IP Wireless Actuator Control System (92 Series, FET Air Receiver) includes wires, remote, sensors, and connectors—ideal for pneumatic actuators and compatible with Lodar wireless systems.
  • Pairing the 92 Series Lodar Remote & Transmitter
16 Function Lodar Standard Wireless Air System | 9 Series FET

16 Function Lodar Standard Wireless Air System | 9 Series FET

92266-8
$4,724.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select
F9 Click to select
F10 Click to select
F11 Click to select
F12 Click to select
F13 Click to select
F14 Click to select
F15 Click to select
F16 Click to select
In Stock

Complete wireless air actuator control system - includes the Standard handheld transmitter and a receiver with the pneumatic solenoid valves built into the box, coded together and ready to wire to your equipment. Operates 16 functions on the Lodar 9 Series.

The 16 Function Lodar Standard Wireless Air System (92266-8) gives you 16-function wireless control with a 150 ft (45 m) range on the 418 MHz band. Compressed air is plumbed into the receiver box; the solenoid valves inside switch it to the output ports to drive your air cylinders directly - there is no separate external valve bank. Actuators are included. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

Check your valve linkage before ordering. The actuators bolt onto the solid control rods your valve levers connect to, so you need clearance to mount them. A system with actuators included works only with solid "bang-bang" valve rods - not with valves operated by flexible cables or cords. If your valves are cable-operated, contact us.

Air supply. The air cylinders run on 21-120 psi (135 psi maximum); 80-100 psi is the ideal operating range. Plumb the system into a regulated air supply in that range.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 16 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 10 A per output. Choose it when your functions draw more than the 5 A a relay receiver handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 16 functions of wireless control
  • 16 functions = 8 double-acting valves, two directions each
  • Standard transmitter - IP 54 rated
  • Air receiver - pneumatic solenoid valves built in, IP 65 rated
  • Air actuators included
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range, 418 MHz band
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 92266-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 16-function Lodar system? Compare the 16 Function Lodar IP Wireless System or 16 Function Lodar Direct-Mount Air System. Replacement handsets and receivers are sold separately.

Common uses: Large recovery rigs, heavy ag machinery, and industrial service trucks.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Replacement Parts (3)
16 Function Lodar IP Transmitter | 9 Series
16 Function Lodar IP Transmitter | 9 SeriesSKU: 92216TX-8
$553.00
Lodar Replacement Air Actuator
Lodar Replacement Air ActuatorSKU: AC9920
$132.00
Lodar Replacement Air Valve
Lodar Replacement Air ValveSKU: AC9918
$228.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
