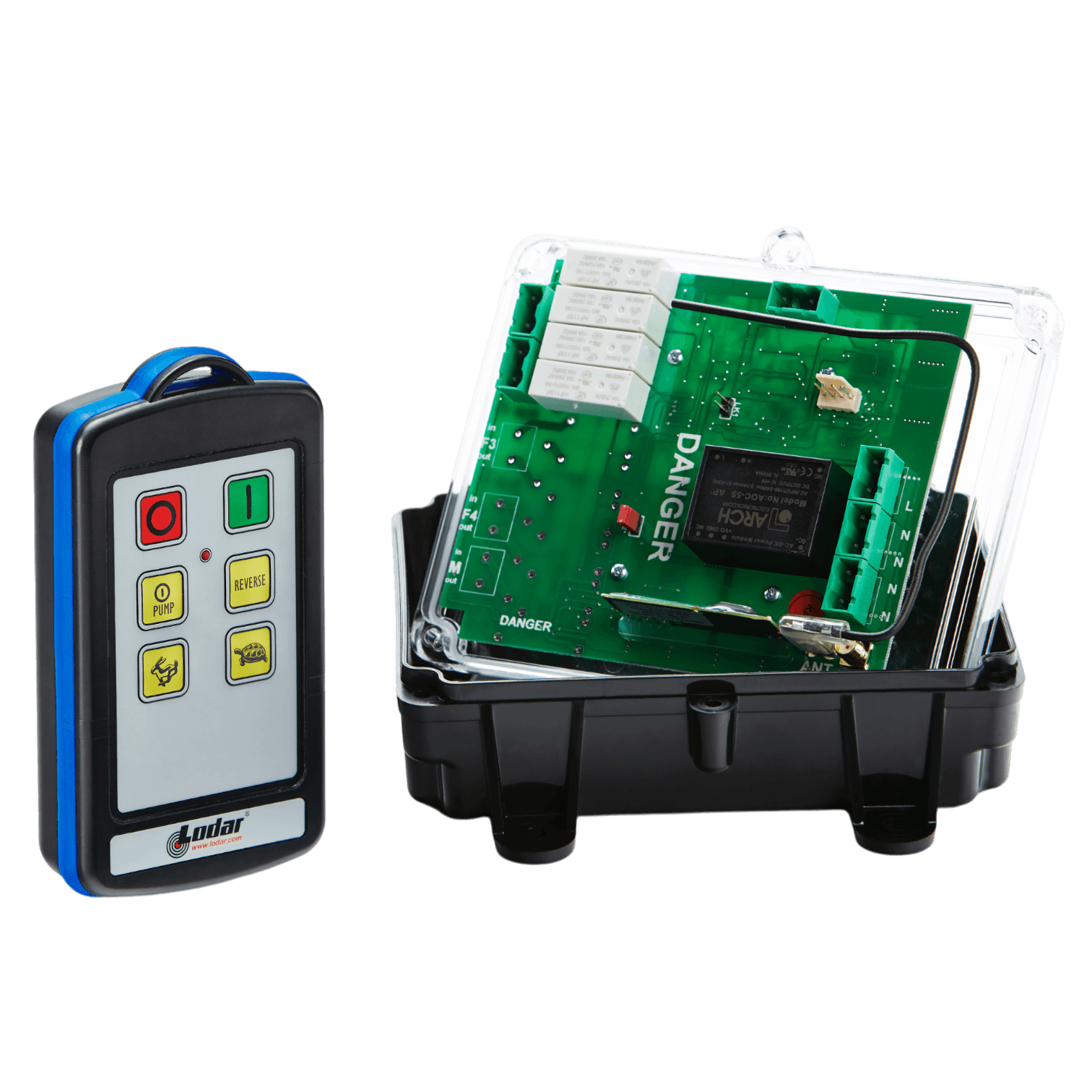

A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring the Relay Receiver from the 96 Series with a remote control, showcases an open electronic circuit board with green components on a black base, all set against a white background.

2 Function 110V IP Wireless Control System | 96 Series | Relay Receiver | No Master Output

$744.00
Skip to product information
A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring the Relay Receiver from the 96 Series with a remote control, showcases an open electronic circuit board with green components on a black base, all set against a white background.
  • A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring the Relay Receiver from the 96 Series with a remote control, showcases an open electronic circuit board with green components on a black base, all set against a white background.
  • A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring the Relay Receiver from the 96 Series with a remote control, showcases an open electronic circuit board with green components on a black base, all set against a white background.
2 Function 110V IP Wireless Control System | 96 Series | Relay Receiver | No Master Output

2 Function 110V IP Wireless Control System | 96 Series | Relay Receiver | No Master Output

96200-8
$744.00
Out of Stock

This professional, industrial-grade 2-function 110V Wireless IP 67 Transmitter System includes a powerful AC Relay Receiver, mini transmitter, lanyard, and instructions for easy use. With an IP rating of 65, it provides reliable operation even in harsh environments and can transmit signals up to 150 ft. (45 m.) with a fixed wide band frequency of 418 MHz. Perfect for the 9000 Series, it has a maximum amp capacity of 10 and operates in temperatures ranging from 13ºF - 104ºF (-10ºC to 40ªC).  Note: This system must be installed by a certified electrician.
Electrician Required icon

Electrician Required

A certified electrician is required to install this product. Do not attempt to install without the proper certifications and training. Severe injury or death can result when working with 110V AC Power.

Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Lodar 2 Function 110V System Options:

The 110V Lodar 2 Function Systems configurations are determined by the controller handheld type and whether or not a master output is required.
A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring the Relay Receiver from the 96 Series with a remote control, showcases an open electronic circuit board with green components on a black base, all set against a white background.
IP Transmitter | No Master Output 96200-8
A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring a remote control with buttons and an open electronic circuit board encased in a black casing with a clear cover, operates as part of a secure wireless transmitter system.
IP Transmitter | Master Output 96202-8
+$72.00
The Lodar LTD 2 Function 110V Mini Wireless Control System from the 96 Series, featuring a Relay Receiver without Master Output, includes a clear protective case housing an electronic circuit board labeled as DANGER. The system is paired with a Wireless Mini Transmitter on a lanyard, offering an impressive operating distance of up to 150 feet and boasting an IP67 rating for safety and reliability in challenging environments.
Mini Transmitter | No Master Output 96000-8
-($224.00)
The 2 Function 110V Mini Wireless Control System from Lodar LTD, part of the 96 Series with a relay receiver, features a transparent casing to house a circuit board and includes a remote control with buttons and lanyard, offering seamless remote control functionality through its wireless mini transmitter capabilities.
Mini Transmitter | Master Output 96002-8
-($151.00)
Introducing the Lodar LTD 2 Function 110V Standard Wireless Control System, part of the 96 Series. This relay receiver includes a remote control and features a "danger" labeled circuit board housed within a transparent cover.
Standard Transmitter | No Master Output 96100-8
-($140.00)
Introducing the 2 Function 110V Standard Wireless Control System by Lodar LTD, featuring a transparent circuit board case with visible green components, capable of handling up to 10 amps.
Standard Transmitter | Master Output 96102-8
-($196.00)
What's Included

1 x AC Relay Receiver, 1 x Mini Transmitter, 1 x Lanyard, 1 x Instructions

Specifications
Transmitter
Industrial Pro
Functions
2
Operating Voltage
110 Volts AC
Included
1 x AC Relay Receiver, 1 x Mini Transmitter, 1 x Lanyard, 1 x Instructions
Transmitter IP Rating
IP 65
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
No
Max Amps
10
Series
9000 Series
Transmitter Batteries
AAA x 4
Channel
Wide Band, Fixed
Frequency
418 MHz
Type
Full System
Operating Temperature Range
13ºF - 104ºF (-10ºC to 40ªC)
Wiring Included
None
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
2 Function Lodar Replacement IP Transmitter | 9000 Series
2 Function Lodar Replacement IP Transmitter | 9000 SeriesSKU: 92202TX-8
$387.00
2 Function 110V Replacement Relay Receiver | 96 Series | No Master Output
2 Function 110V Replacement Relay Receiver | 96 Series | No Master OutputSKU: 9600RX-8
$350.00
Resources

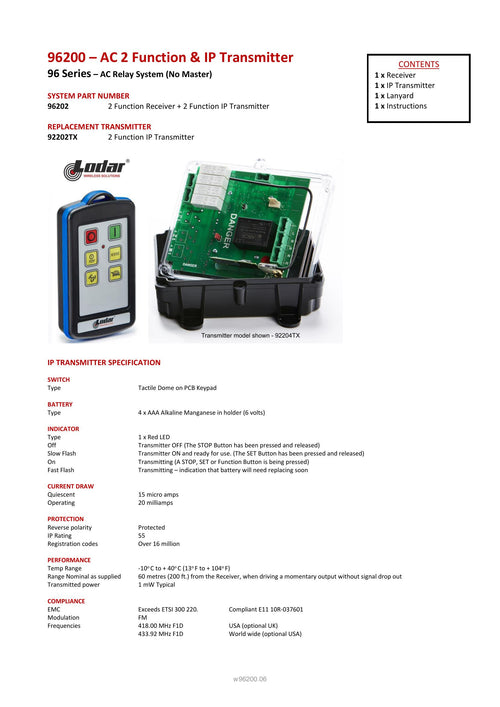

96200 Spec Sheet Spec Sheet
96200 Spec Sheet
Spec Sheet
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
