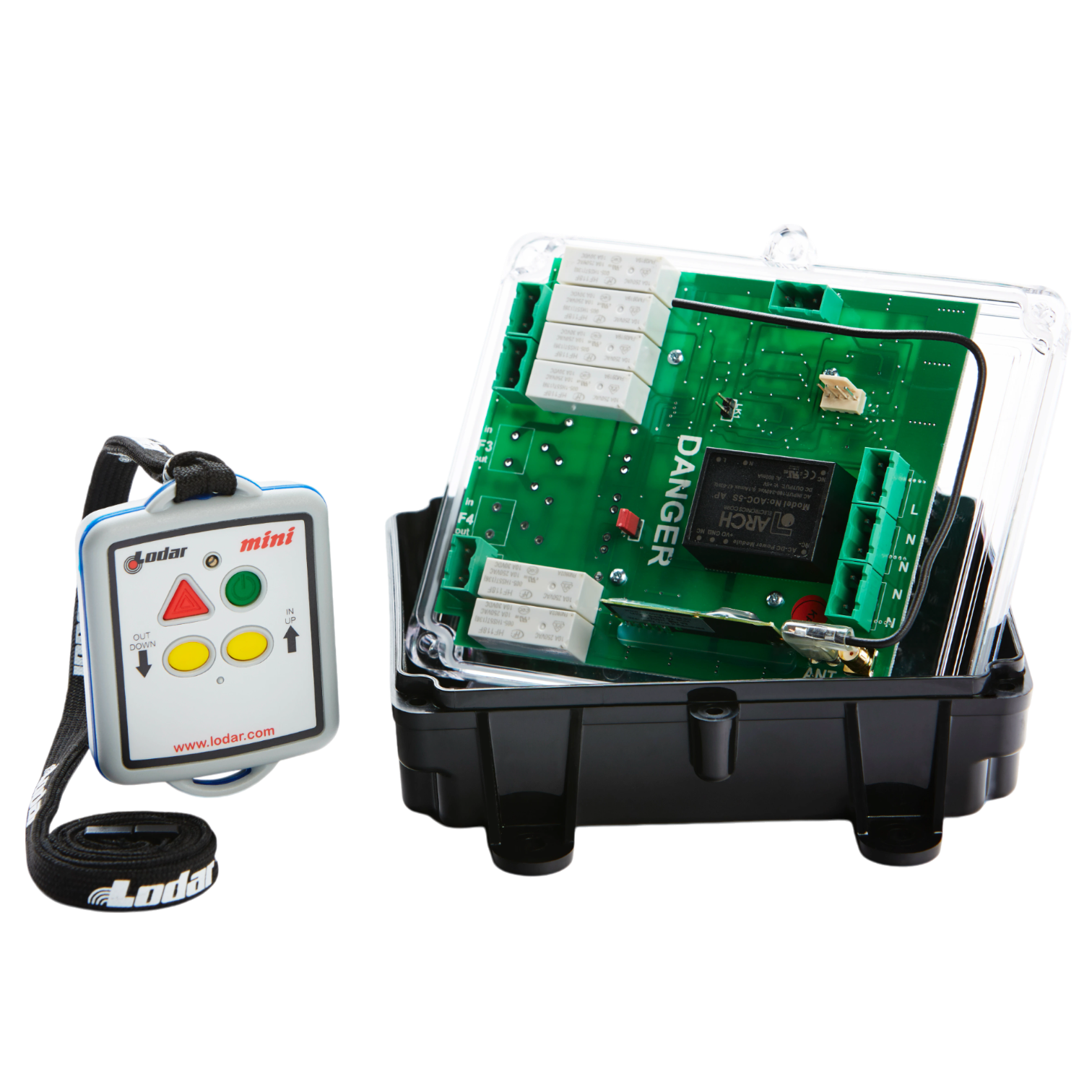

The 2 Function 110V Mini Wireless Control System from Lodar LTD, part of the 96 Series with a relay receiver, features a transparent casing to house a circuit board and includes a remote control with buttons and lanyard, offering seamless remote control functionality through its wireless mini transmitter capabilities.

2 Function Lodar Mini Wireless System | 9 Series 110V

96002-8

$593.00

Out of Stock

Complete plug-and-play wireless control system - includes the Mini handheld transmitter and the 110V receiver, coded together at the factory and ready to wire to your equipment. Operates 2 functions on the Lodar 9 Series.

The 2 Function Lodar Mini Wireless System (96002-8) gives you 2-function wireless control with a 150 ft (45 m) range. Mechanical-relay output switching, 10 A per output, 110/220V AC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 2 here - and confirm your power supply: this system runs on 110/220V AC. The mechanical relay receiver runs off 110/220V AC mains rather than a 12V battery, rated to 10 A per output. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 2 functions of wireless control
  • Mini transmitter - IP 67 rated
  • 110V receiver - mechanical relays, 10 A per output, 110/220V AC (90-264 VAC), IP 67 rated
  • 110/220V AC operating voltage
  • 150 ft (45 m) operating range
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 96002-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

⚠️ 110V installation requires a certified electrician. Confirm circuit amperage, grounding, and overcurrent protection before energizing.

Want a different form of the same 2-function Lodar system? Compare the 2 Function Lodar IP Wireless System or 2 Function Lodar Stainless IP Wireless System. Replacement handsets and receivers are sold separately.

Electrician Required

A certified electrician is required to install this product. Do not attempt to install without the proper certifications and training. Severe injury or death can result when working with 110V AC Power.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Lodar 2 Function 110V System Options:

The 110V Lodar 2 Function Systems configurations are determined by the controller handheld type and whether or not a master output is required.

A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring the Relay Receiver from the 96 Series with a remote control, showcases an open electronic circuit board with green components on a black base, all set against a white background.
IP Transmitter | No Master Output96200-8+$151.00
A 2 Function 110V IP Wireless Control System by Lodar LTD, featuring a remote control with buttons and an open electronic circuit board encased in a black casing with a clear cover, operates as part of a secure wireless transmitter system.
IP Transmitter | Master Output96202-8+$223.00
The Lodar LTD 2 Function 110V Mini Wireless Control System from the 96 Series, featuring a Relay Receiver without Master Output, includes a clear protective case housing an electronic circuit board labeled as DANGER. The system is paired with a Wireless Mini Transmitter on a lanyard, offering an impressive operating distance of up to 150 feet and boasting an IP67 rating for safety and reliability in challenging environments.
Mini Transmitter | No Master Output96000-8-($73.00)

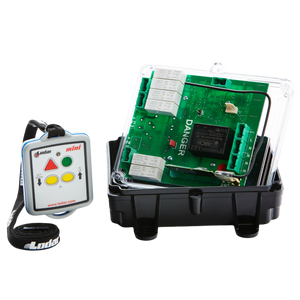

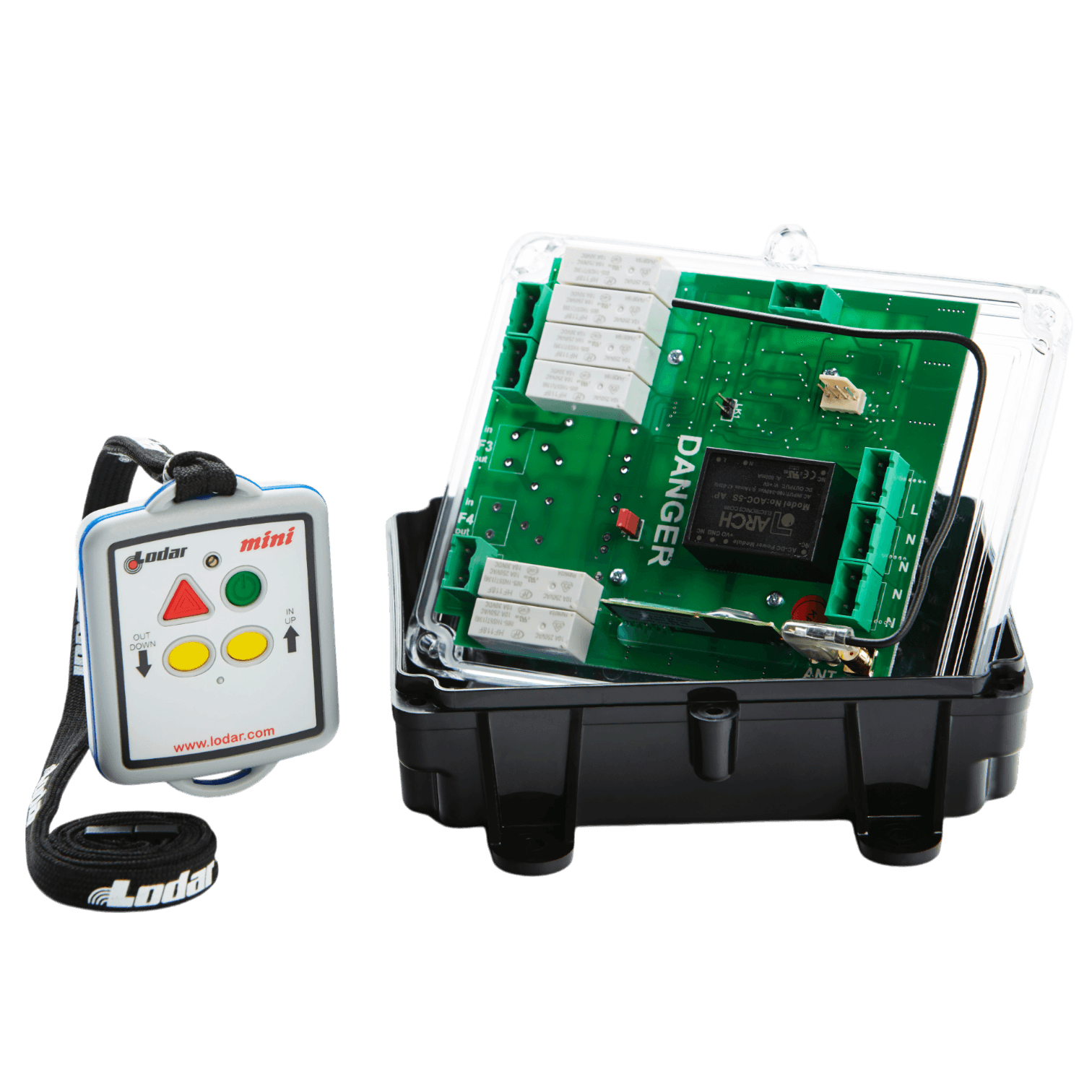

The 2 Function 110V Mini Wireless Control System from Lodar LTD, part of the 96 Series with a relay receiver, features a transparent casing to house a circuit board and includes a remote control with buttons and lanyard, offering seamless remote control functionality through its wireless mini transmitter capabilities.
Mini Transmitter | Master Output96002-8
Introducing the Lodar LTD 2 Function 110V Standard Wireless Control System, part of the 96 Series. This relay receiver includes a remote control and features a "danger" labeled circuit board housed within a transparent cover.
Standard Transmitter | No Master Output96100-8+$11.00
Introducing the 2 Function 110V Standard Wireless Control System by Lodar LTD, featuring a transparent circuit board case with visible green components, capable of handling up to 10 amps.
Standard Transmitter | Master Output96102-8-($45.00)
What's Included

1 x AC Relay Receiver, 1 x Mini Transmitter, 1 x Lanyard, 1 x Instructions

Specifications
Transmitter
Mini
Functions
2
Operating Voltage
110 Volts AC
Transmitter IP Rating
IP 67
Receiver IP Rating
IP 67
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
10
Series
9000 Series
Transmitter Batteries
AAA x 2
Channel
Wide Band, Fixed
Frequency
418 MHz
Type
Full System
Operating Temperature Range
13ºF - 104ºF (-10ºC to 40ªC)
Wiring Included
None
Switch Type
Silicone Rubber Keypad with Carbon Pill
Warranty
Replacement Parts (2)
Resources
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
