The PIERCE 110V Electric Winch features a worm-gear design, 7,500 lb capacity, 11" drum, and black/silver finish on a durable metal base.

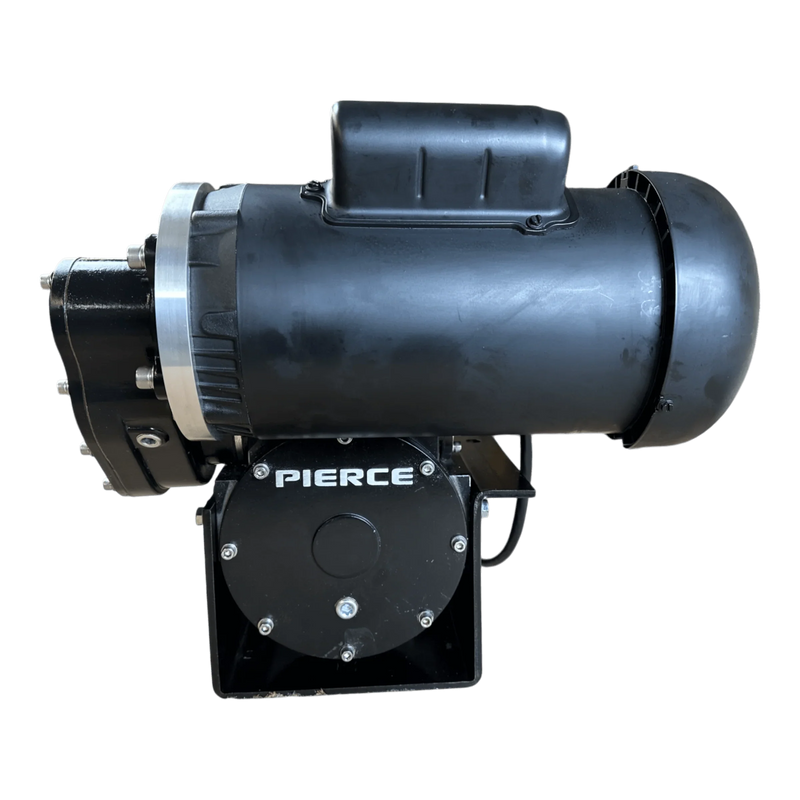

The PIERCE 110V Electric Winch – 7,500 lb, 11" Drum is a black industrial winch with cylindrical and box components on a white background, ideal for heavy-duty tasks.

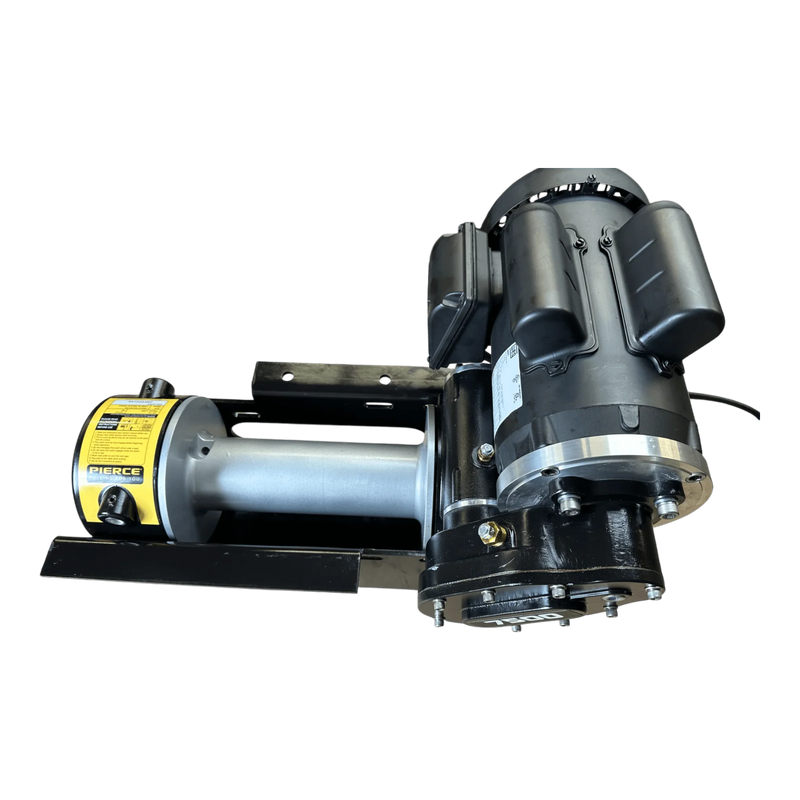

The PIERCE 110V Electric Winch – 7,500 lb, 11" Drum by PIERCE features a black and silver design with a yellow label, metal frame, and efficient worm-gear mechanism for industrial use.

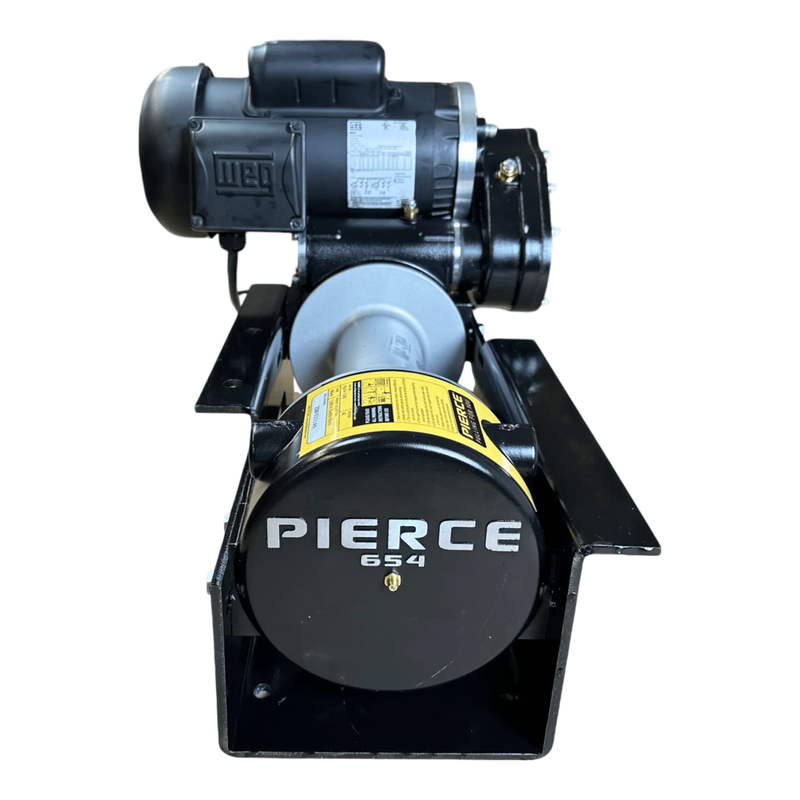

Black PIERCE 110V Electric Winch with “PIERCE 654” label on the front, viewed from the end; features a powerful motor and an 11" drum with a 7,500 lb pulling capacity.

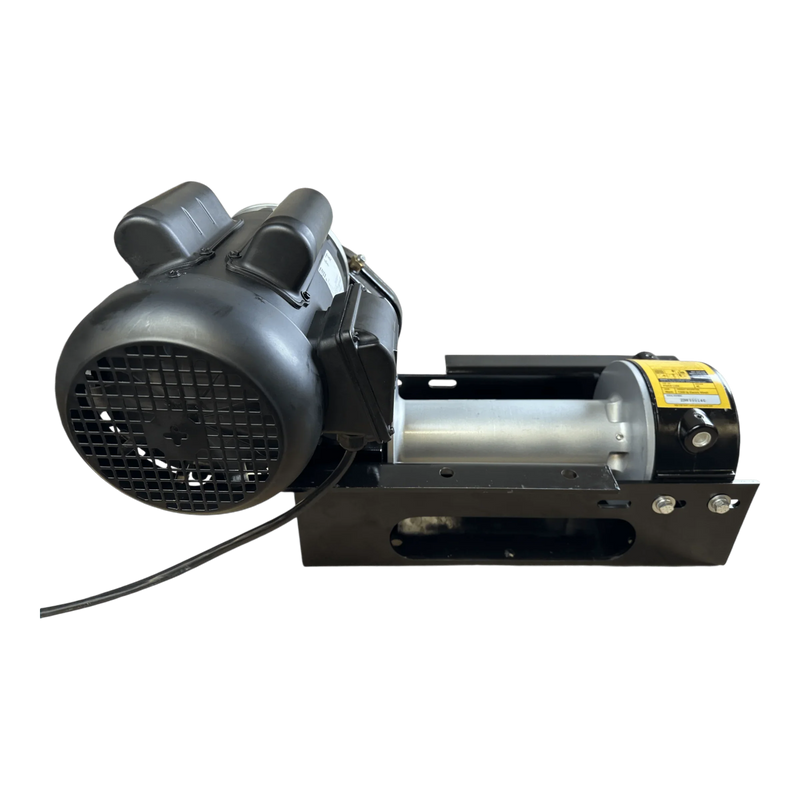

The PIERCE 110V Electric Winch – 7,500 lb, 11" Drum by PIERCE features a black and silver design with a sturdy worm-gear mechanism on a black mounting base, shown from the side.

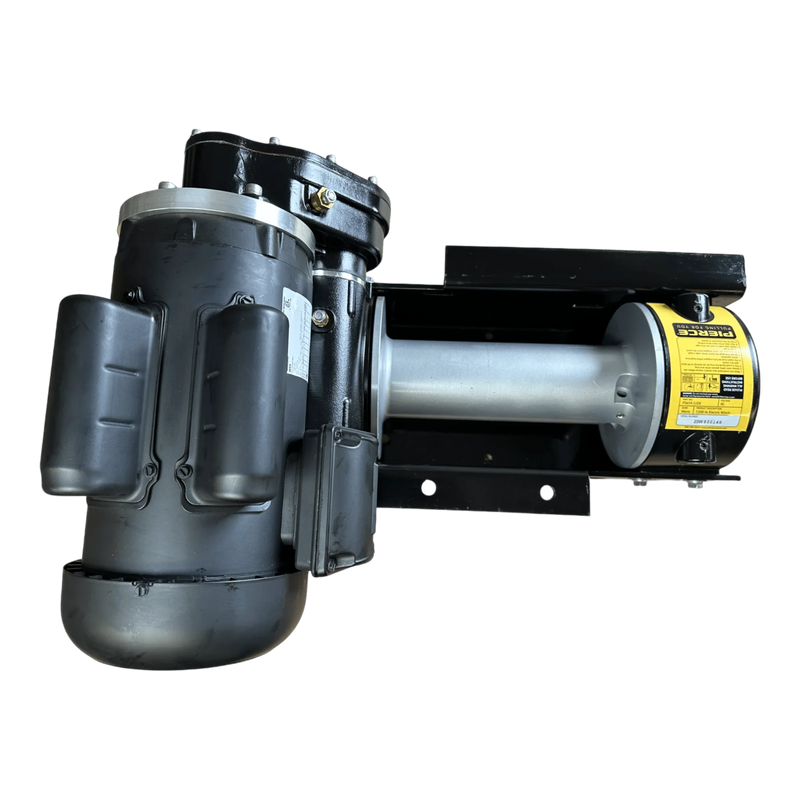

PIERCE 110V Electric Winch – 7,500 lb, 11" Drum by PIERCE with a black and silver worm-gear design, mounted on a black metal base.
7,500 lb 110V Worm Gear Winch | 11 in Drum
7,500 lb 110V Worm Gear Winch | 11 in Drum

7,500 lb 110V Worm Gear Winch | 11 in Drum

PS654-11EK

$1,803.00

Built to Order

Allow 2 business days for processing before shipment.

The PS654-11EK is the long-drum version of the 7,500 lb 110V industrial worm gear winch — same pulling power as the 8 in version, with 25% more rope capacity on the drum. The worm gear is mechanically self-locking, so the load stays put when you stop pulling. 460:1 ratio, 4 fpm line speed.

When does the 11 in drum make sense?

Pick the 11 in drum when the pull distance is longer — across a shop floor, between dock and trailer, or anywhere the 100 ft rope on the 8 in drum runs short. Frame footprint is bigger than the 8 in version, so confirm your mounting location has the room before ordering.

  • 7,500 lb rated pulling capacity
  • 110V AC, 1.5 HP motor — 17.4 amp draw
  • Worm gear drive, 460:1 single-stage reduction
  • 4 fpm max line speed — safe, controlled pulling
  • Worm gear brake — mechanically self-locking, no clutch slip
  • Dog clutch — manual engagement at the winch for free-spool
  • Cast metal construction
  • 11 in drum (3.5 in × 11 in), holds 125 ft of ⅜ in wire rope
  • Includes PBM1 cradle mount and wired control pendant
  • Pierce SKU PS654-11EK — built to order in 1–2 business days

For tighter mounting space at the same pulling power, see the 7,500 lb 110V Worm Gear Winch (8 in Drum). For higher pulling capacity on the same 11 in drum, see the 11,000 lb 110V Worm Gear Winch (11 in Drum). For dual-cable splits, see the 7,500 lb 110V Worm Gear Winch (11 in Split Drum). For 12V battery-powered industrial pulling, see the 9,000 lb 12V Worm Gear Winch (11 in Drum).

⚠️ 110V installation requires a certified electrician. Confirm circuit amperage, grounding, and overcurrent protection before energizing.

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

PIERCE Limited Lifetime Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

110V 7,500 lb. Winch Options:

The PS654 Industrial 7,500 AC Series with recommended cable capacities.

The PIERCE 110V Electric Winch – 7,500 lb, from Internal - Pierce Assembly Team, features a black frame with a yellow label and an 8" drum. Shown at an angle, it's designed for heavy-duty lifting and pulling tasks.
⅜" x 100'PS654-8EK-($103.00)
The PIERCE 110V Electric Winch (7,500 lb, 8" split drum) by PIERCE features dual pull points, a yellow label, and is mounted on a black metal base, shown from the front.
(2) ⅜" x 75' | Split DrumPS654-8EKSD+$36.00
The PIERCE 110V Electric Winch features a worm-gear design, 7,500 lb capacity, 11" drum, and black/silver finish on a durable metal base.
⅜" x 125' PS654-11EK
PIERCE 110V Electric Winch with 7,500 lb capacity and an 11" split drum, mounted on a black base.
(2) ⅜" x 75' | Split DrumPS654-11EKSD+$139.00
What's Included
Specifications
Max Capacity (lbs.)
7500
Operating Voltage
110 Volts AC
Power Source
Electric, AC
Series
Industrial
Max Line Speed
4 fpm
Gear Type
Worm Gear
Gear Ratio
470:1
Construction
Cast Metal
Drum Rotation
Counter-Clockwise (Underwound)
Recommended Wire Rope
⅜ in. x 125 ft.
Clutch Type
Dog
Brake Type
Worm Gear Brake
Recommended Wire
12-14 gauge
Motor (hp)
1.50
Drum Size
3 ½ in. x 11 in.
Amp Draw
17.4
Warranty
Replacement Parts (4)
Videos (2)

7,500 lb 110V Worm Gear Winch | 11 in Drum

7,500 lb 110V Worm Gear Winch | 11 in Drum

Resources
FAQs (10)
Can I use a fuse to protect my winch and vehicle?
Yes, a fuse or circuit breaker is highly recommended to protect your winch and vehicle from electrical damage. A 400-amp circuit breaker is ideal, as it handles amperage spikes during winching and resets easily, unlike costly 400-amp fuses. Alternatively, a cut-off switch is a budget-friendly option to disconnect power during a short circuit, though it won’t prevent spikes. Always use properly rated devices for safety.
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Can I increase the line speed of my worm gear winch?
Yes, but it reduces pulling power by about 50%. For electric winches, swapping gears can boost line speed up to 50%. For hydraulic winches, replacing the motor with one of different displacement can increase speed. Consult your winch manual or a professional for proper modifications to ensure safe operation and avoid damage during tasks like vehicle recovery.
Warranty
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
  • Mechanical parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
  • Warranty ensures that electrical components are free from defects.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
