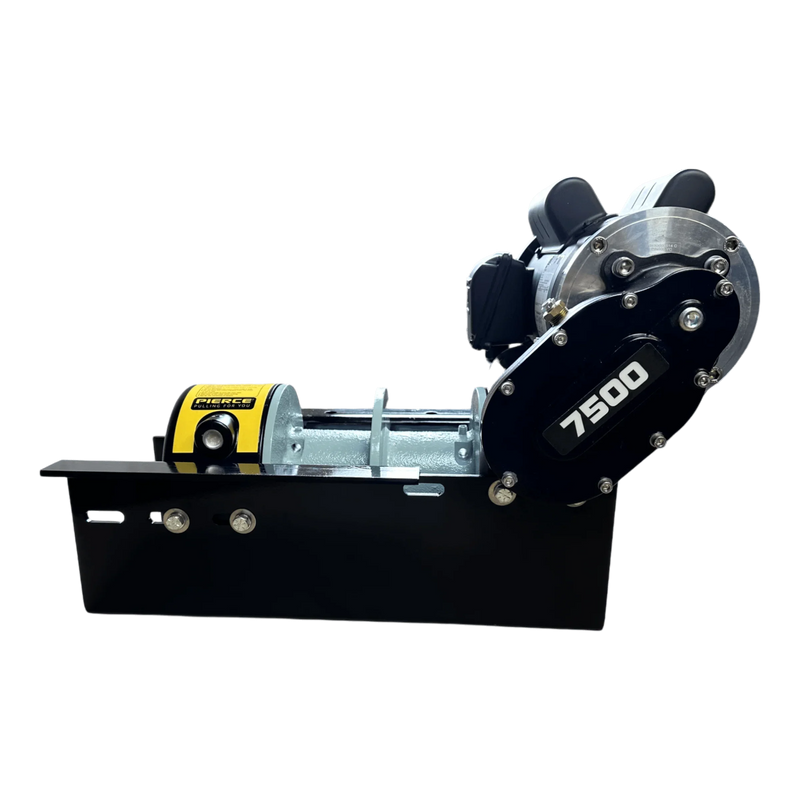

The PIERCE 110V Electric Winch – 7,500 lb, featuring an 8" split drum and dual pull points with a black mounting plate, is shown on a plain white background. The PIERCE brand name and "7500" label appear on the winch side.

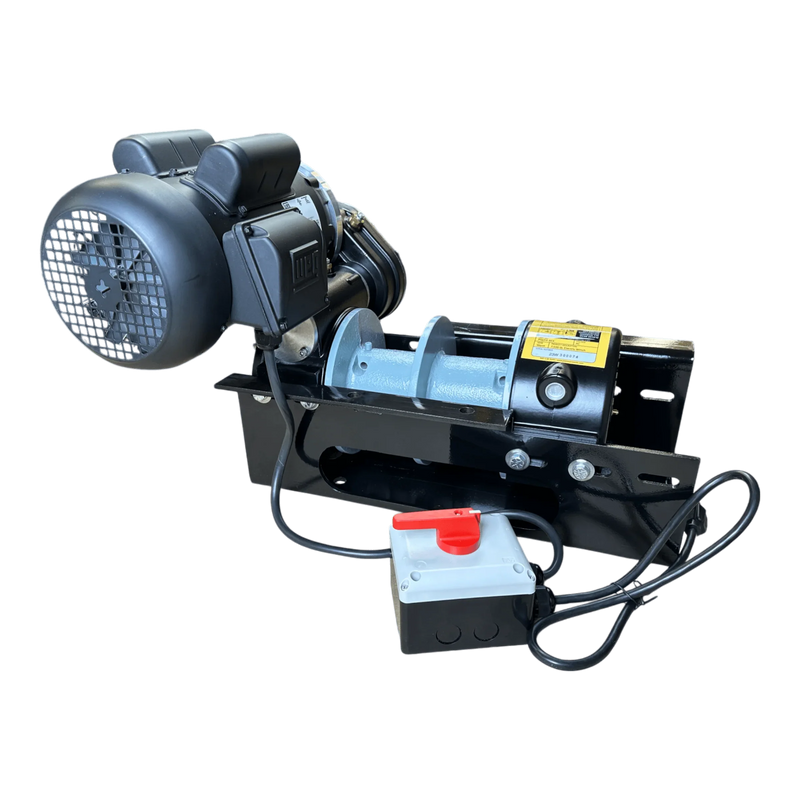

The PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum features a metal cable, motor, black base, wired remote control, and dual pull points for versatility.

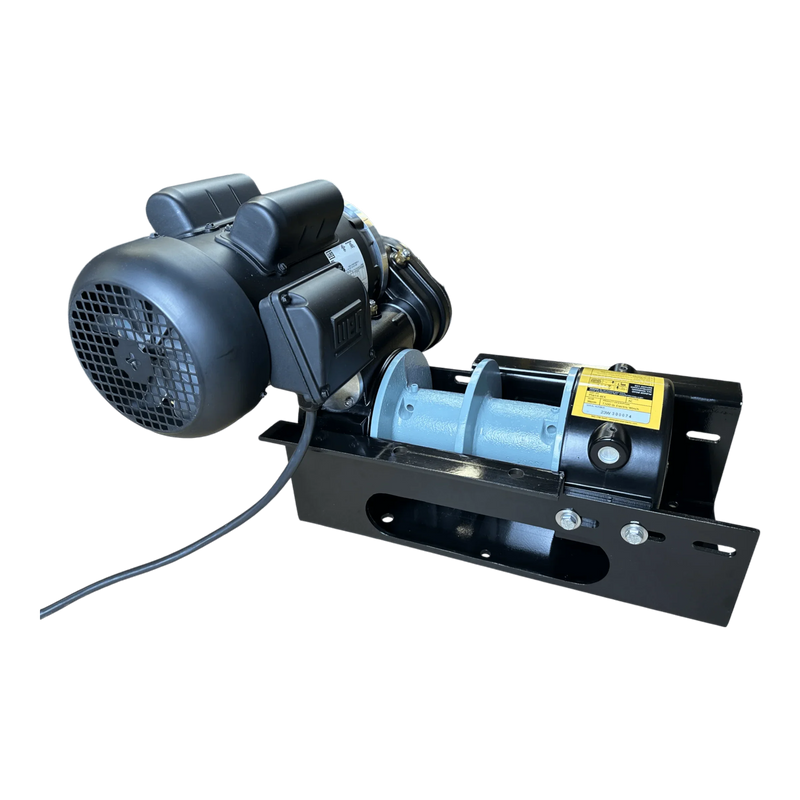

The PIERCE 110V Electric Winch – 7,500 lb features a black motor, metal 8" split drum, and dual pull points, all mounted on a black base. Shown on a white background.

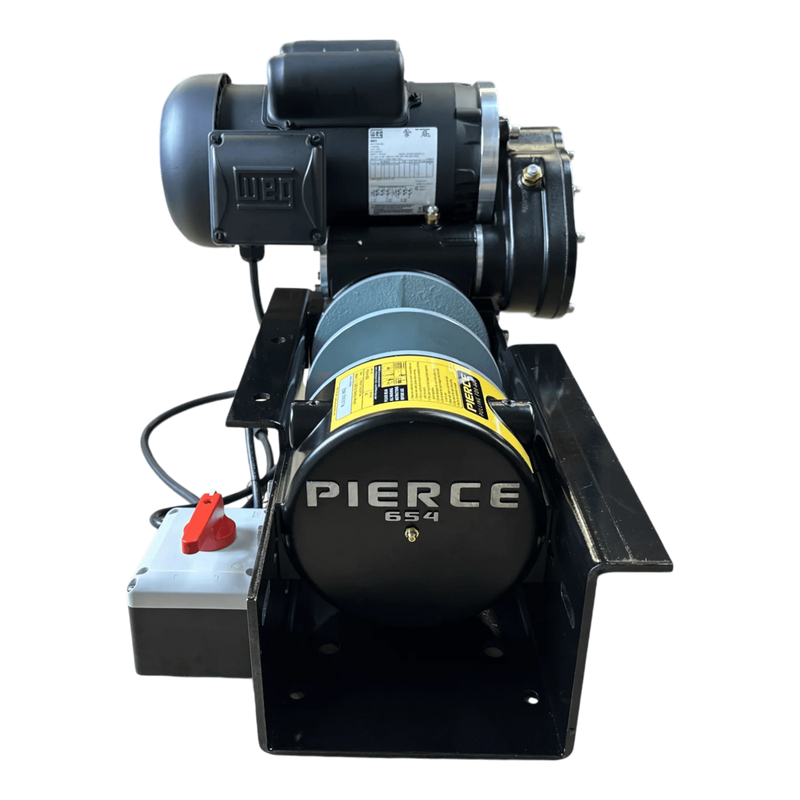

PIERCE 110V Electric Winch – 7,500 lb, with an 8" split drum and dual pull points by PIERCE, shown with clear labeling and mounted on a metal base against a white background.

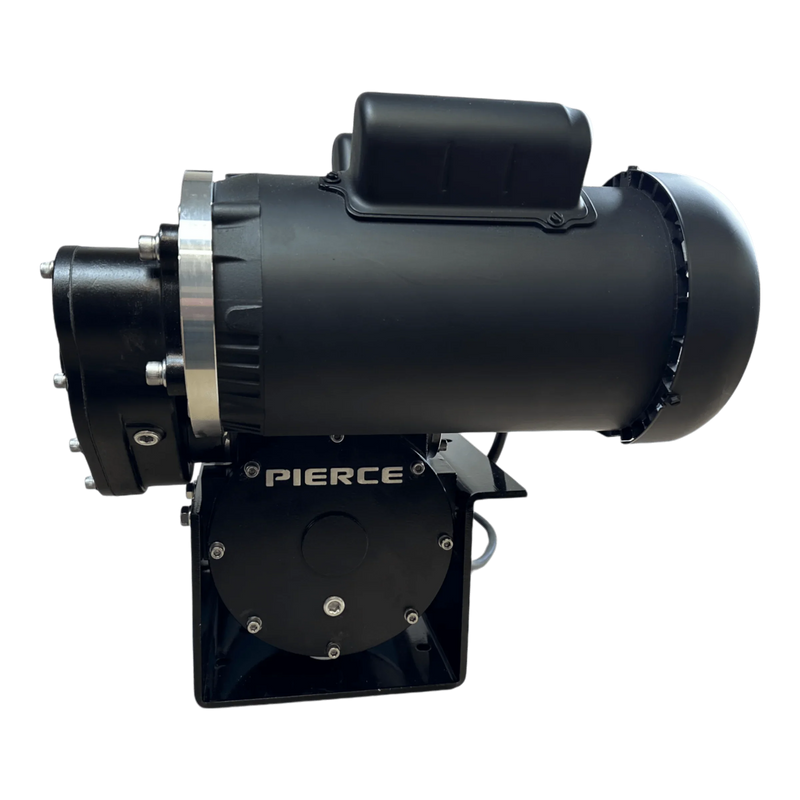

PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum by PIERCE shown against a plain white background, highlighting its durable build and practical dual pull points for versatile use.

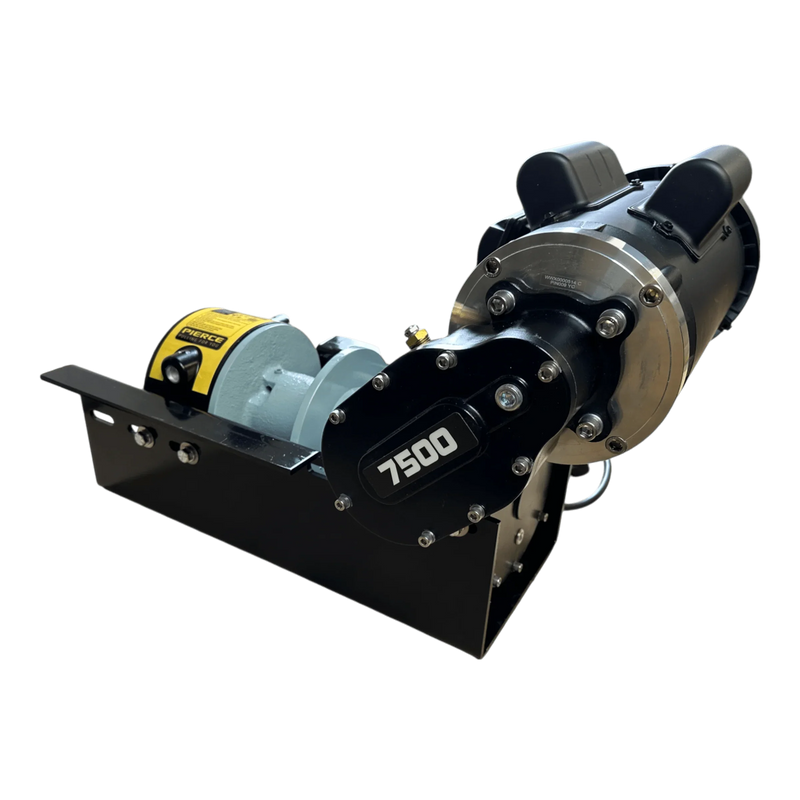

The PIERCE 110V Electric Winch features a black and silver design, an 8" split drum, and a powerful 7,500 lb pulling capacity.

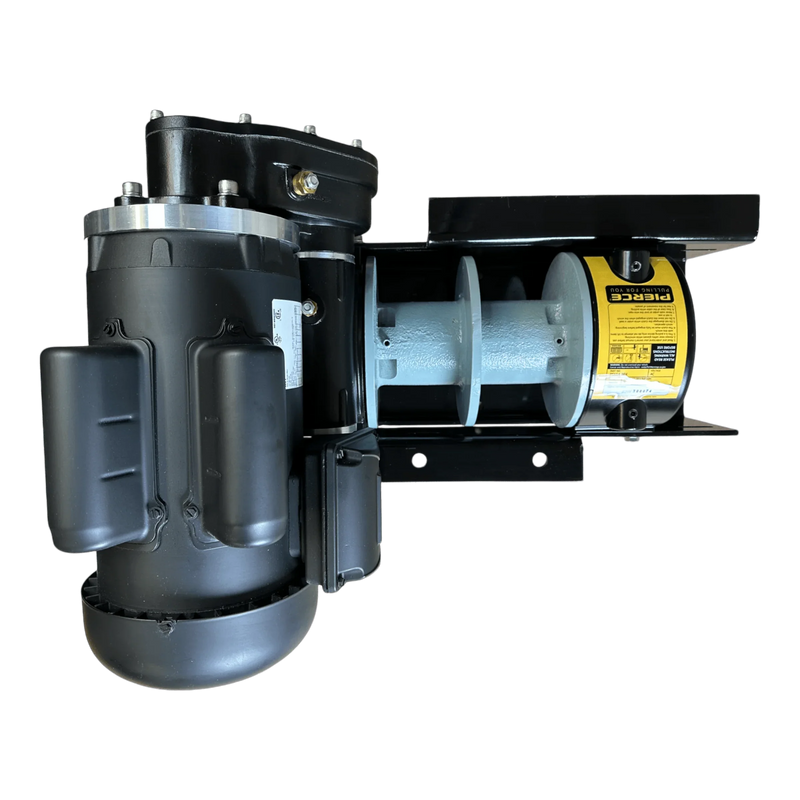

The PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum features a black industrial design with exposed metal parts and a yellow label, dual pull points, and is mounted on a black metal bracket.

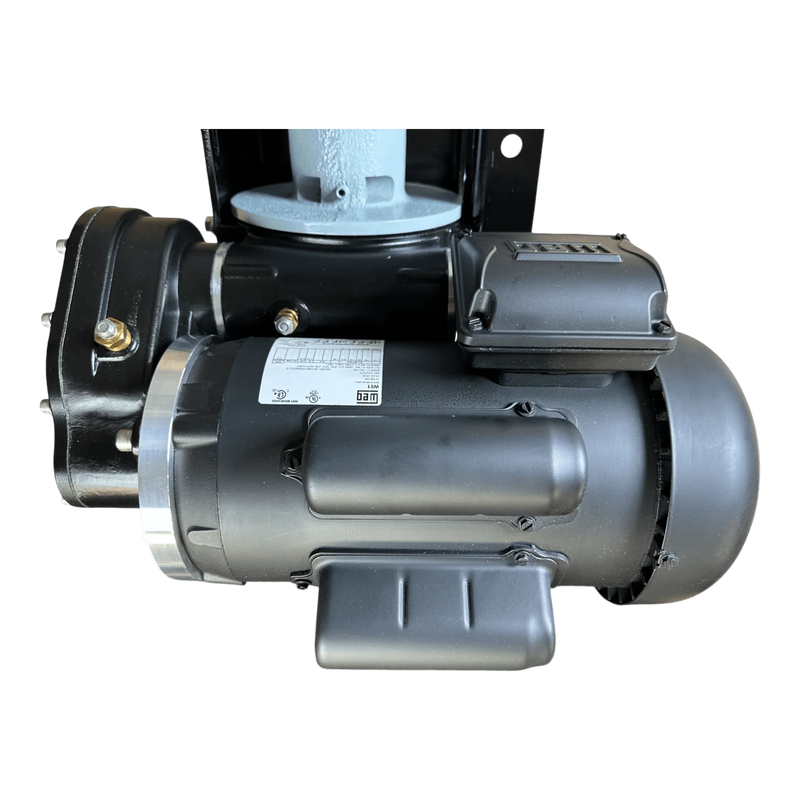

The PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum features a durable black motor with label and protective casing, mounted on a metallic frame. Its dual pull points enhance versatility in split-drum winch applications. Brand: PIERCE.

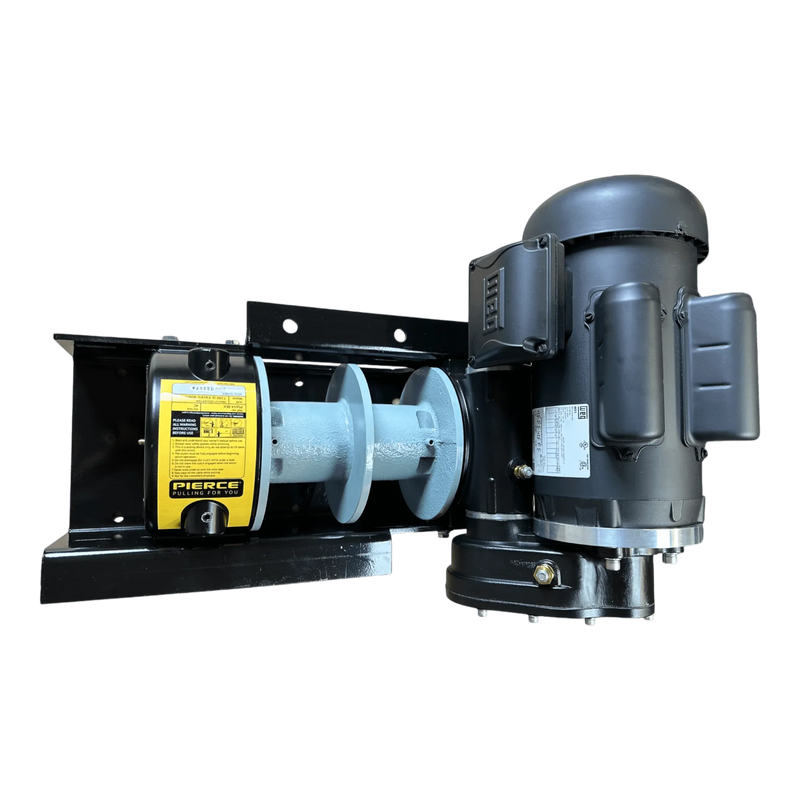

The PIERCE 110V Electric Winch – 7,500 lb, with an 8" split drum, features a yellow label motor on a black metal frame. The PIERCE brand winch is shown against a white background.

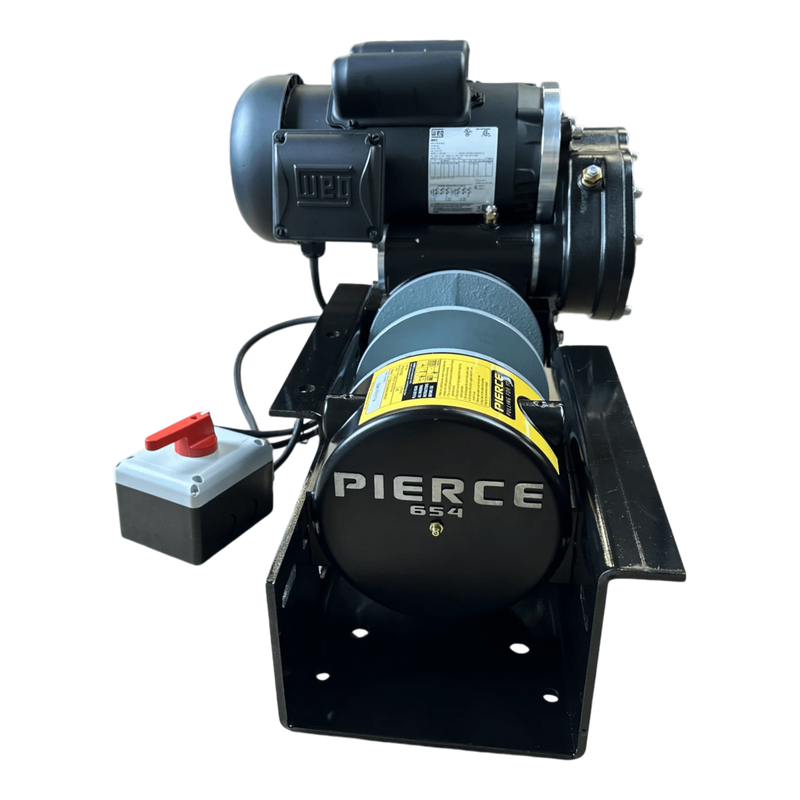

PIERCE 110V Electric Winch with 7,500 lb capacity and 8" split drum, includes control switch, mounted on metal base with dual pull points.
7,500 lb 110V Worm Gear Winch | 8 in Split Drum
7,500 lb 110V Worm Gear Winch | 8 in Split Drum

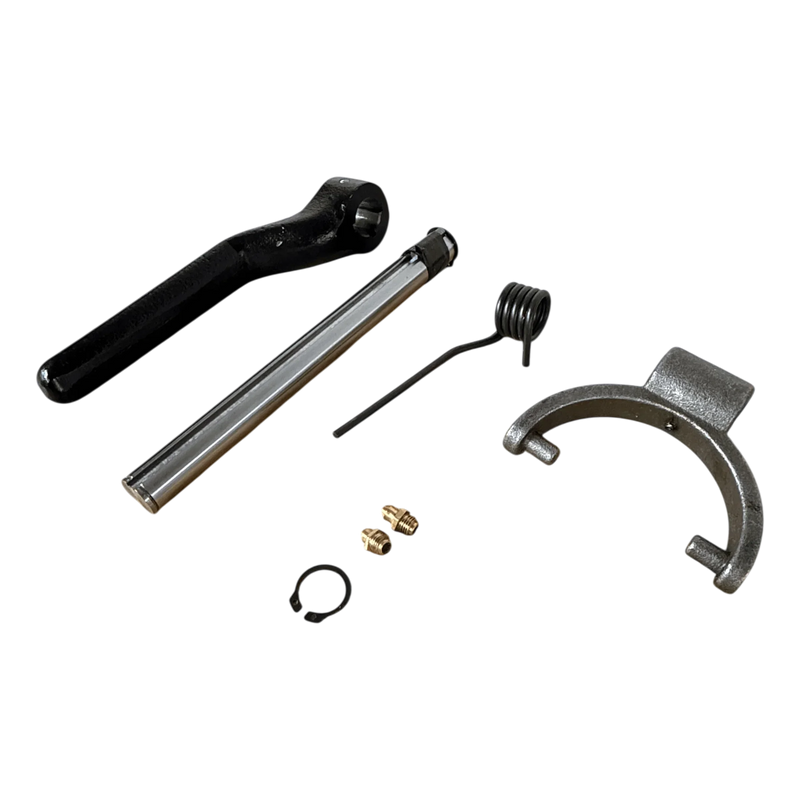

Five assorted metal mechanical parts for the PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum are displayed on a white background, including a lever, spring, fork, and dual pull point components.

7,500 lb 110V Worm Gear Winch | 8 in Split Drum

PS654-8EKSD

$1,839.00

Built to Order

Allow 2 business days for processing before shipment.

The PS654-8EKSD is the split-drum version of the 7,500 lb 110V industrial worm gear winch — the drum is divided into two independent halves, each running its own ⅜ in × 50 ft cable. Pull two anchor points at once, balance a load between two attachment points, or run two separate jobs from one winch.

What's a split drum for, and when do I need one?

Two cables, one motor, one mount. Common uses: dual-cable lifts where balance matters (a long load picked up at both ends), V-shaped pulls where the cables converge at a single load, or any setup that would otherwise need two separate winches. Both halves run at the same line speed and pulling capacity.

  • 7,500 lb rated pulling capacity (total across the drum)
  • Two independent cable halves on a single split drum
  • 110V AC, 1.5 HP motor — 17.4 amp draw
  • Worm gear drive, 460:1 single-stage reduction
  • 4 fpm max line speed — safe, controlled pulling
  • Worm gear brake — mechanically self-locking, no clutch slip
  • Dog clutch — manual engagement at the winch for free-spool
  • Cast metal construction
  • 8 in split drum (3.5 in × 8 in), holds 50 ft of ⅜ in wire rope per side
  • Includes PBM1 cradle mount and wired control pendant
  • Pierce SKU PS654-8EKSD — built to order in 1–2 business days

For more rope per side at the same total capacity, see the 7,500 lb 110V Worm Gear Winch (11 in Split Drum). For a single-cable winch in the same 8 in drum, see the 7,500 lb 110V Worm Gear Winch (8 in Drum).

⚠️ 110V installation requires a certified electrician. Confirm circuit amperage, grounding, and overcurrent protection before energizing.

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

PIERCE Limited Lifetime Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

110V 7,500 lb. Winch Options:

The PS654 Industrial 7,500 AC Series with recommended cable capacities.

The PIERCE 110V Electric Winch – 7,500 lb, from Internal - Pierce Assembly Team, features a black frame with a yellow label and an 8" drum. Shown at an angle, it's designed for heavy-duty lifting and pulling tasks.
⅜" x 100'PS654-8EK-($139.00)
The PIERCE 110V Electric Winch (7,500 lb, 8" split drum) by PIERCE features dual pull points, a yellow label, and is mounted on a black metal base, shown from the front.
(2) ⅜" x 75' | Split DrumPS654-8EKSD
The PIERCE 110V Electric Winch features a worm-gear design, 7,500 lb capacity, 11" drum, and black/silver finish on a durable metal base.
⅜" x 125' PS654-11EK-($36.00)
PIERCE 110V Electric Winch with 7,500 lb capacity and an 11" split drum, mounted on a black base.
(2) ⅜" x 75' | Split DrumPS654-11EKSD+$103.00
What's Included
Specifications
Max Capacity (lbs.)
7500
Operating Voltage
110 Volts AC
Power Source
Electric, AC
Max Line Speed
4 fpm
Gear Type
Worm Gear
Gear Ratio
460:1
Construction
Cast Metal
Drum Rotation
Counter-Clockwise (Underwound)
Recommended Wire Rope
⅜ in. x 50 ft. (2)
Clutch Type
Dog
Brake Type
Worm Gear Brake
Recommended Wire
12-14 gauge
Motor (hp)
1.50
Drum Size
3 ½ in. x 8 in. Split
Amp Draw
17.4
Warranty
Replacement Parts (4)
Videos (2)

7,500 lb 110V Worm Gear Winch | 8 in Split Drum

7,500 lb 110V Worm Gear Winch | 8 in Split Drum

Resources
FAQs (10)
Can I use a fuse to protect my winch and vehicle?
Yes, a fuse or circuit breaker is highly recommended to protect your winch and vehicle from electrical damage. A 400-amp circuit breaker is ideal, as it handles amperage spikes during winching and resets easily, unlike costly 400-amp fuses. Alternatively, a cut-off switch is a budget-friendly option to disconnect power during a short circuit, though it won’t prevent spikes. Always use properly rated devices for safety.
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Can I increase the line speed of my worm gear winch?
Yes, but it reduces pulling power by about 50%. For electric winches, swapping gears can boost line speed up to 50%. For hydraulic winches, replacing the motor with one of different displacement can increase speed. Consult your winch manual or a professional for proper modifications to ensure safe operation and avoid damage during tasks like vehicle recovery.
Warranty
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
  • Mechanical parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
  • Warranty ensures that electrical components are free from defects.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
