4 Function Mini Wireless Control System | 92 Series | FET Receiver
4 Function Mini Wireless Control System | 92 Series | FET Receiver
Description

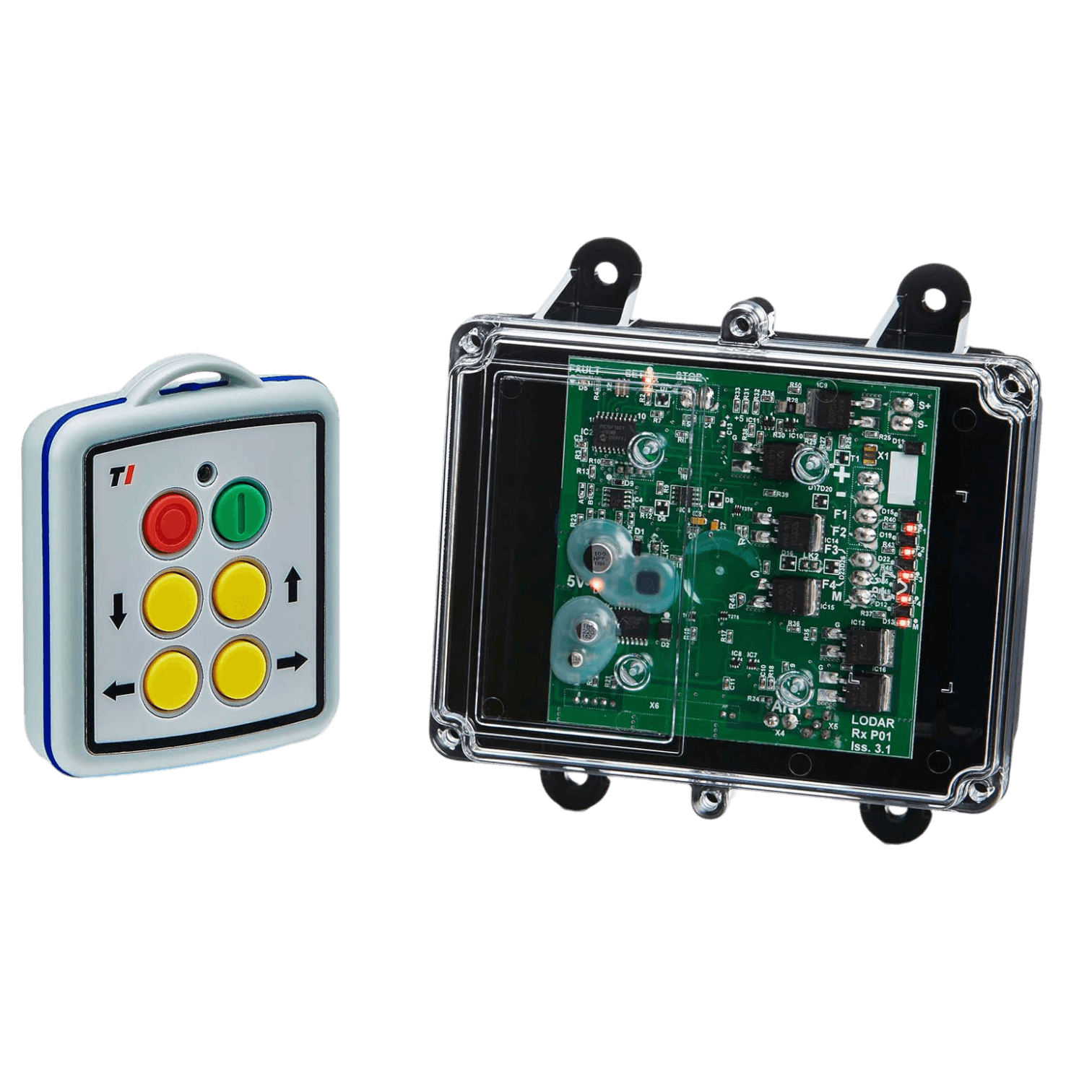

Experience the convenience and efficiency of the Lodar 4-Function Mini Wireless Control System. With a range of 200 feet and 10 amp outputs, this system is perfect for any 12-24V solenoid operated equipment. The mini remote and master function add ease to your operations. Trust in the IP 67 rated transmitter and IP 66 rated receiver for durability.
Specifications
| Specification | Details |
|---|---|
| CHANNEL | Wide Band, Fixed |
| FREQUENCY | 418 MHz |
| FUNCTIONS | 4 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 67 |
| SERIES | 9000 Series |
| SWITCH TYPE | Silicone Rubber Keypad with Carbon Pill |
| TRANSMITTER | Mini |
| TRANSMITTER IP RATING | IP 67 |
| WIRING INCLUDED | 9 ft. (3m) wiring loom through gland |
Videos
Warranty
Replacement Parts
4 Function Lodar Replacement Mini Transmitter | 9000 Series
This mini transmitter is expertly engineered as a high-quality replacement for the 4-function 92 series Lodar systems. This remote is not compatible with any Lodar system with a part number starting with LS, 11 or 93
4 Function Lodar Replacement FET Receiver | 92 Series
The 4 Function Lodar 200ft Replacement FET Receiver provides a rugged IP65-sealed solution for wireless integration. Designed as an OEM replacement, this unit supports four outputs with momentary switching. Transmitter not included. 4 function F...
