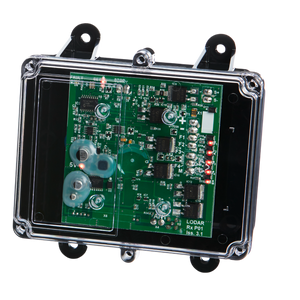

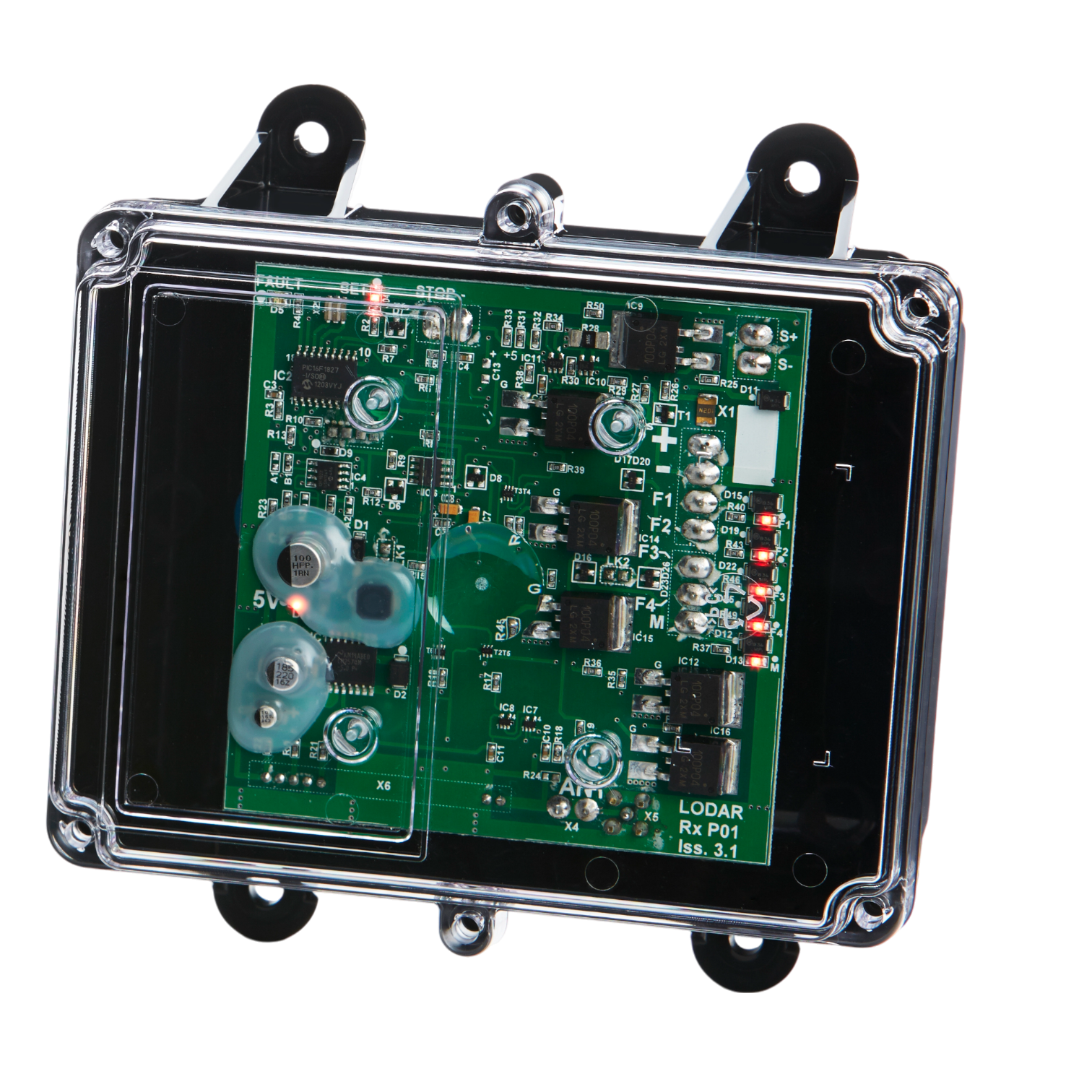

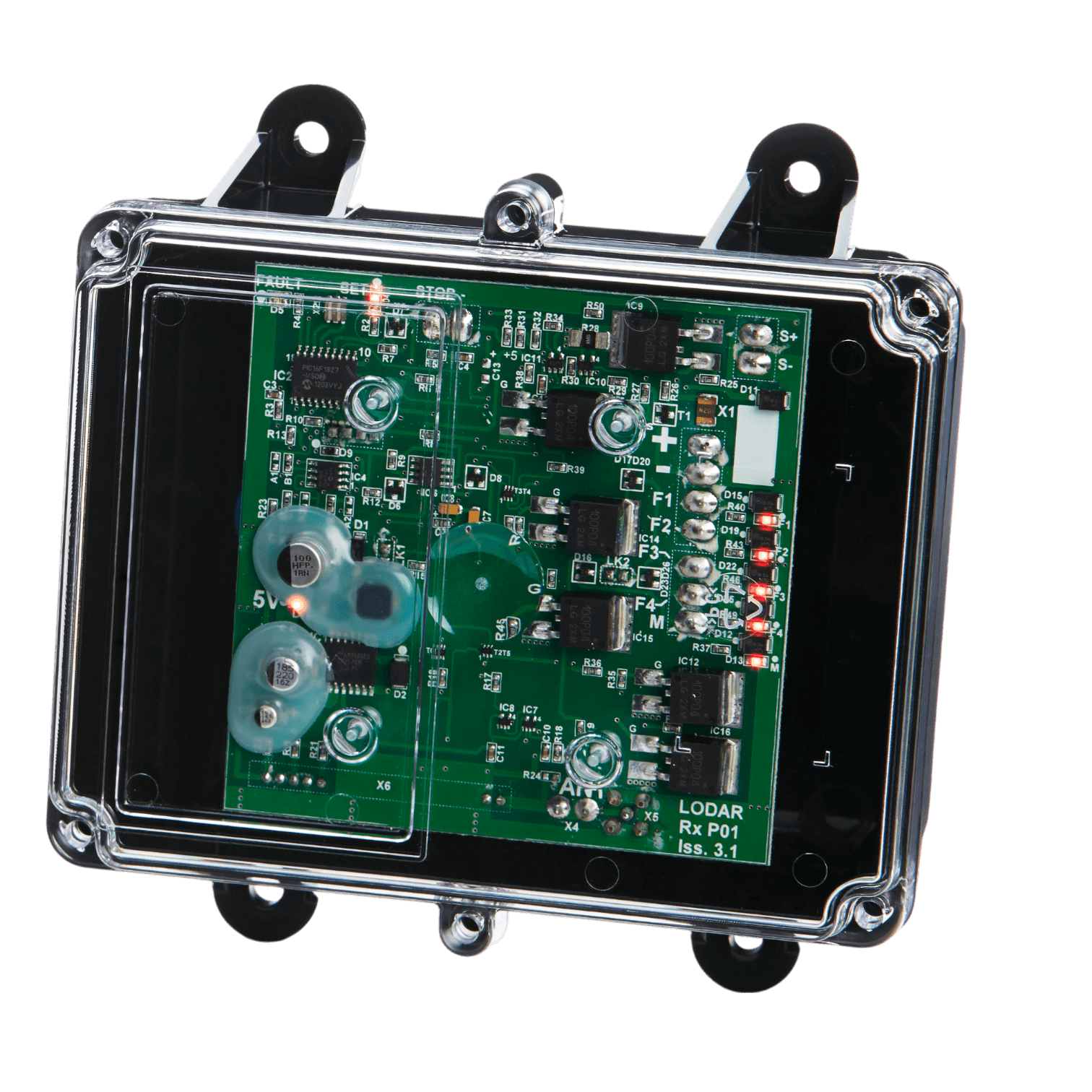

The 4 Function Lodar Replacement FET Receiver from the 92 Series by Lodar LTD features a transparent casing that reveals a green circuit board with numerous electronic components and red lights, highlighting its advanced receiver technology. Ideal for modern replacement systems, it seamlessly blends performance with sleek design.

4 Function Lodar Replacement FET Receiver | 92 Series

Name: 4 Function Lodar Replacement FET Receiver | 92 Series
Brand: Lodar LTD
SKU: 9204RX-8
Price: 666.0 USD
Availability: InStock

9204RX-8

$666.00

Quantity

Low stock

Compatible Products

*Check compatibility before purchasing.

92104TX-8 - 4 Function Lodar Replacement Standard Transmitter | 9000 Series

92204TX-8 - 4 Function Lodar Replacement IP Transmitter | 9000 Series

90004TX-8 - 4 Function Lodar Replacement Mini Transmitter | 9000 Series

Check Your Part Number Before Ordering

Check if your part number starts with an "LS" or a "PS". If so, this indicates specific firmware and other customizations that will not be on this replacement unit. You will want to contact the manufacturer and order the specific replacement part for your system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

4 Function Lodar Replacement FET Receiver | 92 Series

'

Description

The 4 Function Lodar 200ft Replacement FET Receiver provides a rugged IP65-sealed solution for wireless integration. Designed as an OEM replacement, this unit supports four outputs with momentary switching. Transmitter not included.

4 function FET receiver only
IP65-sealed for durability
Momentary outputs by default
Pairs with Lodar transmitters

Applications: Replacement receiver for Lodar 200ft 4-function wireless systems.

Included

1 x [9204RX-8] - 4 Function Lodar FET Receiver | 92 Series

1 x Instructions

Specifications

Specification	Details
FUNCTIONS	4
MASTER OUTPUT	Yes
MAX AMPS	10
OPERATING DISTANCE	200 ft. (61 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 65
SERIES	9000 Series
TYPE	Receiver Only

Resources

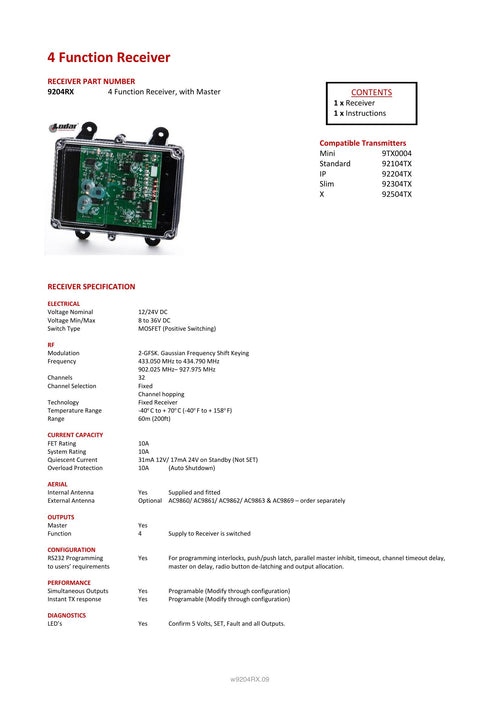

9204RX - 4 Function Receiver

Spec Sheet

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
