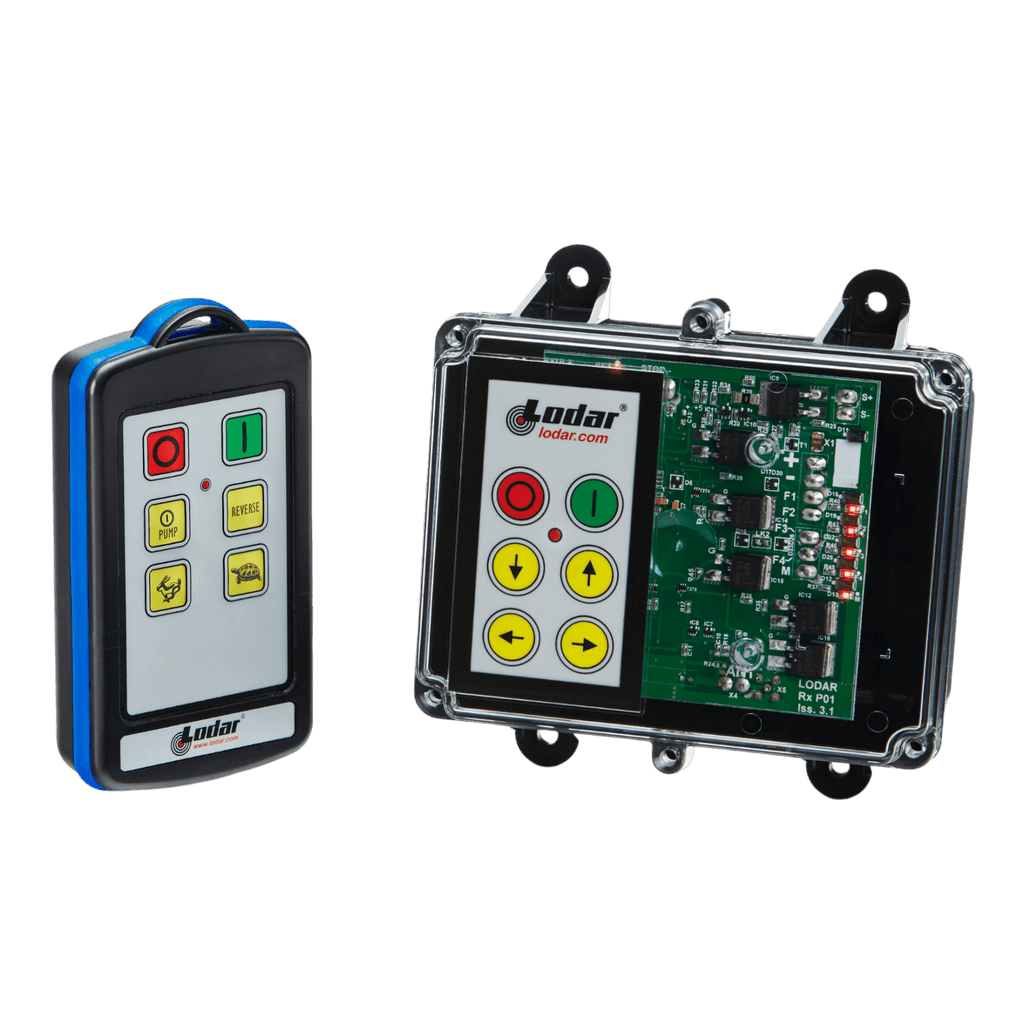

Two Lodar LTD's remote control devices from the 92 Series, featuring buttons and a circuit board, include an IP Transmitter for reliable connectivity. One device is handheld, and the other is securely mounted in a case, both complemented by a 4 Function FET Keypad Receiver for versatile operations.

4 Function IP Wireless Control System | 92 Series | FET Keypad Receiver

$1,157.00
Skip to product information
Two Lodar LTD's remote control devices from the 92 Series, featuring buttons and a circuit board, include an IP Transmitter for reliable connectivity. One device is handheld, and the other is securely mounted in a case, both complemented by a 4 Function FET Keypad Receiver for versatile operations.
1/2
  • Two Lodar LTD's remote control devices from the 92 Series, featuring buttons and a circuit board, include an IP Transmitter for reliable connectivity. One device is handheld, and the other is securely mounted in a case, both complemented by a 4 Function FET Keypad Receiver for versatile operations.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • Two Lodar LTD's remote control devices from the 92 Series, featuring buttons and a circuit board, include an IP Transmitter for reliable connectivity. One device is handheld, and the other is securely mounted in a case, both complemented by a 4 Function FET Keypad Receiver for versatile operations.
  • Pairing the 92 Series Lodar Remote & Transmitter
4 Function IP Wireless Control System | 92 Series | FET Keypad Receiver

4 Function IP Wireless Control System | 92 Series | FET Keypad Receiver

92204K-8
$1,157.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
Out of Stock

This 4 Function Receiver with IP Transmitter has an operating voltage of 12/24 Volts DC and IP ratings of 65 for the transmitter and 66 for the receiver. With a 200 ft. (61 m.) operating distance and a maximum amperage of 15, this receiver is part of the 9000 series and is designed for industries such as concrete and construction work, towing and recovery, pumping, automation, agriculture, and recreation, and features a receiver keypad for added convenience and stability.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

92204 Series Options:

A Lodar LTD 4 Function IP Wireless Control System from the 92 Series, paired with a FET Receiver, featuring an industrial wireless control system with a range of 200 feet, sits beside a transparent electronic circuit board encased in black.
Standard Receiver 92204-8
-($105.00)
Two Lodar LTD's remote control devices from the 92 Series, featuring buttons and a circuit board, include an IP Transmitter for reliable connectivity. One device is handheld, and the other is securely mounted in a case, both complemented by a 4 Function FET Keypad Receiver for versatile operations.
Keypad Receiver 92204K-8
What's Included
Specifications
Transmitter
Industrial Pro
Functions
4
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 65
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Special Features
Receiver Keypad
Channel
Wide Band, Fixed
Wiring Included
9 ft. (3m) wiring loom through gland
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (4)
4 Function Lodar Replacement IP Transmitter | 9000 Series
4 Function Lodar Replacement IP Transmitter | 9000 SeriesSKU: 92204TX-8
$387.00
4 Function Lodar Replacement FET Keypad Receiver | 92 Series
4 Function Lodar Replacement FET Keypad Receiver | 92 SeriesSKU: 9204RXK-8
$770.00
4 Function Lodar Hard-Wired Remote | 9000 Series
4 Function Lodar Hard-Wired Remote | 9000 SeriesSKU: 9604
$307.00
2 Function Lodar Replacement IP Transmitter | 9000 Series
2 Function Lodar Replacement IP Transmitter | 9000 SeriesSKU: 92202TX-8
$387.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources
92204K - 4 Function + Keypad Receiver with IP Transmitter Spec Sheet 92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers Wiring Diagram 92-93 Series - Instructions IP Transmitter Coding Instructions
92204K - 4 Function + Keypad Receiver with IP Transmitter
Spec Sheet
92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers
Wiring Diagram
92-93 Series - Instructions IP Transmitter Coding
Instructions
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
