Home 4 Function IP Wireless Control System | 92 Series | FET Keypad Receiver

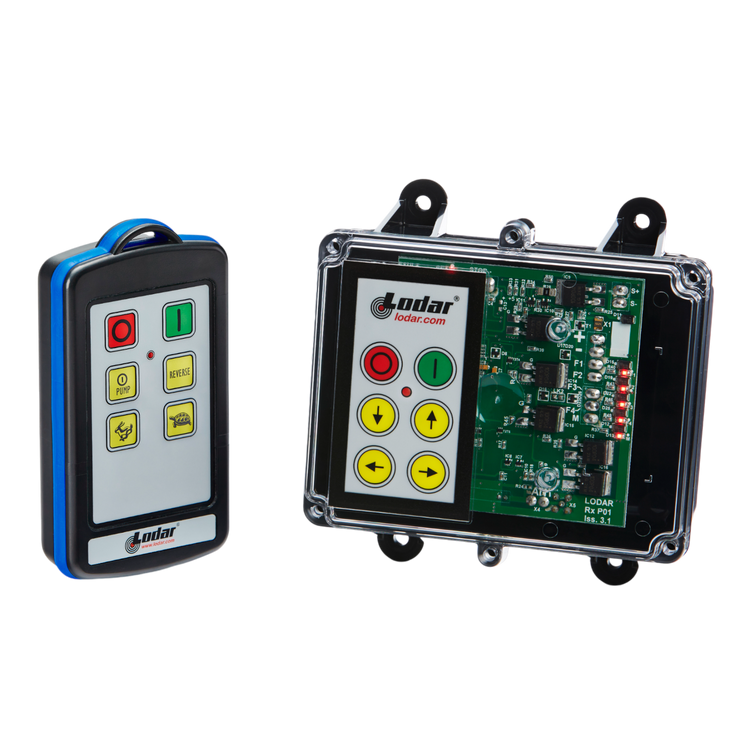

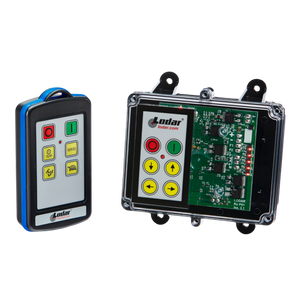

Two Lodar LTD's remote control devices from the 92 Series, featuring buttons and a circuit board, include an IP Transmitter for reliable connectivity. One device is handheld, and the other is securely mounted in a case, both complemented by a 4 Function FET Keypad Receiver for versatile operations.

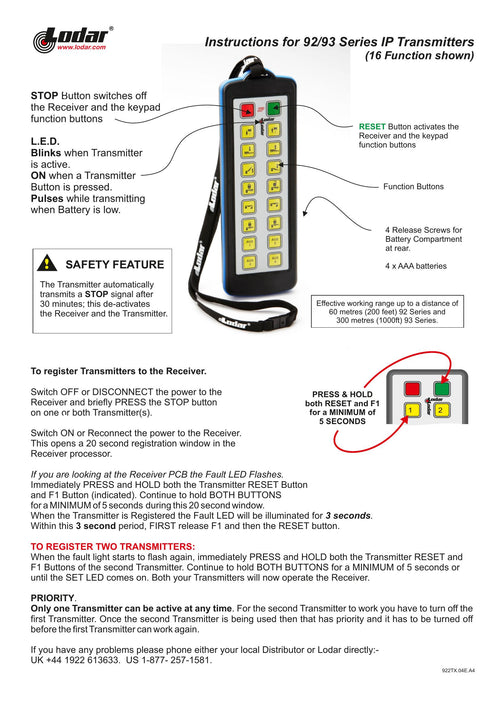

Pairing the 92 Series Lodar Remote & Transmitter
1 of 2

4 Function IP Wireless Control System | 92 Series | FET Keypad Receiver

92204K-8
Sale price $1,157.00
Pre-order
Amazon
American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa

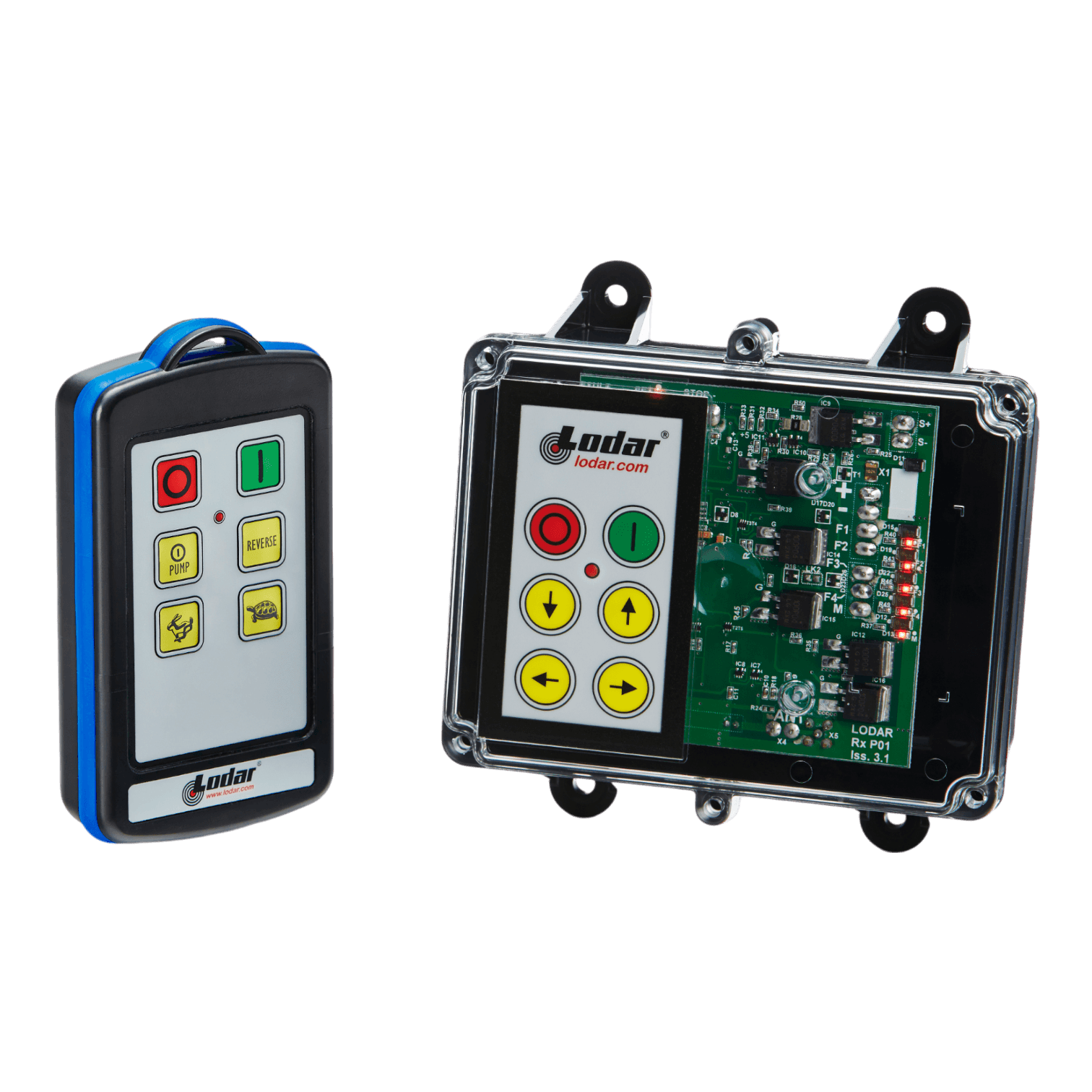

Two Lodar LTD's remote control devices from the 92 Series, featuring buttons and a circuit board, include an IP Transmitter for reliable connectivity. One device is handheld, and the other is securely mounted in a case, both complemented by a 4 Function FET Keypad Receiver for versatile operations.

4 Function IP Wireless Control System | 92 Series | FET Keypad Receiver

$1,157.00
Description

This 4 Function Receiver with IP Transmitter has an operating voltage of 12/24 Volts DC and IP ratings of 65 for the transmitter and 66 for the receiver. With a 200 ft. (61 m.) operating distance and a maximum amperage of 15, this receiver is part of the 9000 series and is designed for industries such as concrete and construction work, towing and recovery, pumping, automation, agriculture, and recreation, and features a receiver keypad for added convenience and stability.

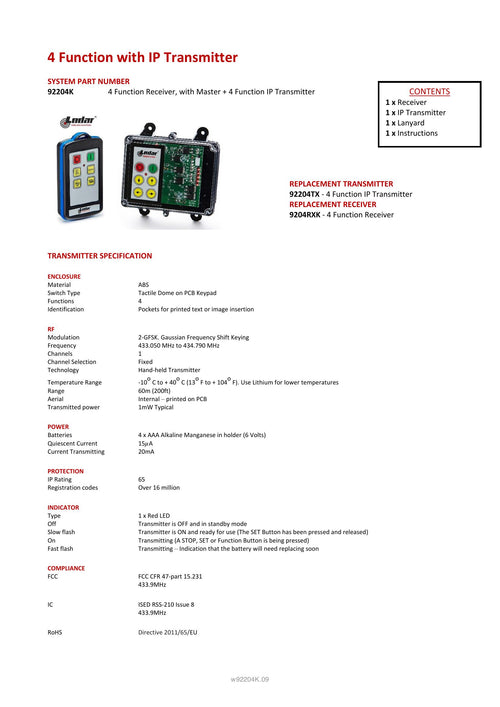

Specification Details
CHANNEL Wide Band, Fixed
FUNCTIONS 4
MASTER OUTPUT Yes
MAX AMPS 15
OPERATING DISTANCE 200 ft. (61 m.)
OPERATING VOLTAGE 12/24 Volts DC
RECEIVER IP RATING IP 65
SERIES 9000 Series
SPECIAL FEATURES Receiver Keypad
TRANSMITTER Industrial Pro
TRANSMITTER IP RATING IP 65
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
