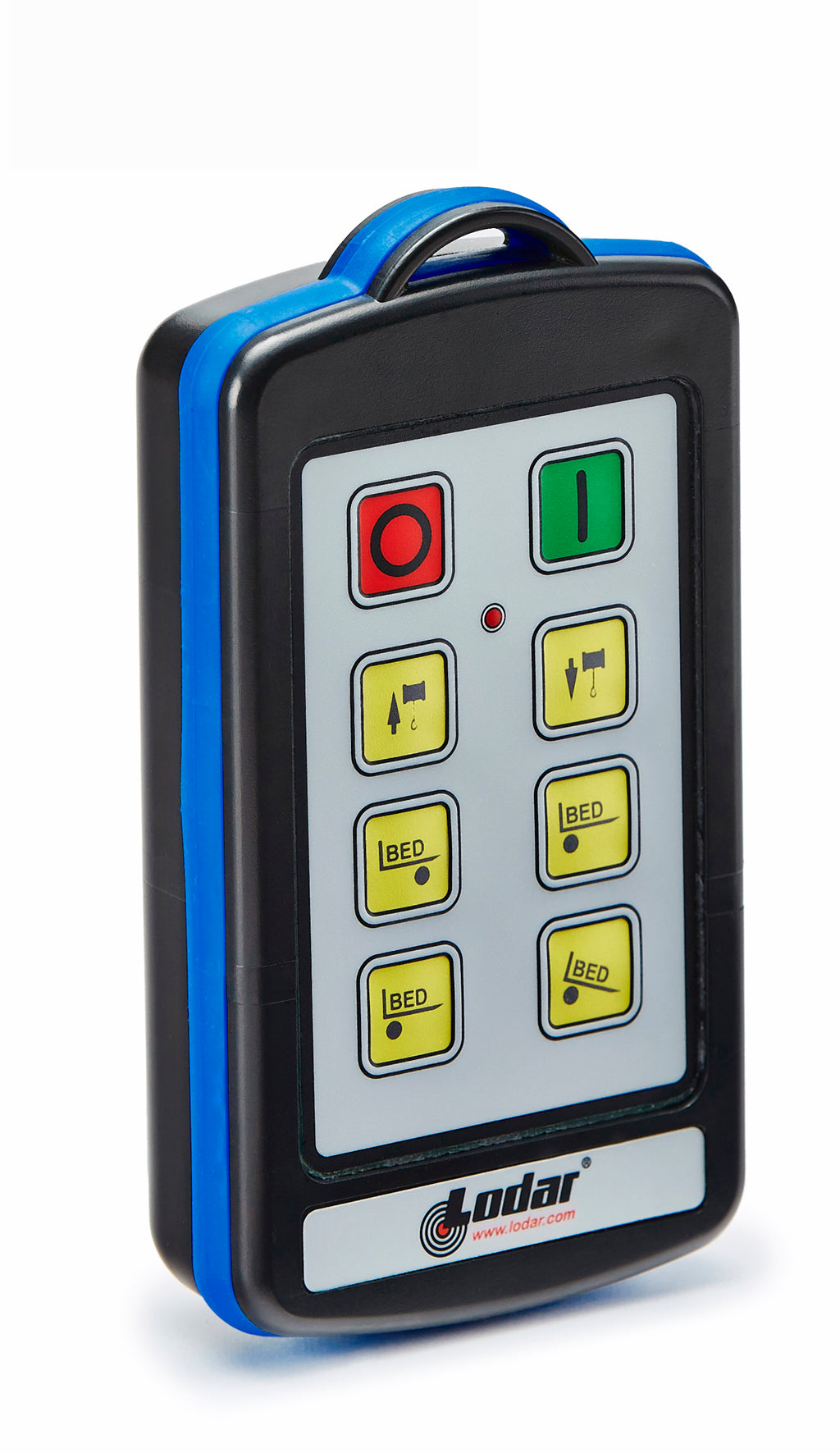

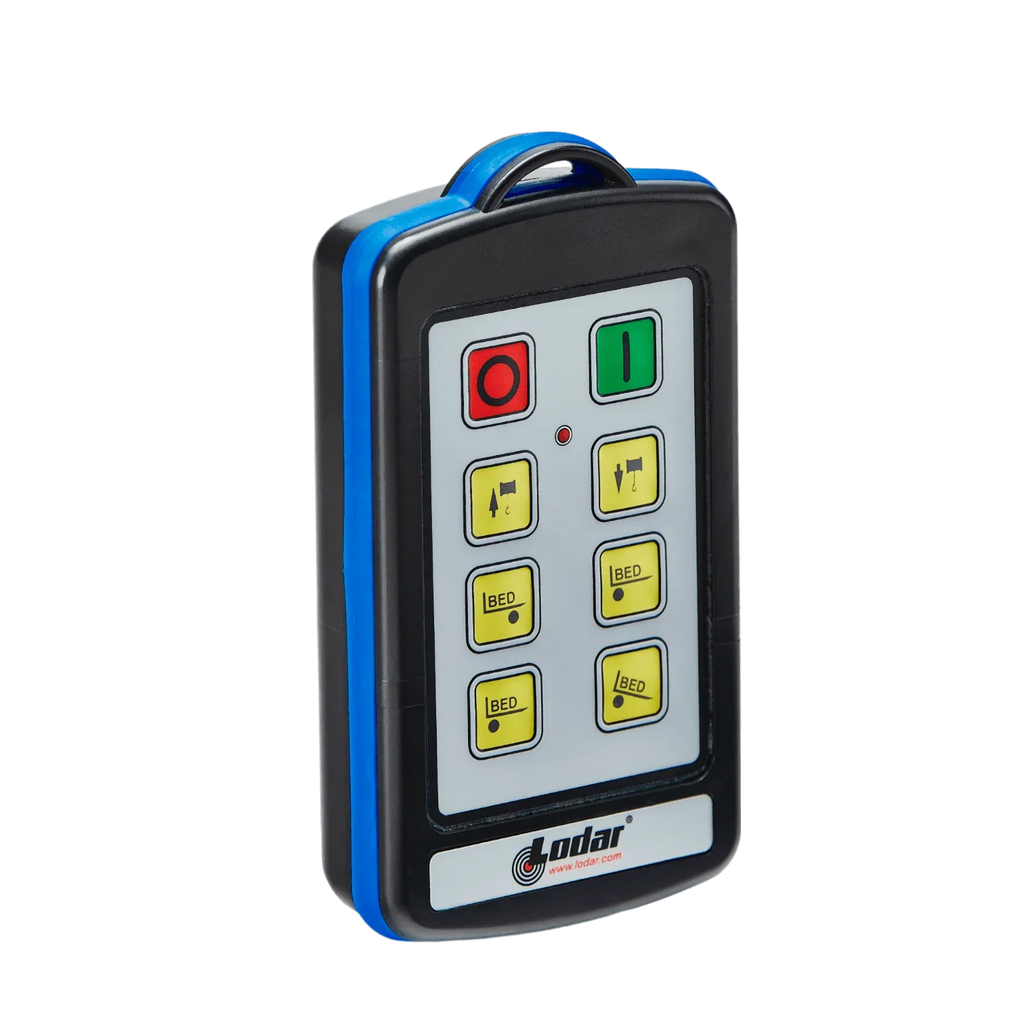

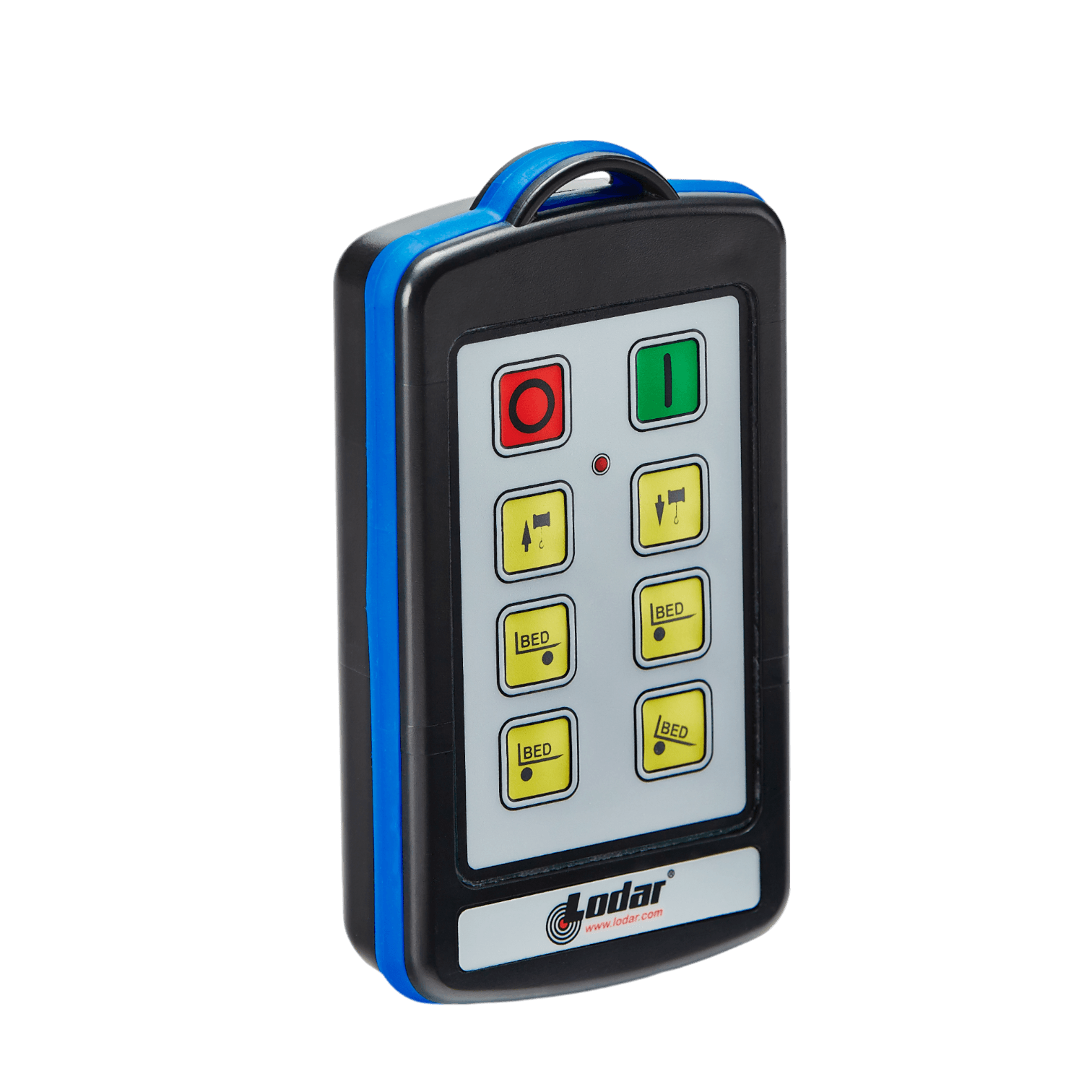

A remote control with multiple buttons, including red and green, prominently displays the Lodar LTD logo at the bottom. This 6 Function Lodar Replacement IP Transmitter from the 9000 Series serves as a dependable backup for essential tasks.

6 Function Lodar Replacement IP Transmitter | 9000 Series

$458.00
Skip to product information
A remote control with multiple buttons, including red and green, prominently displays the Lodar LTD logo at the bottom. This 6 Function Lodar Replacement IP Transmitter from the 9000 Series serves as a dependable backup for essential tasks.
1/2
  • A remote control with multiple buttons, including red and green, prominently displays the Lodar LTD logo at the bottom. This 6 Function Lodar Replacement IP Transmitter from the 9000 Series serves as a dependable backup for essential tasks.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • A remote control with multiple buttons, including red and green, prominently displays the Lodar LTD logo at the bottom. This 6 Function Lodar Replacement IP Transmitter from the 9000 Series serves as a dependable backup for essential tasks.
  • Pairing the 92 Series Lodar Remote & Transmitter
6 Function Lodar Replacement IP Transmitter | 9000 Series

6 Function Lodar Replacement IP Transmitter | 9000 Series

92206TX-8
1 review
$458.00

Choose Your Inserts

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
In Stock

The 6 Function Lodar Industrial Replacement Transmitter is an OEM remote built to restore control to your 6-function wireless system. IP65-rated for rugged environments, it provides quick and reliable pairing with your existing receiver.

  • 6-function OEM Lodar replacement transmitter
  • IP65 protection against dust and water spray
  • Rugged industrial keypad
  • Easy to pair with your receiver

Applications: Replacement handheld for Lodar 6-function Industrial wireless systems.

Need more outputs? Upgrade to the 10-function or 16-function replacement transmitters.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Specifications
Transmitter
Industrial Pro
Functions
6
Transmitter IP Rating
IP 65
Operating Distance
200 ft. (61 m.)
Series
9000 Series
Transmitter Batteries
AAA x 4
Type
Transmitter Only
Operating Temperature Range
13ºF - 104ºF (-10ºC to 40ªC)
Switch Type
Tactile Dome on PCB Keypad (Pockets for Text or Image Insertion)
Warranty
Lodar 5 Year Pro-rated Warranty
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources

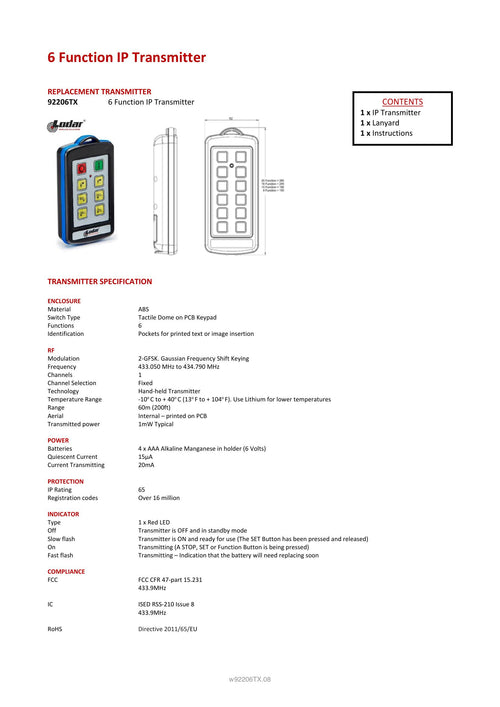

92206TX - 6 Function IP Transmitter Spec Sheet 92-93 Series - Instructions IP Transmitter Coding Instructions
92206TX - 6 Function IP Transmitter
92206TX - 6 Function IP Transmitter
Spec Sheet
92-93 Series - Instructions IP Transmitter Coding
92-93 Series - Instructions IP Transmitter Coding
Instructions
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
