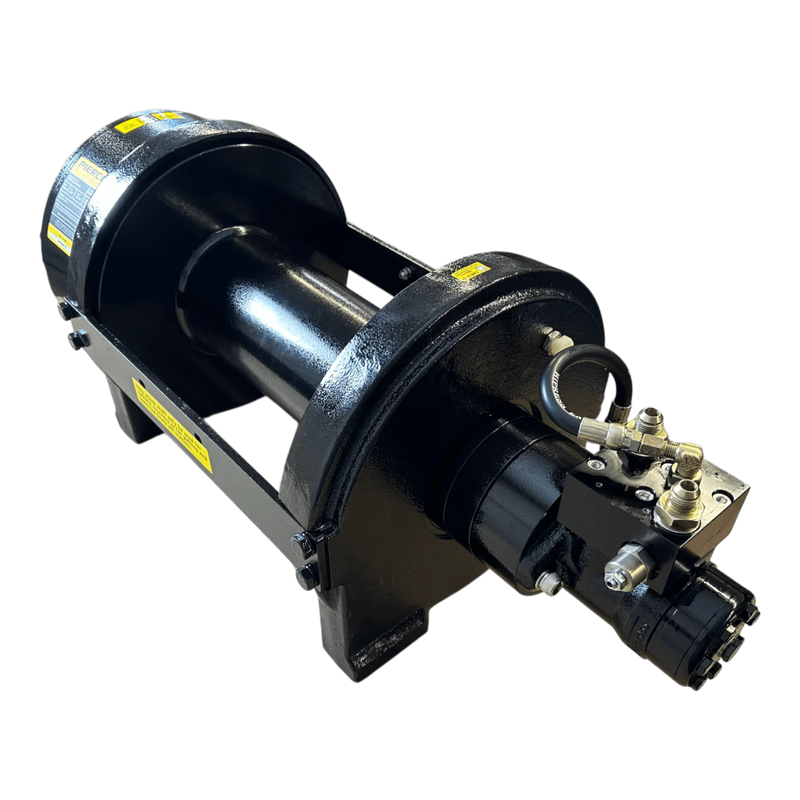

The PIERCE 30,000 lb Hydraulic Recovery Winch features a narrow metal drum and manual clutch, designed for heavy-duty use with hydraulic fittings—shown here on a white background.

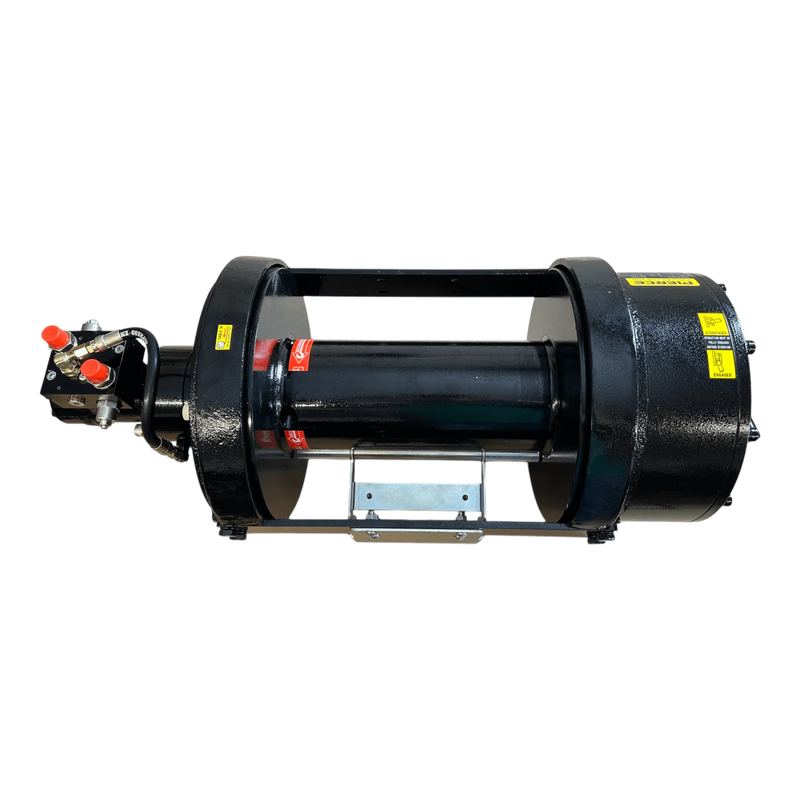

The PIERCE 30,000 lb Hydraulic Recovery Winch with narrow drum and manual clutch features a sturdy metal frame and control valves, shown against a plain white background.

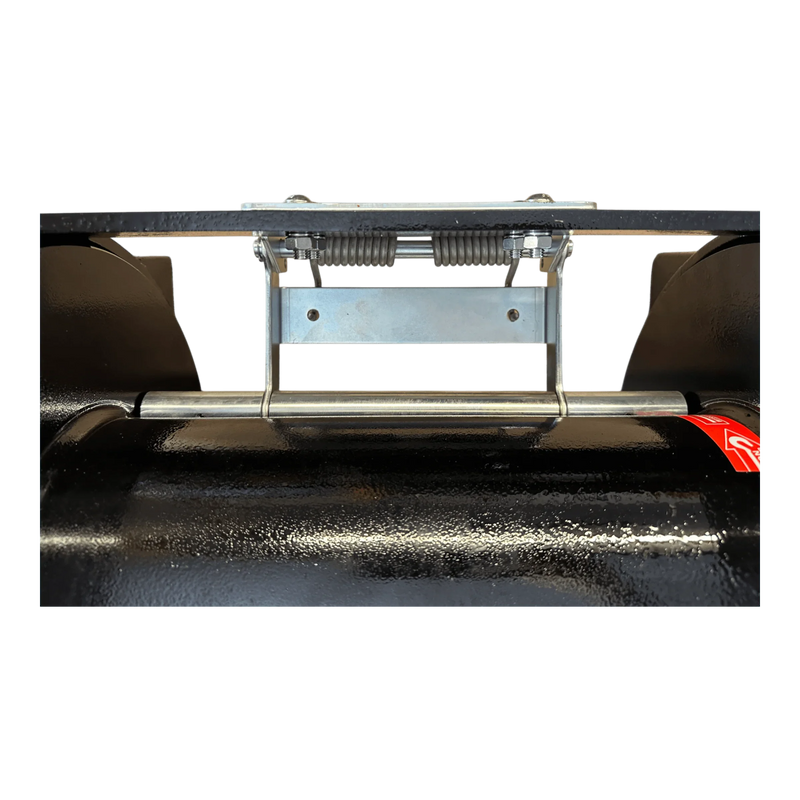

Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch (Narrow Drum, Manual Clutch), featuring a black metal body, silver spring mechanism, and a red label on the right side.

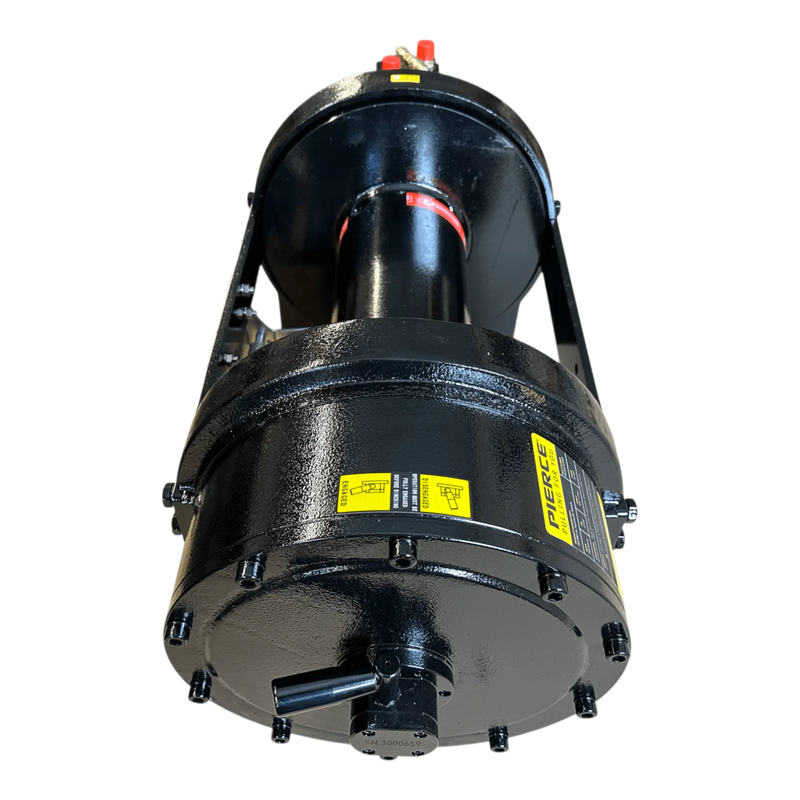

PIERCE 30,000 lb Hydraulic Recovery Winch with narrow drum and manual clutch, shown from the bottom with yellow safety labels against a white background.

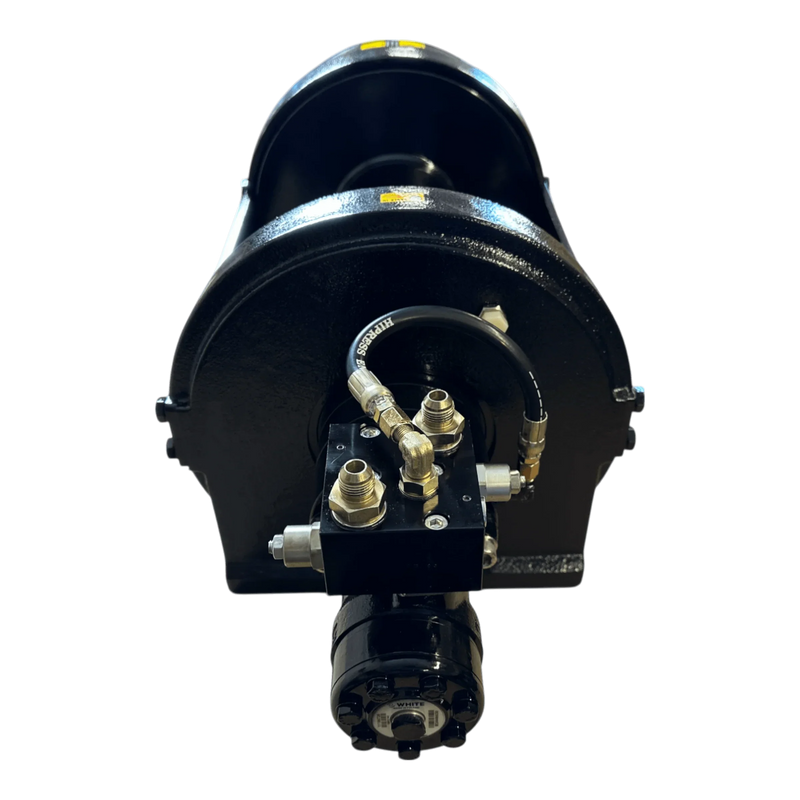

The PIERCE 30,000 lb Hydraulic Recovery Winch with narrow drum and manual clutch features durable metal fittings and cables, shown from the front on a white background.

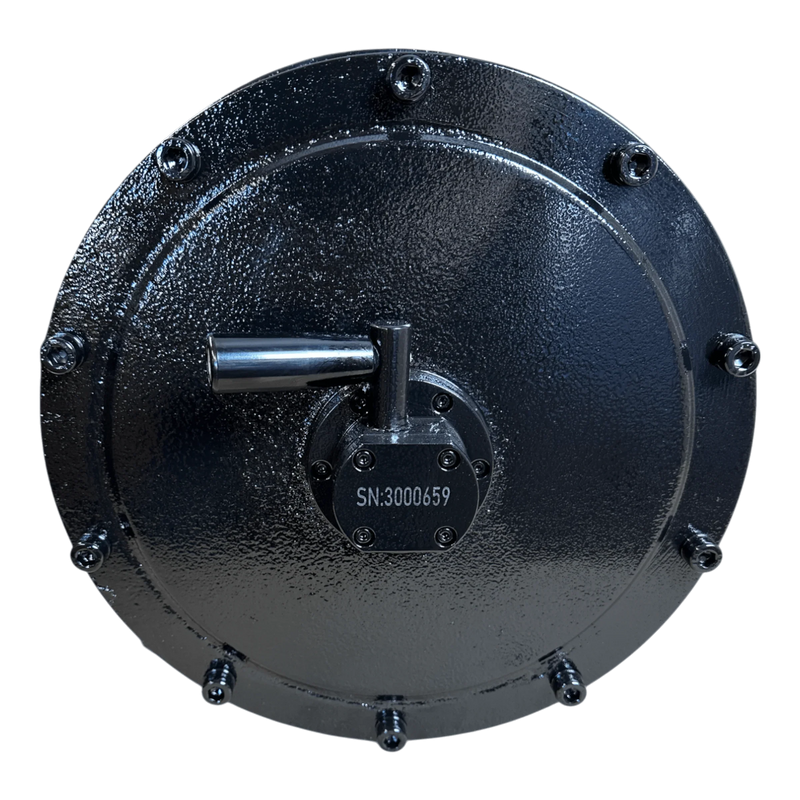

A PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, round black metal design with bolts and handle, SN:300659.

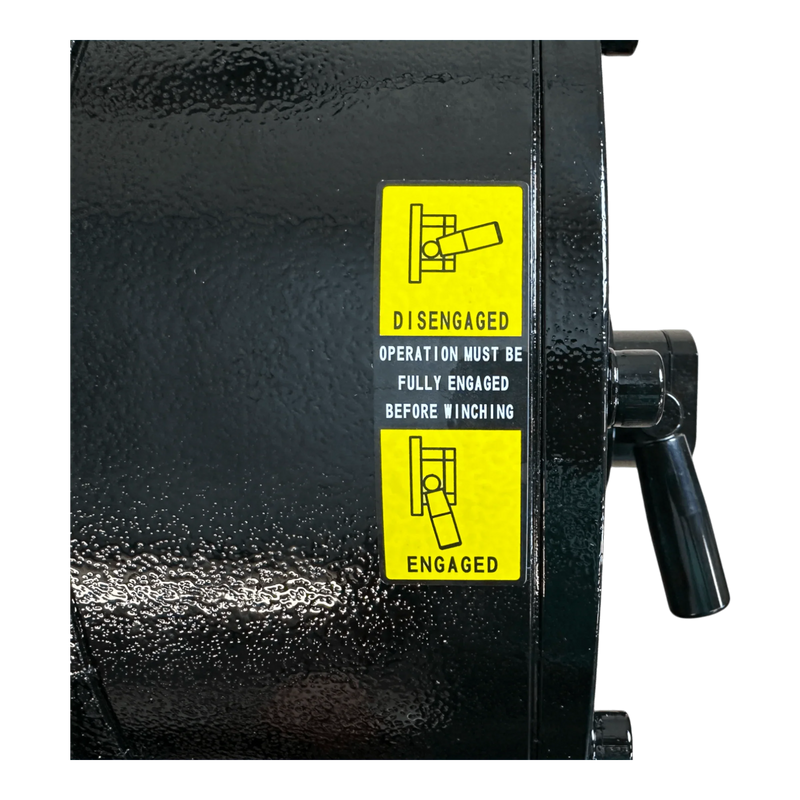

Close-up of a PIERCE 30,000 lb Hydraulic Recovery Winch (Narrow Drum, Manual Clutch) featuring a black finish and a yellow label indicating engaged and disengaged lever positions.

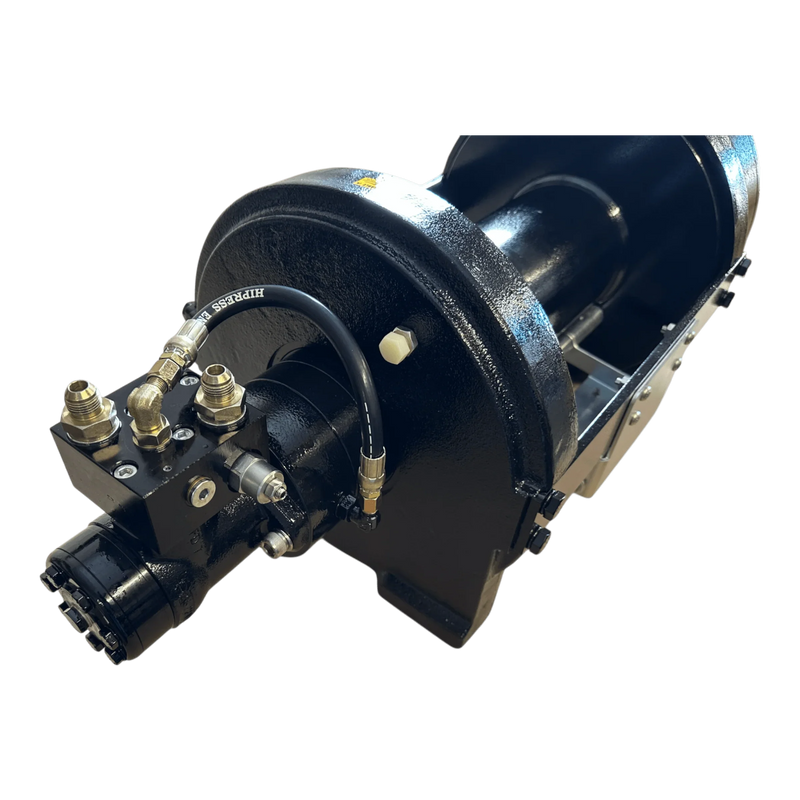

The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch features metal hoses and fittings, making it ideal for hydraulic or industrial recovery winch systems.

30,000 lb Hydraulic Recovery Winch | Narrow Drum, Manual

PSHDH30000NDM

$5,899.00 $7,944.00

In Stock

The PSHDH30000NDM is the simplest, most compact 30,000 lb hydraulic recovery winch in the Pierce line — narrow drum for tight mounting, manual clutch so no air system is required. Same 9.5 in³ motor and 41:1 gear ratio as every other PSHDH 30K, just stripped to its smallest, simplest form.

Who is the PSHDH30000NDM for?

Service trucks and recovery rigs that need 30K pulling capacity but can't accommodate the long-drum footprint and don't have an onboard air supply. Common applications: light- to medium-duty wreckers, off-road recovery vehicles, mobile service trucks, and equipment retrofits replacing an older narrow-drum manual winch.

  • 30,000 lb rated pulling capacity
  • Hydraulic, 9.5 in³ in/rev motor
  • 2,540 PSI operational pressure, 15.9 GPM max oil flow
  • 2-stage planetary gear, 41:1 ratio
  • 16 fpm max line speed
  • Output-shaft disengaged clutch — manual lever, no air system needed
  • Narrow drum — compact mounting footprint
  • Multidisc brake
  • Cast housings with steel drum
  • Recommended wire rope: ⅝ in × 141 ft (1,960 N/mm² grade, 179 kN minimum breaking strength)
  • Mounting bolt pattern: 7.5 in × 12 in or 10.5 in × 12 in
  • Pierce SKU PSHDH30000NDM — built to order

For air-clutch operation in the same narrow footprint, see the 30,000 lb Hydraulic Recovery Winch (Narrow Drum, Air). For more rope capacity with the same manual clutch, see the Long Drum, Manual. Stepping down to 20,000 lb: 20,000 lb Hydraulic Recovery Winch.

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

PIERCE 1 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.
What's Included
Specifications
Max Capacity (lbs.)
30000
Power Source
Hydraulic
Series
Recovery
Max Line Speed
16 fpm @ 15.9 gpm
Max Oil Flow (gpm)
15.90
Operational Pressure (psi)
2540
Hydraulic Motor
9.5 in³ / rev
Gear Type
2-Stage Planetary Gear
Gear Ratio
41:1
Construction
Cast Housings with Steel Drum
Drum Rotation
Counter-Clockwise (Underwound)
Recommended Wire Rope
⅝" x 141' (1,960 N/mm2grade a minimum breaking strength of 179 KN required)
Clutch Type
Output Shaft Disengaged
Brake Type
Multidisc Brake
Mounting Bolt Pattern
7.5” x 12” ; 10.5” x 12”
Warranty
Technical Data

PSHDH30000 Line Pull and Rope Layer

Data is calculated based on a consistently supplied 15.9 gpm flow with ⅝" winch cable. Environmental and other conditions may affect results. Always use the proper safety gear and follow all safety precautions when winching.

Layer of Wire RopePull by Layer (lbs.)Total Rope on the Drum (ft.)Line Speed (@ 15.9 gpm) fpm
1st30,0003616
2nd25,2168219
3rd21,74513123
4th19,11519026
5th17,05224629
FAQs (8)
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Warranty
1 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
