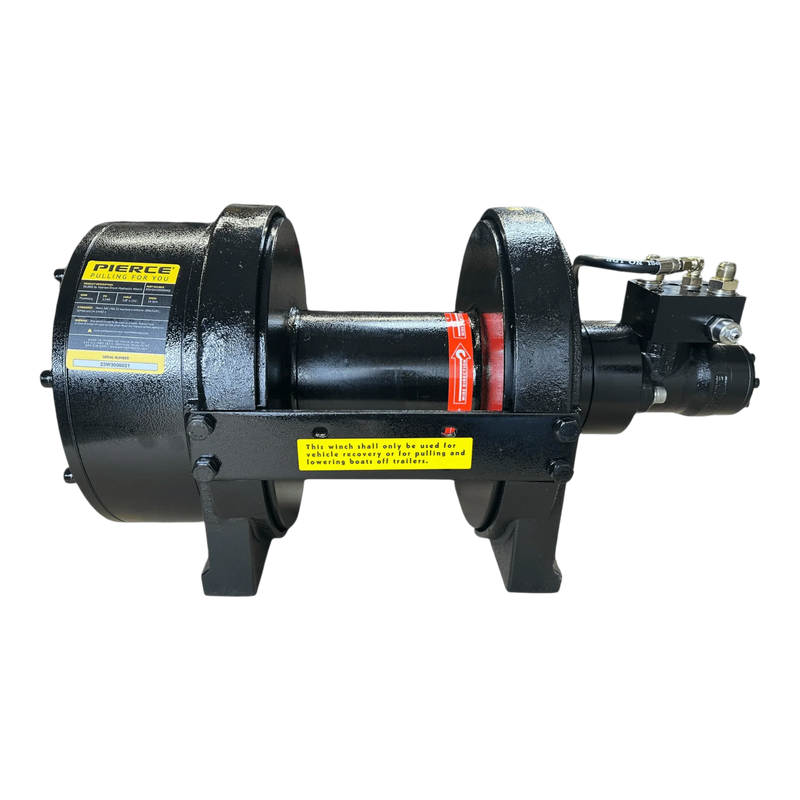

The PIERCE 30,000 lb Hydraulic Recovery Winch features a narrow drum, air clutch, metal frame, and warning labels—ideal for heavy-duty towing operations.

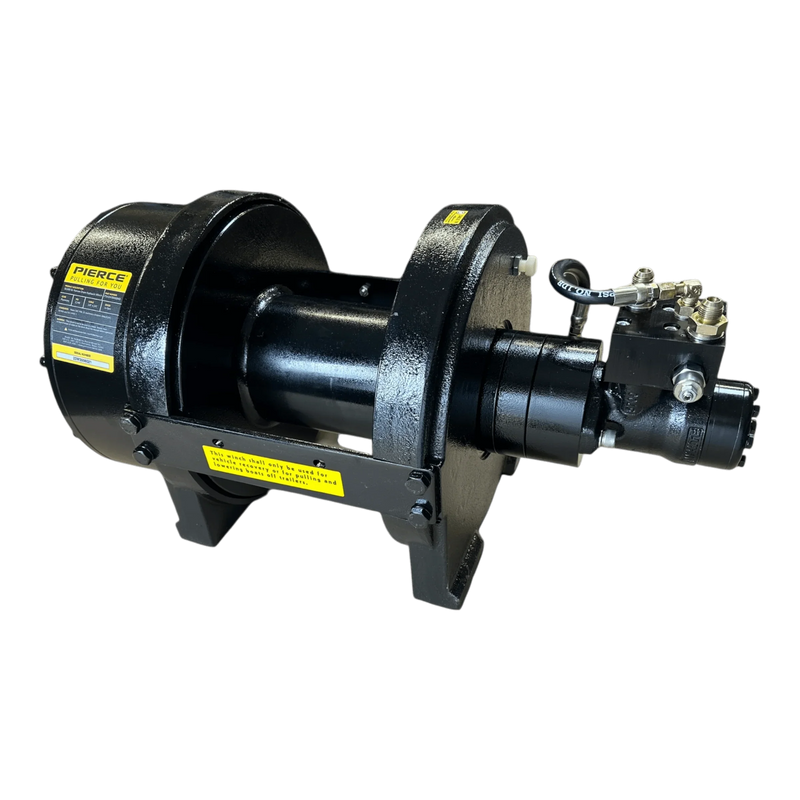

The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch is mounted on a metal base, isolated on white, and includes labels and a control valve.

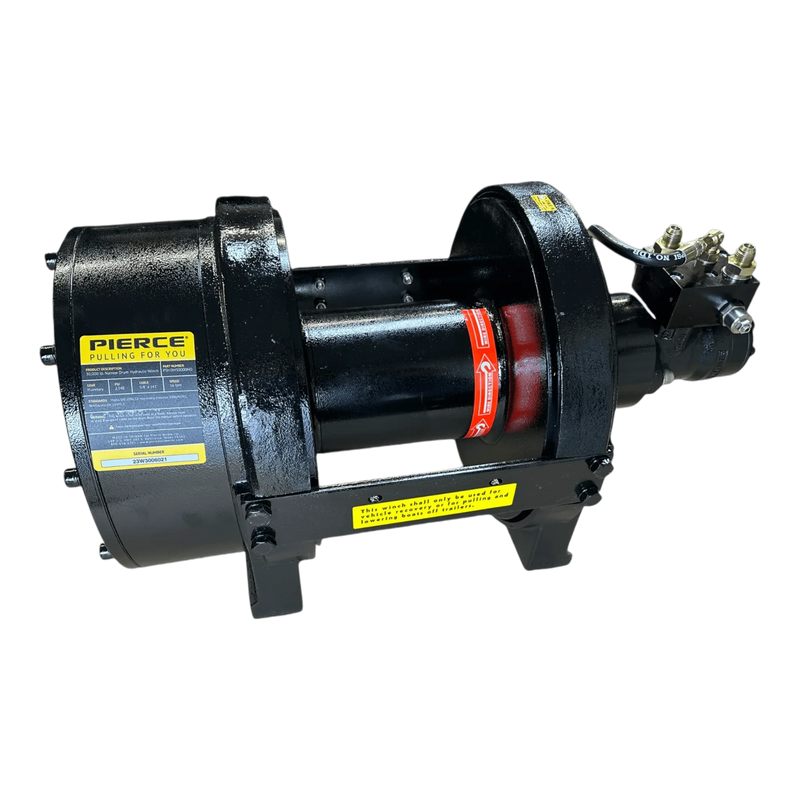

The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch features yellow labels and exposed wiring, making it ideal for heavy-duty towing applications; shown here on a white background.
Black, round metal component with bolts and small handle, labeled SN: 2002036. This PIERCE 20,000 lb Hydraulic Recovery Winch (Long Drum, Manual Clutch) is built for hydraulic winch systems and heavy-duty recovery tasks.

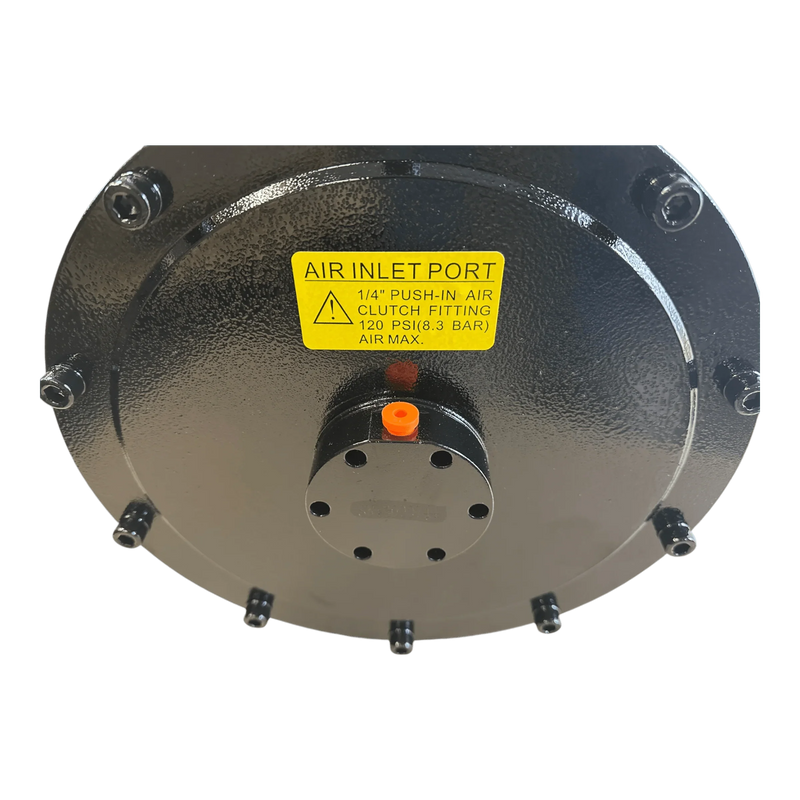

The PIERCE 30,000 lb Hydraulic Recovery Winch (Narrow Drum, Air Clutch) features a black industrial component with a yellow AIR INLET PORT label and red-capped air fitting for heavy-duty towing or hydraulic recovery applications.

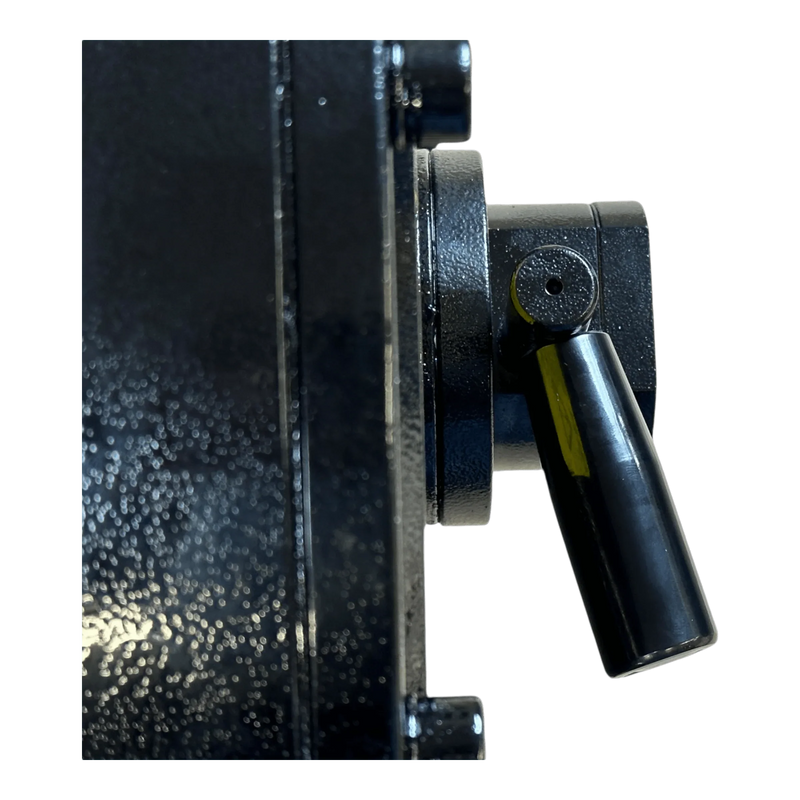

Close-up of a black metal lever on the 30,000 lb Hydraulic Recovery Winch | Narrow Drum | Air Clutch by PIERCE, shown attached to its textured metallic surface—ideal for heavy-duty towing and hydraulic recovery winch operations.

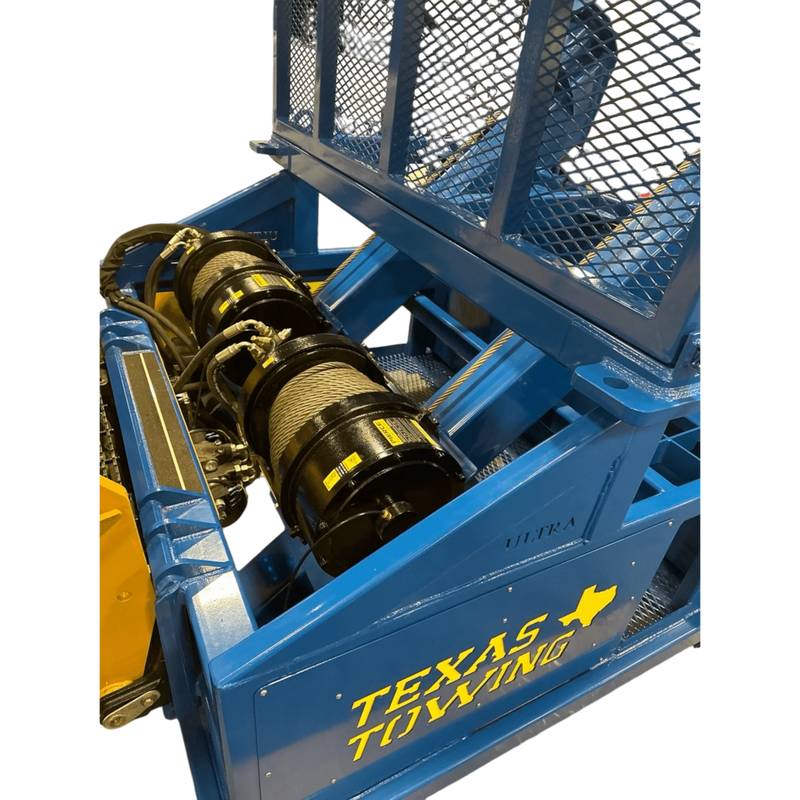

PIERCE 30,000 lb Hydraulic Recovery Winch with narrow drum and air clutch is mounted on a blue tow truck with TEXAS TOWING text and yellow state outline; metal mesh above ensures reliable, heavy-duty towing performance.

30,000 lb Hydraulic Recovery Winch | Narrow Drum, Air

PSHDH30000ND

$7,504.00

In Stock

The PSHDH30000ND is the narrow-drum, air-clutch version of the 30,000 lb PSHDH — same 9.5 in³ motor and 41:1 gear ratio as the long-drum sibling, in a tighter mounting footprint. Built for wreckers and service trucks where 30K pulling power is needed but mounting space is tight.

How much rope does the narrow drum hold vs. the long drum?

The narrow drum holds 141 ft of ⅝ in wire rope; the long drum holds 250 ft. That's the trade-off. If your typical recovery is short-distance (vehicle off the road, equipment on/off a flatbed), 141 ft is plenty. If you're pulling at distance — long-line recovery, off-road jobs where you can't get close to the load — pick the long drum.

  • 30,000 lb rated pulling capacity
  • Hydraulic, 9.5 in³ in/rev motor
  • 2,540 PSI operational pressure, 15.9 GPM max oil flow
  • 2-stage planetary gear, 41:1 ratio
  • 16 fpm max line speed
  • Output-shaft disengaged clutch — air-spool, cab-controlled
  • Narrow drum — compact mounting footprint
  • Multidisc brake
  • Cast housings with steel drum
  • Recommended wire rope: ⅝ in × 141 ft (1,960 N/mm² grade, 179 kN minimum breaking strength)
  • Mounting bolt pattern: 7.5 in × 12 in or 10.5 in × 12 in
  • Pierce SKU PSHDH30000ND — built to order

For more rope on the same air clutch, see the 30,000 lb Hydraulic Recovery Winch (Long Drum, Air). For the manual-clutch version (no air supply needed) at the same narrow footprint, see the Narrow Drum, Manual. Stepping down to 20,000 lb: 20,000 lb Hydraulic Recovery Winch (Narrow Drum, Air).

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

PIERCE 1 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.
What's Included
Specifications
Max Capacity (lbs.)
30000
Power Source
Hydraulic
Series
Recovery
Max Line Speed
16 fpm @ 15.9 gpm
Max Oil Flow (gpm)
15.90
Operational Pressure (psi)
2540
Hydraulic Motor
9.5 in³ / rev
Gear Type
2-Stage Planetary Gear
Gear Ratio
41:1
Construction
Cast Housings with Steel Drum
Drum Rotation
Counter-Clockwise (Underwound)
Recommended Wire Rope
⅝" x 141' (1,960 N/mm2grade a minimum breaking strength of 179 KN required)
Clutch Type
Output Shaft Disengaged - Air Spool
Brake Type
Multidisc Brake
Mounting Bolt Pattern
7.5” x 12” ; 10.5” x 12”
Warranty
Resources
Technical Data

PSHDH30000 Line Pull and Rope Layer

Data is calculated based on a consistently supplied 15.9 gpm flow with ⅝" winch cable. Environmental and other conditions may affect results. Always use the proper safety gear and follow all safety precautions when winching.

Layer of Wire RopePull by Layer (lbs.)Total Rope on the Drum (ft.)Line Speed (@ 15.9 gpm) fpm
1st30,0003616
2nd25,2168219
3rd21,74513123
4th19,11519026
5th17,05224629
FAQs (8)
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
Warranty
1 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
