Medium Duty Flat Bed Dump Kit

12 Volts

$2,776.00

1/13

Medium Duty Flat Bed Dump Kit

DKMKPD

$2,776.00

In Stock

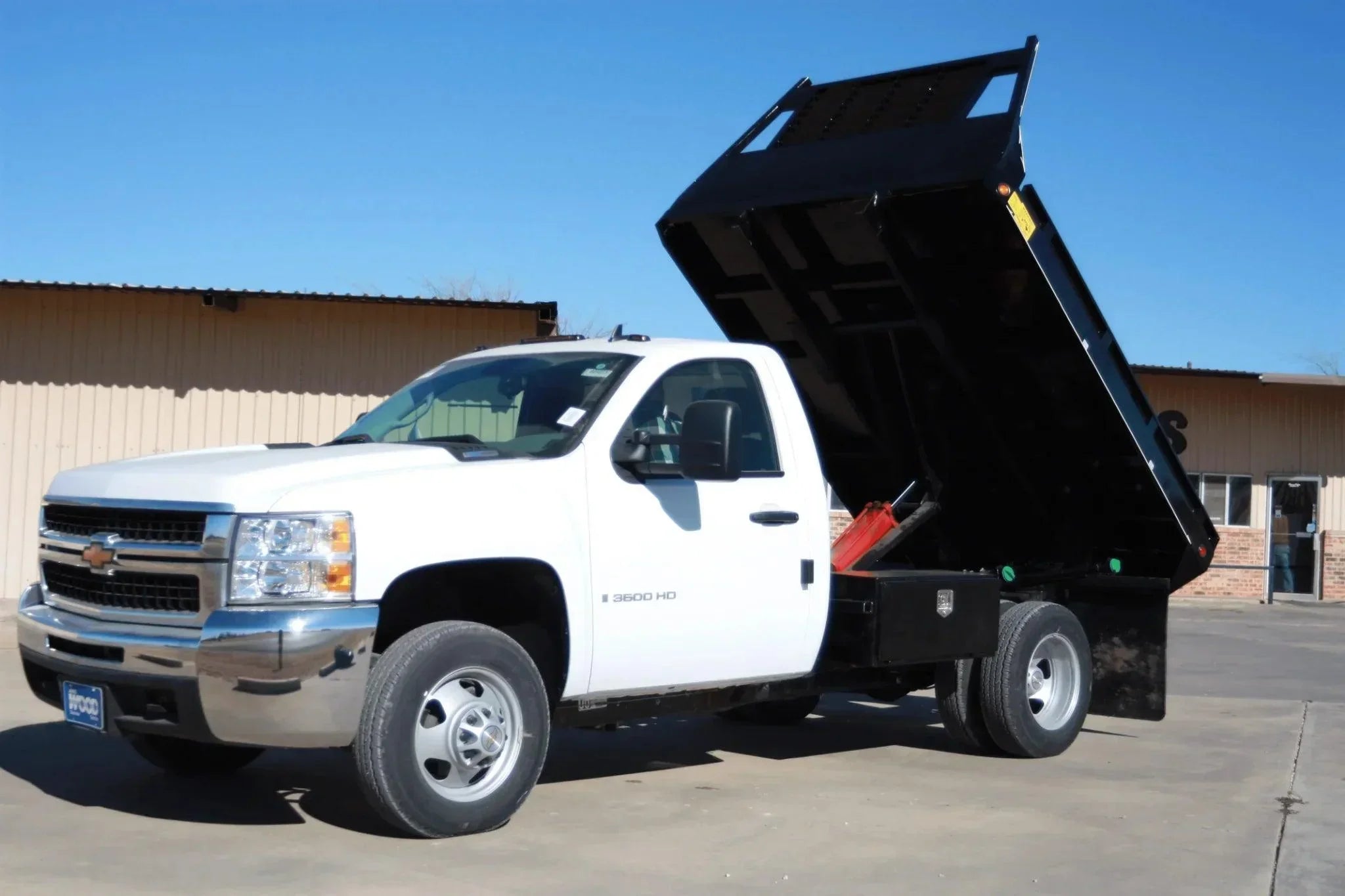

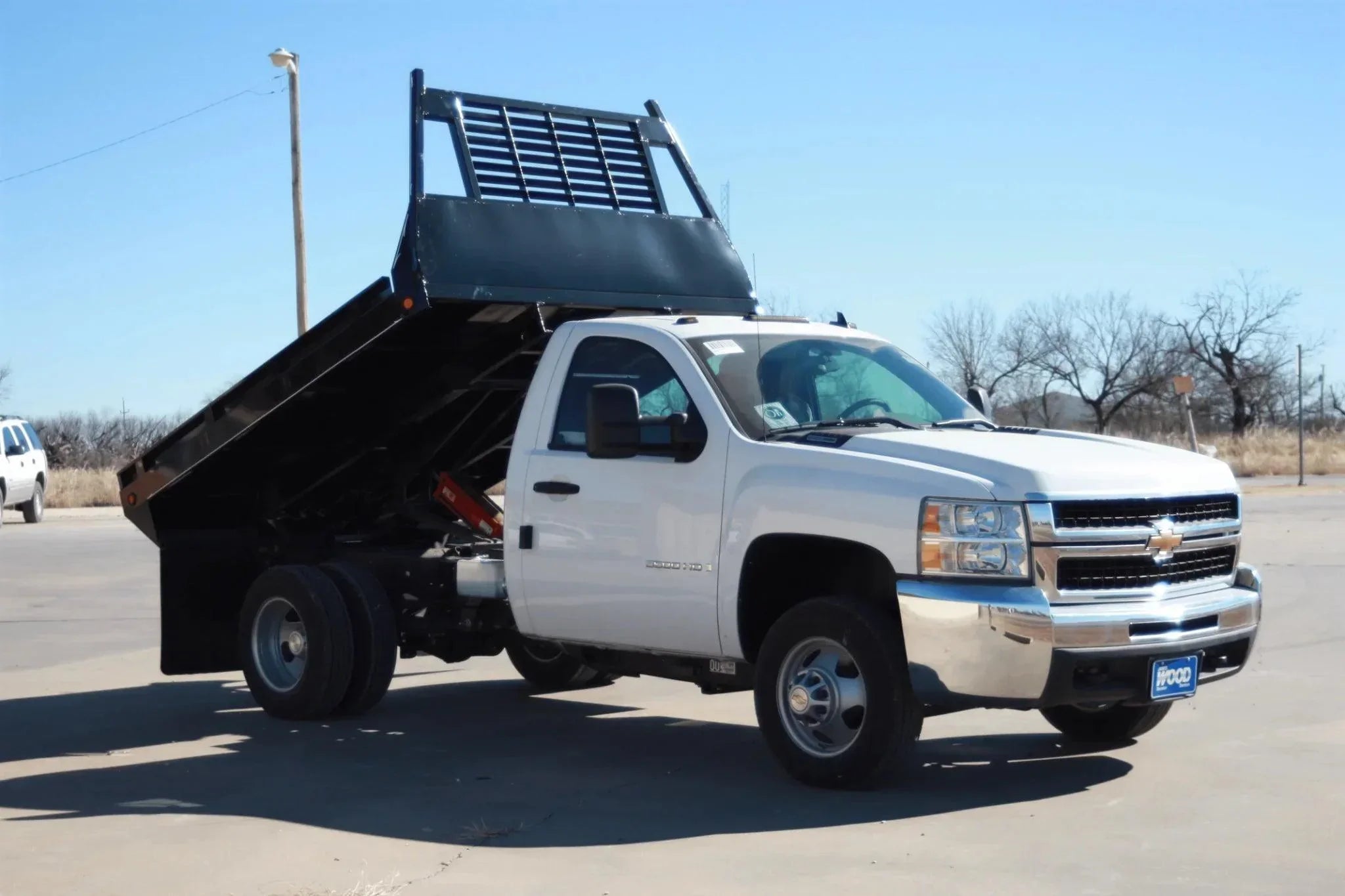

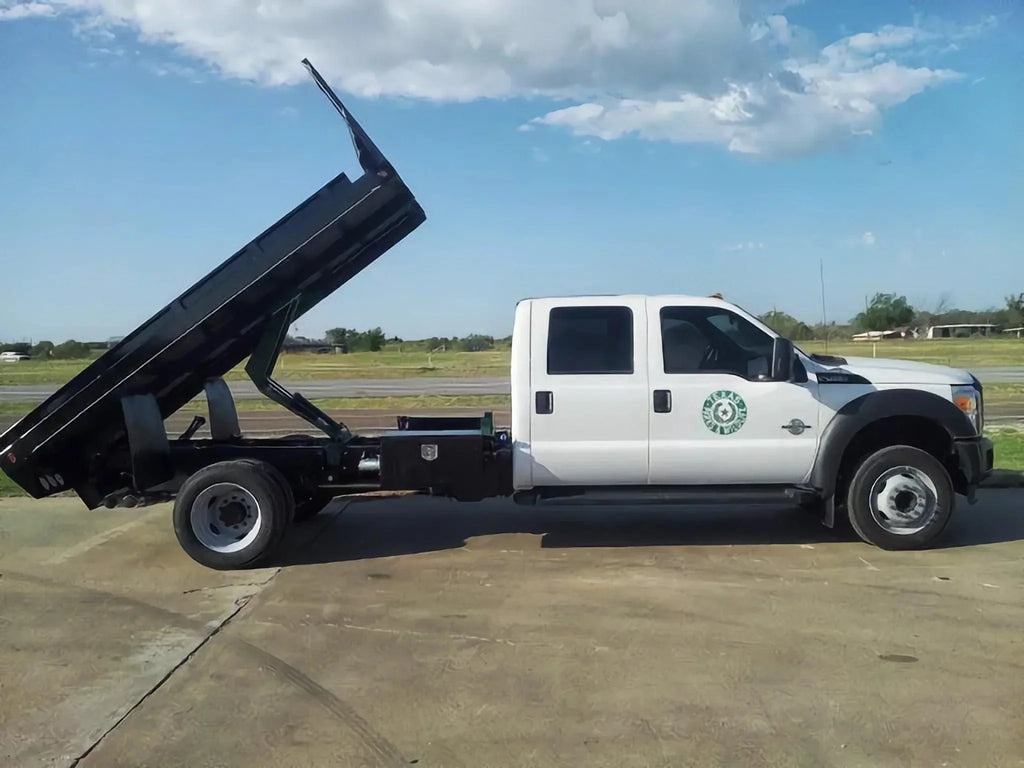

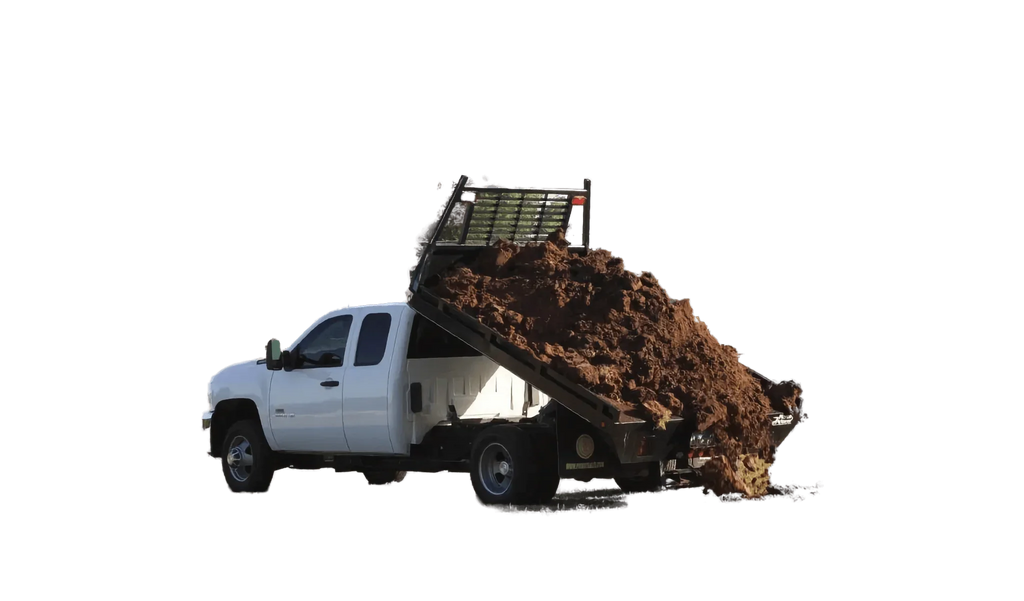

Upgrade your work truck or trailer with the PIERCE Medium Duty Flat Bed Dump Kit, built for hardworking folks across the US who need reliable, efficient gear. Made for after-market flatbeds or dump bodies, this universal kit handles up to 15,000 lbs., perfect for jobs like landscaping, construction, or cemetery upkeep.

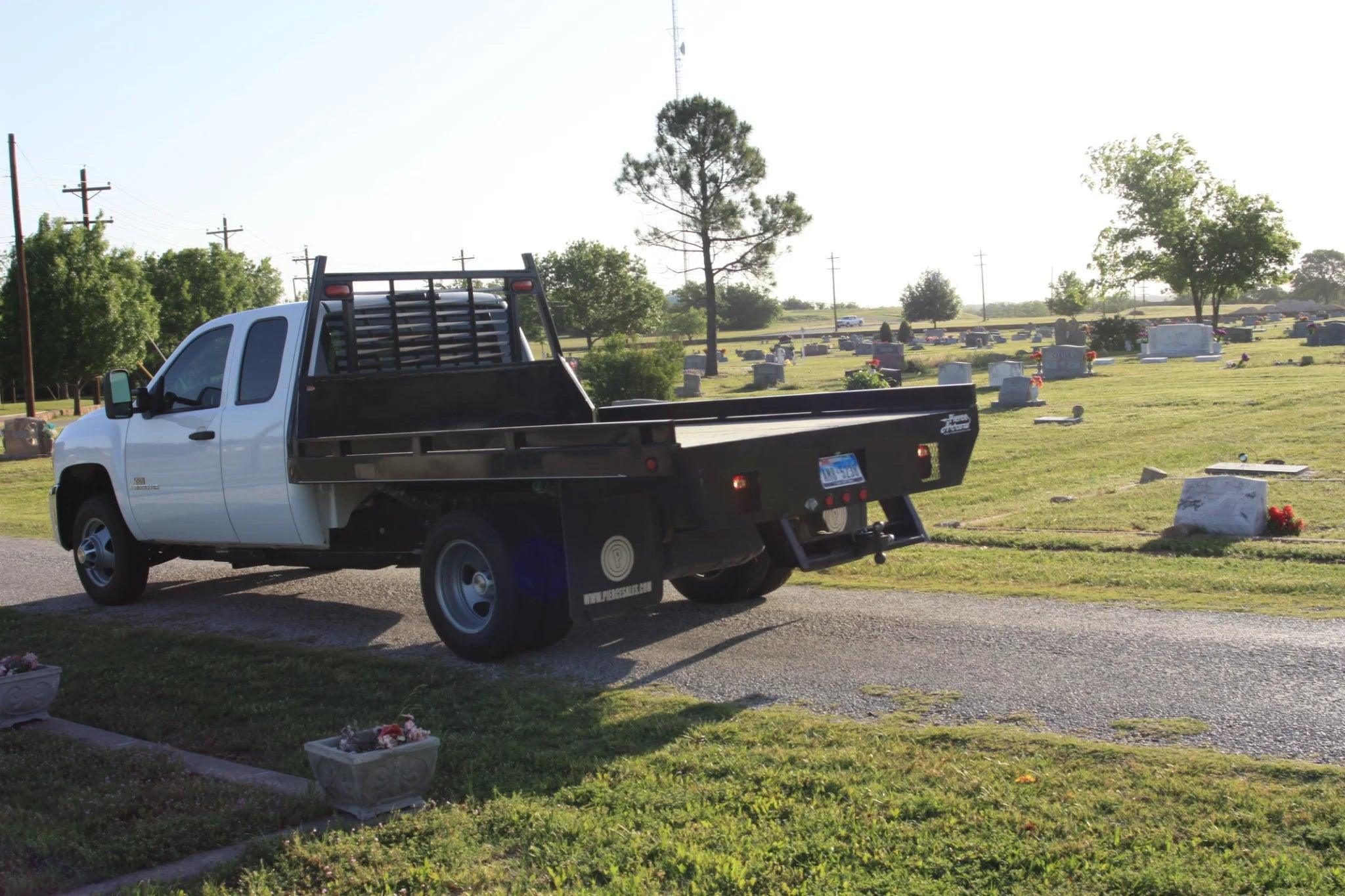

Strong Performance: With a 12 Volt hydraulic pump that comes standard, this kit lifts your truck bed to a 45º angle in 30-90 seconds, making quick work of unloading dirt, gravel, or mulch. Whether you’re dumping in a field or working in a quiet cemetery, it gets the job done fast while saving your energy. If the Medium Duty is more than you need, checkout the Light Duty Kit. If more power is needed, take a look at our Heavy Duty Kit.

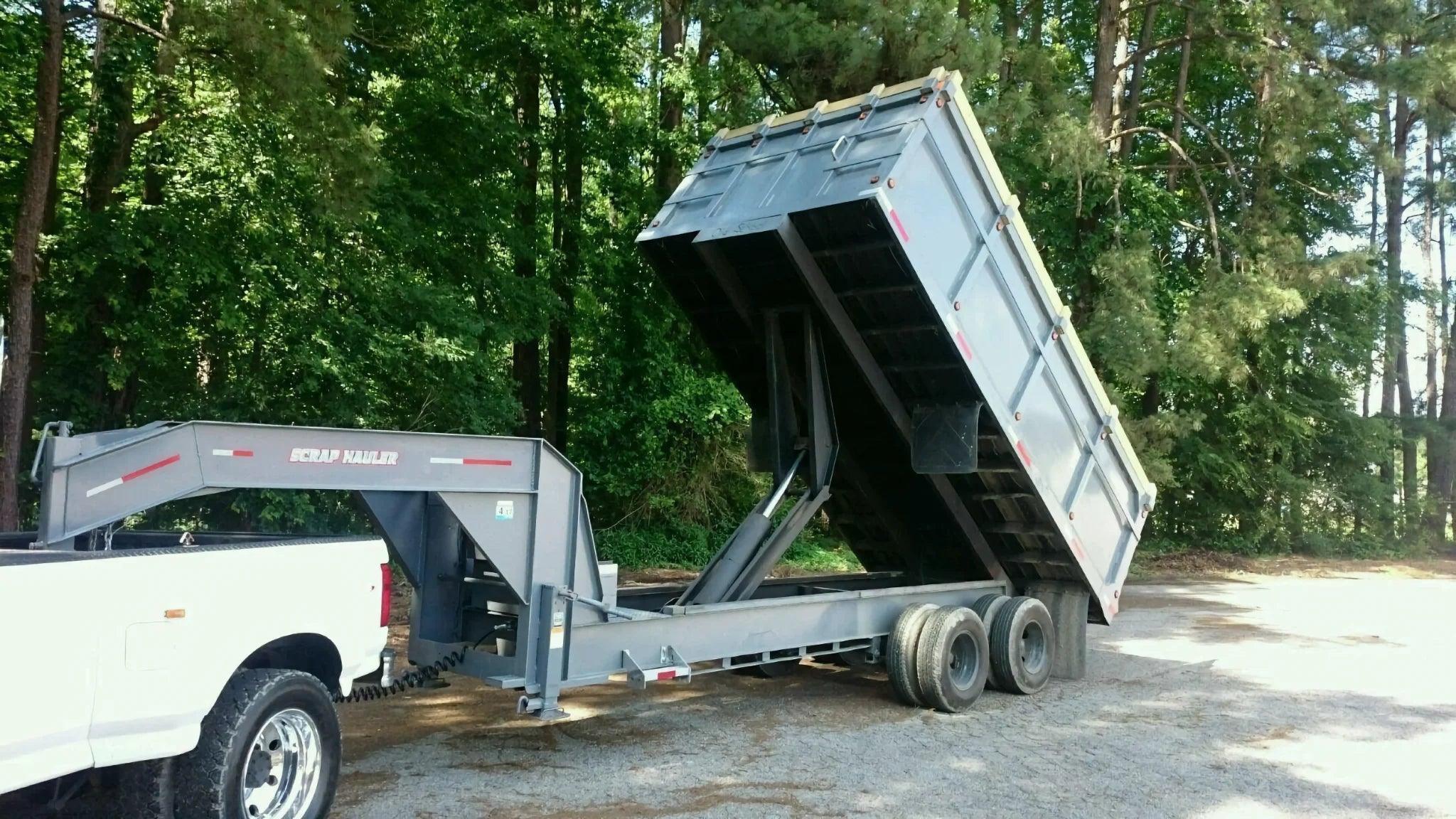

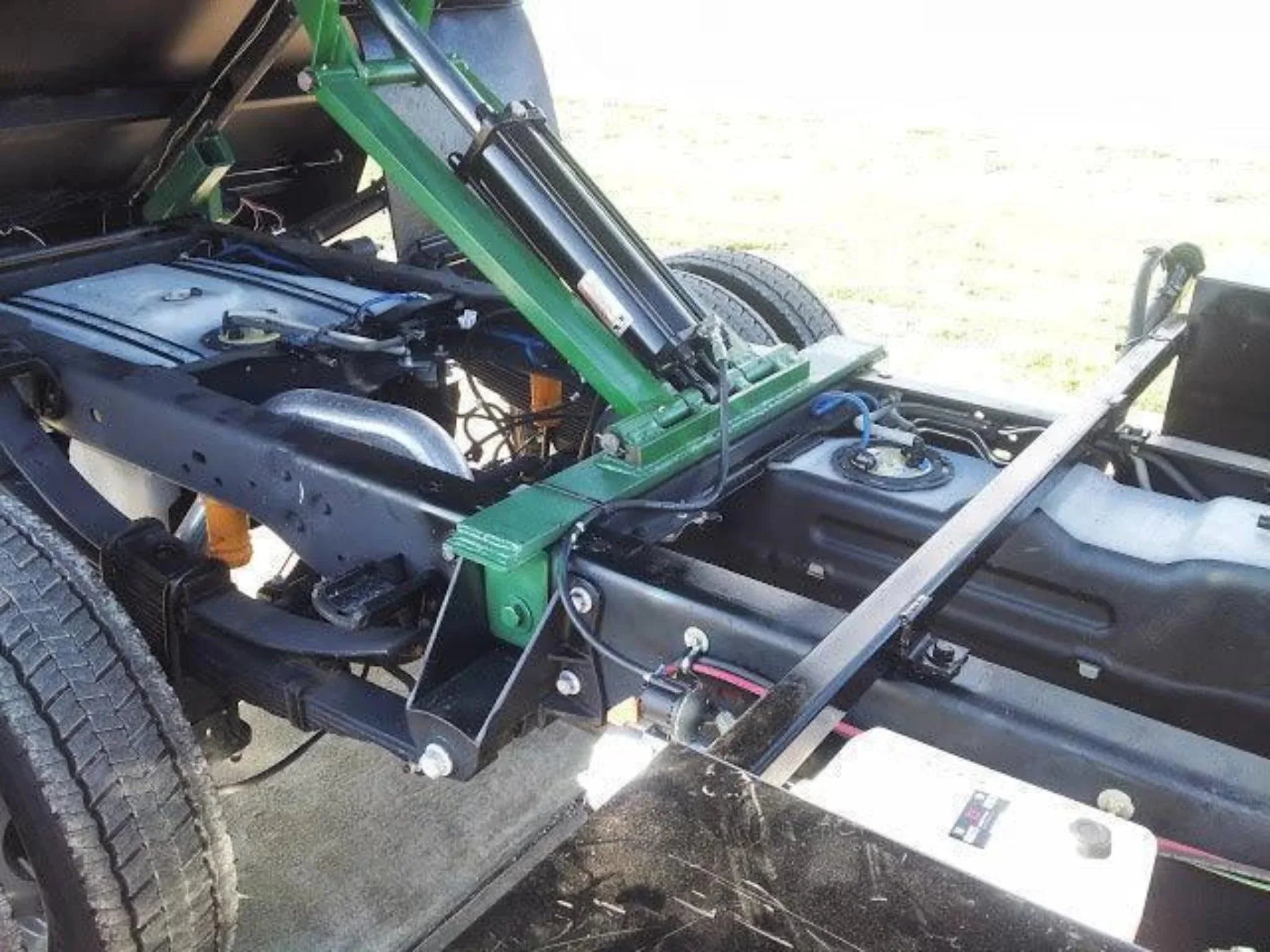

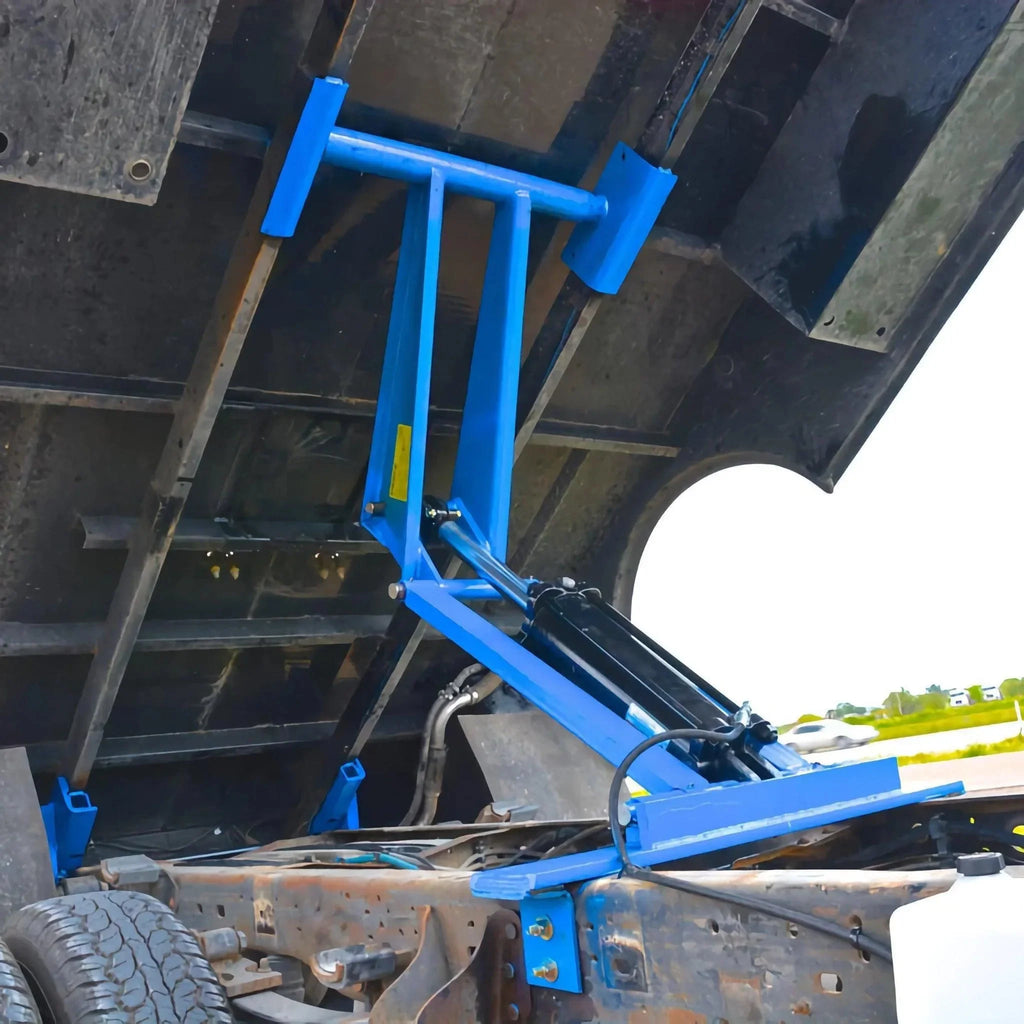

Wide Fit: Works with bed lengths from 8’ to 12’, this kit is great for turning trailers into dump trailers or improving flatbeds. Its tough scissor assembly delivers steady power for heavy tasks.

Expert Installation Needed: This kit requires expert-level skills, including welding, mechanical, and electrical know-how. It comes with a pre-assembled scissor assembly, hydraulic pump, and almost all necessary hardware, plus our manual. Strengthening your truck bed is a good idea, and a pro’s help might be useful. Call our team at 940-538-5643 for advice.

Made to Last: Since 1976, PIERCE, a family-run North Texas business, has crafted equipment that keeps up with your grind. Customers love the kit’s solid build and simple operation, saying it makes tough jobs easier with just a button push.

Why Choose PIERCE? Outfit your rig with the Medium Duty Dump Kit to save time and handle hard jobs with ease.

Note: Don’t go over your truck or trailer’s max load rating. Tools and some hardware not included. Expert installation strongly recommended.

Lifting Capacity

Which dump kit: light, medium, or heavy-duty? The choice is based on your bed length and your preferred capacity to lift, haul and dump. The fit chart is below.

Universal

These PIERCE dump bed kits are designed to be a universal fit to both trucks and trailers, not specific to any make, model, or year.

Flat Bed Kit Options:

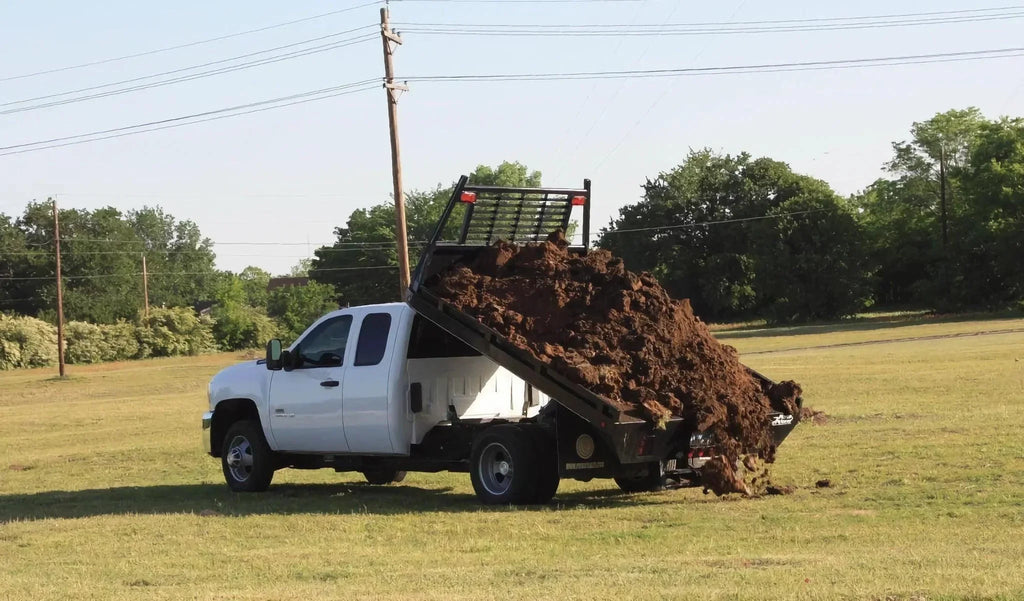

A white truck equipped with the PIERCE Light Duty Flat Bed Dump Kit unloads dirt onto a grassy field under a clear sky.

Scissor Top: 1
Scissor s: 2
Crossmember: 1
Shaft A 9.25 in.: 1
Shaft B 15 in.: 1
Shaft C 21.5 in.: 1
Hydraulic Cylinder: 1
7/32 in. x 2 in. Roll Pin: 6

Driver Side Frame Hinge: 1
Passenger Side Frame Hinge: 1
Frame L Bracket: 2
Guides: 2
Shaft D 9.25 in.: 2
Pump Bracket: 1
Scissor Support Bar: 1
Driver Side Sill Hinge: 1
Passenger Side Sill Hinge: 1
Sill Supports: 2

3/8 in. - 16 x 1.25 in. G5 Hex Head Bolt: 2
1/2 in. - 16 x 3 in. G8 Hex Head Bolt: 8
1/2 in. Flat Washer: 10
1/2 in. - 13 Locknut: 12
3/8 in. Lock Washer: 2
7/32 in. x 2 in. Roll Pin: 4
1/2 in. - 13 x 1.5 in. G8 Hex Head Bolt: 2
1/2 in. - 13 x 1.25 in. G8 Hex Head Bolt: 2
1/2 in. - 13 x 8 in. G8 Hex Head Bolt: 2
3/8 in. x 1 in. G8 Hex Head Bolt: 2
3/8 in. Locknut: 2
3/8 in. Flat Washer: 2
3/4 in. - 10 x 2.5 in. G8 Hex Head Bolt: 1
3/4 in. G8 Locknut: 1
3/4 in. Flat Washer: 2
Safety Prop Leg: 1
Safety Prop Cup: 1
8 in. Black UV Zip Ties: 1
Instruction Manual: 1

200 Amp Breaker: 1
20 ft. #4 Welding Cable - Black: 1
20 ft. #4 Welding Cable - Red: 1
5/16 in. Battery Eye: 6
2 Button Universal Remote with 20 ft. Cord: 1
3/4 in. x 1/4 in. 90º Swivel O-Ring Fitting: 1
3/8 in. Male x 1/4 in. Female 90º Swivel Fitting: 1
#8 Straight O-Ring Male to 1/4 in. Female Pipe Fitting: 1
5 ft. Hydraulic Hose: 1
7 ft. Hydraulic Hose: 1
Bucher 12V Power Up/Power Down Hydraulic Pump: 1

Max Capacity (lbs.)

15000

Operating Voltage

12 Volts DC

Max Oil Flow (gpm)

1.50

Operational Pressure (psi)

3250

Reservoir Capacity

2.5 Gallons

Reservoir Material

High Density Polyethylene

Hose Connections

#6 SAE

Recommended Fluid

ATF (Automatic Transmission Fluid)

Pump Directions

2-Way (Power Up / Power Down)

Operating Temperature Range

-20ºF to 130ºF (-30ºC to 55ºC)

Maximum Angle (º)

45º

Dumping Time

30-90 seconds

Cylinder Measurements

5" x 14" x 2"

Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly ReservoirSKU: PM-3551

$641.00

Hydraulic Cylinders | Welded Cylinder | 5 Inch Bore Diameter | 14 Inch StrokeSKU: P046514W

$299.00 ~~$491.00~~

Universal Momentary Pendant Control - 2 ButtonSKU: CP077

$17.00

PIERCE Flat Bed Dump Kit 5T Customer Testimonial

Medium Duty Flat Bed Dump Kit

DK - Flatbed Dump Kit Manual Manual DKMKPD - Spec Sheet Spec Sheet Pump Troubleshooting Guide Guide

DKMKPD Capacity vs Bed Overhang

Overhang	8' Bed	10' Bed	12' Bed
None	7 T	6.5 T	6 T
12"	7.5 T	7 T	6.5 T
24"		7.5T	7T
36"			7.5T

How involved is the installation of the Flat Bed Dump Kit?

Rated as an expert-level install, this kit requires advanced skills, including welding and potential modifications to your truck or trailer. For optimal performance, we recommend you reinforce your truck bed and consider professional assistance. Contact us for advice on your best options.

Will I be able to tow a trailer with this dump kit installed?

Towing is only permitted with frame-mounted receiver hitches. Gooseneck hitches are not compatible and will have to be removed before installing the dump kit.

What is the maximum lift capacity of the Medium Duty Flat Bed Kit?

The kit itself is rated for up to 15,000 lbs. However, there are several factors you need to consider. The first is the capacity of your truck or dump body. You do not want to exceed that under any circumstances. The second is the bed length vs the overhang. We provide charts for each kit so you can get an idea of your bed length vs how much overhang you will need to get the required lifting capacity.
