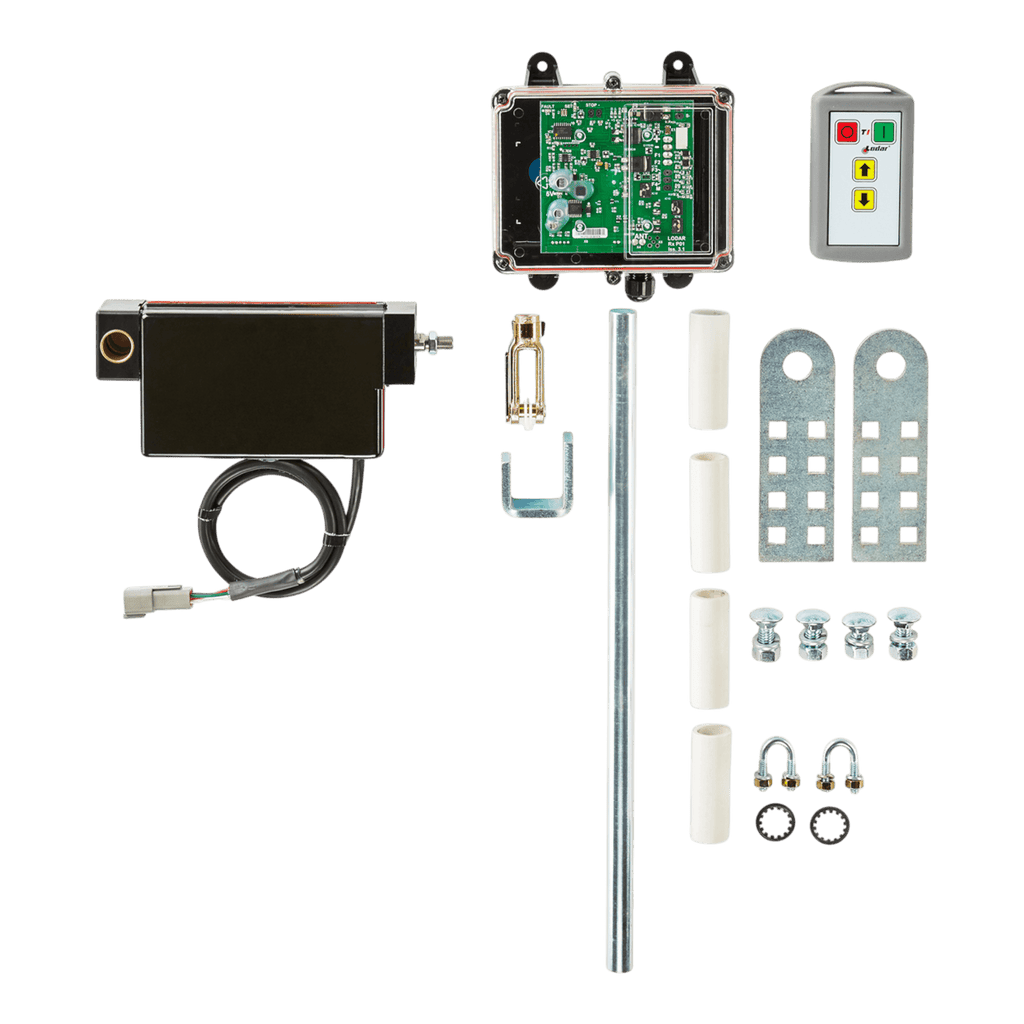

The PIERCE Lodar Wireless Electric Actuator Control System - 2 Functions includes electronic components, brackets, screws, metal rods, and a hand lever control for easy operation on a 12V system—all shown on a white background.

Lodar Wireless Electric Actuator Control System - 2 Functions

$1,274.00
Skip to product information
The PIERCE Lodar Wireless Electric Actuator Control System - 2 Functions includes electronic components, brackets, screws, metal rods, and a hand lever control for easy operation on a 12V system—all shown on a white background.
1/2
  • The PIERCE Lodar Wireless Electric Actuator Control System - 2 Functions includes electronic components, brackets, screws, metal rods, and a hand lever control for easy operation on a 12V system—all shown on a white background.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • The PIERCE Lodar Wireless Electric Actuator Control System - 2 Functions includes electronic components, brackets, screws, metal rods, and a hand lever control for easy operation on a 12V system—all shown on a white background.
  • Pairing the 92 Series Lodar Remote & Transmitter
Lodar Wireless Electric Actuator Control System - 2 Functions

Lodar Wireless Electric Actuator Control System - 2 Functions

92150A-8
$1,274.00
In Stock

This electric wireless remote control system operates hand levers safely and effectively. The effectiveness and ease of installation make it not only an alternative, but a clear choice.

Operation Requirements

  • On-Board 12 Volt Power

Features

  • Up to 2 Functions
  • Uses FETs (Field-Effect Transistor) instead of Mechanical Relays
  • Low Voltage Protection

Warranty
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Specifications
Transmitter
Standard
Functions
2
Actuator
Electric
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 67
Operating Distance
200 ft. (61 m.)
Master Output
No
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 2
Frequency
433 MHz
Type
Full System
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (3)
2 Function Lodar Replacement Standard Transmitter | 9000 Series
2 Function Lodar Replacement Standard Transmitter | 9000 SeriesSKU: 92102TX-8
$247.00
Replacement Actus Actuator
Replacement Actus ActuatorSKU: 723-0110
$546.00
Lodar Replacement Electric Actuator Hardware
Lodar Replacement Electric Actuator HardwareSKU: AC9930
$731.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources
92150A - Electric Actuator Kit Spec Sheet
92150A - Electric Actuator Kit
Spec Sheet
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
