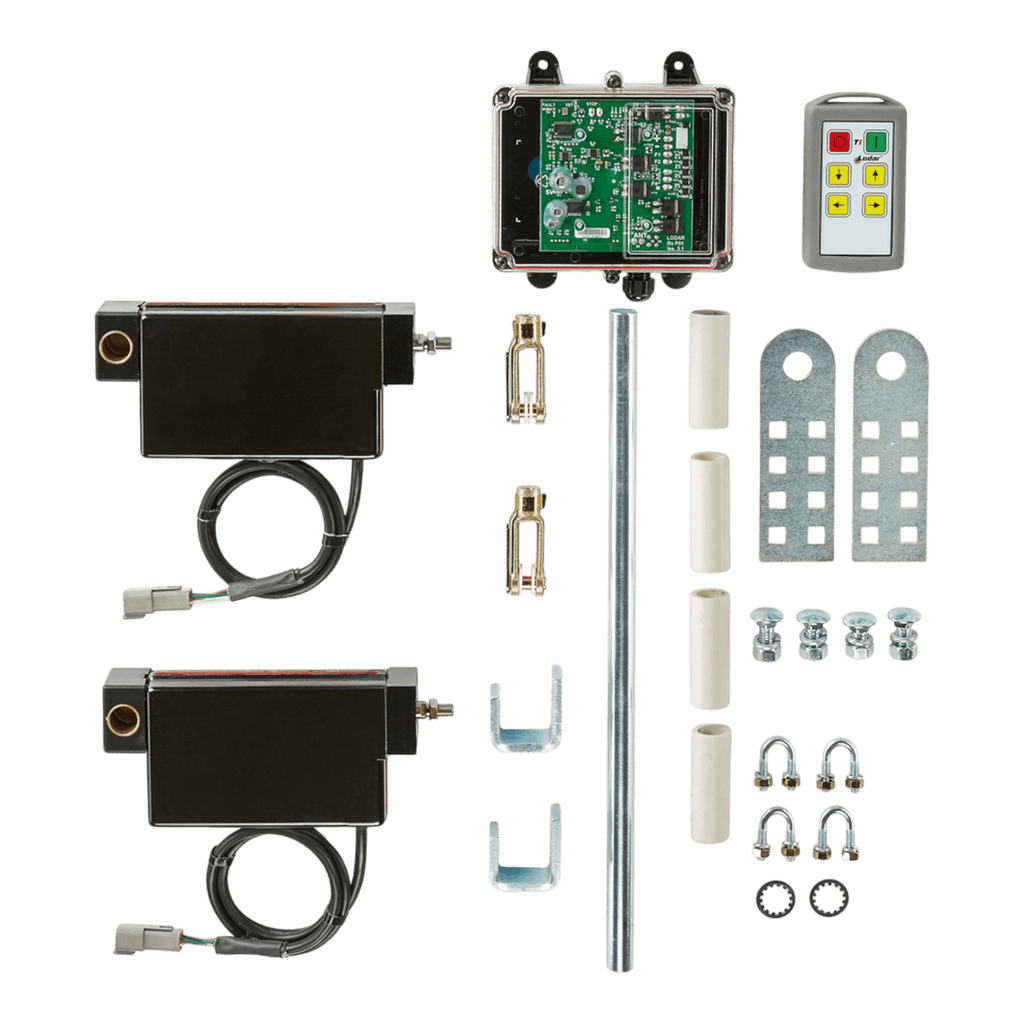

PIERCE Lodar Wireless Electric Actuator Control System - 4 Functions offers reliable actuator-based wireless operation with motors, control box, remotes, metal brackets, rods, bolts, and installation hardware.

Lodar Wireless Electric Actuator Control System - 4 Functions

$2,387.00
Skip to product information
PIERCE Lodar Wireless Electric Actuator Control System - 4 Functions offers reliable actuator-based wireless operation with motors, control box, remotes, metal brackets, rods, bolts, and installation hardware.
1/2
  • PIERCE Lodar Wireless Electric Actuator Control System - 4 Functions offers reliable actuator-based wireless operation with motors, control box, remotes, metal brackets, rods, bolts, and installation hardware.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • PIERCE Lodar Wireless Electric Actuator Control System - 4 Functions offers reliable actuator-based wireless operation with motors, control box, remotes, metal brackets, rods, bolts, and installation hardware.
  • Pairing the 92 Series Lodar Remote & Transmitter
Lodar Wireless Electric Actuator Control System - 4 Functions

Lodar Wireless Electric Actuator Control System - 4 Functions

92154A-8
$2,387.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
In Stock

The 4 Function Lodar Industrial Wireless Control System delivers actuator-based wireless operation of two valves. Built for rugged duty cycles, it combines an IP54-rated Industrial transmitter with a sealed IP67 receiver.

  • 4 functions = 2 valves of wireless control
  • Includes electric actuators
  • Industrial handheld transmitter (IP54)
  • Receiver sealed to IP67
  • Requires 12V DC power

Applications: Designed for hydraulic systems in towing, agriculture, and municipal service fleets.

Need more functions? Upgrade to the 6-function version. For single-output tasks, see the 1-function Industrial system.
Specifications
Transmitter
Standard
Functions
4
Actuator
Electric
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 67
Operating Distance
200 ft. (61 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 2
Frequency
433 MHz
Type
Full System
Replacement Parts (3)
4 Function Lodar Replacement Standard Transmitter | 9000 Series
4 Function Lodar Replacement Standard Transmitter | 9000 SeriesSKU: 92104TX-8
$295.00
Replacement Actus Actuator
Replacement Actus ActuatorSKU: 723-0110
$546.00
Lodar Replacement Electric Actuator Hardware
Lodar Replacement Electric Actuator HardwareSKU: AC9930
$731.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter
