Lodar Wireless Electric Actuator Control System - 4 Functions
Lodar Wireless Electric Actuator Control System - 4 Functions
Description

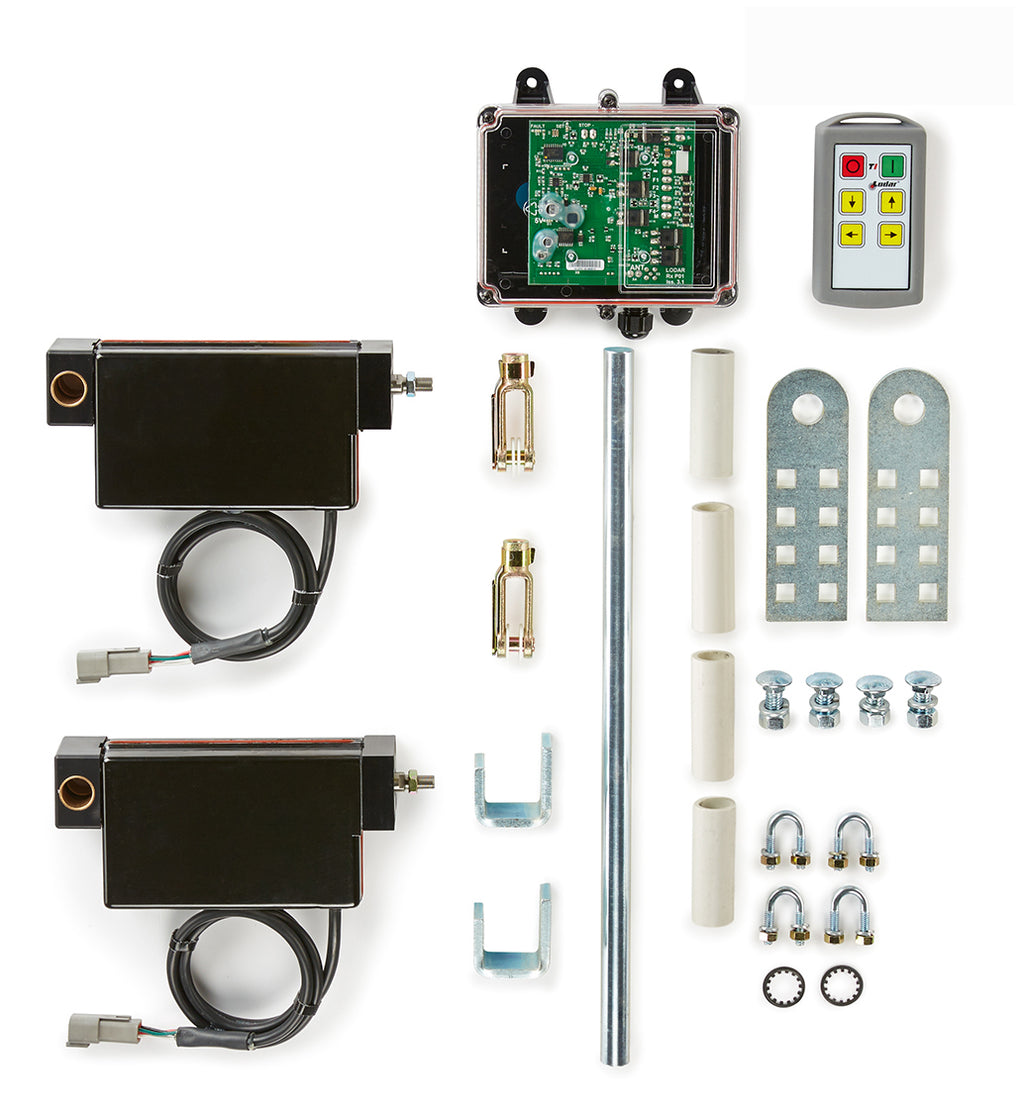

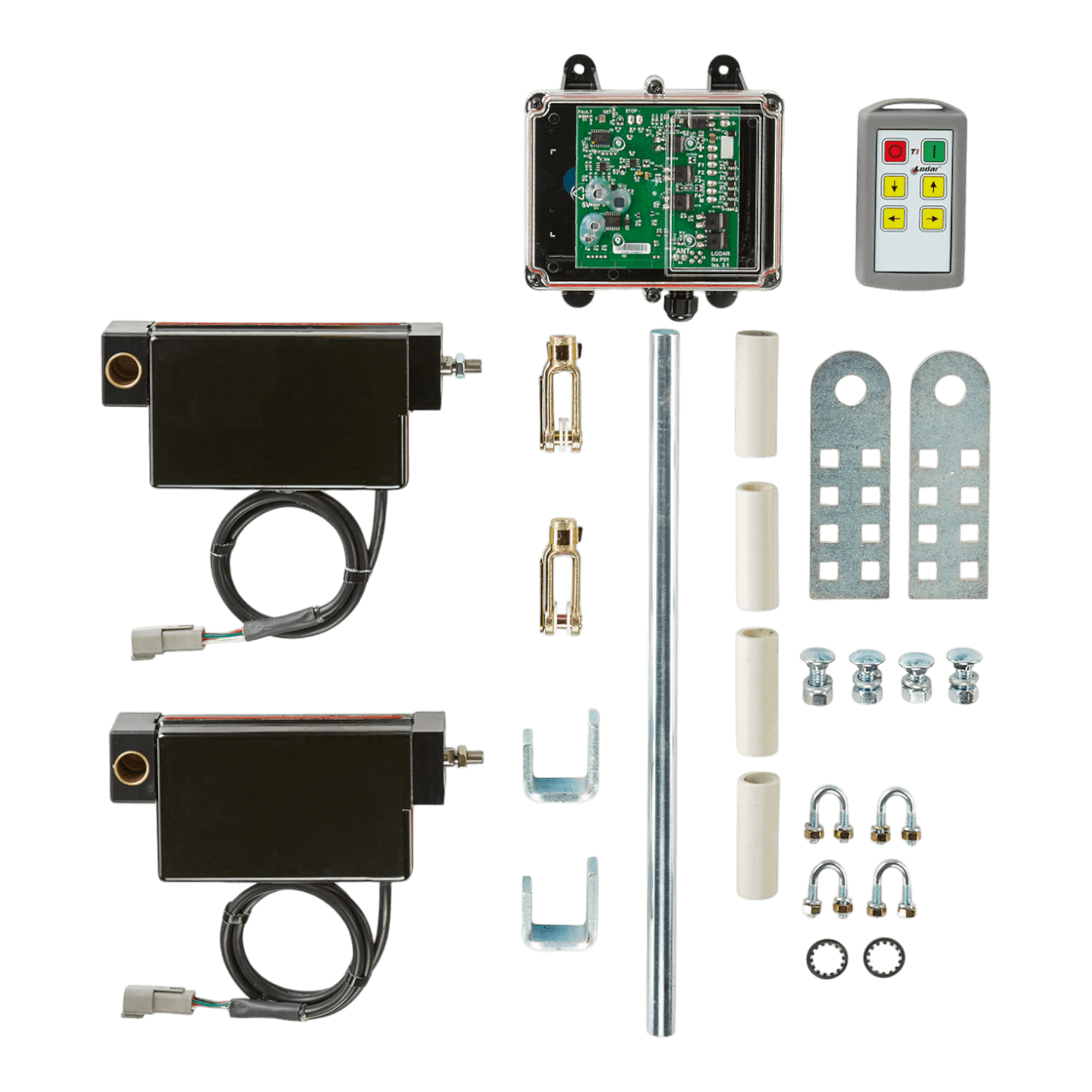

The 4 Function Lodar Industrial Wireless Control System delivers actuator-based wireless operation of two valves. Built for rugged duty cycles, it combines an IP54-rated Industrial transmitter with a sealed IP67 receiver.
- 4 functions = 2 valves of wireless control
- Includes electric actuators
- Industrial handheld transmitter (IP54)
- Receiver sealed to IP67
- Requires 12V DC power
Applications: Designed for hydraulic systems in towing, agriculture, and municipal service fleets.
Need more functions? Upgrade to the 6-function version. For single-output tasks, see the 1-function Industrial system.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Electric |
| FREQUENCY | 433 MHz |
| FUNCTIONS | 4 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 200 ft. (61 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 67 |
| SERIES | 9000 Series |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | AAA x 2 |
| TRANSMITTER IP RATING | IP 54 |
| TYPE | Full System |
Videos
Replacement Parts
4 Function Lodar Replacement Standard Transmitter | 9000 Series
The 4 Function Lodar Standard Replacement Transmitter restores dependable wireless operation to your Lodar system. Designed with large, glove-friendly buttons and rated IP54, this OEM remote is built to last in commercial applications. 4-function...
SKU: 92104TX-8
$295.00
Replacement Actus Actuator
Reliable Replacement Actuator The Replacement Actus Actuator is built for direct swap-in when an existing actuator wears out. Designed for durability and straightforward installation, it restores dependable motion control in Actus-equipped system...
SKU: 723-0110
$546.00
Lodar Replacement Electric Actuator Hardware
This replacement hardware kit restores Lodar electric actuator installations. It includes all the necessary mounting components to properly secure and reinstall your actuator for continued reliable use. Complete hardware kit for Lodar electric a...
SKU: 9930
$731.00
