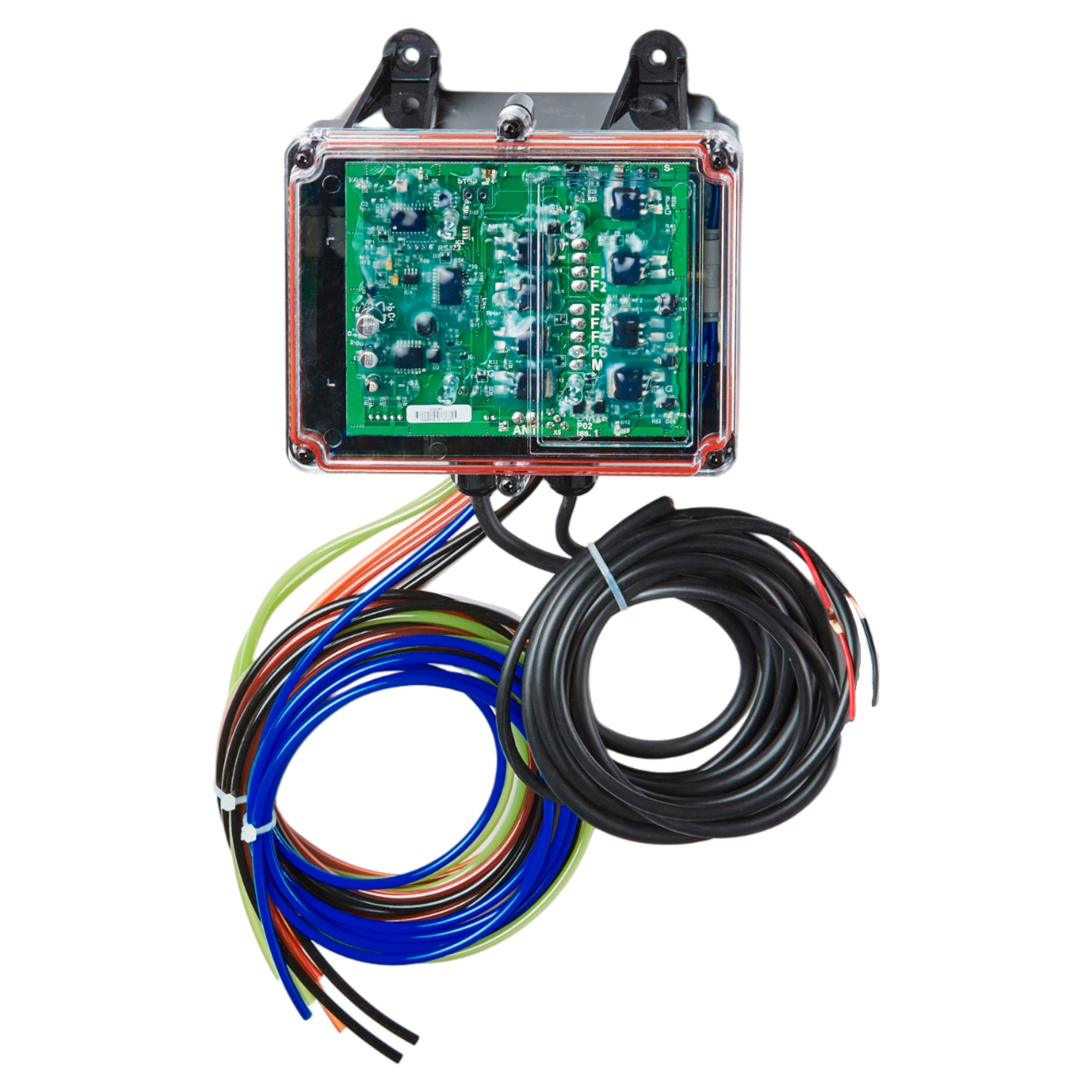

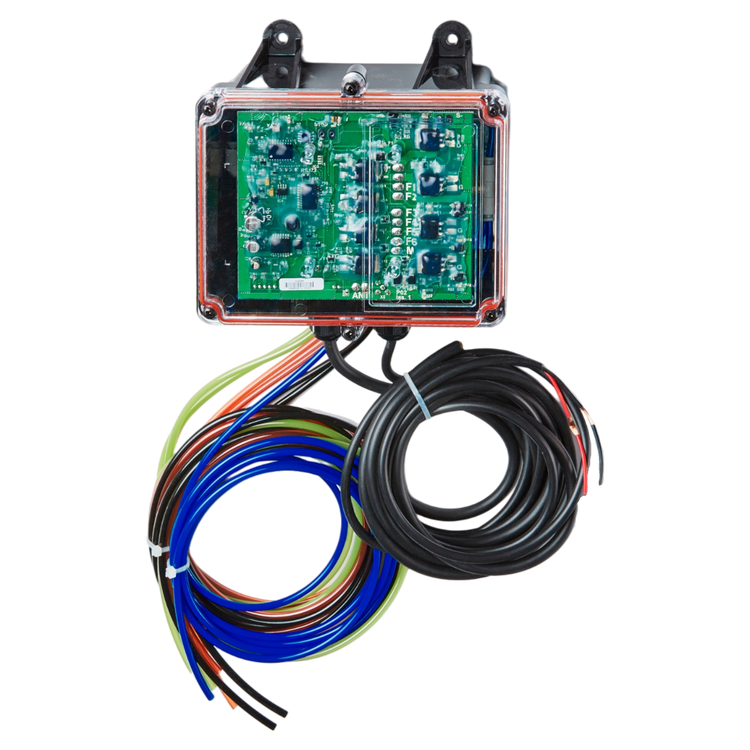

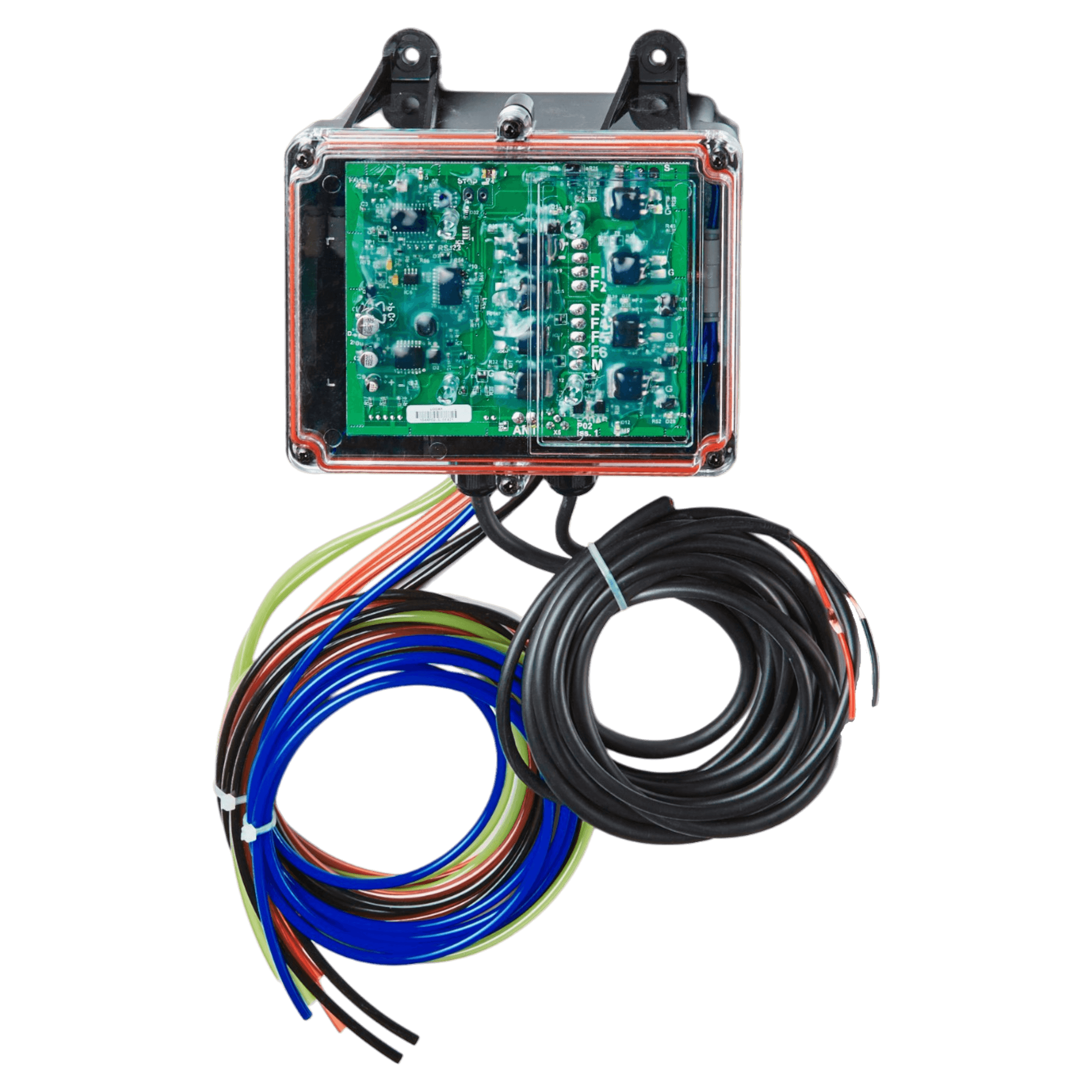

The Lodar Service 6 Function Lodar Replacement FET Air Receiver is designed for 92 Series actuator systems and features exposed green circuit boards with multiple colored wires.

6 Function Lodar Replacement FET Air Receiver | 92 Series

Name: 6 Function Lodar Replacement FET Air Receiver | 92 Series
Price: 1416.0 USD
Rating: 5 (1 reviews)

9276RX-8

$1,416.00

Quantity

Pre-order

Compatible Products

*Check compatibility before purchasing.

92156-8 - 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver

92156DMM-8 - 6 Function Direct Mount Wireless Air System – Miller (Gresen Valves)

92156DMJ-8 - 6 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)

Check Your Part Number Before Ordering

Check if your part number starts with an "LS" or a "PS". If so, this indicates specific firmware and other customizations that will not be on this replacement unit. You will want to contact the manufacturer and order the specific replacement part for your system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

6 Function Lodar Replacement FET Air Receiver | 92 Series

'

Description

Optimize your Actuator system's performance by using the 92 Series 6 Function Lodar Replacement FET Air Receiver. With six functions and powerful FET technology, this receiver is designed to improve the operation and efficiency of your Actuator system. Trust the expertise and quality of the 92 Series to take your system to the next level.

Included

1 x [9276RX-8] - 6 Function Lodar FET Air Receiver | 92 Series

1 x Instructions

Specifications

Specification	Details
ACTUATOR	Air
FUNCTIONS	6
MASTER OUTPUT	Yes
MAX AMPS	10
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 65
SERIES	9000 Series
SPECIAL FEATURES	Receiver with Air I/O
TYPE	Receiver Only

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
