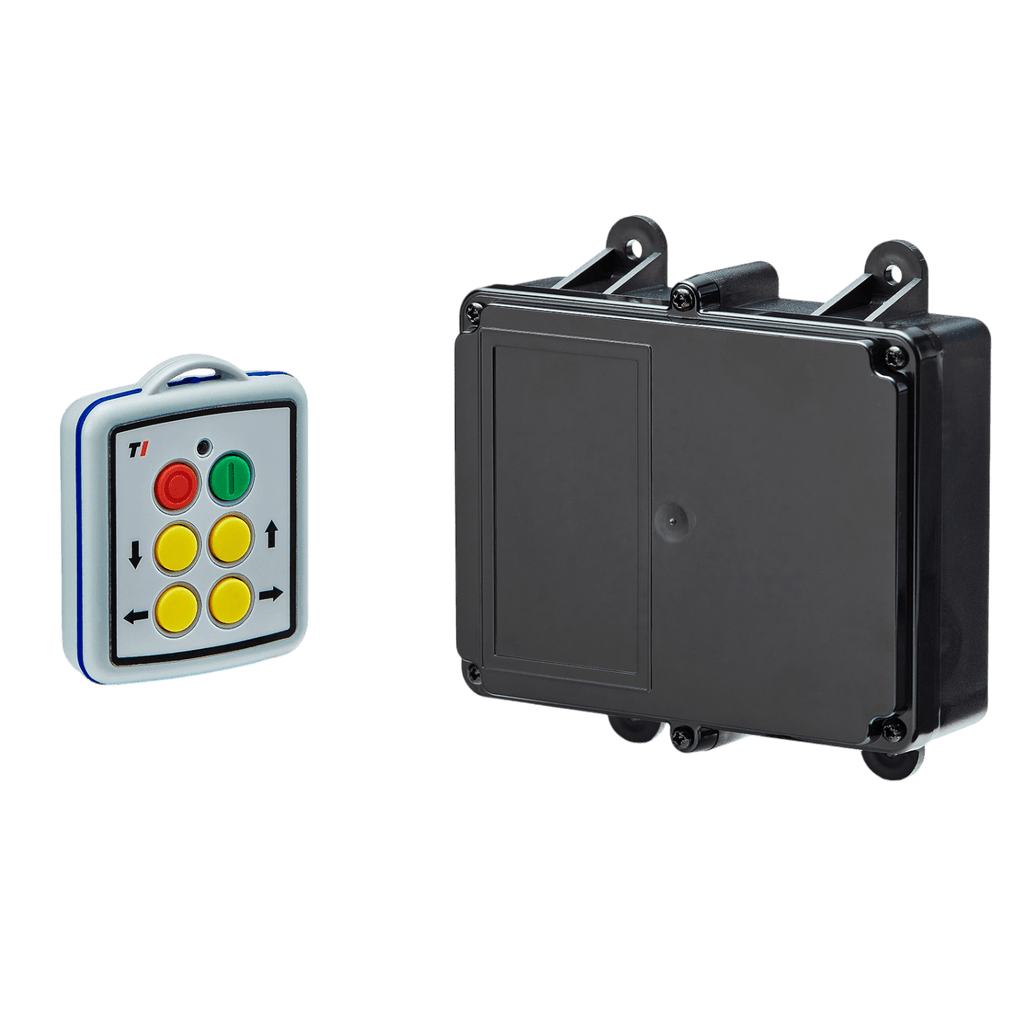

A Lodar LTD 4 Function Mini Wireless Control System from the 90 Series features a remote control device with colorful buttons alongside a sleek, black rectangular relay receiver. This system offers impressive convenience and flexibility with its 200-foot wireless range.

4 Function Mini Wireless Control System | 90 Series | Relay Receiver

$521.00
Skip to product information
A Lodar LTD 4 Function Mini Wireless Control System from the 90 Series features a remote control device with colorful buttons alongside a sleek, black rectangular relay receiver. This system offers impressive convenience and flexibility with its 200-foot wireless range.
1/2
  • A Lodar LTD 4 Function Mini Wireless Control System from the 90 Series features a remote control device with colorful buttons alongside a sleek, black rectangular relay receiver. This system offers impressive convenience and flexibility with its 200-foot wireless range.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • A Lodar LTD 4 Function Mini Wireless Control System from the 90 Series features a remote control device with colorful buttons alongside a sleek, black rectangular relay receiver. This system offers impressive convenience and flexibility with its 200-foot wireless range.
  • Pairing the 92 Series Lodar Remote & Transmitter
4 Function Mini Wireless Control System | 90 Series | Relay Receiver

4 Function Mini Wireless Control System | 90 Series | Relay Receiver

90004
$521.00
In Stock

The 4 Function Lodar 200ft Mini Wireless Control System provides compact, long-range operation with IP67-rated transmitter and receiver. Designed for durability, it delivers reliable wireless switching of four functions at up to 200 feet.

  • 4 functions of wireless control
  • Mini handheld transmitter (IP67)
  • 5A relay receiver sealed to IP67
  • 200ft operating range

Applications: Light-duty hydraulics, compact recovery rigs, and utility trucks needing extended range wireless control.

Also available in a 2-function Mini transmitter-only version.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Specifications
Transmitter
Mini
Functions
4
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 67
Receiver IP Rating
IP 67
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
5
Series
9000 Series
Wiring Included
9 ft. (3m) wiring loom through gland
Switch Type
Silicone Rubber Keypad with Carbon Pill
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
4 Function Lodar Replacement Mini Transmitter | 9000 Series
4 Function Lodar Replacement Mini Transmitter | 9000 SeriesSKU: 90004TX
$255.00
4 Function Lodar Replacement Relay Receiver | 90 Series
4 Function Lodar Replacement Relay Receiver | 90 SeriesSKU: 9004RX
$275.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources
90004TX - 4 Function Mini Transmitter Spec Sheet
90004TX - 4 Function Mini Transmitter
Spec Sheet
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
