8 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators

Name: 8 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Price: 2195.0 USD
Rating: 5 (1 reviews)

92178

$2,195.00

Quantity

Low stock

Compatible Products

*Check compatibility before purchasing.

92158DMM-8 - 8 Function Wireless Air System with Bolt on Actuator | Gresen Valve

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

8 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators

'

Description

Operate four valves wirelessly using your own pneumatic actuators. This 8-function 92 Series system delivers Lodar’s proven reliability with the flexibility to choose or supply actuators separately.

8 functions = 4 valves of wireless control
Actuators not included
Standard Series handheld transmitter (IP54) with AAA x 2 batteries
Weatherproof receiver (IP67)
Requires onboard air supply (90–120 PSI) and 12V DC power

Applications: Custom hydraulic controls on recovery, agriculture, or utility trucks.

Included

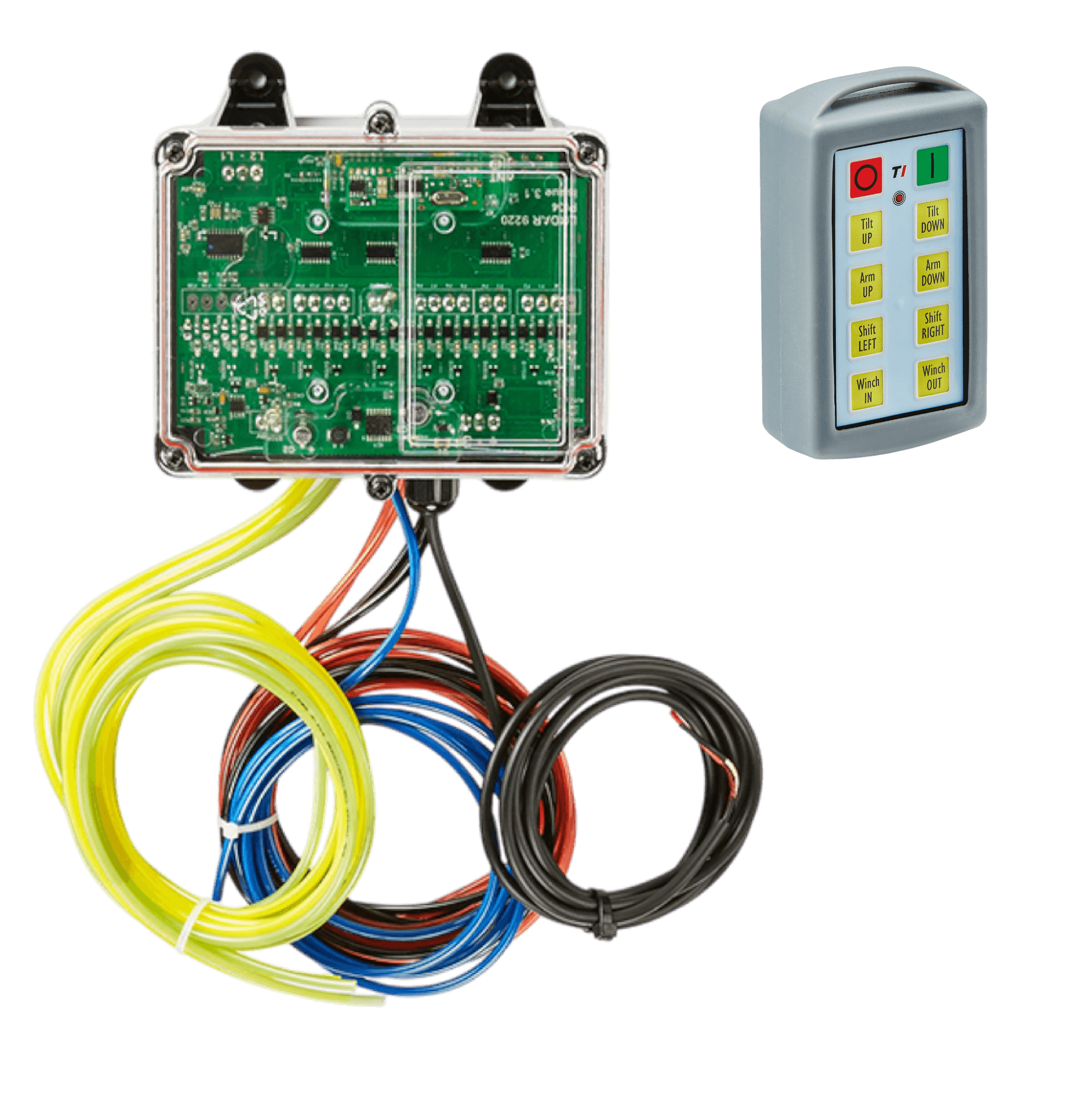

1 x [9278RX-8] - 8 Function Lodar FET Air Receiver | 92 Series

1 x [92108TX-8] - 8 Function Lodar Standard Transmitter | 9000 Series

1 x Instructions

1 x Lanyard

Specifications

Specification	Details
TRANSMITTER	Standard
FUNCTIONS	8
ACTUATOR	Air
OPERATING VOLTAGE	12/24 Volts DC
TRANSMITTER IP RATING	IP 54
RECEIVER IP RATING	IP 67
MASTER OUTPUT	Yes
MAX AMPS	15
SERIES	9000 Series
TRANSMITTER BATTERIES	AAA x 2
SPECIAL FEATURES	Receiver with Air I/O
FREQUENCY	418 MHz
TYPE	Full System - No Actuators
WIRING INCLUDED	8 ft. power / 5 ft. air input / 3½ ft. air outputs

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
