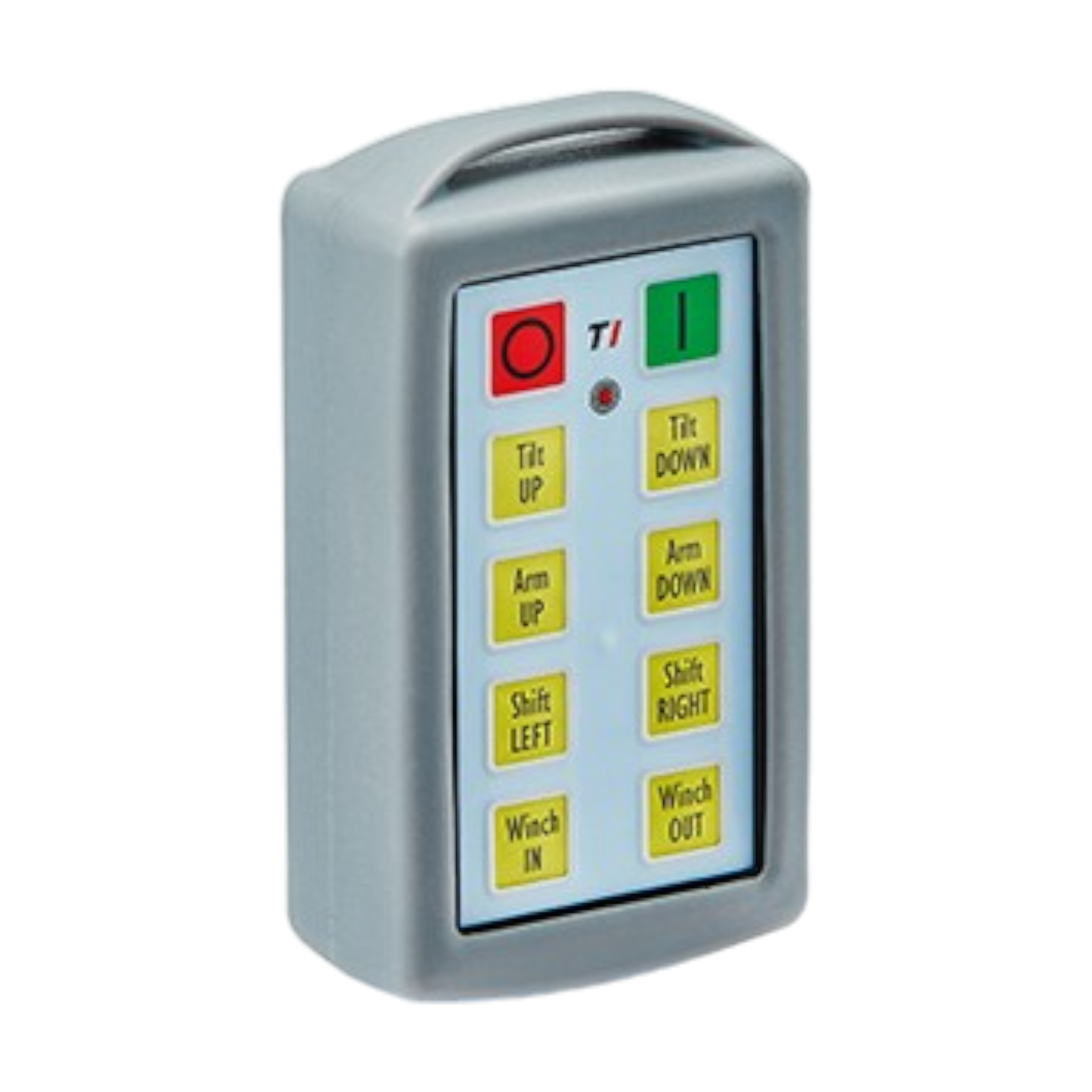

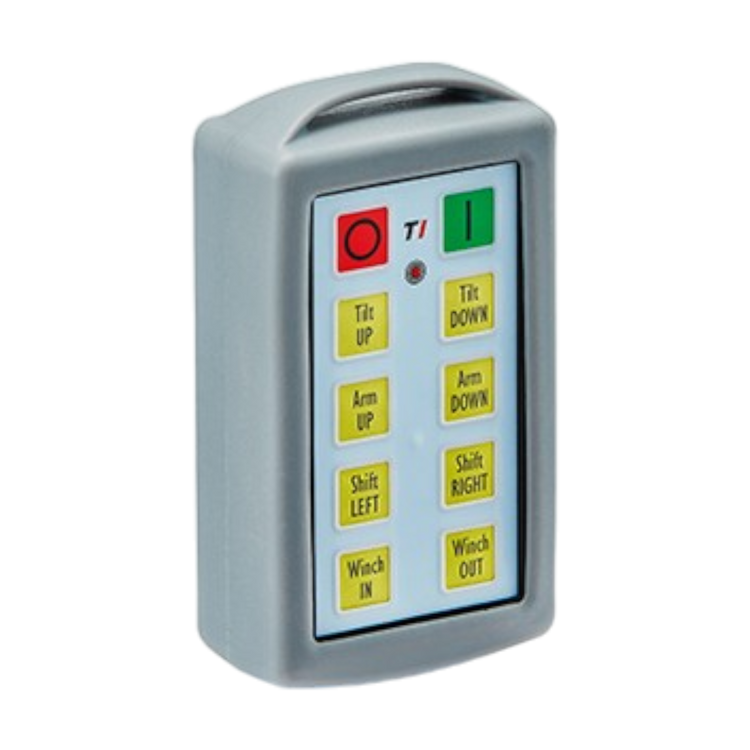

The 8 Function Lodar Replacement Standard Transmitter, part of the 9000 Series by Lodar LTD, comes with a gray casing and includes buttons for controlling tilt, arm, shift, and winch directions. It serves as an excellent replacement for a lost transmitter of the Lodar 8 Function Standard Transmitter.

8 Function Lodar Standard Transmitter | 9 Series

92108TX-8

$391.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select

In Stock

Replacement transmitter for an existing Lodar 9 Series wireless system — a transmitter is the handheld unit and is not a standalone product. It pairs with a matching receiver on the same series and function count.

The 8 Function Lodar Standard Transmitter (92108TX-8) is the Standard handheld for a Lodar 9 Series system, sending 8 functions of control to the receiver on your equipment. It has a 12 mm dome keypad with label pockets, carries an IP 54 rating, runs on 2× AAA batteries, and reaches a 200 ft (61 m) operating range.

Will this transmitter work with my receiver?

Match three things: the series (9 Series), the function count (8), and the receiver it was coded to. Transmitters and receivers are paired on the same RF band, so replace a 9 Series transmitter with a 9 Series transmitter. If you are replacing a lost or damaged handset, confirm the receiver model before ordering.

  • 8 functions of control
  • Standard transmitter — 12 mm dome keypad with label pockets
  • IP 54 rated, operates 13°F to 104°F (-10°C to 40°C)
  • Powered by 2× AAA batteries
  • 200 ft (61 m) operating range
  • Lodar SKU 92108TX-8

Match the trailing code. Lodar 9 Series transmitters and receivers carry a trailing match number. Check the unit you are replacing: no number means -8, the most common code we carry, and some systems use -3. If your existing system or part is coded anything other than -8, contact us so we send the correct unit.

This is a replacement part — it goes on the 8-function 9 Series wireless system. See the complete 8 Function Standard Wireless Control System or 8 Function Wireless Air System with Bolt on Actuator or 8 Function Wireless System with Bolt on Electric Actuator. Pair it with the matching 8 Function receiver on the same system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.
What's Included
Specifications
Transmitter
Standard
Functions
8
Transmitter IP Rating
IP 54
Operating Distance
200 ft. (61 m.)
Series
9000 Series
Transmitter Batteries
AAA x 2
Type
Transmitter Only
Operating Temperature Range
13ºF - 104ºF (-10ºC to 40ªC)
Switch Type
12mm Dome Switch (Pockets for Text or Image Insertion)
Warranty
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
