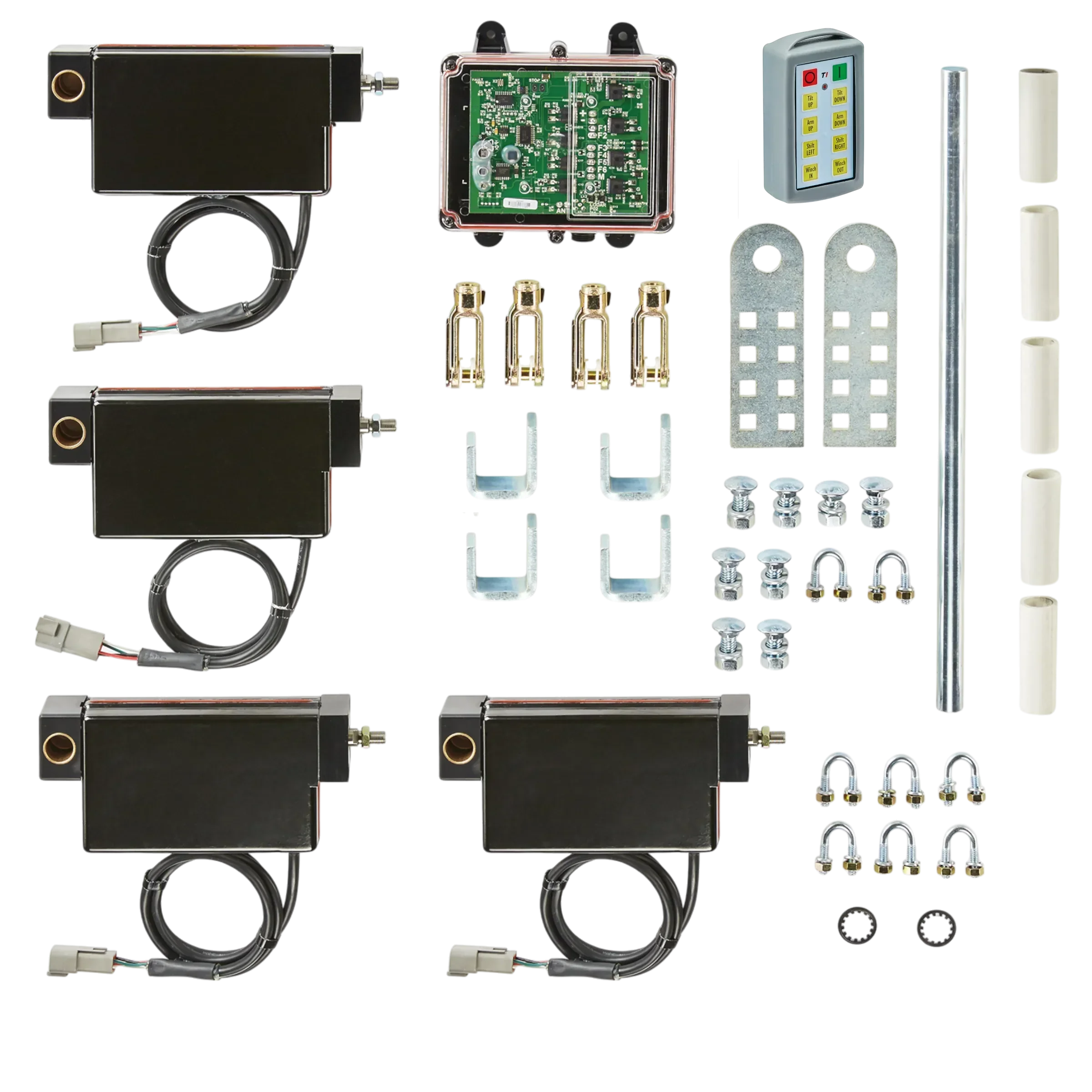

The PIERCE 8 Function Wireless System features a bolt-on electric actuator and all installation hardware, providing wireless control similar to advanced recovery truck systems.

8 Function Lodar Standard Wireless Electric Actuator System | 9 Series FET

92158A-8

$4,876.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select

Out of Stock

Complete wireless electric actuator control system - includes the Standard handheld transmitter and a receiver with the electric actuator drivers built into the box, coded together and ready to wire to your equipment. Operates 8 functions on the Lodar 9 Series.

The 8 Function Lodar Standard Wireless Electric Actuator System (92158A-8) gives you 8-function wireless control with a 200 ft (61 m) range. The receiver drives electric linear actuators directly from its outputs - no separate valve bank. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

Check your valve linkage before ordering. The electric actuators bolt onto the solid control rods your valve levers connect to, so you need clearance to mount them. A system with actuators included works only with solid "bang-bang" valve rods - not with valves operated by flexible cables or cords. If your valves are cable-operated, contact us.

Electric actuators are a good fit for trucks that do not have onboard air - they drive the valve linkage electrically instead of pneumatically.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 8 here - and confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 10 A, with the system rated to 15 A total across all outputs. Run several heavy functions at once and the combined draw can reach that 15 A ceiling, where the overload protection trips to protect the board. Solid-state switching means there are no mechanical relay contacts to wear or arc. It is the current standard across the Lodar line — choose it for functions that draw more than the 5 A per output a mechanical relay handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 8 functions of wireless control
  • 8 functions = 4 double-acting valves, two directions each
  • Standard transmitter - IP 54 rated
  • Electric actuator receiver - drives linear actuators directly, IP 67 rated
  • 12/24V DC operating voltage
  • 200 ft (61 m) operating range
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 92158A-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 8-function Lodar system? Compare the 8 Function Lodar IP Wireless Air System or 8 Function Lodar Direct-Mount Air System. Replacement handsets and receivers are sold separately.

Common uses: Recovery trucks, service bodies, cranes, and utility rigs needing wireless valve control without air supply.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.
Specifications
Transmitter
Standard
Actuator
Electric
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 67
Operating Distance
200 ft. (61 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 2
Special Features
Receiver with Air I/O
Frequency
433 MHz
Type
Full System
Warranty
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
