A transparent electronic casing showcases the intricate circuit board of the Lodar LTD 2 Function 12/24V Replacement Receiver from the 11 Series against a black background, featuring an impressive IP67 rating for superior protection and durability.

2 Function 12/24V Lodar Replacement Receiver | 11 Series

Name: 2 Function 12/24V Lodar Replacement Receiver | 11 Series
Price: 350.0 USD
Rating: 5 (1 reviews)

11RX02

$350.00

Quantity

Pre-order

Compatible Products

*Check compatibility before purchasing.

111002 - 2 Functions Standard Wireless Control System | 11 Series | Master Output

110002 - 2 Functions Mini Wireless Control System | 11 Series

Check Your Part Number Before Ordering

Check if your part number starts with an "LS" or a "PS". If so, this indicates specific firmware and other customizations that will not be on this replacement unit. You will want to contact the manufacturer and order the specific replacement part for your system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

2 Function 12/24V Lodar Replacement Receiver | 11 Series

'

Description

Compact and rugged, the Lodar 11 Series 2 Function Receiver delivers reliable wireless switching of solenoids, relays, or electric-over-hydraulic valves. With 3A FET outputs and IP67 sealing, it’s built for long-term performance.

2 functions with 3A FET outputs
Sealed IP67 receiver housing
OEM Lodar 11 Series replacement
Outputs default to momentary

Applications: Direct replacement receiver for Lodar 11 Series 2-function systems controlling solenoids or electric-over-hydraulic valves.

⚠️ This receiver is not compatible with Lodar LS, 92, or 93 Series systems.

Included

1 x [11RX02] - 2 Function 12/24V Lodar Receiver | 11 Series

1 x Instructions

Specifications

Specification	Details
FUNCTIONS	2
MASTER OUTPUT	Yes
MAX AMPS	3
OPERATING TEMPERATURE RANGE	-40ºF to 176ºF (-40ºC to 80ºC)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 67
SERIES	11 Series
TYPE	Receiver Only
WIRING INCLUDED	5 ft. 7 core cable through gland

Resources

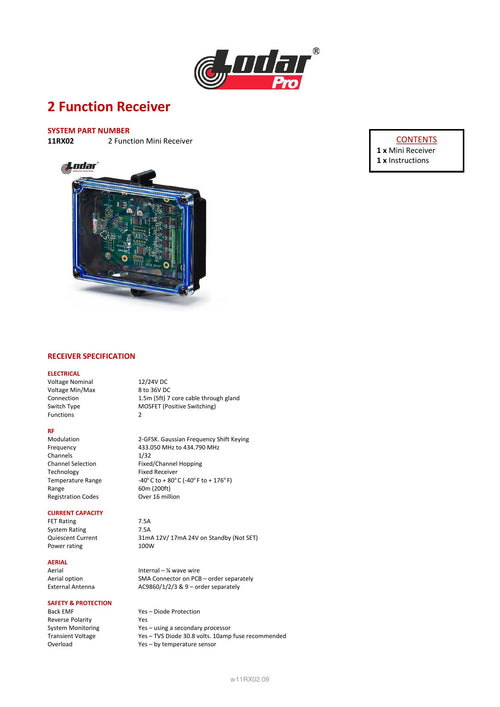

11RX02 Receiver Spec Sheet

Spec Sheet

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
