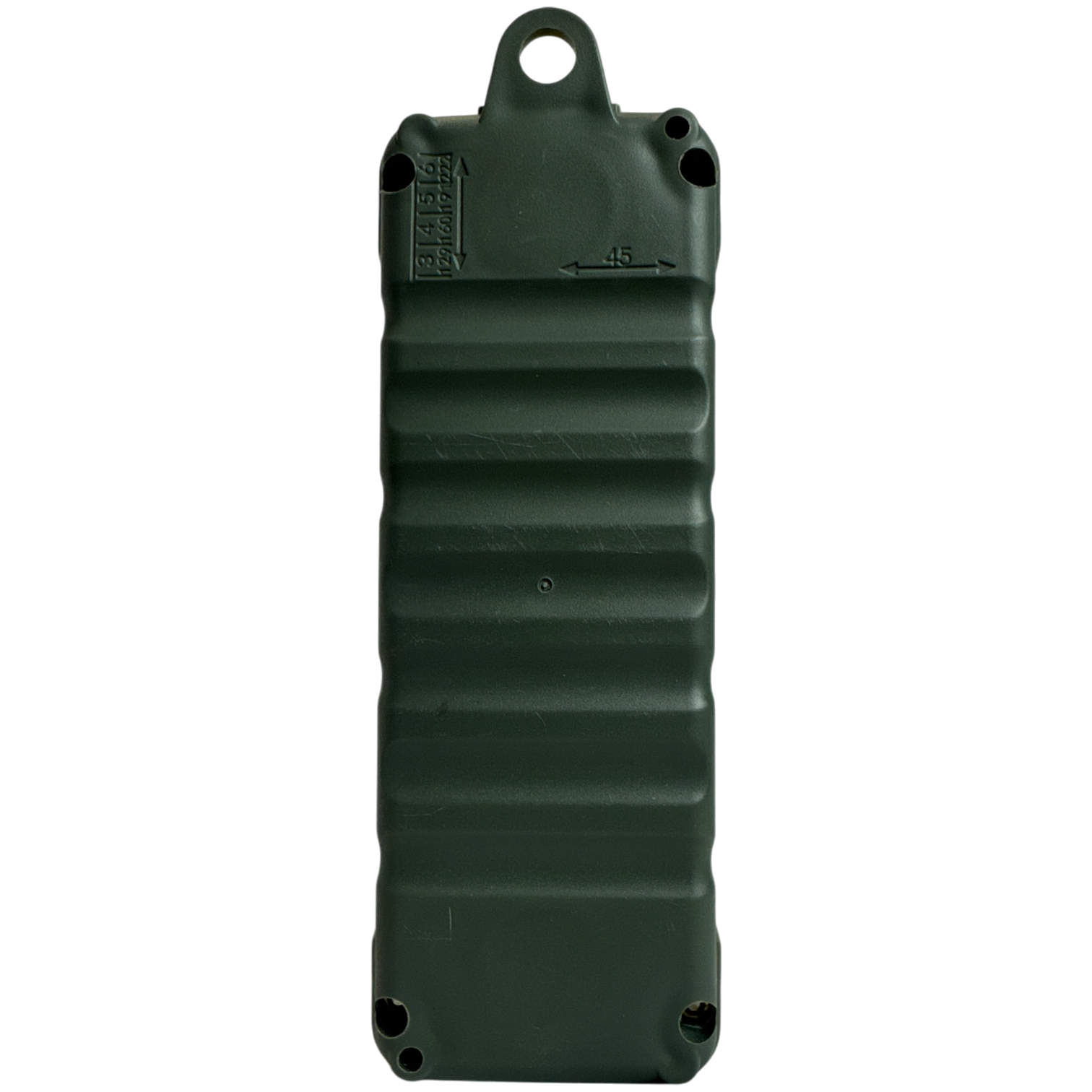

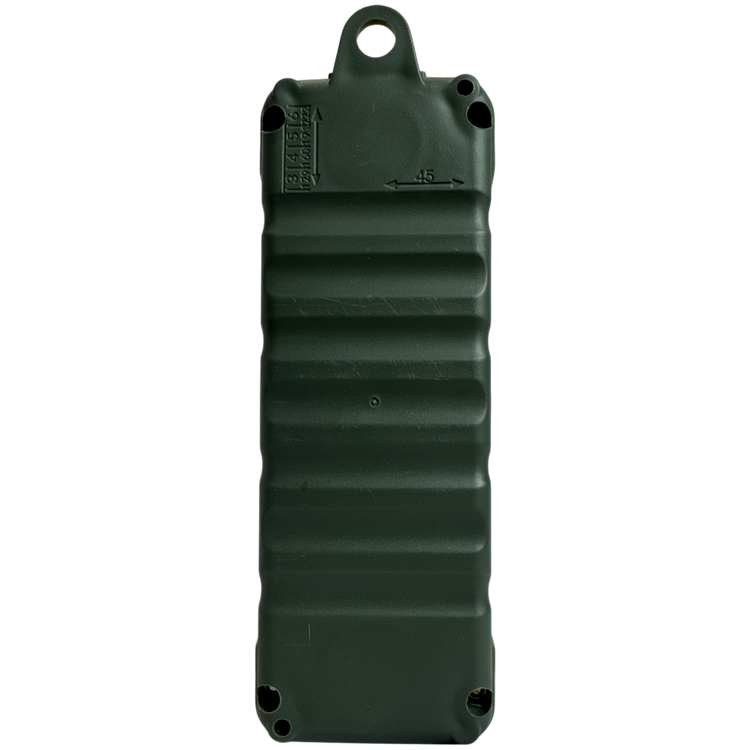

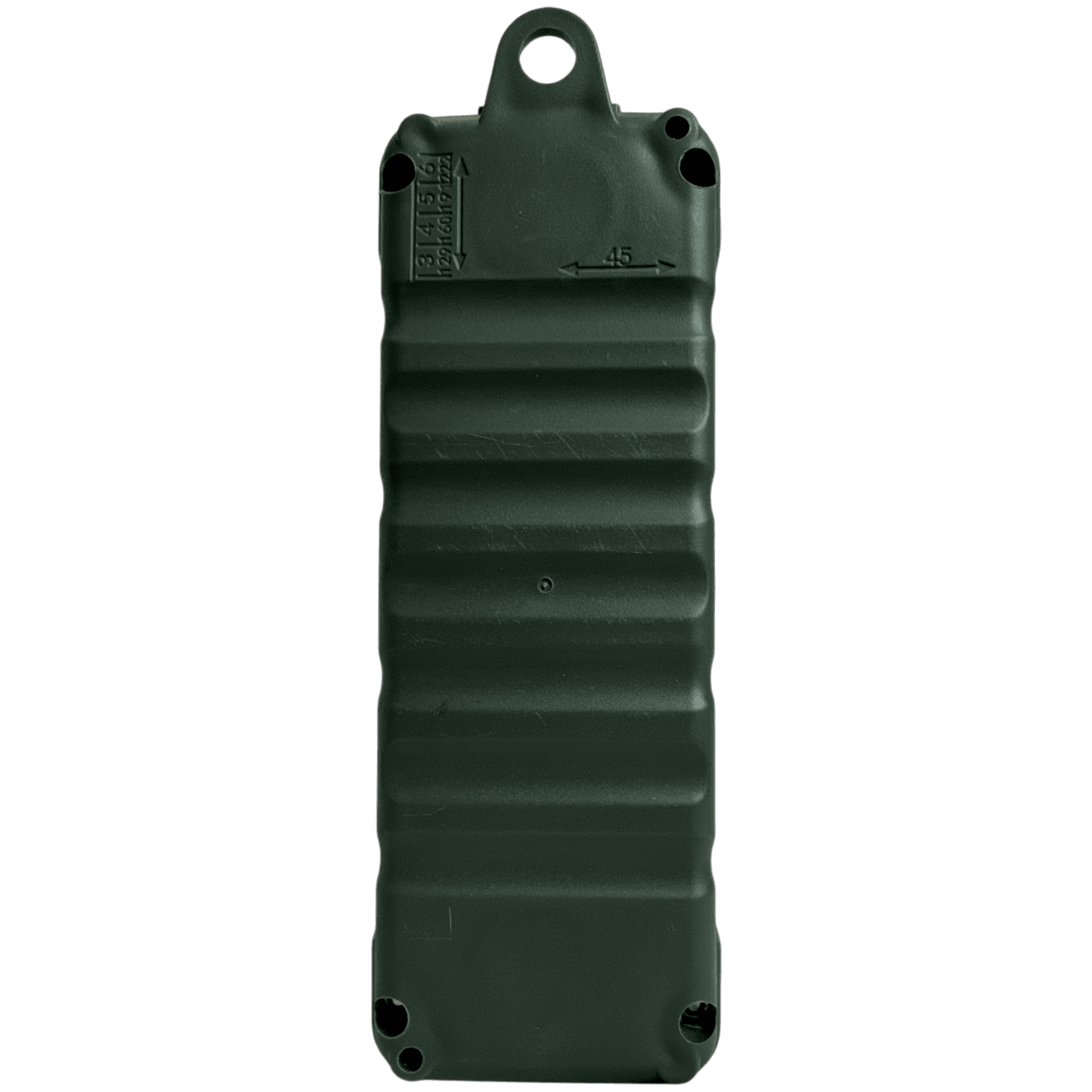

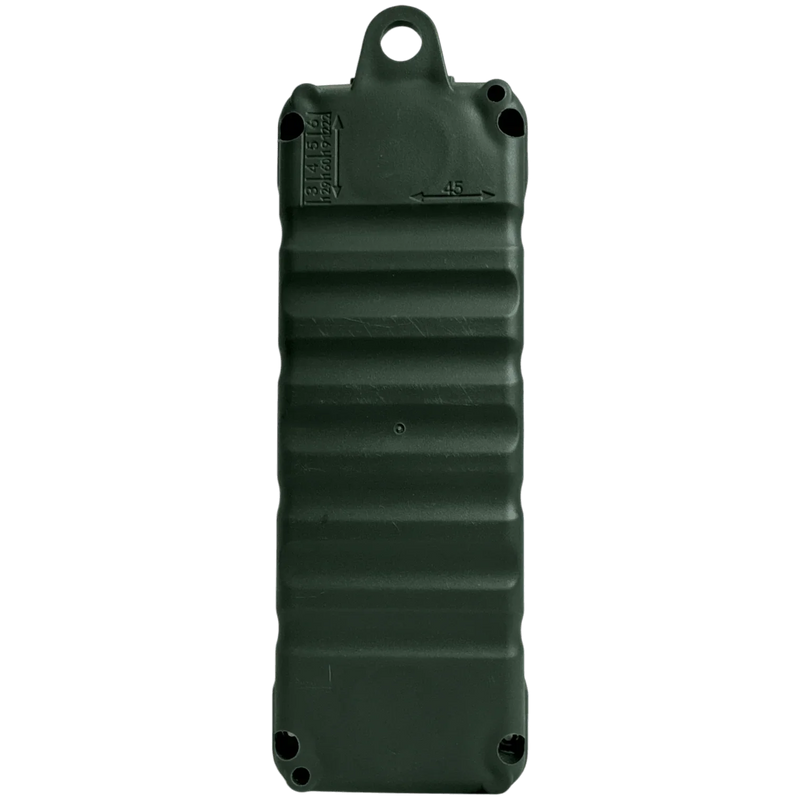

PIERCE's Universal Momentary Pendant Control - 4 Button, a dark green rectangular plastic device featuring grooves and screw holes, highlights a water-resistant design against a black background.

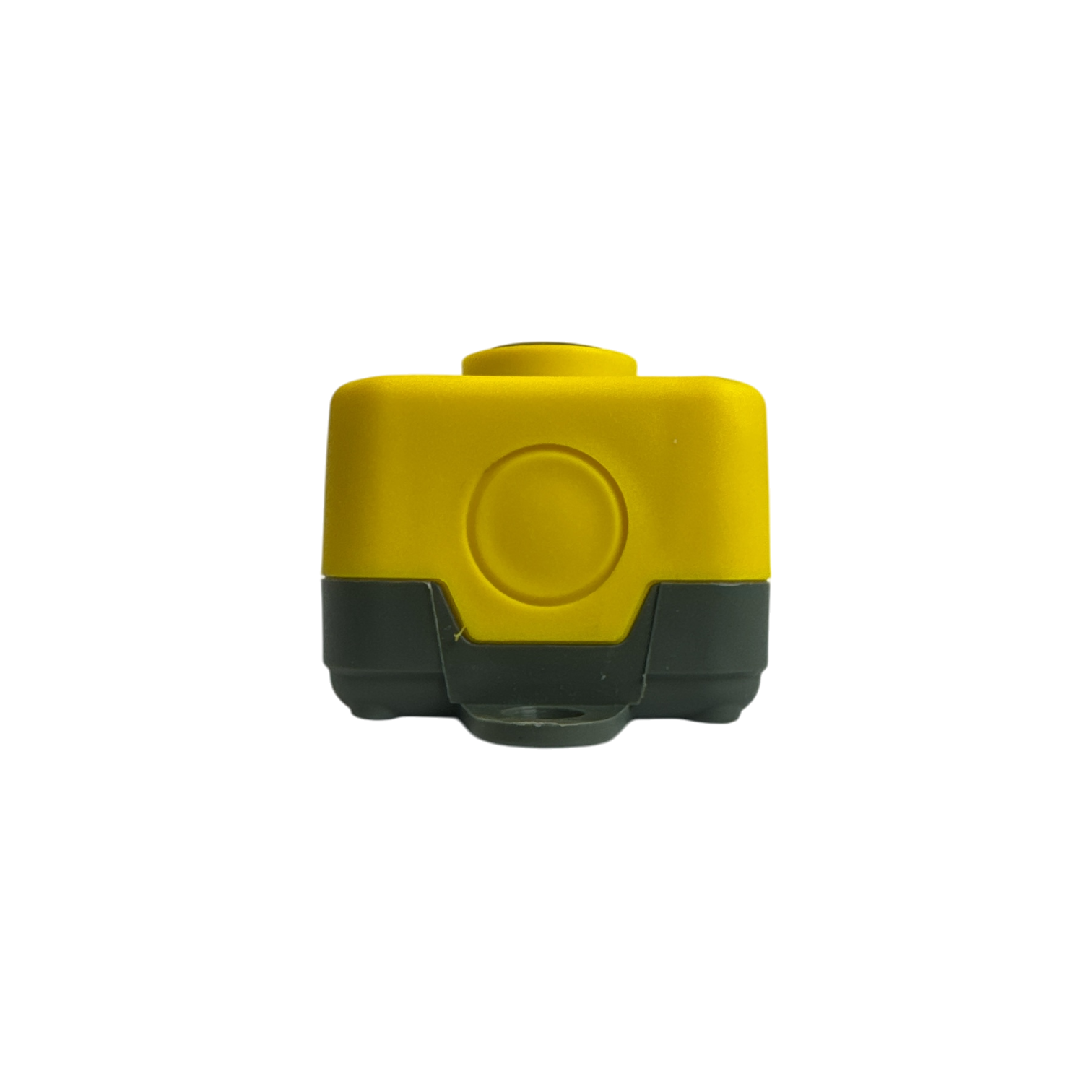

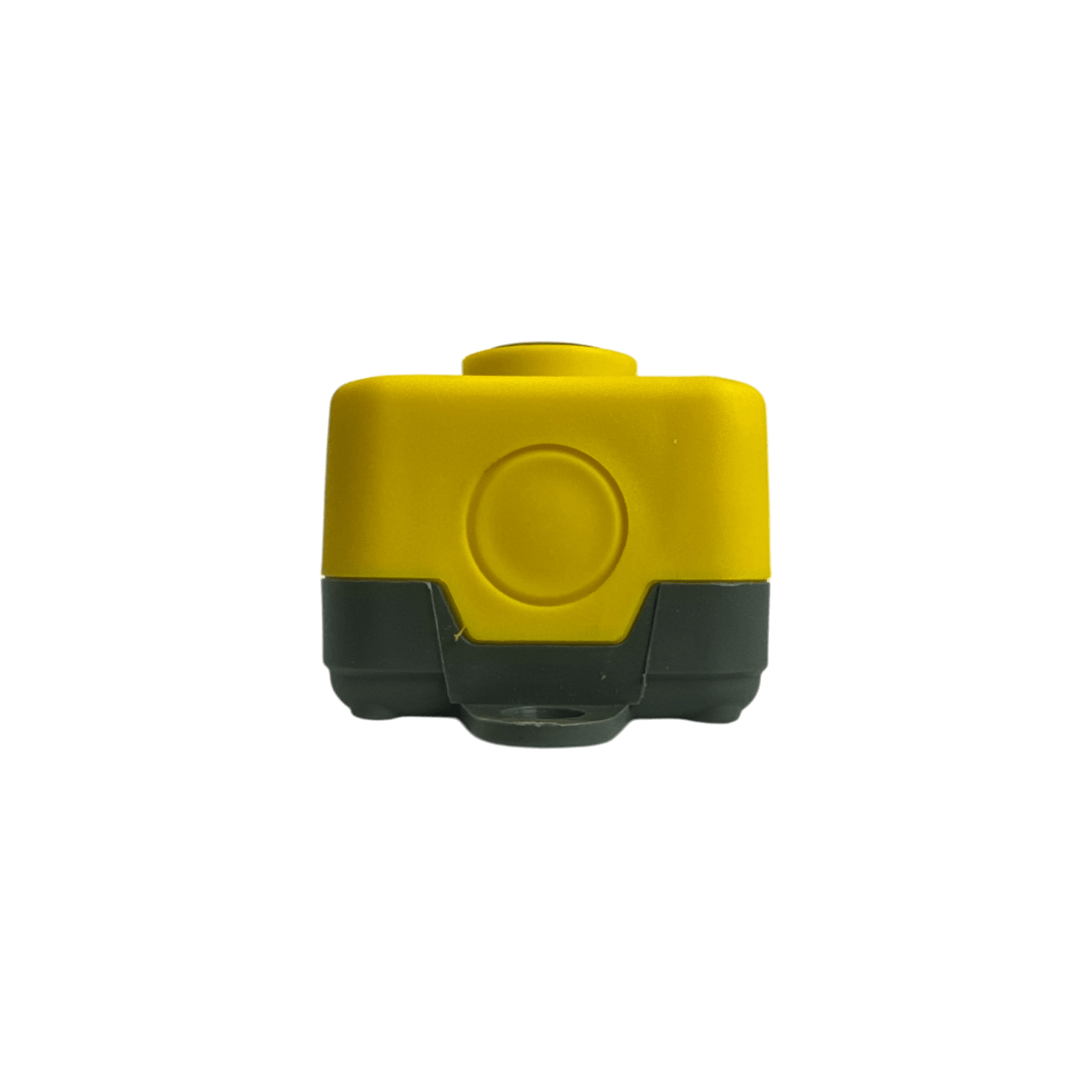

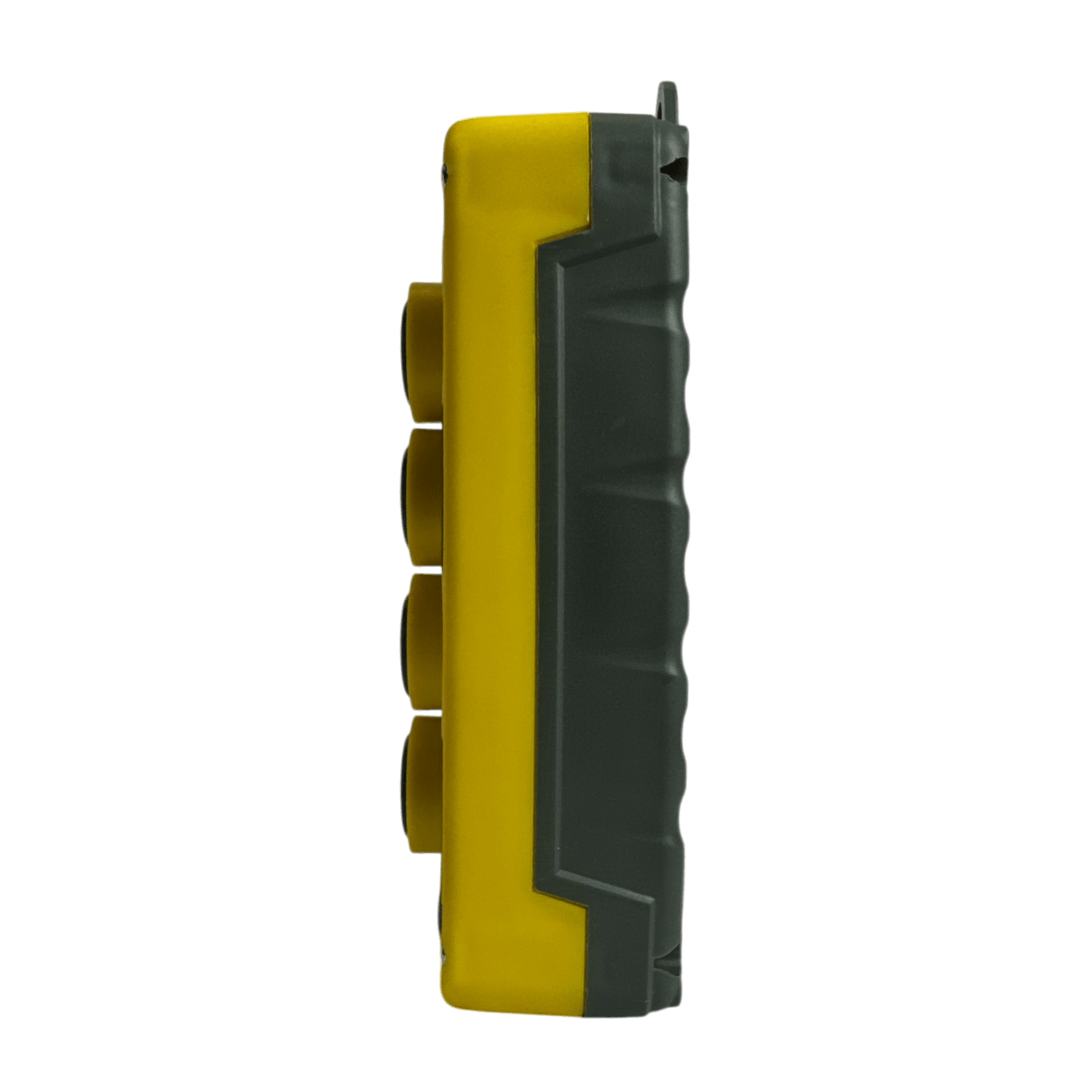

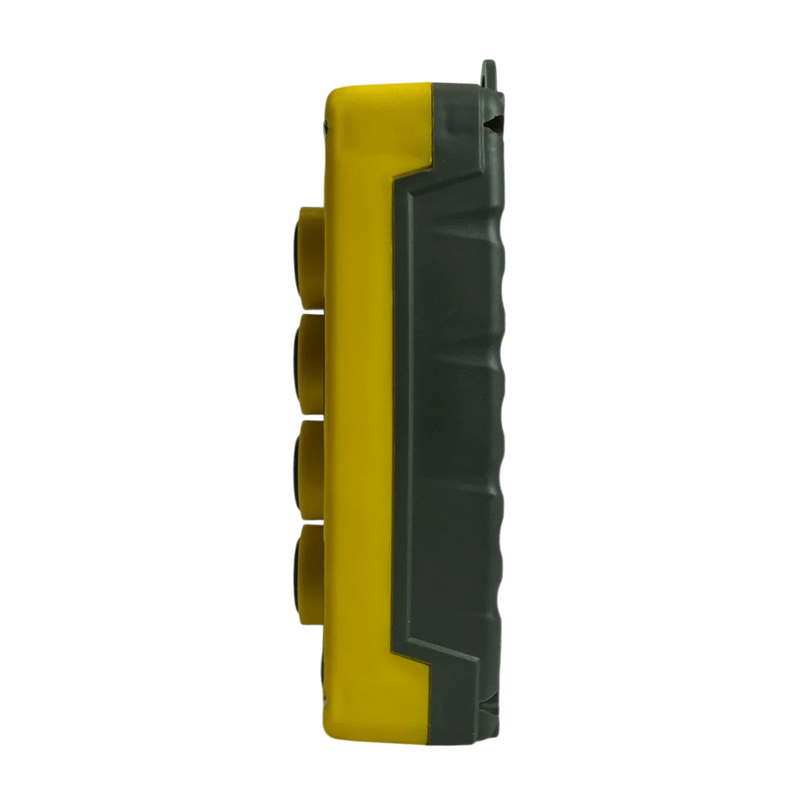

A compact Universal Momentary Pendant Control - 4 Button by PIERCE, featuring a yellow and gray design with a button and cylindrical base, water-resistant capabilities, isolated on a black background.

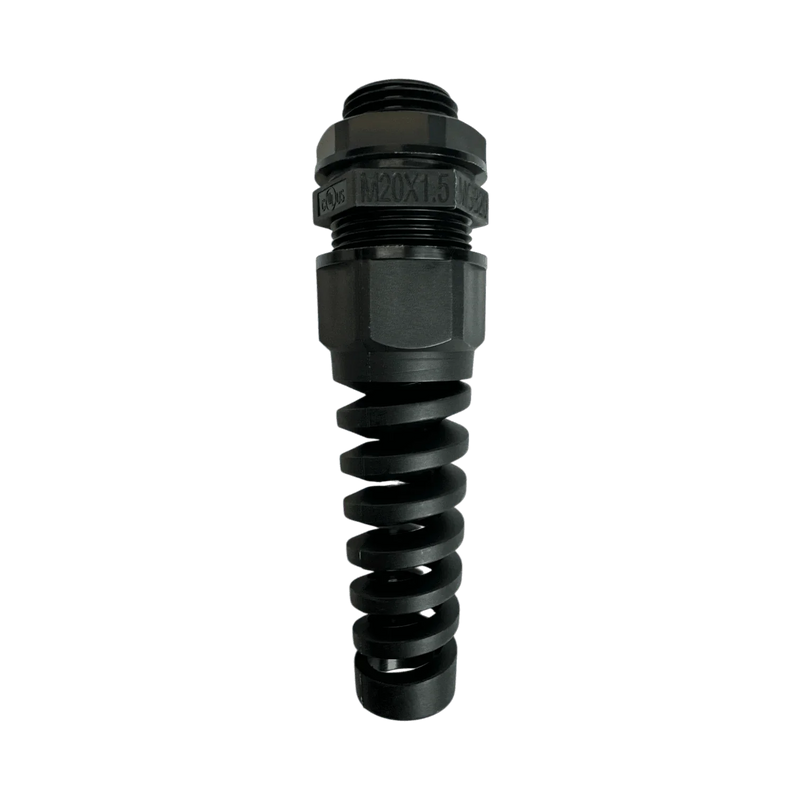

Close-up of the PIERCE Universal Momentary Pendant Control - 2 Button, featuring a black metallic spiral component with threaded ends, set against a dark background, designed for industrial applications.

Universal Momentary Pendant Control - 4 Button - PIERCE

1 11

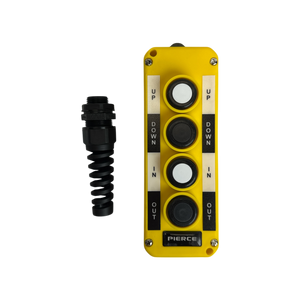

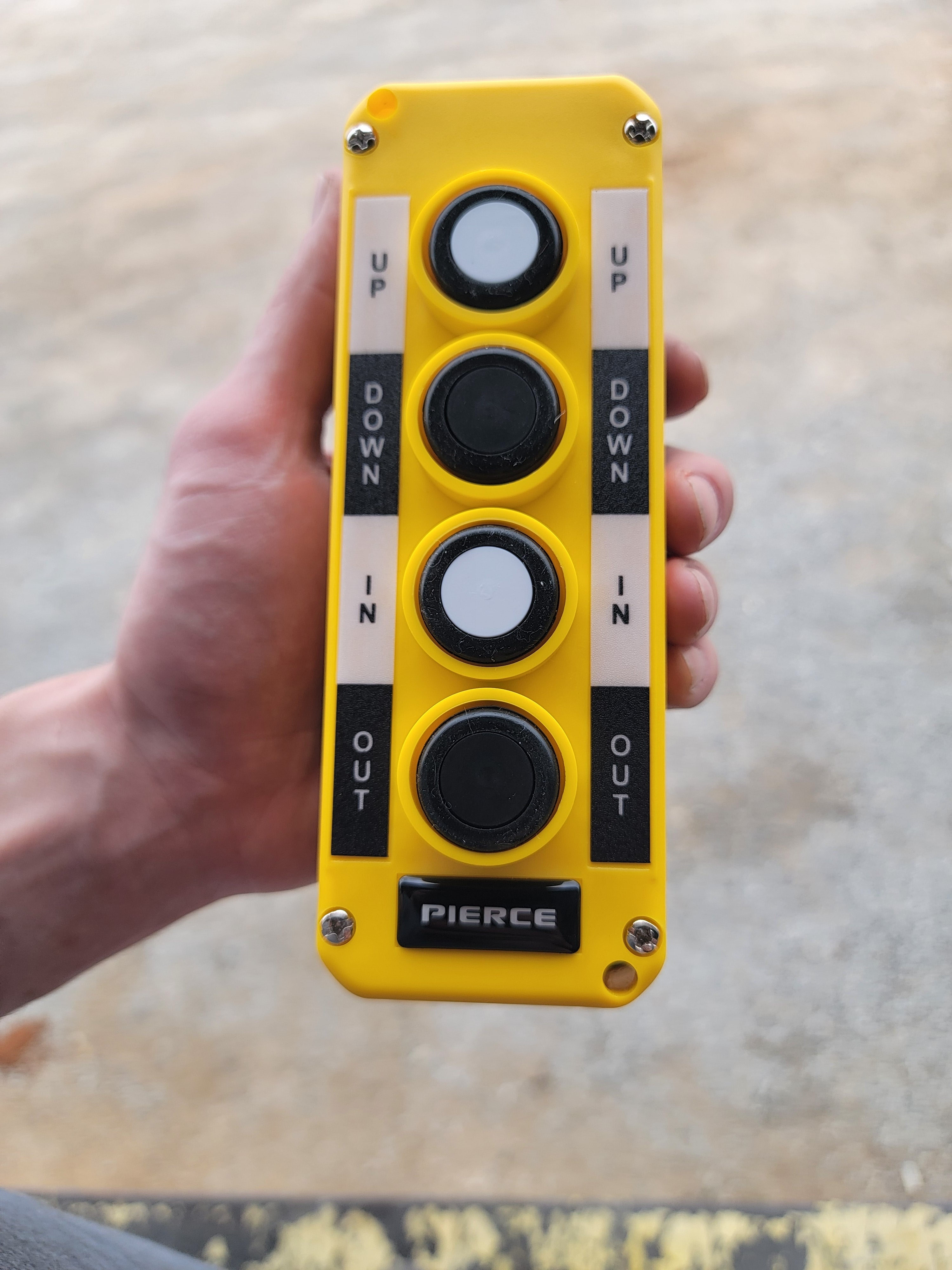

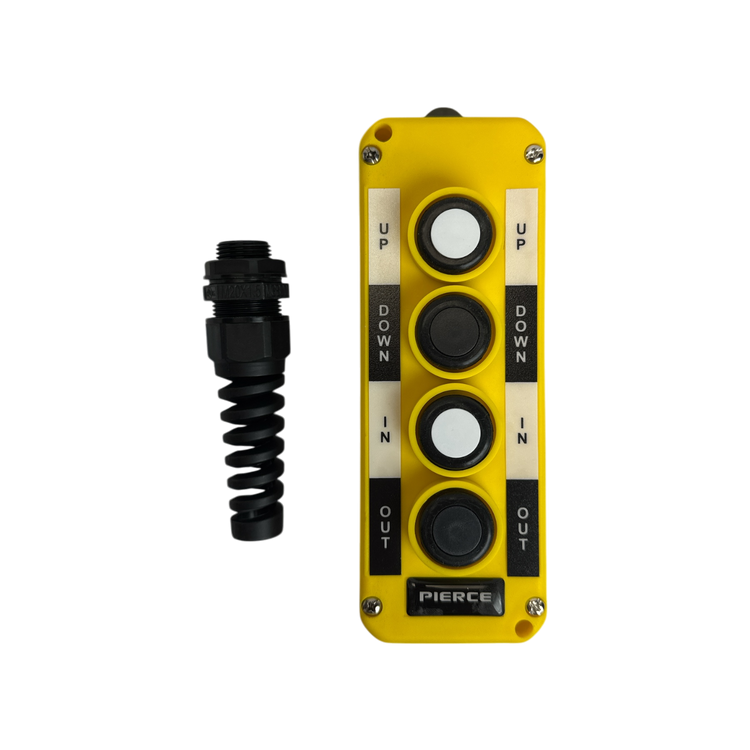

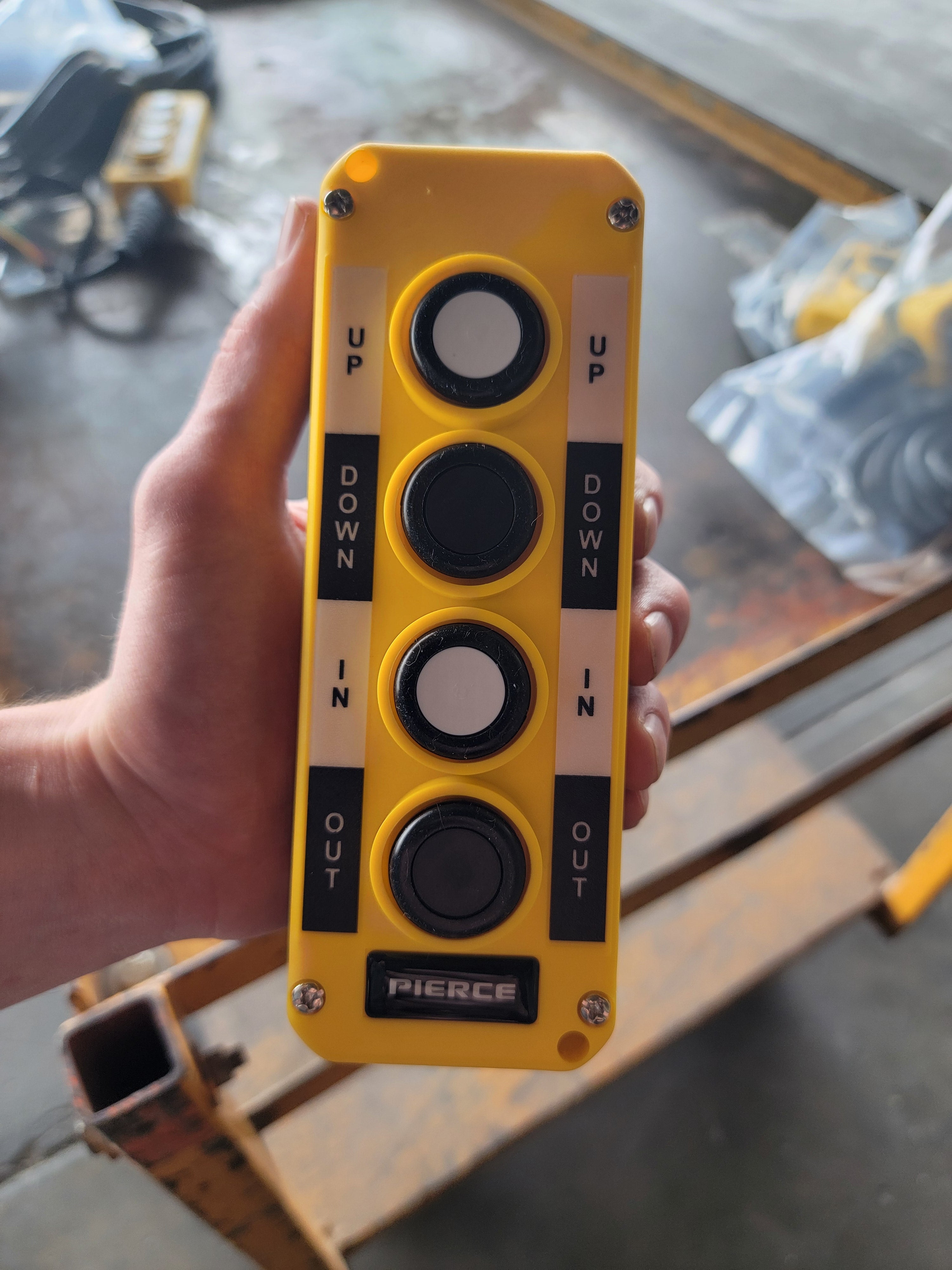

Universal Momentary Pendant Control - 4 Button

Name: Universal Momentary Pendant Control - 4 Button
Price: 26.0 USD
Rating: 3.0 (2 reviews)

CP078

$26.00

Quantity

In stock

Alternatives: Universal Momentary Pendant Control - 4 Button

Universal Momentary Pendant Control - 2 Button Universal Momentary Pendant Control - 4 Button Universal Momentary Pendant Control - 6 Button PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord PIERCE Universal Momentary Pendant Control - 4 Button - 20ft Cord - With Magnets PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord

PIERCE 1 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

Universal Momentary Pendant Control - 4 Button

'

Description

Universal controller allows easy wiring of a second output (master) to one or all buttons. This is the gold (yellow) standard for controlling hydraulic power packs (hydraulic pumps) and other industrial applications.

Features

Four function outputs plus an optional master output.
Recessed label location for easy self labeling.
Lanyard loop keeps the pendant in place.

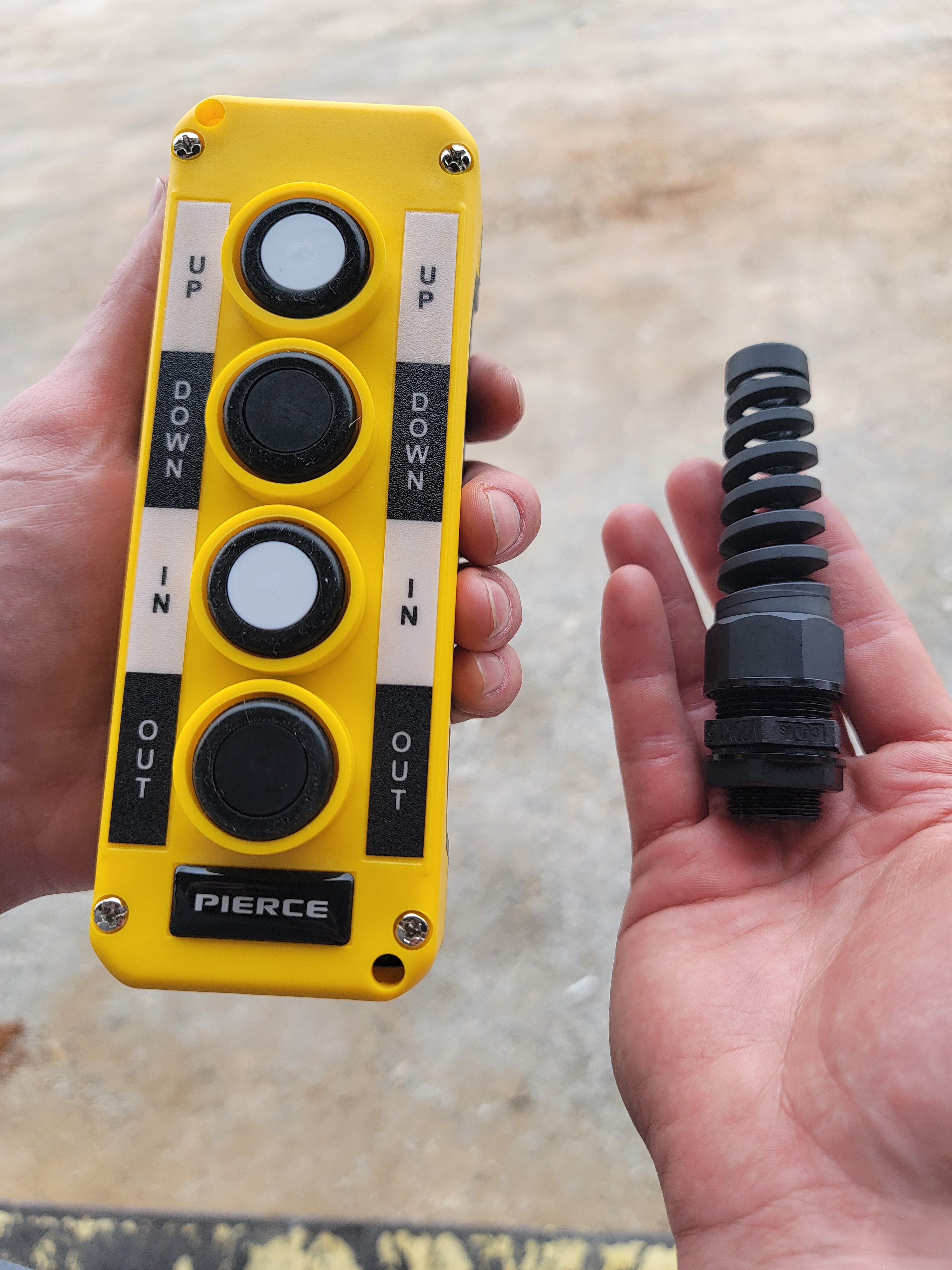

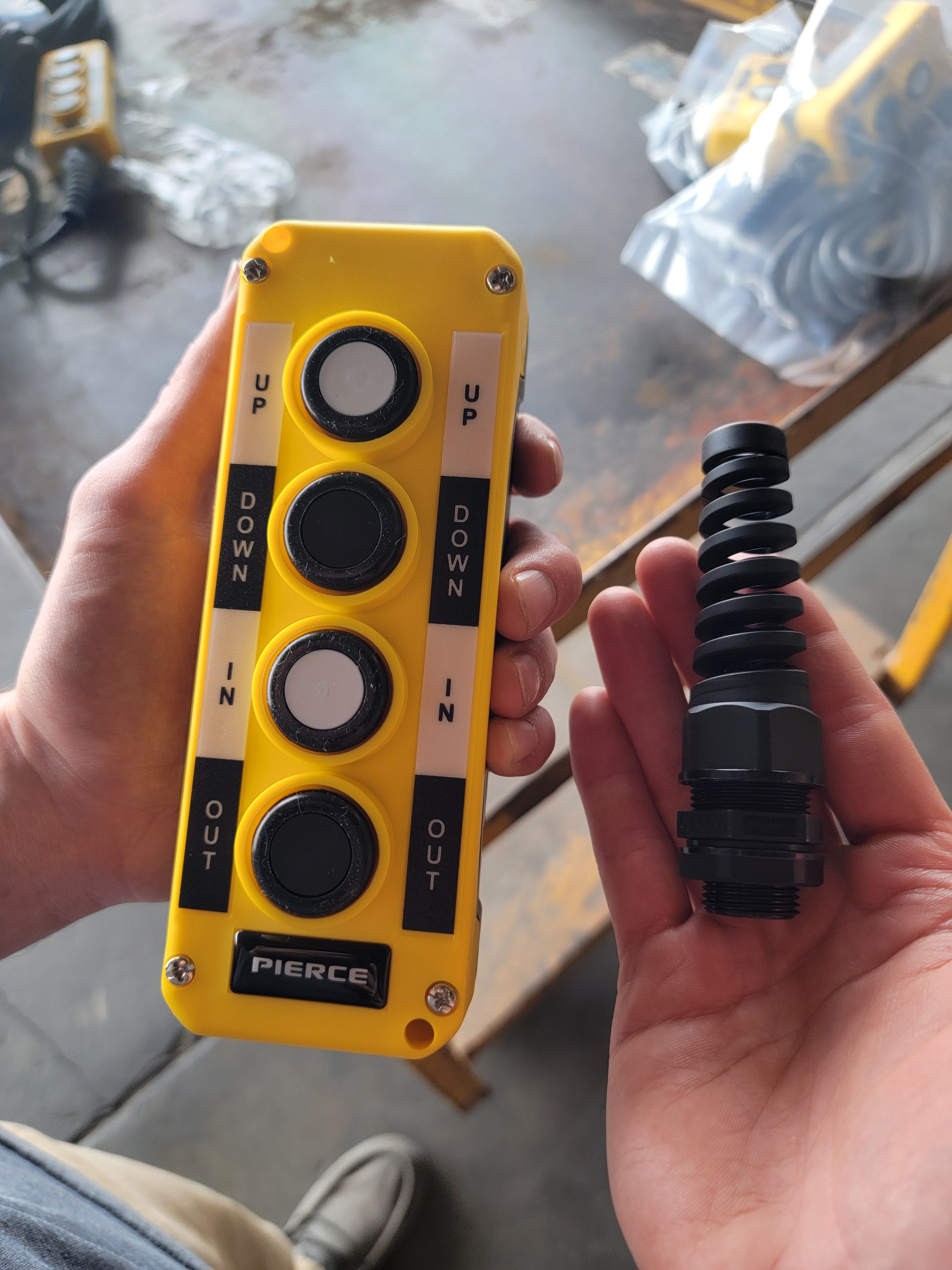

Water resistant design and cord gland.

Included

1 x [CP078] - Universal Momentary Pendant Control - 4 Button

Specifications

Specification	Details
FUNCTIONS	4
MASTER OUTPUT	Yes
MAX AMPS	15
OPERATING VOLTAGE	12/24 Volts DC
RECOMMENDED WIRE	16-18 gauge
SWITCH TYPE	Momentary - Push Button - Double Pole / Double Throw
WIRING INCLUDED	None

Resources

CP078 - Wiring Diagram

Wiring Diagram

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
Parts will be replaced at the manufacturer's discretion.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

Does not include normal wear and tear, misuse, water damage or other forms of abuse.
Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
