PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord
Alternatives: PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord
Universal Momentary Pendant Control - 2 Button
Universal Momentary Pendant Control - 4 Button
Universal Momentary Pendant Control - 6 Button
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord
PIERCE Universal Momentary Pendant Control - 4 Button - 20ft Cord - With Magnets
PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord

PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord
Description
Pendant Control Features
This pendant control system works with 6 function 12/24V solenoid operated equipment. This remote offers master function required for many hydraulic applications that utilize a motor start feature.
The PIERCE Universal momentary pendant control is water resistant and has the following features:
- Momentary switching
- Interlocking Buttons
- Made of polypropylene
- Double pole, double throw
- Eliminates Need for Diodes
- Master Output
Specifications
- Use 16 -18 gauge wire for all connections
- 12 or 24V
- 15 amp max
Warranty
- 1 Year Warranty
Momentary Pendant Control Customization
- Customization is available upon request. (Call For Pricing) 800-658-6301
More Information
Specifications
Specification | Details |
---|---|
FUNCTIONS | 6 |
MASTER OUTPUT | Yes |
MAX AMPS | 15 |
OPERATING VOLTAGE | 12/24 Volts DC |
RECOMMENDED WIRE | 16-18 gauge |
SWITCH TYPE | Momentary - Push Button - Double Pole / Double Throw |

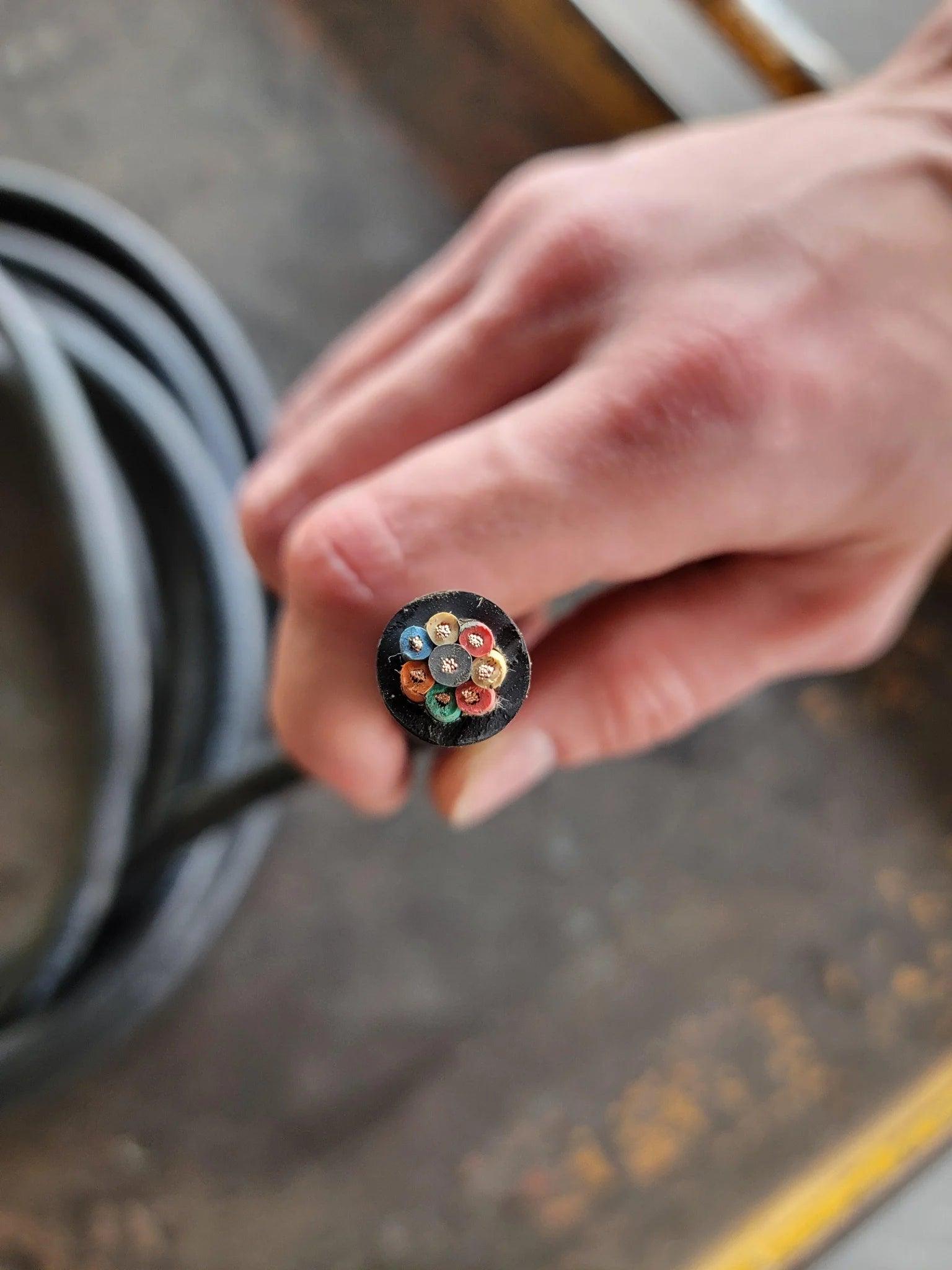

WIRING INCLUDED | 20 ft. 8 core cable with ring terminals |
