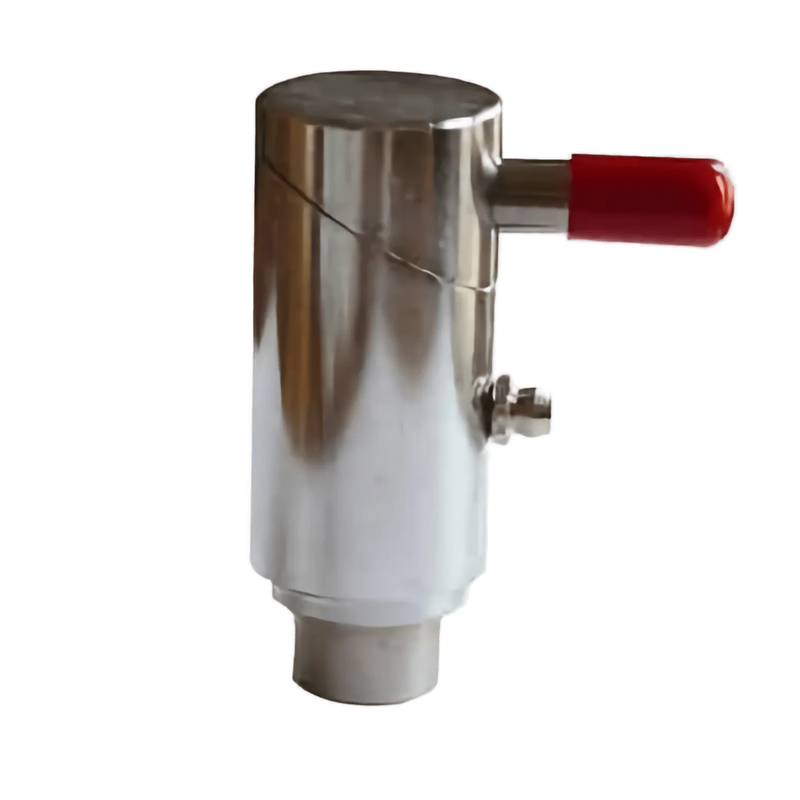

The PIERCE ¾" Twist Lock Plunger Latch features a metallic cylindrical design with a red lever handle and self-locking mechanism, shown isolated on a white background.

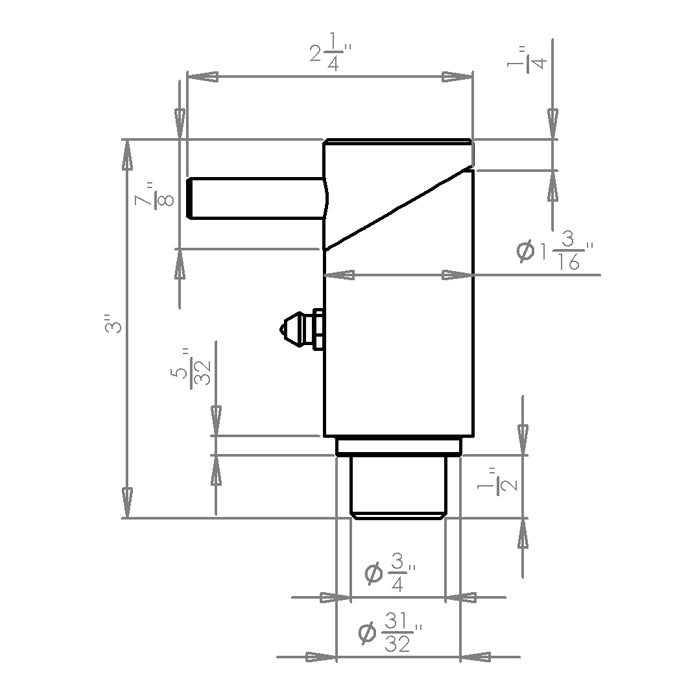

Technical drawing of the PIERCE ¾" Twist Lock Plunger Latch featuring labeled dimensions and measurement lines on a white background.

¾" Twist Lock Plunger Latch

Name: ¾" Twist Lock Plunger Latch
Brand: PIERCE
SKU: P030N
Price: 25.00 USD
Availability: InStock

P030N

$25.00

In Stock

3/4" Twist Lock Plunger Latch - PIERCE twist lock plunger pins are used on applications where a self-locking mechanism is needed. Traditionally, plunger pins are used in the towing field on wheel lifts and wrecker slings.

To Use:

Drill a 3/4" hole then weld the pin into the space.
Activate by rotating the head.
Grease the pin regularly for optimal performance.

Features:

Easily welded into position for maximum versatility.
Design incorporates a protective shoulder to prevent binding when welding the plunger into place.

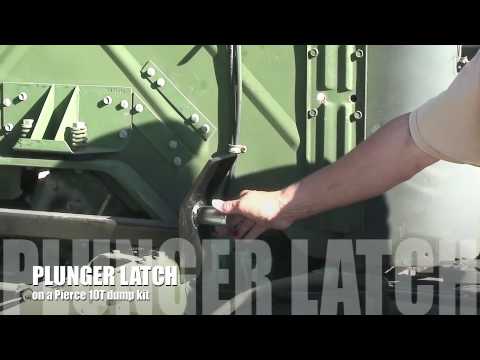

Use on sling arms, wheel lift arms, dump kits, etc.

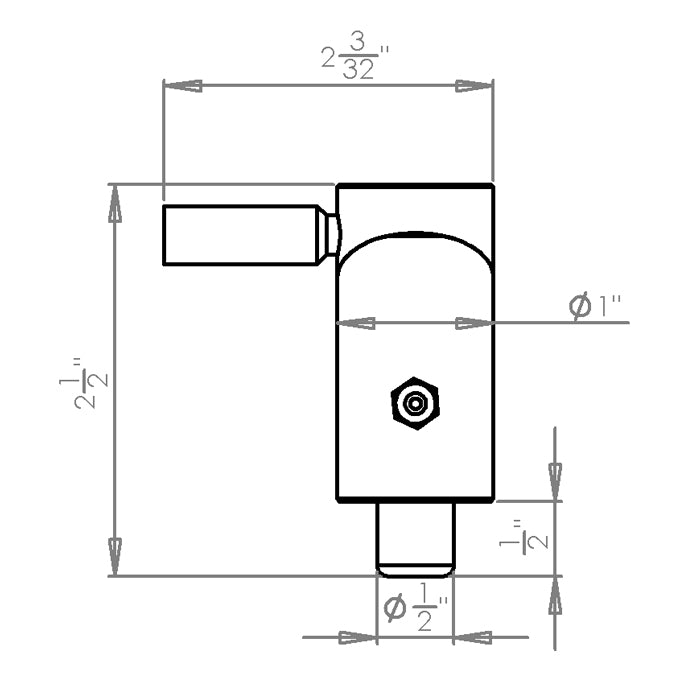

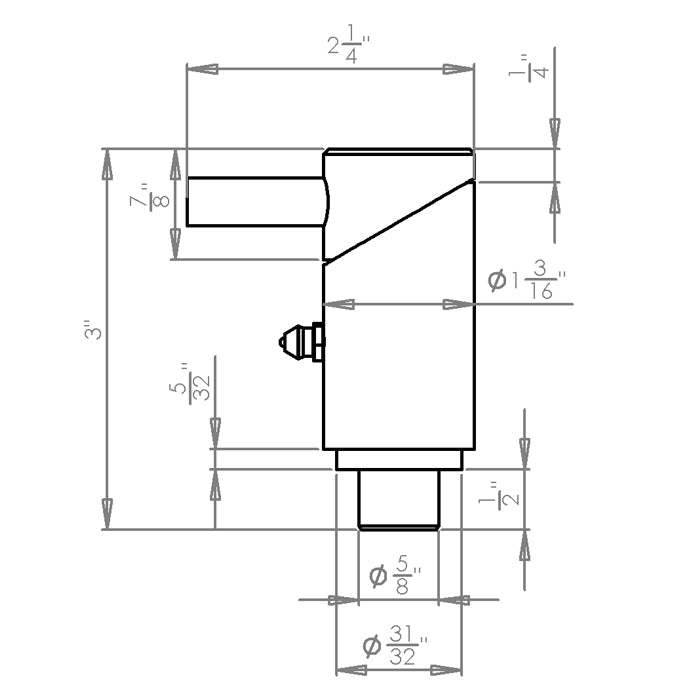

Twist Lock Plunger Options:

Twist lock plunger pins are sorted by the pin diameter.
