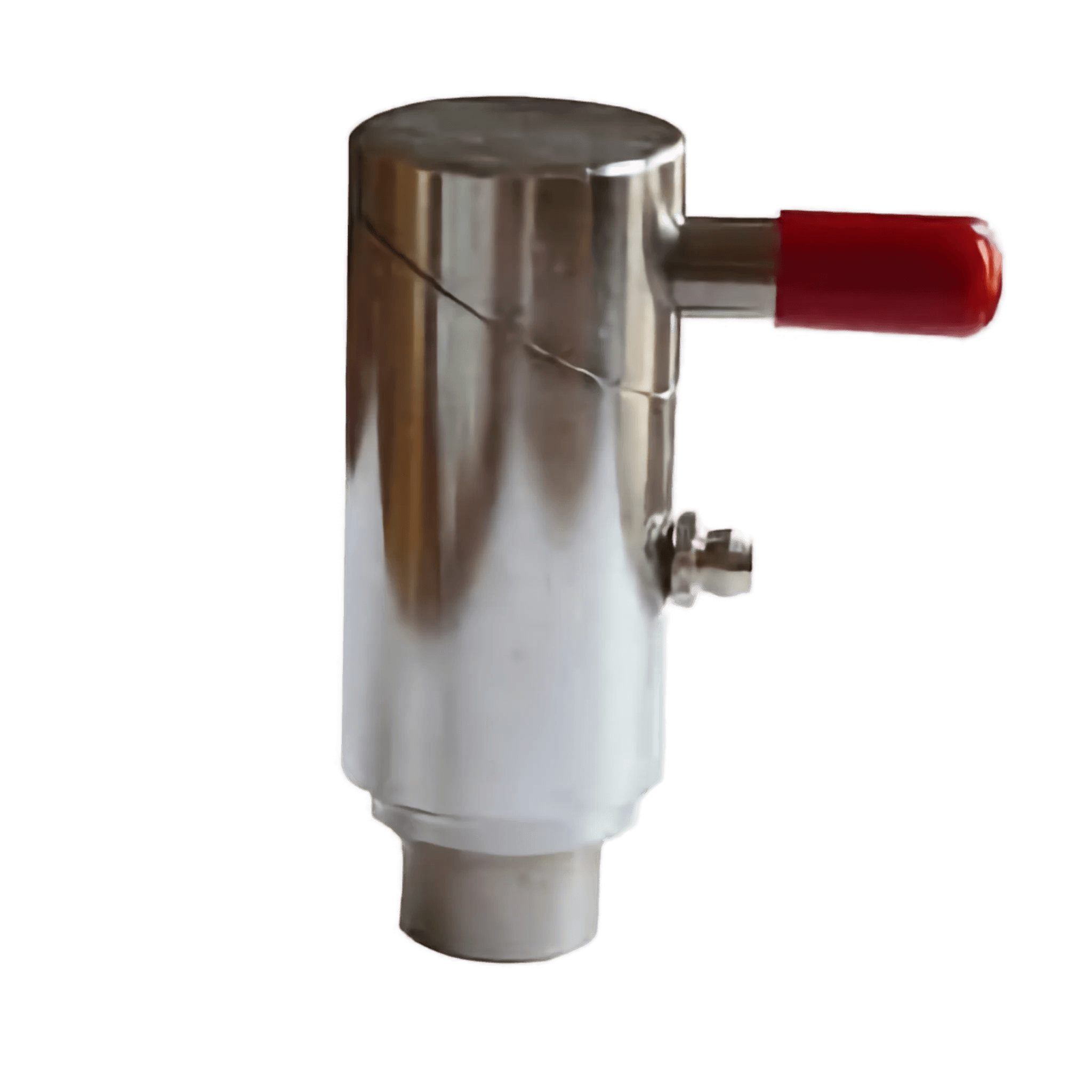

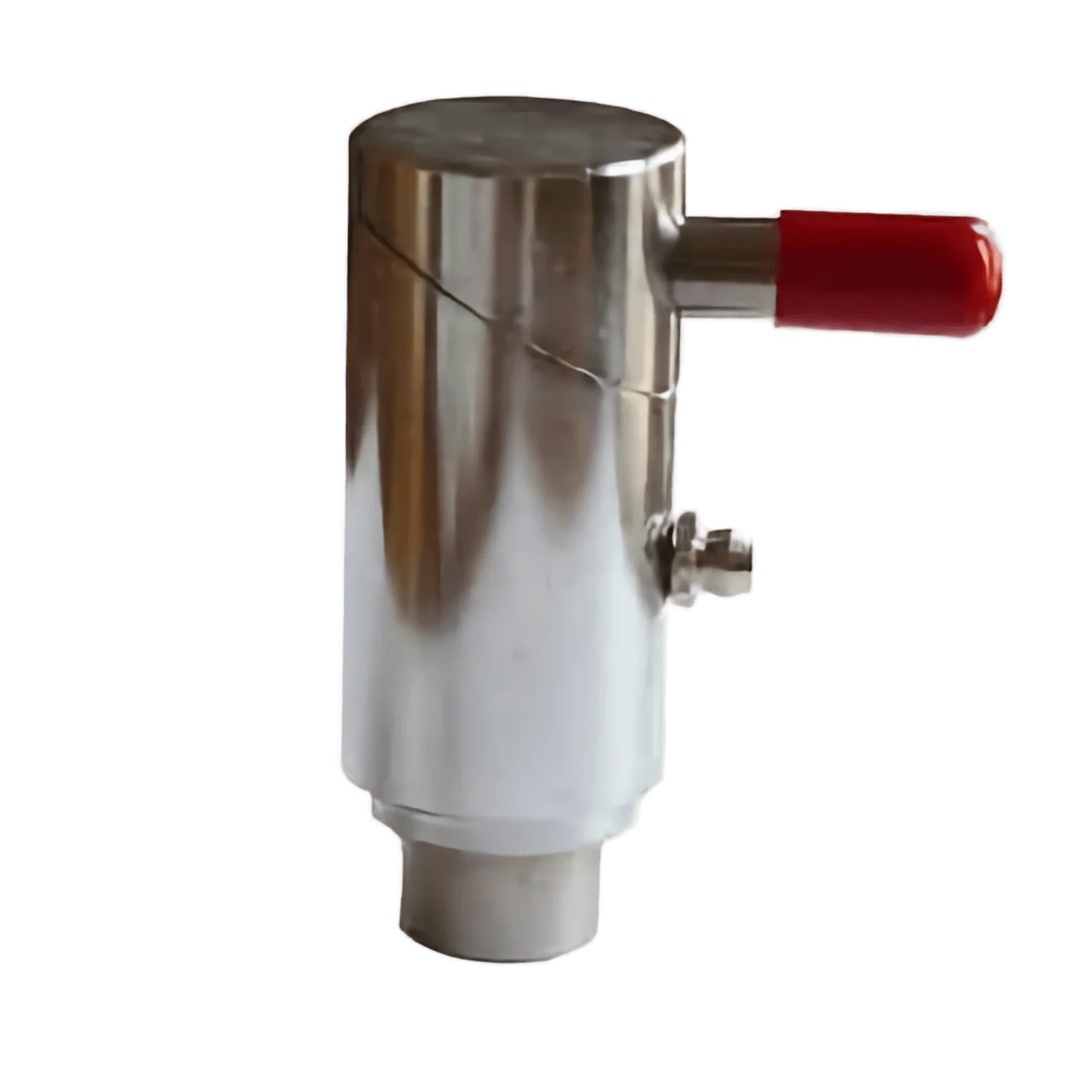

The PIERCE ½" Twist Lock Plunger Latch features a red side handle and self-locking mechanism, shown isolated on a white background.

½" Twist Lock Plunger Latch

$15.00
Skip to product information
The PIERCE ½" Twist Lock Plunger Latch features a red side handle and self-locking mechanism, shown isolated on a white background.
1/4
  • The PIERCE ½" Twist Lock Plunger Latch features a red side handle and self-locking mechanism, shown isolated on a white background.

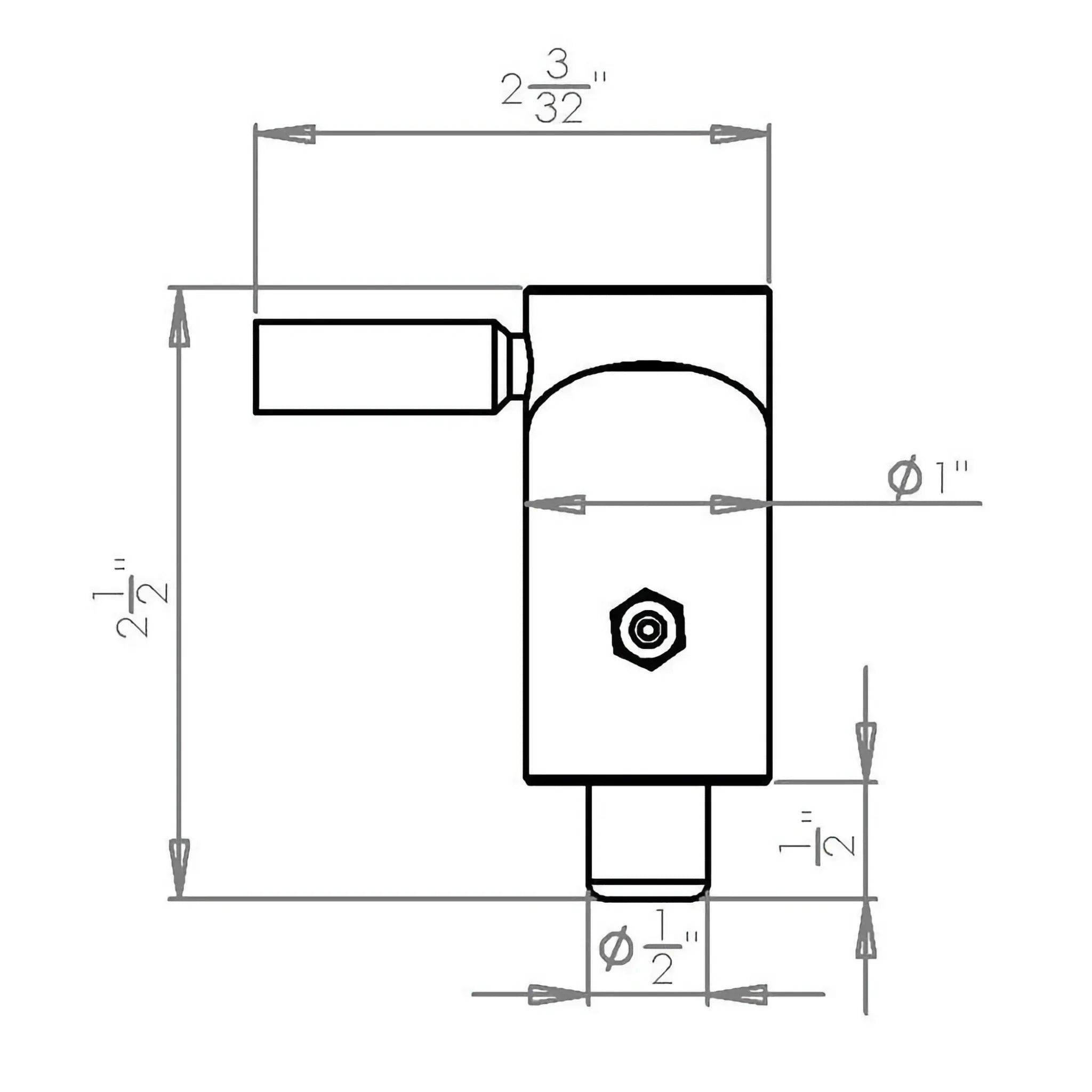

  • Technical drawing of the PIERCE ½" Twist Lock Plunger Latch shows labeled dimensions in inches, diameter symbols, and plunger pin details.
  • ½" Twist Lock Plunger Latch
  • ½" Twist Lock Plunger Latch
  • The PIERCE ½" Twist Lock Plunger Latch features a red side handle and self-locking mechanism, shown isolated on a white background.
  • Technical drawing of the PIERCE ½" Twist Lock Plunger Latch shows labeled dimensions in inches, diameter symbols, and plunger pin details.
  • ½" Twist Lock Plunger Latch
  • ½" Twist Lock Plunger Latch
½" Twist Lock Plunger Latch

½" Twist Lock Plunger Latch

P030SN
$15.00
In Stock

½" Twist Lock Plunger Latch - PIERCE twist lock plunger pins are used on applications where a self-locking mechanism is needed. Traditionally, plunger pins are used in the towing field on wheel lifts and wrecker slings.

To Use:

  • Drill a ½" hole then weld the pin into the space.
  • Activate by rotating the head.
  • Grease the pin regularly for optimal performance.

Features:

  • Easily welded into position for maximum versatility.
  • Design incorporates a protective shoulder to prevent binding when welding the plunger into place.
  • Use on sling arms, wheel lift arms, dump kits, etc.

Twist Lock Plunger Options:

Twist lock plunger pins are sorted by the pin diameter.
The PIERCE ½" Twist Lock Plunger Latch features a red side handle and self-locking mechanism, shown isolated on a white background.
½ in. P030SN
The PIERCE ⅝" Twist Lock Plunger Latch is a metallic cylindrical valve featuring a side red handle and twist lock mechanism, shown isolated on a white background.
⅝ in. P032N
+$7.00
The PIERCE ¾" Twist Lock Plunger Latch features a metallic cylindrical design with a red lever handle and self-locking mechanism, shown isolated on a white background.
¾ in. P030N
+$10.00
The PIERCE 1" Twist Lock Plunger Latch features a shiny metal body with a red handle and side plunger pins, shown against a white background.
1 in. P031N
+$12.00
