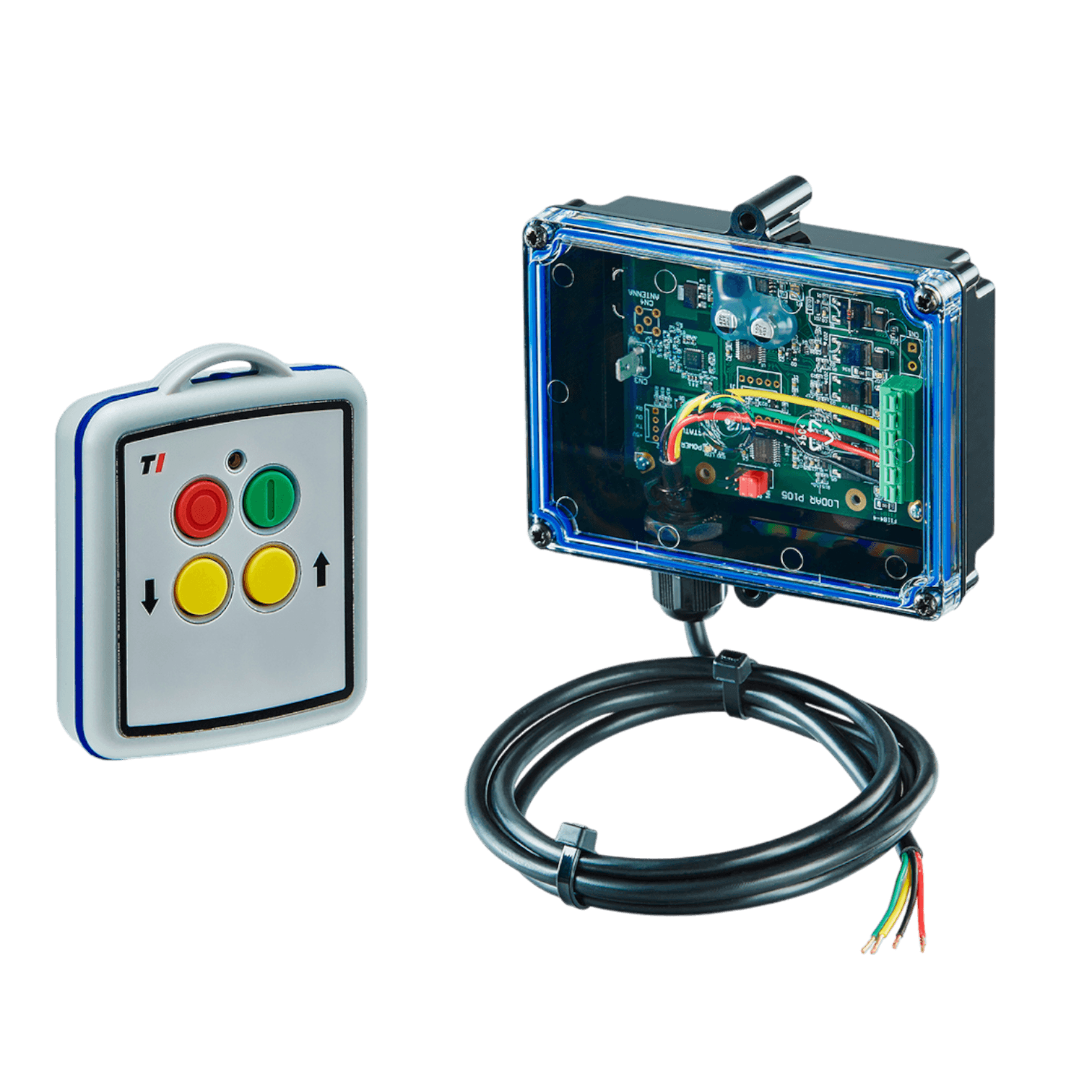

The clear-cased electronic device features a sleek control panel with buttons, highlighting its intricate wiring. As part of Lodar LTD's 11 Series, the 2 Functions Standard Wireless Control System offers a seamless wireless control experience with a range of 200 feet.

1 2

2 Functions Standard Wireless Control System | 11 Series

Name: 2 Functions Standard Wireless Control System | 11 Series
Price: 572.0 USD
Rating: 5.0 (3 reviews)

111000

$572.00

Quantity

Pre-order

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

2 Functions Standard Wireless Control System | 11 Series

'

Description

The 2 Function Lodar 11 Series Standard Wireless Control System provides simple, reliable two-output operation. With an IP54-rated transmitter and IP67-sealed receiver, it’s ideal for compact applications where dependable wireless control is essential.

2 functions of wireless control
Standard handheld transmitter (IP54)
Receiver sealed to IP67
Outputs default to momentary control

Applications: Compact recovery trucks, auxiliary hydraulics, and small industrial systems needing two wireless outputs.

Looking for more compact options? See the 4-function Mini 11 Series system.

Included

1 x [11RX00] - 2 Function 12/24V Lodar Receiver | 11 Series | No Master Output

1 x [TX0002] - 2 Function Lodar Mini Transmitter | 11 Series

1 x Instructions

1 x Lanyard

Specifications

Specification	Details
FUNCTIONS	2
MASTER OUTPUT	No
MAX AMPS	3
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING TEMPERATURE RANGE	13ºF to 104ºF (-10ºC to 40ºC)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 67
SERIES	11 Series
SWITCH TYPE	Tactile Dome on PCB Keypad (Pockets for Text or Image Insertion)
TRANSMITTER	Standard
TRANSMITTER BATTERIES	AAA x 2
TRANSMITTER IP RATING	IP 54
TYPE	Full System
WIRING INCLUDED	9 ft. (3m) wiring loom through gland

Resources

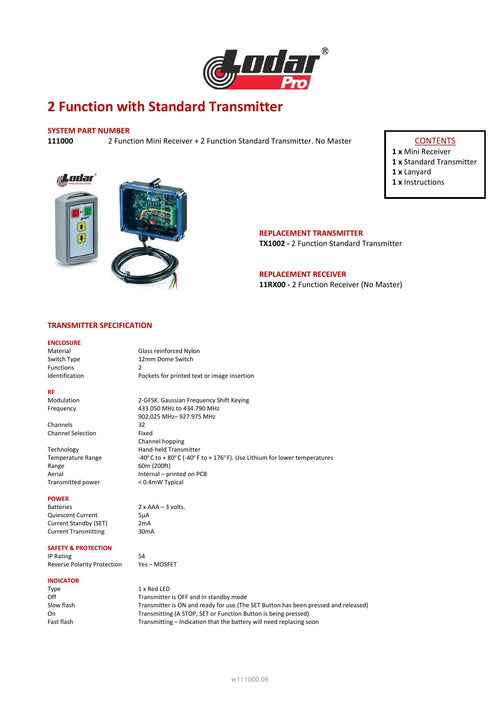

111000 - 2 Function with Standard Transmitter

Spec Sheet

111002. - 2 Function with Standard Transmitter

Spec Sheet

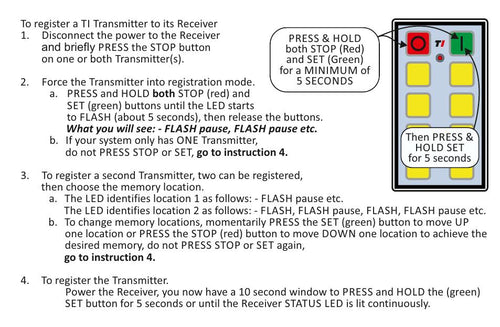

11 Series - Standard Transmitter Coding

Instructions

Videos

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.

Replacement Parts

2 Function Lodar Replacement Mini Transmitter | 11 Series

The 2 Function Lodar Mini Replacement Transmitter is designed for use with the 2-Function 11 Series Lodar system. Compact and easy to use, this OEM remote restores simple wireless control and pairs quickly with your existing receiver. 2-functi...

SKU: TX0002 $179.00

2 Function 12/24V Lodar Replacement Receiver | 11 Series | No Master Output

Purpose-built for smaller systems, the Lodar 11 Series 2 Function Receiver (No Master Output) provides dependable wireless control of solenoids, relays, or electric-over-hydraulic valves. IP67 sealing ensures durability in harsh environments. ...

SKU: 11RX00 $327.00

Reviews

Excellent unit for the money

Installed this controller to operate several hydraulic piston pumps. Works as expected. This Special-Order part was back-order. It was delivered within the estimated time. Personnel at Pierce are knowledgeable and pleasant to conduct business with.
