Name: 1 Function Standard Wireless Control System | 92 Series | FET Receiver
Brand: Lodar LTD
SKU: 92101
Price: 641.00 USD
Availability: InStock

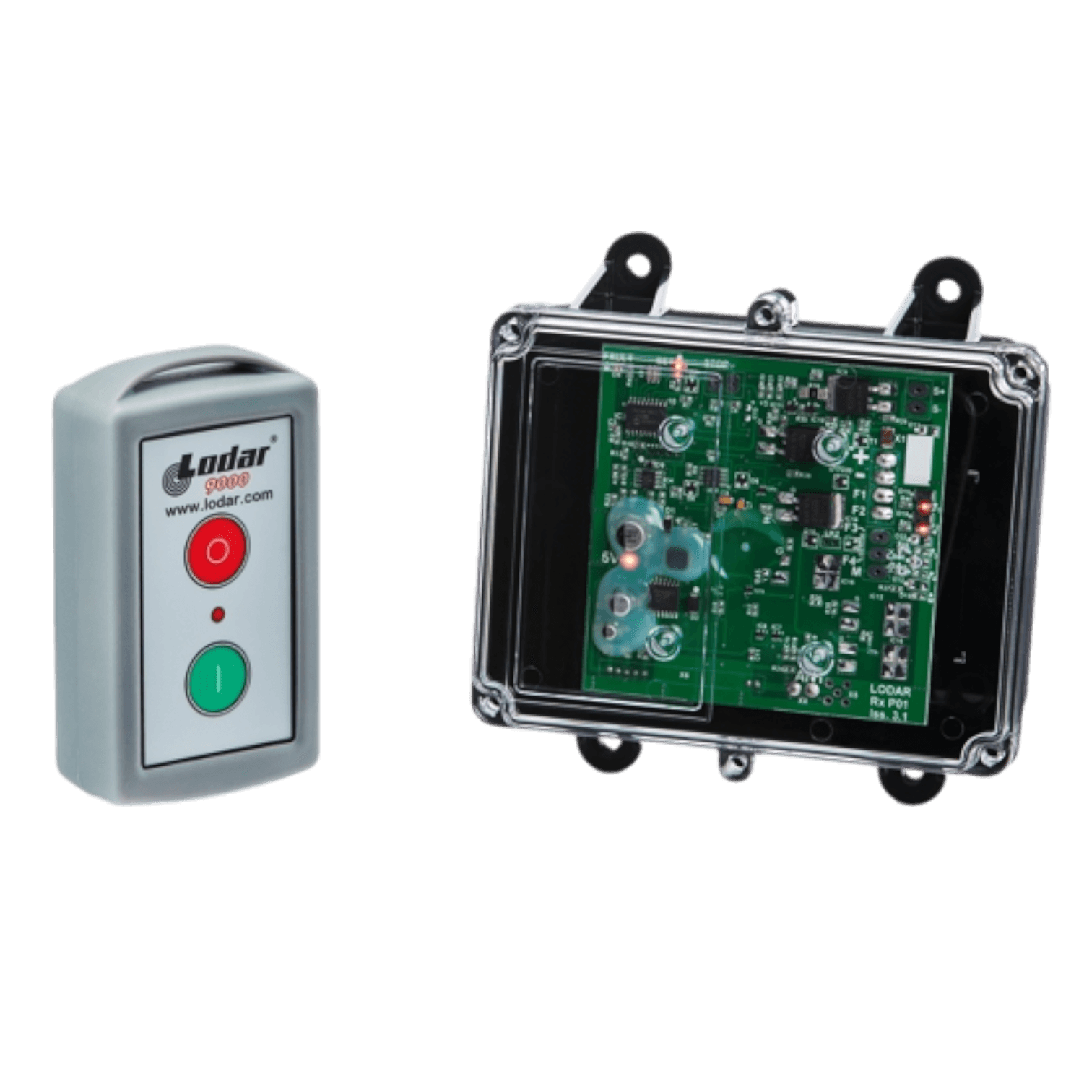

Explore the innovative 1 Function Standard Wireless Control System from Lodar LTD, featuring a handheld device and an FET receiver. This versatile 92 Series solution is perfectly designed for solenoid-operated equipment, ensuring seamless remote management and precision.

1 Function Standard Wireless Control System | 92 Series | FET Receiver

$641.00

1 Function Standard Wireless Control System | 92 Series | FET Receiver

92101

$641.00

In Stock

Single-Button Control, Set Up Your Way

This 1 Function Standard Wireless Control System (92 Series, DC) gives you dependable one-button on/off control with flexible wiring options to match your application.

Function: Single output for simple on/off operation
Output Type: Solid-state FET receiver (92 Series)
Power: DC-powered system
Operation Modes: Wire as latched (toggle on/off) or momentary (runs only while pressed)
Use Cases: A practical fit for equipment where straightforward remote activation is needed

Need an AC option instead? See the 1 Function 110V wireless control system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

92 Series 1 Function Options:

The 1 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver by Lodar LTD is a remote control with a waterproof receiving unit, featuring green and red buttons, perfect for industrial environments.

Keypad Receiver 92101K

+$98.00

Standard Receiver 92101

Channel

Wide Band, Fixed

Functions

Master Output

Yes

Max Amps

Operating Distance

150 ft. (45 m.)

Operating Voltage

12/24 Volts DC

Receiver IP Rating

IP 67

Series

9000 Series

Transmitter

Standard

Transmitter Batteries

AAA x 2

Transmitter IP Rating

IP 54

Wiring Included

9 ft. (3m) wiring loom through gland

Warranty

Lodar 5 Year Pro-rated Warranty

1 Function Lodar Standard Transmitter | 9 SeriesSKU: 92101TX

$247.00

1 Function Replacement FET Receiver | 9 SeriesSKU: 9201RX

$394.00

92101 - 1 Function with Standard Transmitter Spec Sheet 92-93 Series - Wiring instructions for One Function Systems Wiring Diagram 92-93 Series - Instructions Standard Transmitter Coding Instructions

92-93 Series - Instructions Standard Transmitter Coding

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
