Name: Bucher Standard Duty Motor
Price: 232.0 USD
Rating: 5.0 (6 reviews)

$232.00

1/3

08111

$232.00

In Stock

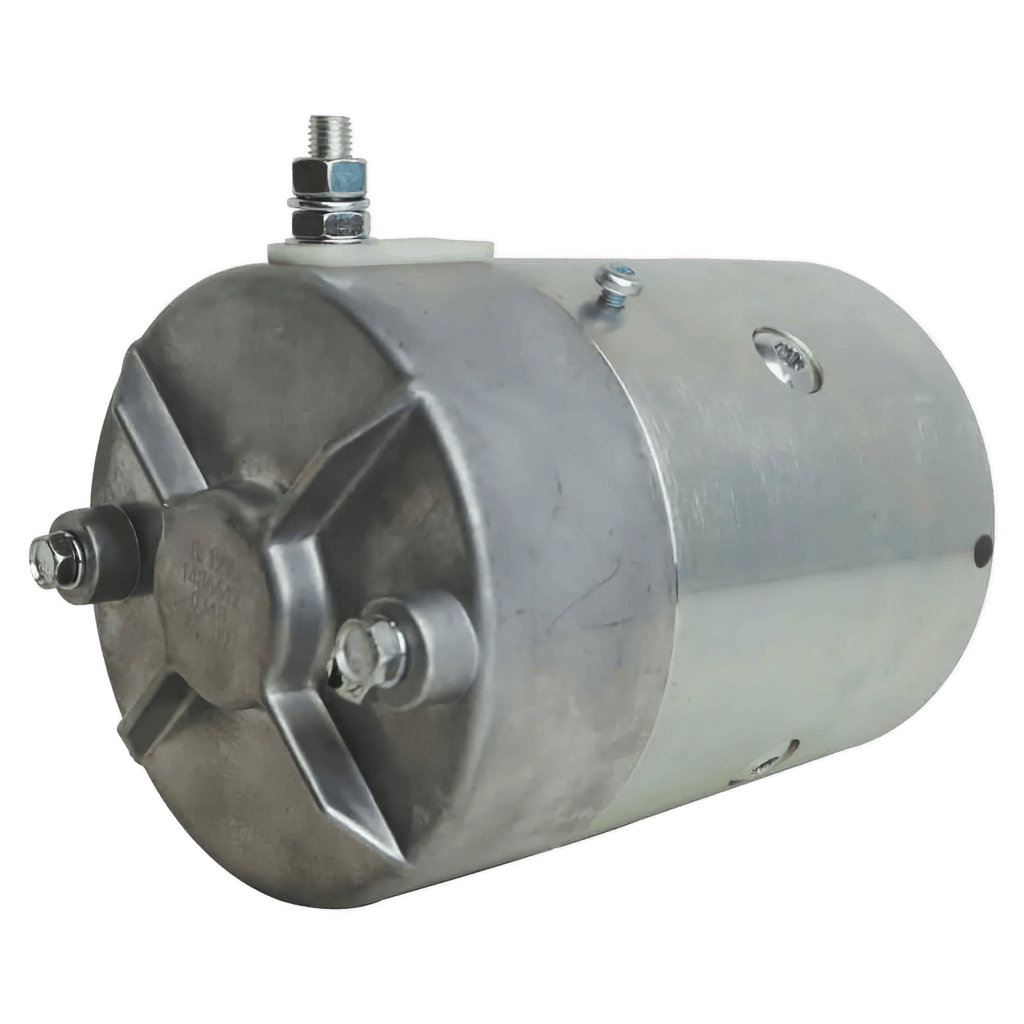

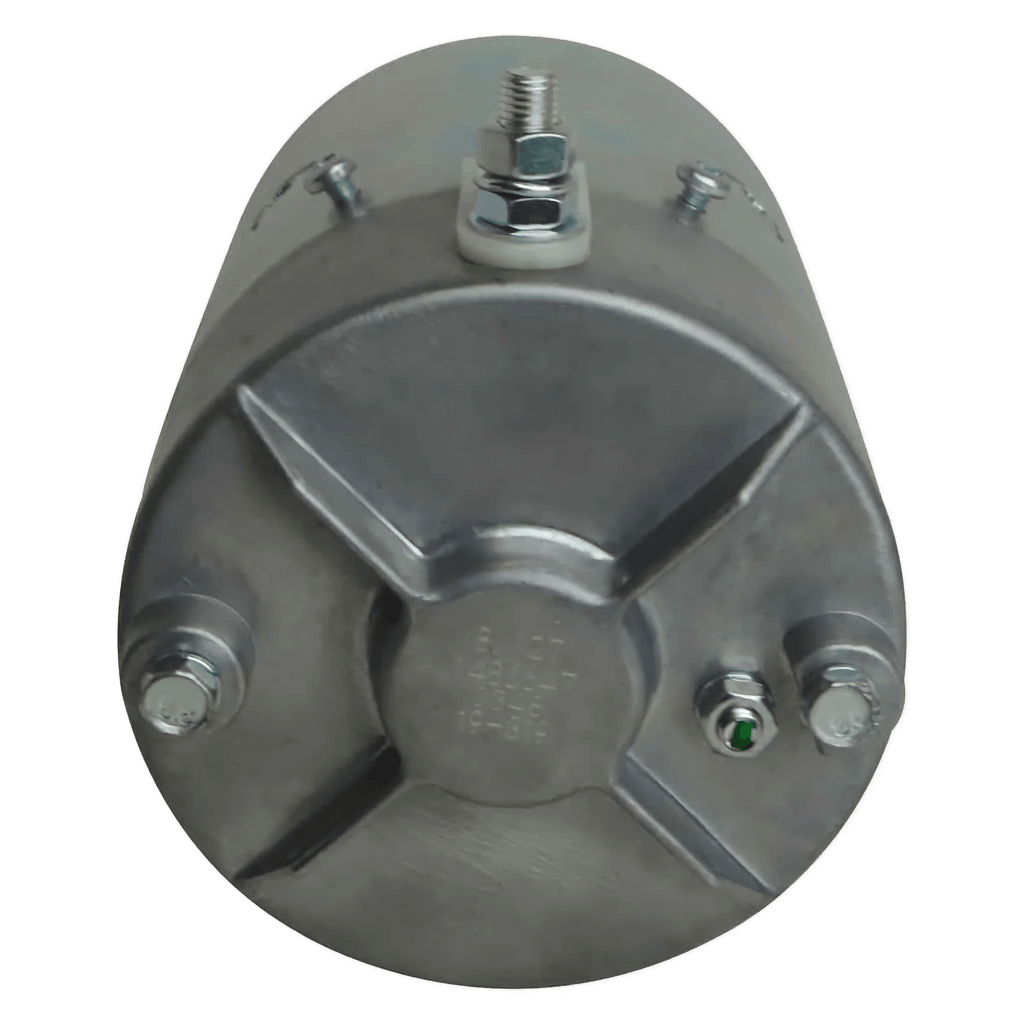

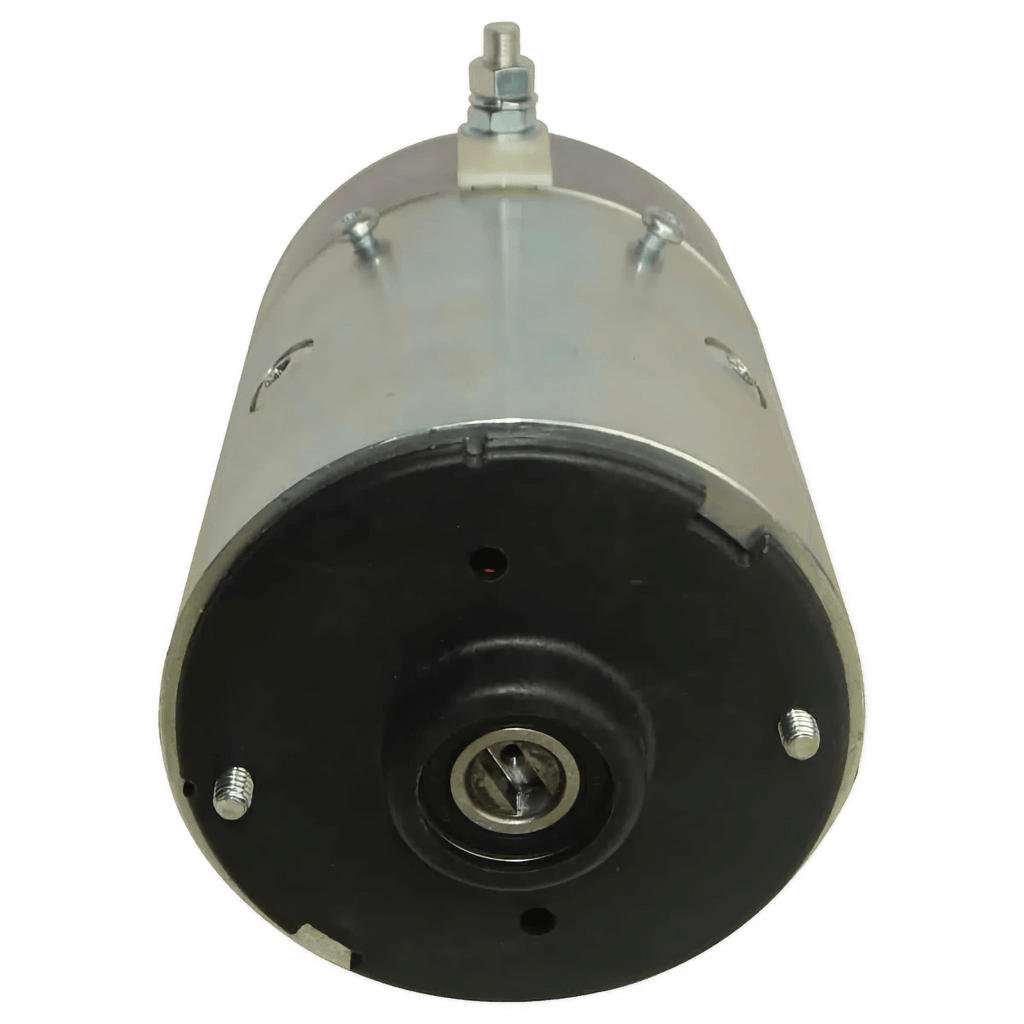

This is the Bucher OEM standard duty replacement pump motor. This replacement is compatible with Bucher pumps available in the PIERCE store.

Operating Voltage

12 Volts DC

Power Source

Electric, DC

Type

Wound Field, Standard-Duty

Motor (hp)

2.10

Duty Cycle

Intermittent

Rotation

Counter-clockwise (CCW)

Winding Type

Series wound

Insulation Class

Diameter

4.5 inches (114 mm)

Overall Length

6.75 inches (172 mm)

IP Rating

IP54 (dust and splash resistant)

UL Listed

Current values are DC Amps

Pressure psi (bar)	17-100 0.022 in³ (0.35 cc)	17-120 0.026 in³ (0.43 cc)	17-150 0.032 in³ (0.53 cc)	17-190 0.041 in³ (0.67 cc)	17-270 0.058 in³ (0.96 cc)	13-150 0.073 in³ (1.19 cc)	13-200 0.097 in³ (1.59 cc)	13-250 0.121 in³ (1.98 cc)	13-270 0.131 in³ (2.14 cc)	13-330 0.160 in³ (2.62 cc)	13-380 0.184 in³ (3.01 cc)	13-510 0.247 in³ (4.05 cc)
50 (3)	86	86	88	88	90	90	92	93	94	95	96	100
250 (17)	88	89	91	92	95	97	102	105	108	111	114	125
500 (34)	91	92	95	96	102	107	114	120	124	131	137	154
750 (51)	94	95	99	101	109	116	126	135	140	150	159	183
1000 (68)	96	99	103	106	115	125	138	149	155	169	180	211
1250 (86)	99	102	107	111	122	133	149	164	170	187	201	238
1500 (103)	102	105	110	114	125	136	151	166	173	190	204	242
1750 (121)	105	108	114	119	131	145	162	180	188	208	225	270
2000 (138)	108	111	119	124	138	153	172	194	203	225	246	297
2250 (155)	111	114	123	129	144	161	182	207	217	242	265	323
2500 (172)	114	117	127	134	150	169	191	219	230	258	283	348
2750 (190)	117	120	131	138	156	176	199	231	242	273	300	372
3000 (207)	120	123	134	142	162	183	207	243	255	287	317	-
3250 (224)	123	126	138	146	168	189	215	254	267	300	333	-

Flows are for bled-to-reservoir pumps. Bled-to-suction pumps will provide lower flows and have lower pressure limits. Values shown are in gpm.

Pressure psi (bar)	17-100 0.022 in³ (0.35 cc)	17-120 0.026 in³ (0.43 cc)	17-150 0.032 in³ (0.53 cc)	17-190 0.041 in³ (0.67 cc)	17-270 0.058 in³ (0.96 cc)	13-150 0.073 in³ (1.19 cc)	13-200 0.097 in³ (1.59 cc)	13-250 0.121 in³ (1.98 cc)	13-270 0.131 in³ (2.14 cc)	13-330 0.160 in³ (2.62 cc)	13-380 0.184 in³ (3.01 cc)	13-510 0.247 in³ (4.05 cc)
50 (3)	0.59	0.70	0.87	1.01	1.41	1.90	2.49	3.09	3.29	4.01	4.59	5.93
250 (17)	0.57	0.68	0.84	0.97	1.34	1.78	2.29	2.79	2.95	3.50	3.94	4.88
500 (34)	0.55	0.66	0.80	0.93	1.26	1.64	2.07	2.47	2.59	3.01	3.32	3.96
750 (51)	0.54	0.64	0.77	0.89	1.19	1.52	1.88	2.21	2.31	2.63	2.86	3.34
1000 (68)	0.52	0.61	0.74	0.85	1.12	1.42	1.72	1.99	2.07	2.33	2.52	2.90
1250 (86)	0.50	0.59	0.71	0.81	1.06	1.32	1.58	1.81	1.88	2.09	2.25	2.57
1500 (103)	0.48	0.56	0.68	0.77	1.00	1.23	1.46	1.66	1.72	1.89	2.03	2.33
1750 (121)	0.46	0.54	0.64	0.73	0.94	1.15	1.36	1.53	1.58	1.73	1.86	2.14
2000 (138)	0.44	0.51	0.61	0.69	0.89	1.08	1.26	1.42	1.47	1.60	1.71	1.97
2250 (155)	0.41	0.49	0.58	0.66	0.84	1.01	1.18	1.32	1.37	1.48	1.59	-
2500 (172)	0.39	0.46	0.55	0.62	0.79	0.95	1.10	1.23	1.28	1.38	1.48	-
2750 (190)	0.36	0.43	0.52	0.58	0.74	0.88	1.03	1.15	1.20	1.28	1.38	-
3000 (207)	-	0.40	0.48	0.54	0.69	0.83	0.96	1.08	1.12	1.19	1.28	-
3250 (224)	-	-	0.45	0.50	0.64	0.77	0.90	1.01	1.05	1.10	-	-
