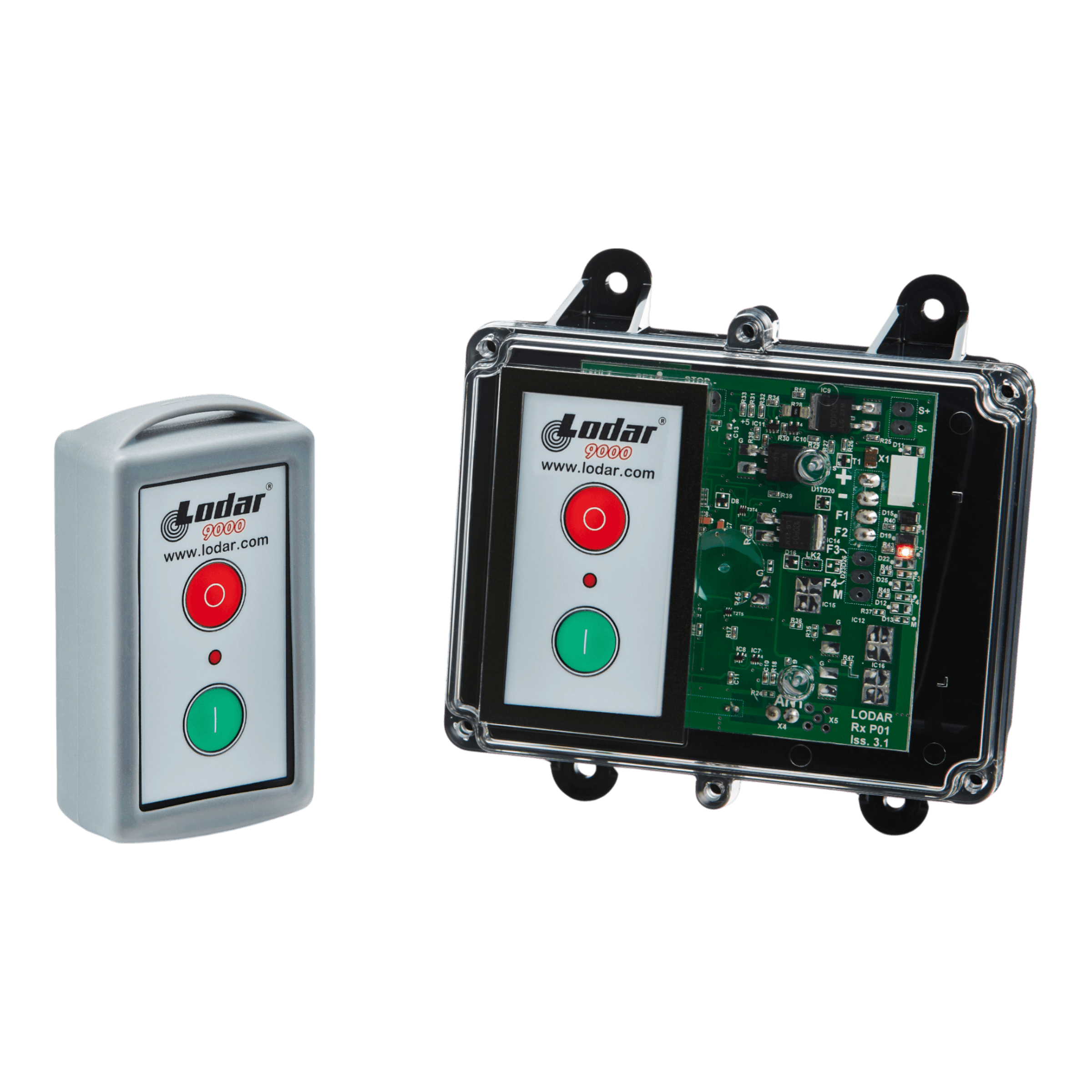

1 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver

1 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver
Description
Tough, One-Button Wireless Control
This 1 Function Standard Wireless Control System (92 Series, DC) delivers dependable one-button operation for simple on/off control. FET outputs support higher current with efficient switching, and the system’s compact design makes mounting straightforward.
- Function: Single output for on/off control
- Output Type: FETs rated up to 15A (92 Series)
- Power: DC-powered system
- Operation Modes: Wire as latched (on/off toggle) or momentary (only while pressed)
- Backup Control: Integrated keypad provides local operation if the transmitter is unavailable
- Use Cases: Versatile choice for equipment needing simple remote activation
Prefer AC power? This system is also available in a 1 Function 110V version.
The built-in keypad ensures you always have backup access, even if the remote is misplaced.
Specifications
Specification | Details |
---|---|
CHANNEL | Wide Band, Fixed |
FUNCTIONS | 1 |
MASTER OUTPUT | Yes |
MAX AMPS | 15 |
OPERATING DISTANCE | 150 ft. (45 m.) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 65 |
SERIES | 9000 Series |
SPECIAL FEATURES | Receiver Keypad + Momentary or Latching |
TRANSMITTER | Standard |
TRANSMITTER BATTERIES | AAA x 2 |
TRANSMITTER IP RATING | IP 54 |
WIRING INCLUDED | 9 ft. (3m) wiring loom through gland |
