4 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Compatible Products

4 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Description

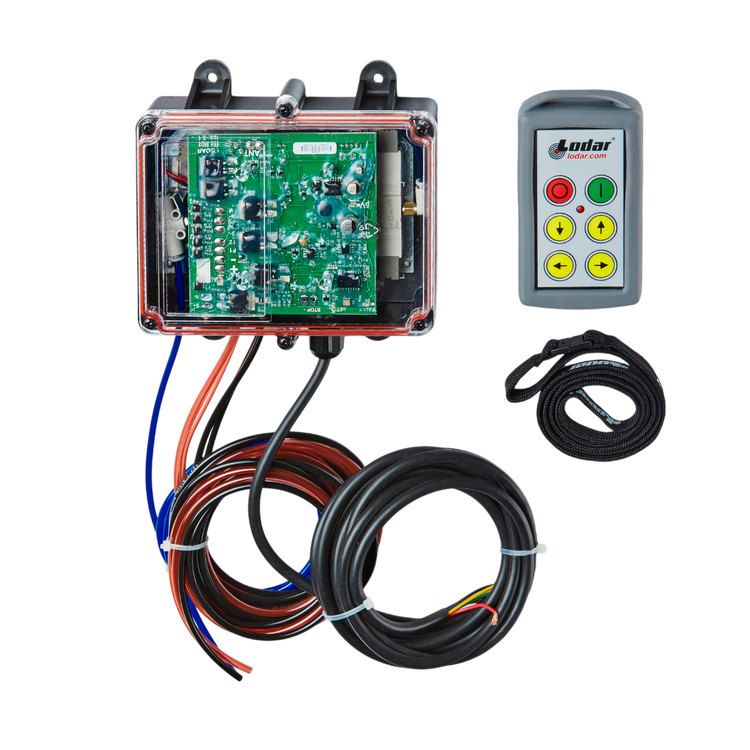

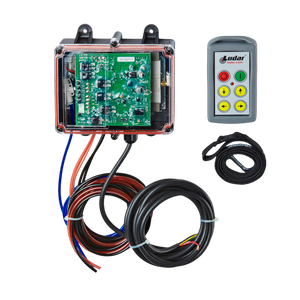

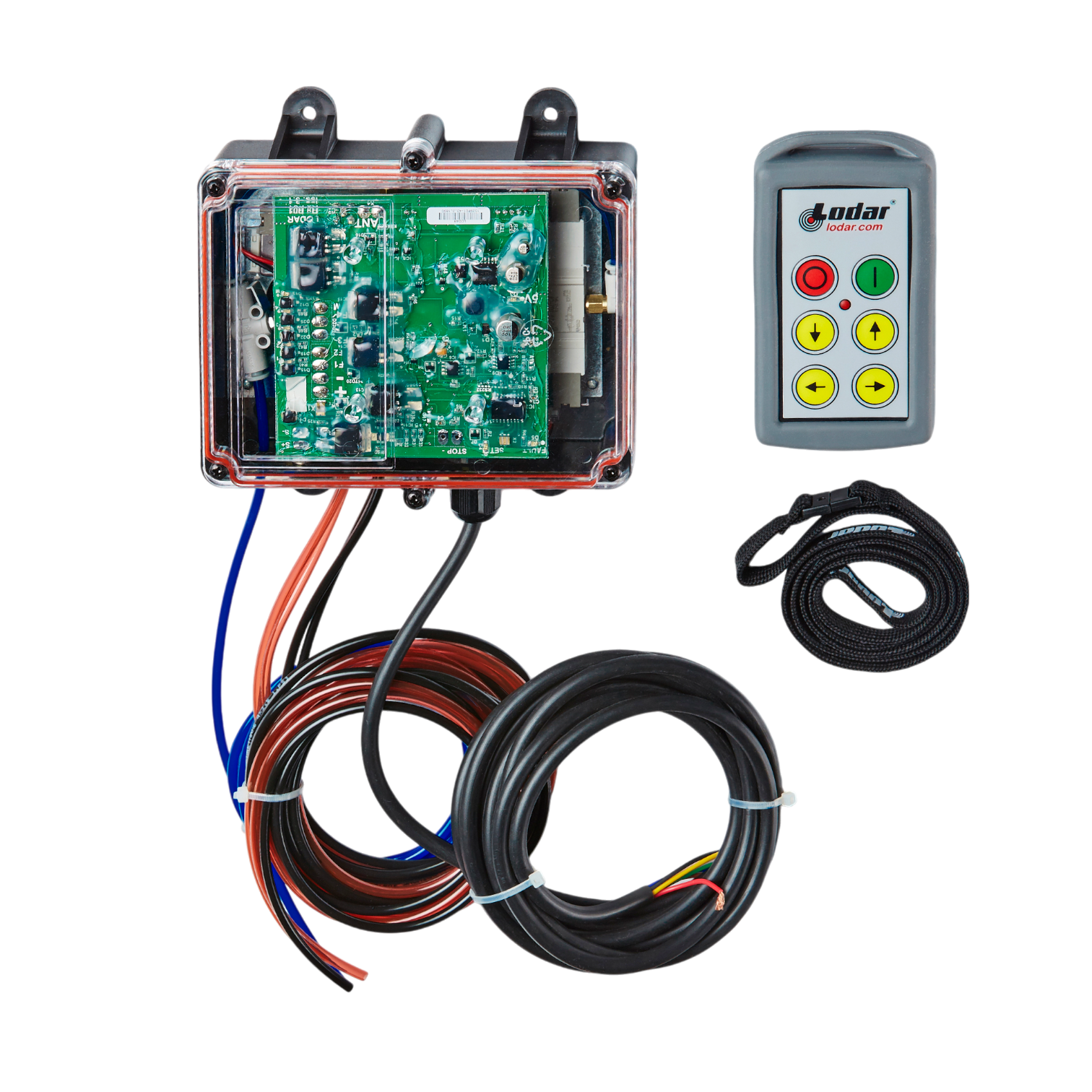

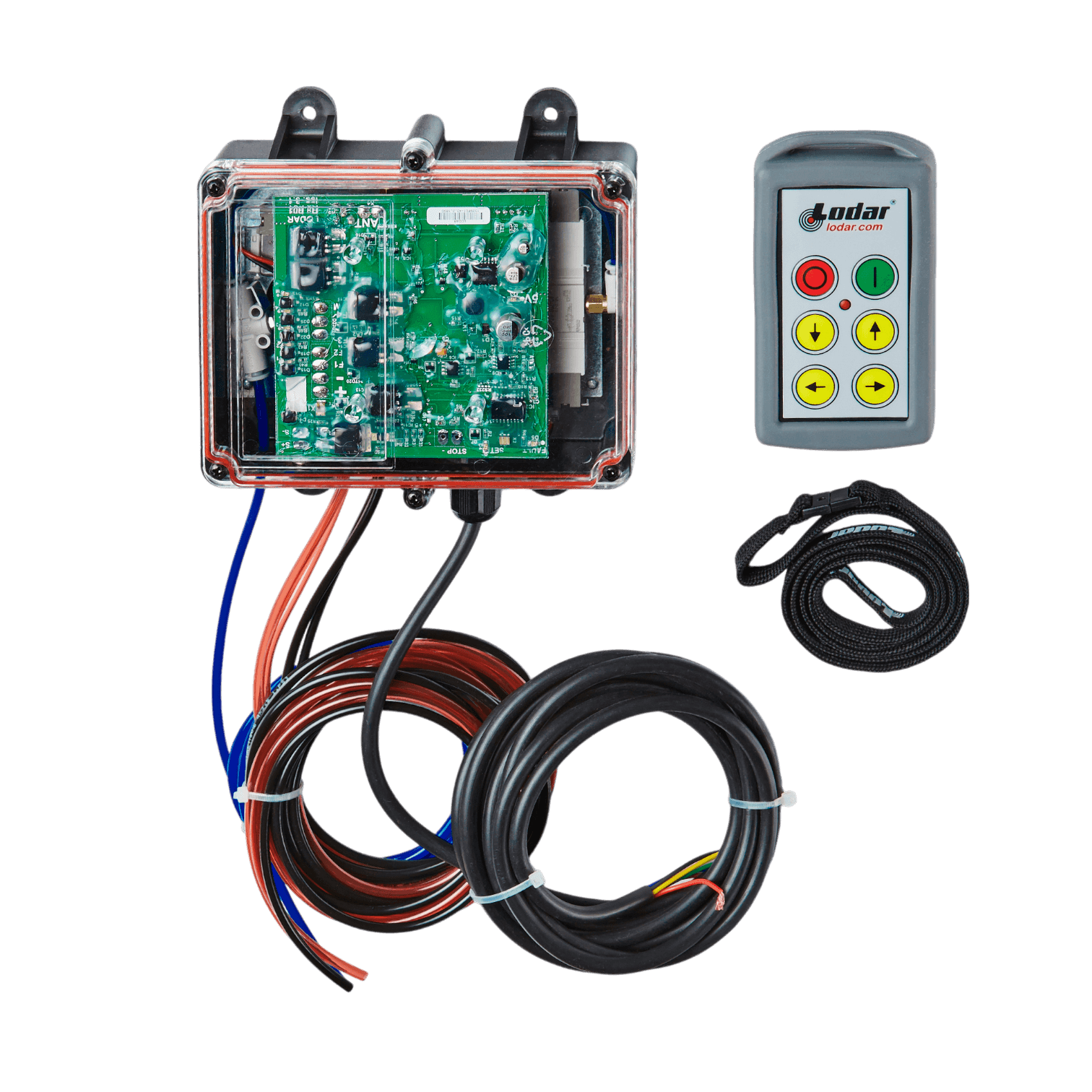

This 4 Function Standard Wireless Actuator Control System is equipped with the Lodar-specific FET Air Receiver and a standard transmitter, but does not include any actuators. This system is ideal for those who have pre-installed, compatible air actuators and only require the Lodar Wireless component.
Specifications
Specification | Details |
---|---|
ACTUATOR | Air |
FREQUENCY | 418 MHz |
FUNCTIONS | 4 |
MASTER OUTPUT | Yes |
MAX AMPS | 15 |
OPERATING DISTANCE | 150 ft. (45 m.) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 67 |
SERIES | 9000 Series |
SPECIAL FEATURES | Receiver with Air I/O |
TRANSMITTER | Standard |
TRANSMITTER BATTERIES | AAA x 2 |
TRANSMITTER IP RATING | IP 54 |
TYPE | Full System - No Actuators |
WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
Warranty
Replacement Parts

4 Function Lodar Replacement Standard Transmitter | 9000 Series
This transmitter is designed as a replacement for Lodar 92 series systems, specifically the 4-function models with Featuring advanced technology and precision engineering, this transmitter is a perfect replacement for the Lodar 92 series 4-functio...

4 Function Lodar Replacement FET Air Receiver | 92 Series
This is the replacement FET Air Receiver for the 4 Function Lodar actuators.
