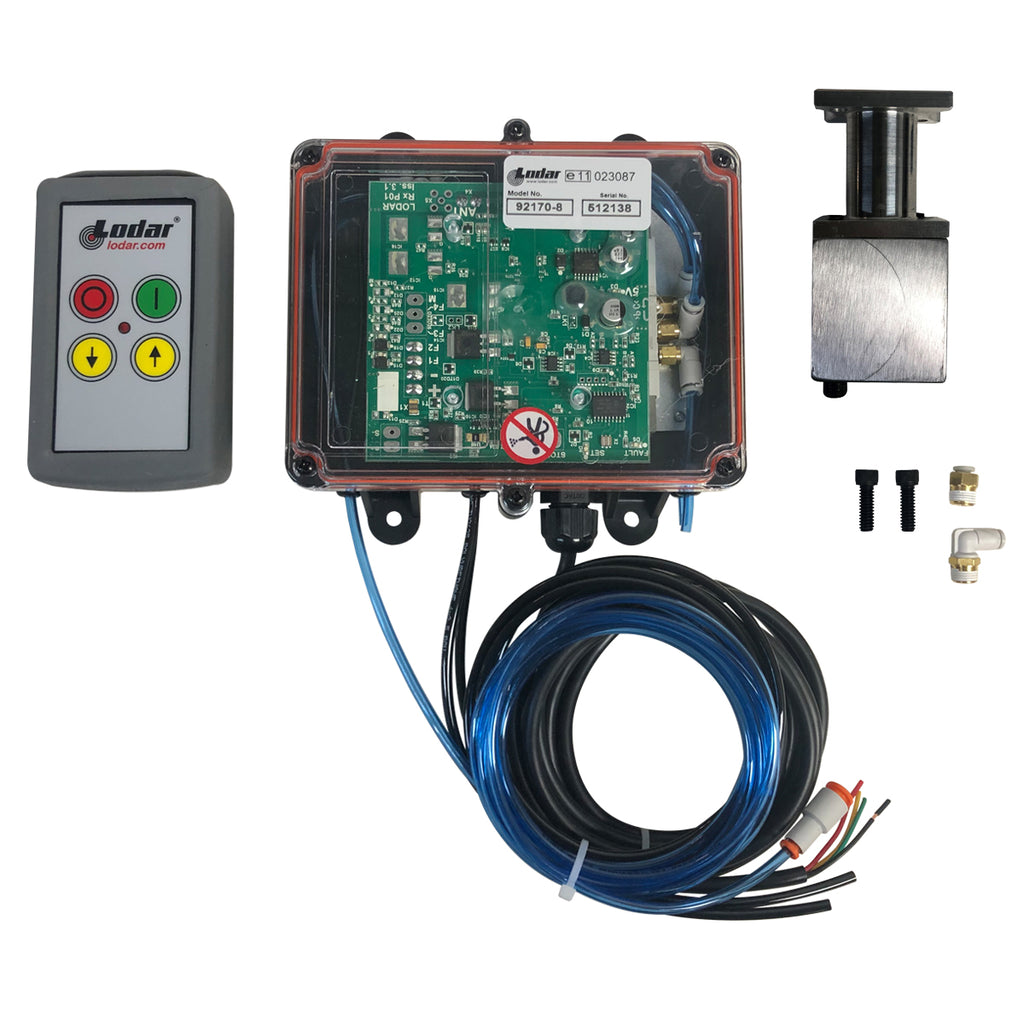

The PIERCE 2 Function Direct Mount Wireless Air System for Jerr-Dan (Husco Valves) includes a control unit, circuit board, wires, remote control, and hardware—perfect for integrating wireless control—shown on a white background.

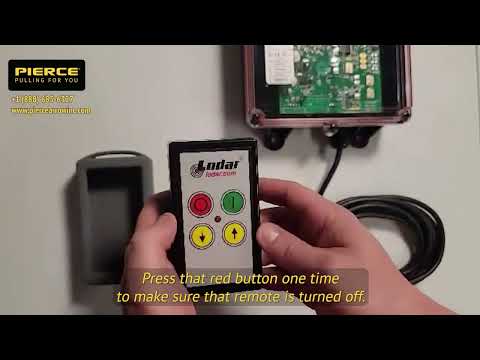

Pairing the 92 Series Lodar Remote & Transmitter
1 of 2

2 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)

92150DMJ-8
Sale price $1,133.00
Pre-order
Amazon
American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
The PIERCE 2 Function Direct Mount Wireless Air System for Jerr-Dan (Husco Valves) includes a control unit, circuit board, wires, remote control, and hardware—perfect for integrating wireless control—shown on a white background.

2 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)

$1,133.00
'
Description

2 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)

Wireless control made simple. This Lodar kit manages 1 Husco spool valve on Jerr-Dan wreckers with 2 functions (two directions). Direct-mount actuators bolt securely to the valve, eliminating roadside lever use.

  • 2 functions = 1 valve with two directions
  • Direct spool-mount on Husco Valves; installs fast, no welding
  • Includes Lodar Standard Remote with ergonomic controls
  • Built tough for recovery operations
  • Requires 90–120 PSI air supply and 12V power

Related Systems: Need more? Upgrade to the 4 Function Jerr-Dan (Husco) or 6 Function Jerr-Dan (Husco). Miller rigs? See 2 Function Gresen.

Applications: Jerr-Dan recovery and service vehicles with Husco spool valves.

Specification Details

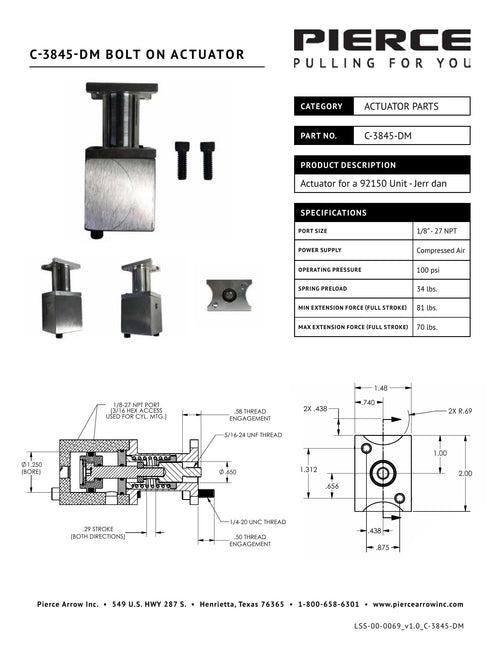

ACTUATOR Husco Direct Mount Air
FREQUENCY 433 MHz
FUNCTIONS 2
MASTER OUTPUT No
MAX AMPS 15
OPERATING DISTANCE 200 ft. (61 m.)
OPERATING VOLTAGE 12/24 Volts DC
RECEIVER IP RATING IP 67
SERIES 9000 Series
SPECIAL FEATURES Receiver with Air I/O
TRANSMITTER Standard
TRANSMITTER BATTERIES AAA x 2
TRANSMITTER IP RATING IP 54
TYPE Full System
WIRING INCLUDED 8 ft. power / 5 ft. air input / 3½ ft. air outputs
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
