Name: 2 Function FET Air Receiver | No Master | 9 Series
Brand: Lodar Service
SKU: 9270RX-8
Price: 632.00 USD
Availability: InStock

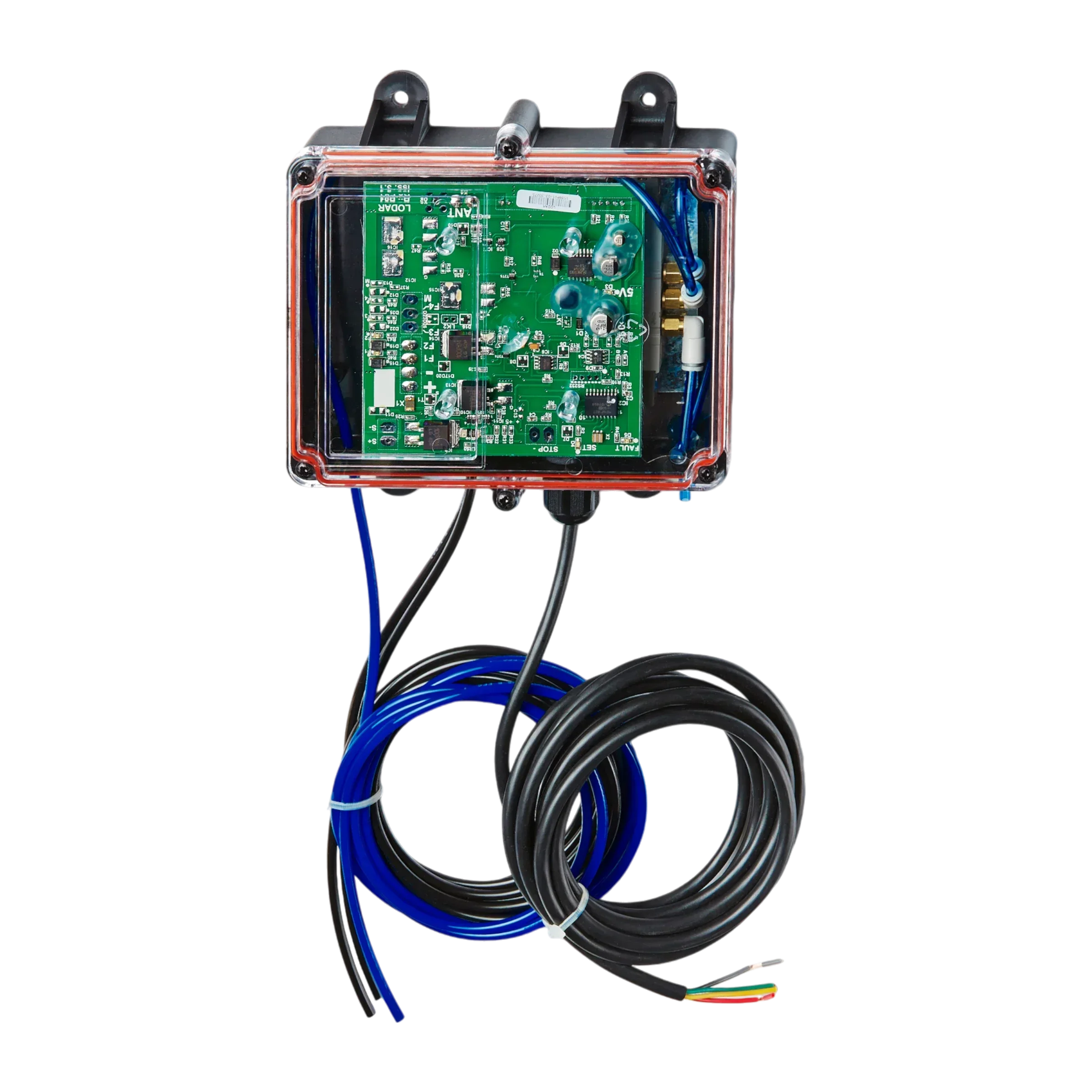

The 2 Function Lodar Replacement FET Air Receiver (92 Series, No Master Output) by Lodar Service features a green circuit board inside a black plastic box with blue and black cables attached.

2 Function FET Air Receiver | No Master | 9 Series

$632.00

2 Function FET Air Receiver | No Master | 9 Series

9270RX-8

$632.00

In Stock

This is a replacement FET Air receiver for Lodar 9 Series wireless control systems — 2-function, FET output switching rated to 10 A, configured for air/actuator wireless systems. The receiver mounts on the equipment, receives the signal from the transmitter, and switches the output functions. This is the No Master Output variant — it has the function outputs only, without the additional master output (a master output fires on every function, to run equipment such as a power unit or safety light in conjunction with the controls).

Replacement part for an existing Lodar 9 Series wireless system — a receiver is not a standalone product. It pairs with a matching transmitter on the same series and function count.

What's a FET Air receiver?

It's a 9 Series FET receiver with the pneumatic air valves built into the receiver box. Compressed air is plumbed into the receiver, and the valves inside switch it to the output ports — so the unit drives air cylinders and actuators directly, with no separate external valve bank to mount and plumb. Choose this variant for air/pneumatic equipment; for straight electric or hydraulic-solenoid functions, use the standard FET receiver.

2-function FET Air receiver
For Lodar 9 Series wireless control systems
No master output — function outputs only
Pneumatic air valves built into the receiver box
DC FET output switching · 10 A · 12/24V DC · Wide Band
Lodar SKU 9270RX-8

Match the trailing code. Lodar 9 Series transmitters and receivers carry a trailing match number. Check the unit you are replacing: no number means -8, the most common code we carry, and some systems use -3. If your existing system or part is coded anything other than -8, contact us so we send the correct unit.

This is a replacement part — it goes on the 2-function 9 Series wireless system. See the complete 2 Function IP Wireless Control System or 2 Functions Mini Wireless Control System or 2 Function Standard Wireless Control System. Pair it with the matching 2 Function transmitter on the same system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Functions

Actuator

Air

Operating Voltage

12/24 Volts DC

Receiver IP Rating

IP 65

Operating Distance

150 ft. (45 m.)

Master Output

Max Amps

Series

9000 Series

Special Features

Receiver with Air I/O

Type

Receiver Only

Warranty

Lodar 5 Year Pro-rated Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
