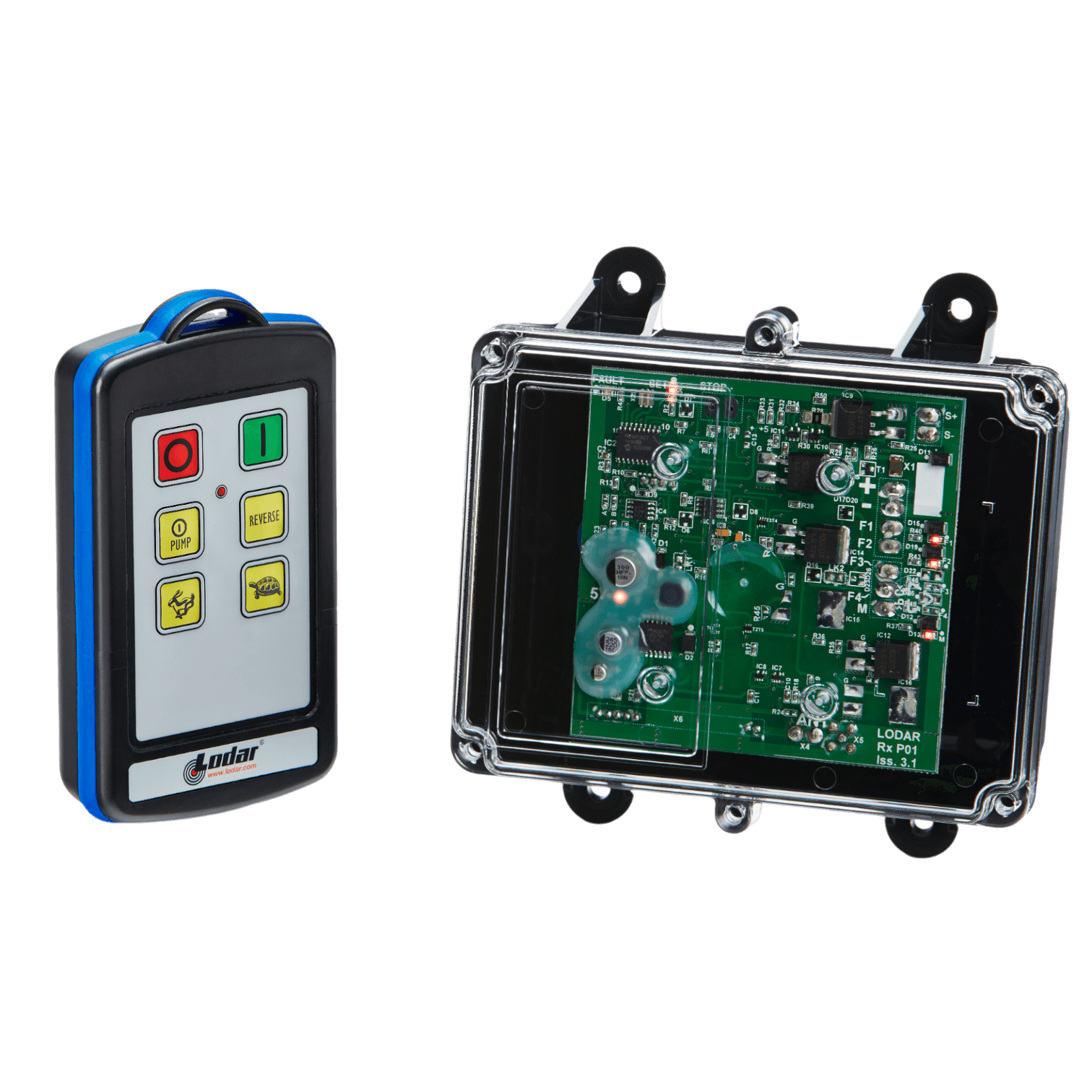

Lodar LTD 2 Function IP Wireless Control System | 92 Series | FET Receiver: A remote control device positioned beside a transparent electronic circuit board encased in a black housing.

2 Function Lodar IP Wireless System | 9 Series FET

$896.00
Skip to product information
Lodar LTD 2 Function IP Wireless Control System | 92 Series | FET Receiver: A remote control device positioned beside a transparent electronic circuit board encased in a black housing.
1/2
  • Lodar LTD 2 Function IP Wireless Control System | 92 Series | FET Receiver: A remote control device positioned beside a transparent electronic circuit board encased in a black housing.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • Lodar LTD 2 Function IP Wireless Control System | 92 Series | FET Receiver: A remote control device positioned beside a transparent electronic circuit board encased in a black housing.
  • Pairing the 92 Series Lodar Remote & Transmitter
2 Function Lodar IP Wireless System | 9 Series FET

2 Function Lodar IP Wireless System | 9 Series FET

92202-8
$896.00
In Stock

Complete plug-and-play wireless control system - includes the IP handheld transmitter and the FET receiver, coded together at the factory and ready to wire to your equipment. Operates 2 functions on the Lodar 9 Series.

The 2 Function Lodar IP Wireless System (92202-8) gives you 2-function wireless control with a 150 ft (45 m) range on the 418 MHz band. Dc fet output switching, 10 A per output, 12/24V DC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 2 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 10 A per output. Choose it when your functions draw more than the 5 A a relay receiver handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 2 functions of wireless control
  • IP (Industrial Pro) transmitter - IP 65 rated
  • FET receiver - DC output switching, 10 A per output, 12/24V DC, wide band, IP 65 rated
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range, 418 MHz band
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 92202-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 2-function Lodar system? Compare the 2 Function Lodar Stainless IP Wireless System or 2 Function Lodar Standard Wireless System. Replacement handsets and receivers are sold separately.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

92 Series 2 Function Options:

A 2 Functions Mini Wireless Control System from Lodar LTD, part of the 92 Series and featuring no master output, includes colored buttons and an electronic circuit board within a transparent shell, specifically designed for 12-24V equipment.
No Master Output 92000
-($325.00)
A compact mini remote with colorful buttons sits beside a transparent circuit board casing, ideal for controlling solenoid-operated equipment using the 2 Functions Mini Wireless Control System from Lodar LTD's 92 Series FET Receiver.
Standard Receiver 92002
-($209.00)
Introducing the 2 Functions Mini Wireless Control System from Lodar LTD, featuring the 92 Series Remote Transmitter and an FET Keypad Receiver equipped with buttons for up, down, and stop functions.
Receiver Keypad 92002K
-($115.00)
The 92 Series 2 Function Standard Wireless Control System by Lodar LTD features buttons and an electronic circuit board encased in a transparent shell, exemplifying a sleek wireless control solution.
Standard Receiver 92102
-($140.00)
The 2 Function Standard Wireless Control System, part of the 92 Series by Lodar LTD, includes a remote control and an FET Keypad Receiver with an electronic circuit board featuring buttons for up, down, and stop. This setup is perfect for stabilization applications, offering precision and ease of use.
Keypad Receiver 92102K
-($44.00)
A Lodar LTD 92 Series 2 Function Standard Wireless Control System features a durable FET Receiver with buttons and an exposed electronic circuit board, all encased in a transparent plastic shell.
No Master Output 92100
-($255.00)
Lodar LTD 2 Function IP Wireless Control System | 92 Series | FET Receiver: A remote control device positioned beside a transparent electronic circuit board encased in a black housing.
Industrial Pro Transmitter 92202-8
The 2 Function IP Wireless Control System | 92 Series | FET Keypad Receiver by Lodar LTD provides seamless management for your solenoid-operated equipment, featuring a remote and electronic circuit board equipped with various buttons like arrows and stop symbols.
Industrial Pro Transmitter + Receiver Keypad 92202K-8
+$96.00
The 2 Function Stainless Steel IP Wireless Control System from Lodar LTD's 92 Series, featuring a FET Receiver, includes buttons placed alongside a clear-cased electronic circuit board, making it perfect for industrial environments.
Stainless Steel Industrial Pro Transmitter 92S02-8
+$367.00
What's Included
Specifications
Transmitter
Industrial Pro
Functions
2
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 65
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Channel
Wide Band, Fixed
Frequency
418 MHz
Wiring Included
9 ft. (3m) wiring loom through gland
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
2 Function Lodar IP Transmitter | 9 Series
2 Function Lodar IP Transmitter | 9 SeriesSKU: 92202TX-8
$387.00
2 Function Replacement FET Receiver | 9 Series
2 Function Replacement FET Receiver | 9 SeriesSKU: 9202RX
$510.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources
92-93 Series - Wiring Instructions for 2 & 4 Function, FET Receivers. Wiring Diagram 92202 - 2 Function with IP Transmitter Spec Sheet 92-93 Series - Instructions IP Transmitter Coding Instructions

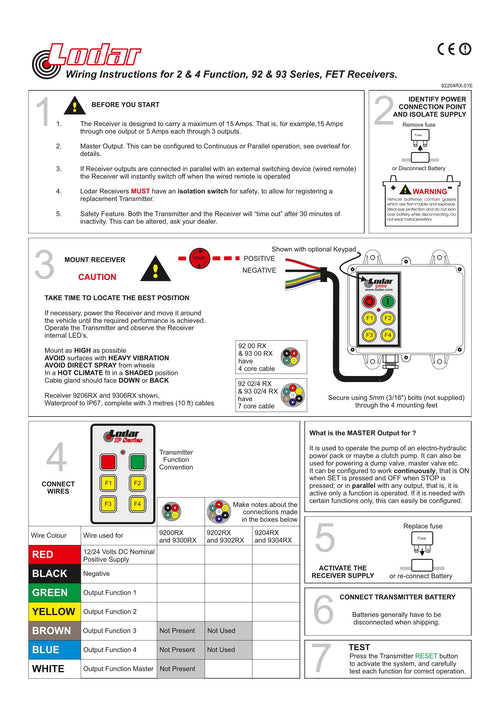

92-93 Series - Wiring Instructions for 2 & 4 Function, FET Receivers.
92-93 Series - Wiring Instructions for 2 & 4 Function, FET Receivers.
Wiring Diagram

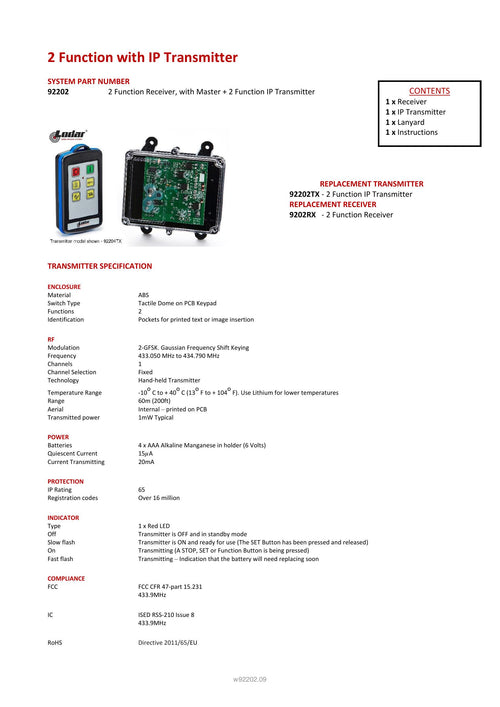

92202 - 2 Function with IP Transmitter
92202 - 2 Function with IP Transmitter
Spec Sheet
92-93 Series - Instructions IP Transmitter Coding
92-93 Series - Instructions IP Transmitter Coding
Instructions
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
