92-93 Series - Wiring Instructions for 2 & 4 Function, FET Receivers.

Download Wiring Diagram PDF (opens in a new window)

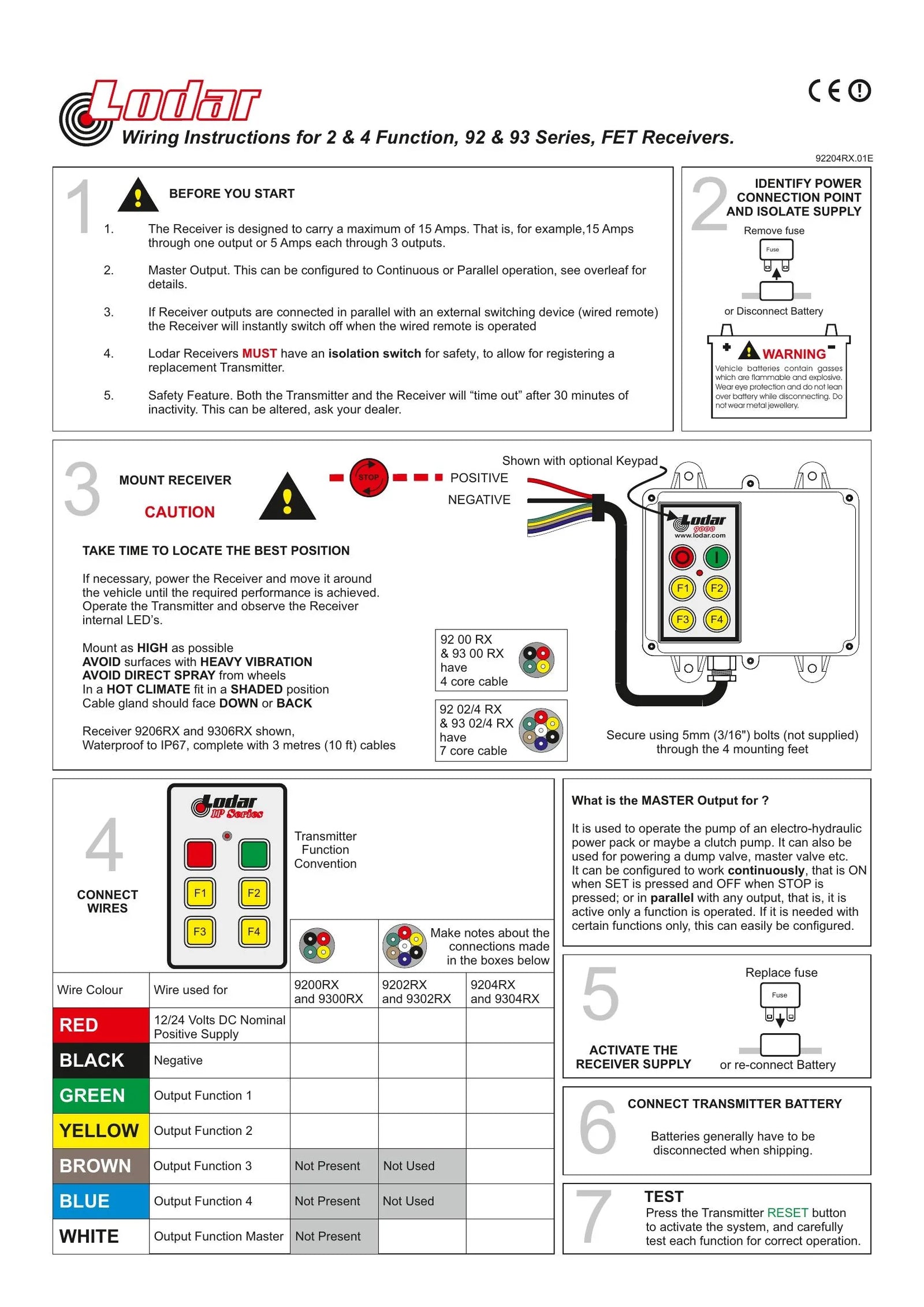

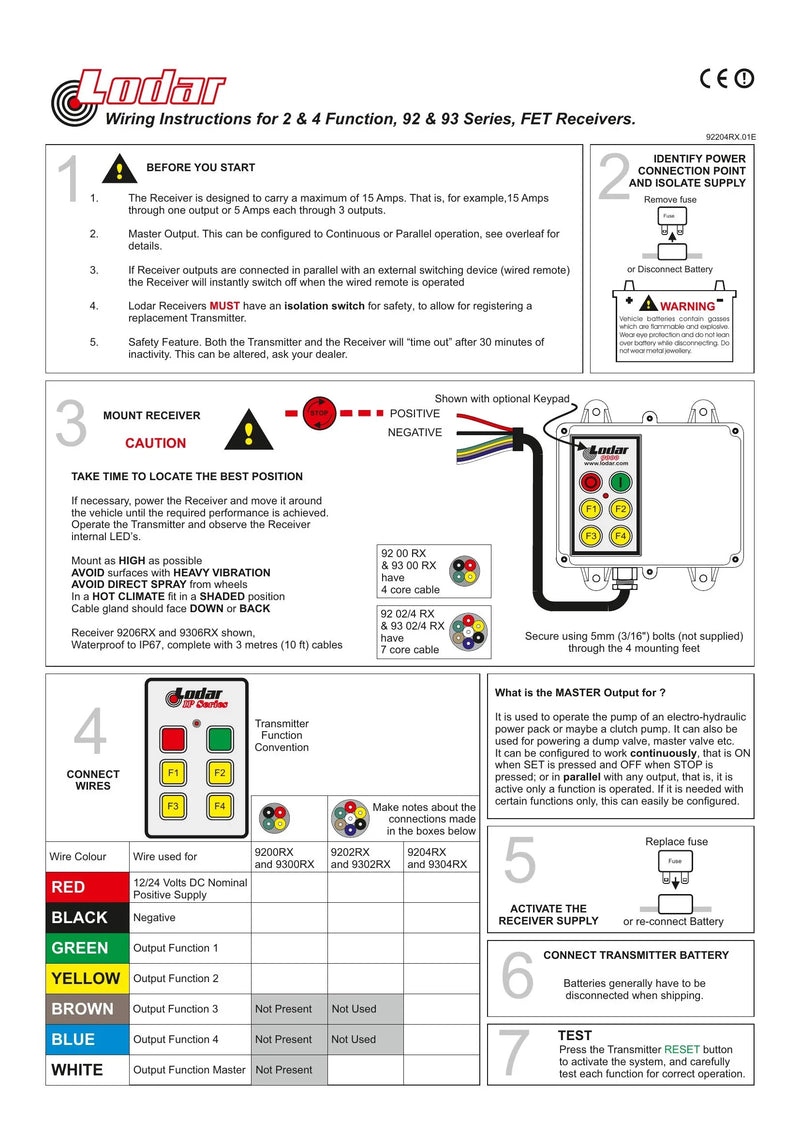

Page 1

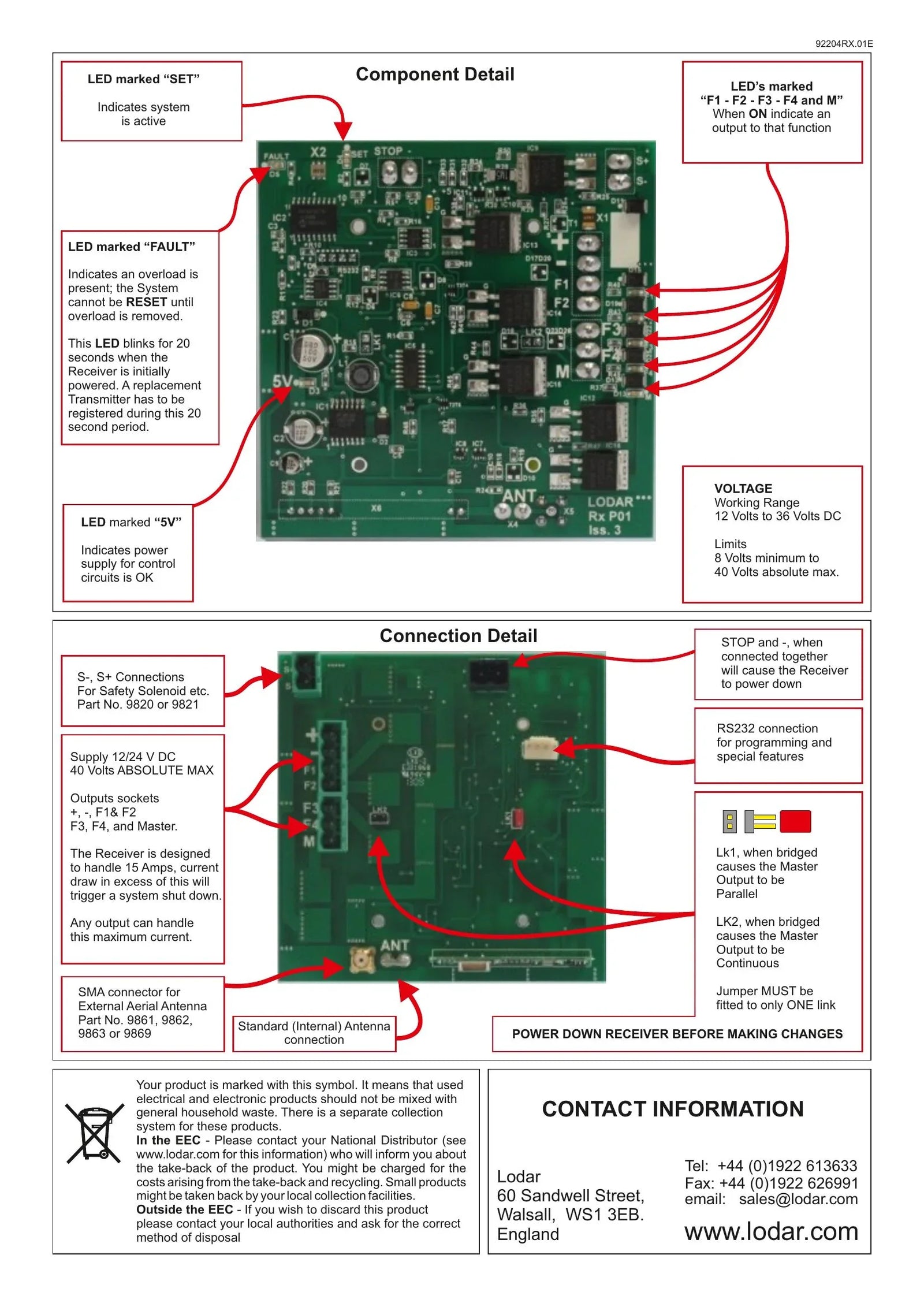

Page 2
