2 Function Lodar Direct-Mount Air System | Miller Gresen

2 Function Lodar Direct-Mount Air System | Miller Gresen

92150DMM-8
$1,040.00
In Stock

Complete wireless air actuator control system - includes the Standard handheld transmitter and a receiver with the pneumatic solenoid valves built into the box, coded together and ready to wire to your equipment. Operates 2 functions on the Lodar 9 Series.

The 2 Function Lodar Direct-Mount Air System (92150DMM-8) gives you 2-function wireless control with a 200 ft (61 m) range. Compressed air is plumbed into the receiver box; the solenoid valves inside switch it to the output ports to drive your air cylinders directly - there is no separate external valve bank. The cylinders mount directly to your valve spools. This version has no master output. Choose a master-output model if you need an extra output that fires alongside every function - for example, an HPU that must run during a lift.

Mounts directly to your valves. This direct-mount system bolts onto the Gresen spool valves on Miller units - there are no separate actuators and no control-rod linkage. Confirm your valves are Gresen before ordering.

Air supply. The air cylinders run on 21-120 psi (135 psi maximum); 80-100 psi is the ideal operating range. Plumb the system into a regulated air supply in that range.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 2 here - and confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 10 A, with the system rated to 15 A total across all outputs. Run several heavy functions at once and the combined draw can reach that 15 A ceiling, where the overload protection trips to protect the board. Solid-state switching means there are no mechanical relay contacts to wear or arc. It is the current standard across the Lodar line — choose it for functions that draw more than the 5 A per output a mechanical relay handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 2 functions of wireless control
  • Standard transmitter - IP 54 rated
  • Air receiver - pneumatic solenoid valves built in, IP 67 rated
  • Direct-mount to Gresen spool valves - no separate actuators
  • 12/24V DC operating voltage
  • 200 ft (61 m) operating range
  • No master output
  • Lodar SKU 92150DMM-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 2-function Lodar system? Compare the 2 Function Lodar Stainless IP Wireless System or 2 Function Lodar Standard Wireless System. Replacement handsets and receivers are sold separately.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Specifications
Transmitter
Standard
Functions
2
Actuator
Gressen Direct Mount Air
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 67
Operating Distance
200 ft. (61 m.)
Master Output
No
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 2
Special Features
Receiver with Air I/O
Frequency
433 MHz
Type
Full System
Wiring Included
8 ft. Power | 5 ft. Air Input | 3½ ft. Air Outputs
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
2 Function Lodar Standard Transmitter | 9 Series
2 Function Lodar Standard Transmitter | 9 SeriesSKU: 92102TX-8
$247.00

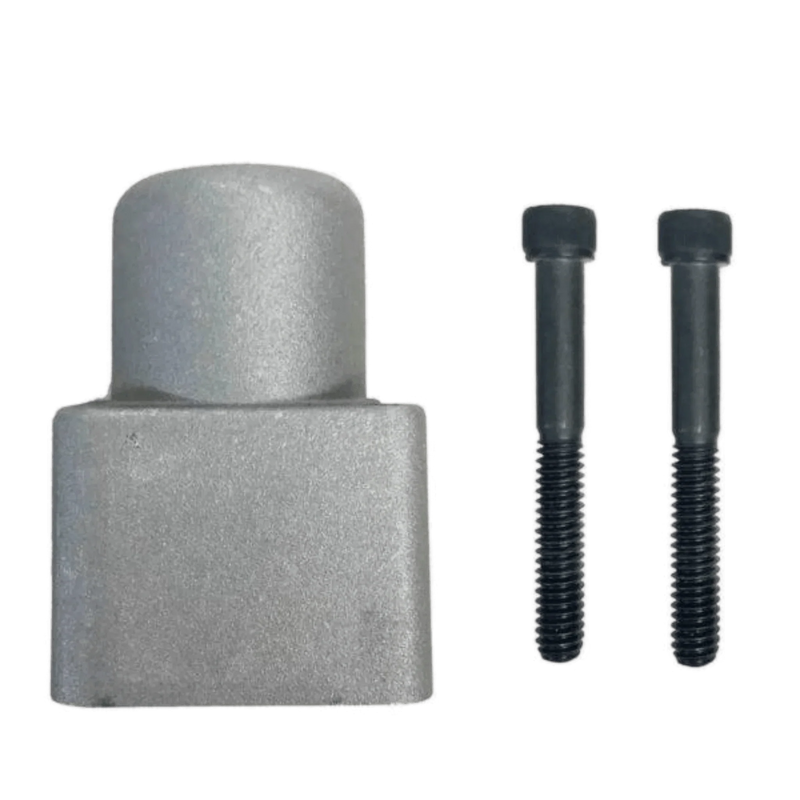

Bolt-on Air Actuator | Miller Gresen Spool Valves
Bolt-on Air Actuator | Miller Gresen Spool ValvesSKU: C-3526-DM
$155.00
