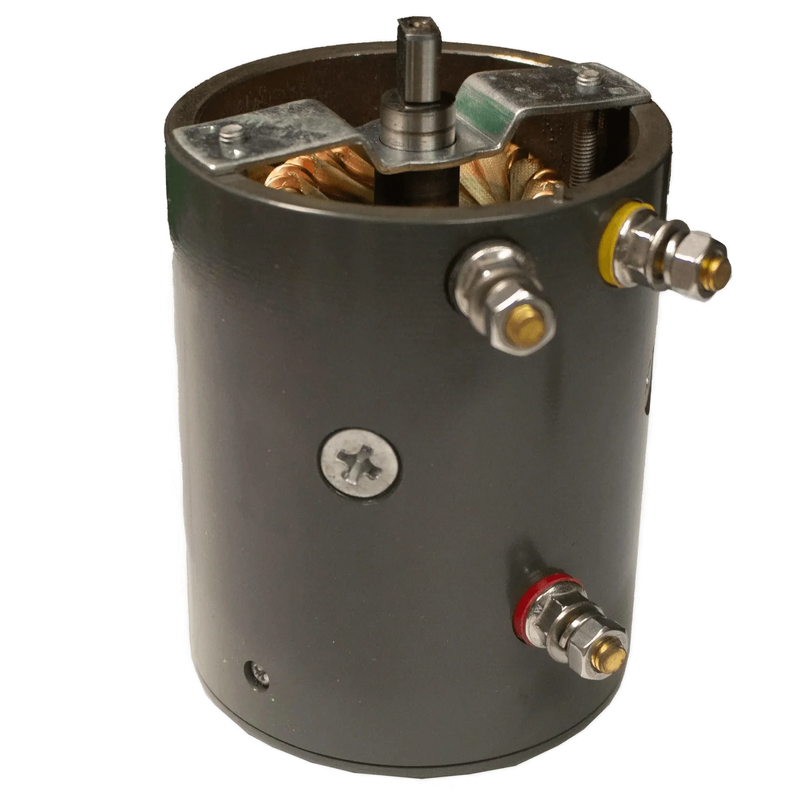

  • A black cylindrical PIERCE electric planetary winch motor, Style 2, for 20,000 lbs capacity, features visible terminals and a central rotating shaft.

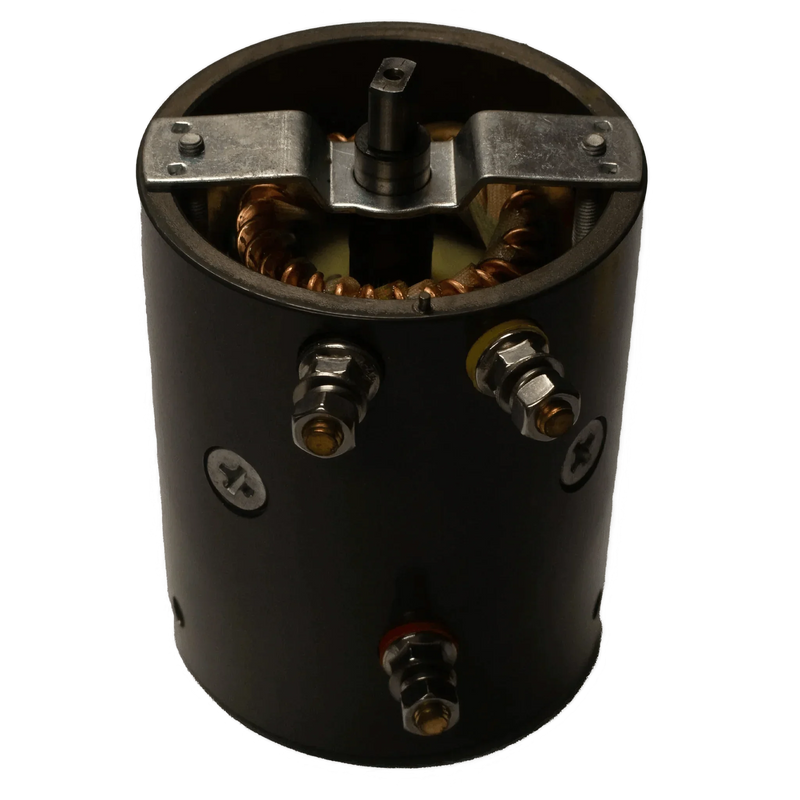

  • The PIERCE Winches Motor, Electric Planetary Winches Style 2 (20,000 lbs), features coils, metal connectors, and terminal bolts—perfect as a three post motor for PS20000 and PS15000 winch applications—shown against a dark background.

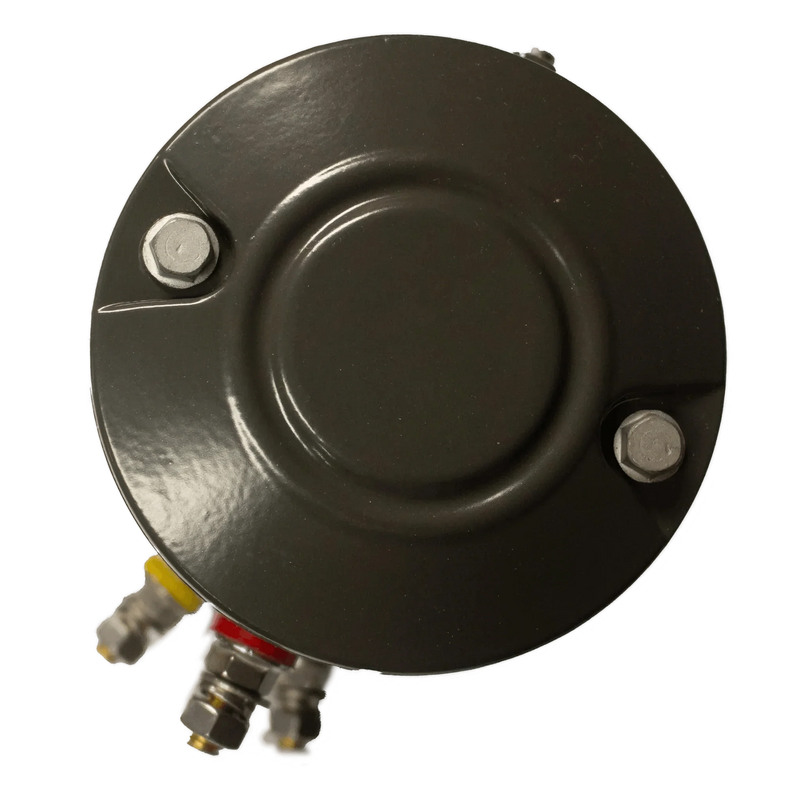

  • Top view of a round metal PIERCE Electric Planetary Winch Motor, 20,000 lbs Style 2, with bolts and fittings, on a white background.

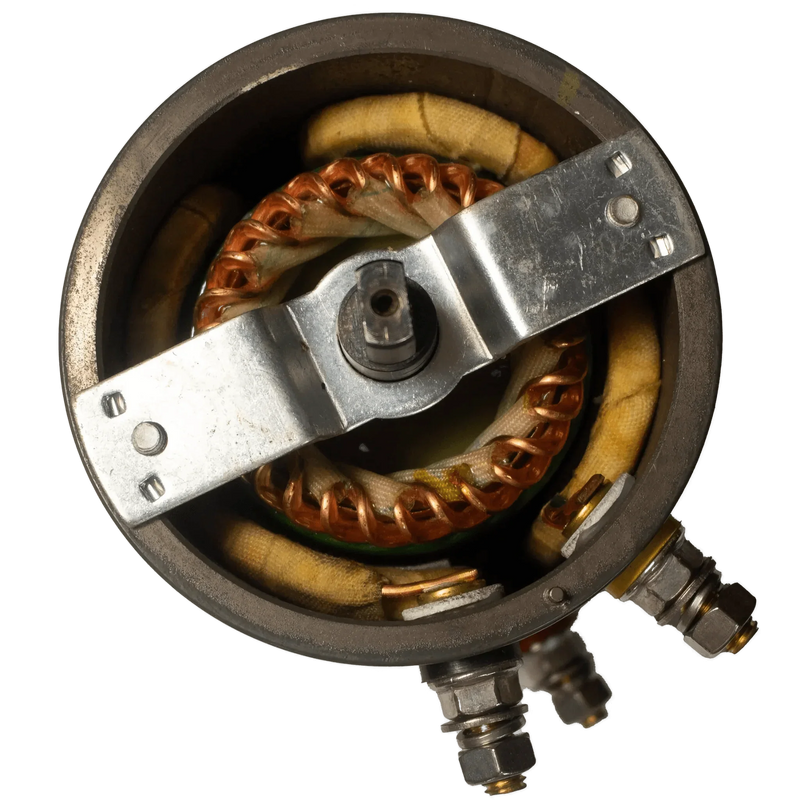

  • Top view of a three-post motor stator with copper windings and connectors, as used in PIERCE Winches | Motor | Electric Planetary Winches | 20,000 lbs | Style 2.
  • A black cylindrical PIERCE electric planetary winch motor, Style 2, for 20,000 lbs capacity, features visible terminals and a central rotating shaft.
  • The PIERCE Winches Motor, Electric Planetary Winches Style 2 (20,000 lbs), features coils, metal connectors, and terminal bolts—perfect as a three post motor for PS20000 and PS15000 winch applications—shown against a dark background.
  • Top view of a round metal PIERCE Electric Planetary Winch Motor, 20,000 lbs Style 2, with bolts and fittings, on a white background.
  • Top view of a three-post motor stator with copper windings and connectors, as used in PIERCE Winches | Motor | Electric Planetary Winches | 20,000 lbs | Style 2.
PS20000 Replacement Motor | Style 2 Splined Shaft

PS20000 Replacement Motor | Style 2 Splined Shaft

PSM1520NS
$206.00
In Stock

The PSM1520NS is a replacement 12V motor for the PIERCE PS20000 planetary recovery winch — Style 2 with a splined shaft (multiple ridges around the shaft circumference). Three-post electrical configuration. Sized to match the PS20000's 6.8 HP / 520-amp electrical demand.

Will this motor fit any other PIERCE winch?

No — the PSM1520NS is sized specifically for the PS20000's higher motor rating. The PS9000 and PS12000 use the PSM912SP motor (5.5 HP). The PS6000 uses either PSM6-3 (Style 1, slotted) or PSM912SP (Style 2, splined) depending on production date. Match the motor to the winch SKU before ordering.

  • 12V DC replacement motor for PIERCE PS20000
  • Style 2 — splined shaft
  • Three-post electrical configuration
  • Sized for the PS20000's 6.8 HP / 520 amp peak draw
  • Pierce SKU PSM1520NS — typically in stock

For the PS20000 winch this motor fits, see the 20,000 lb 12V Planetary Recovery Winch. For PS9000/PS12000 motors, see the Style 2 Replacement Motor (PSM912SP).
