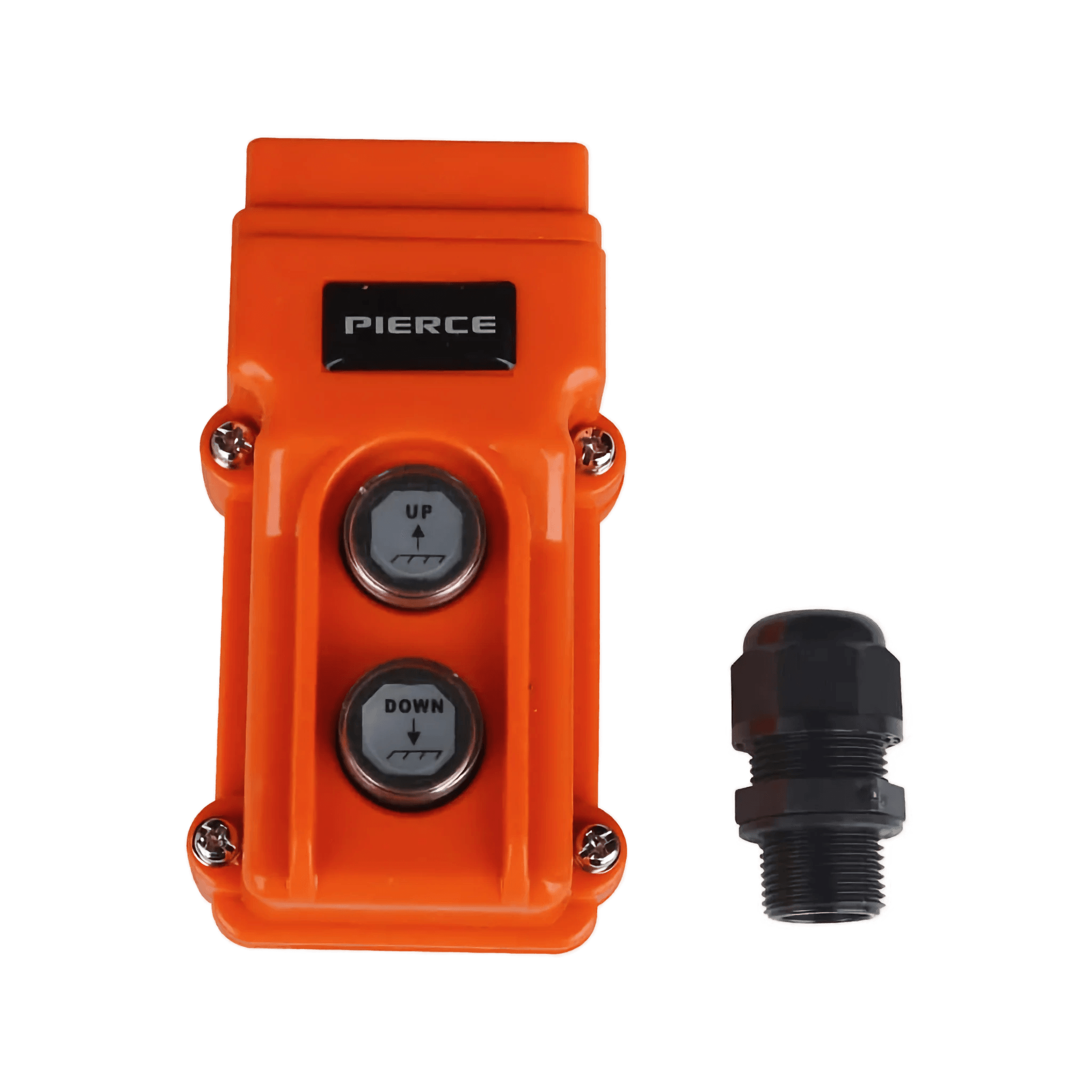

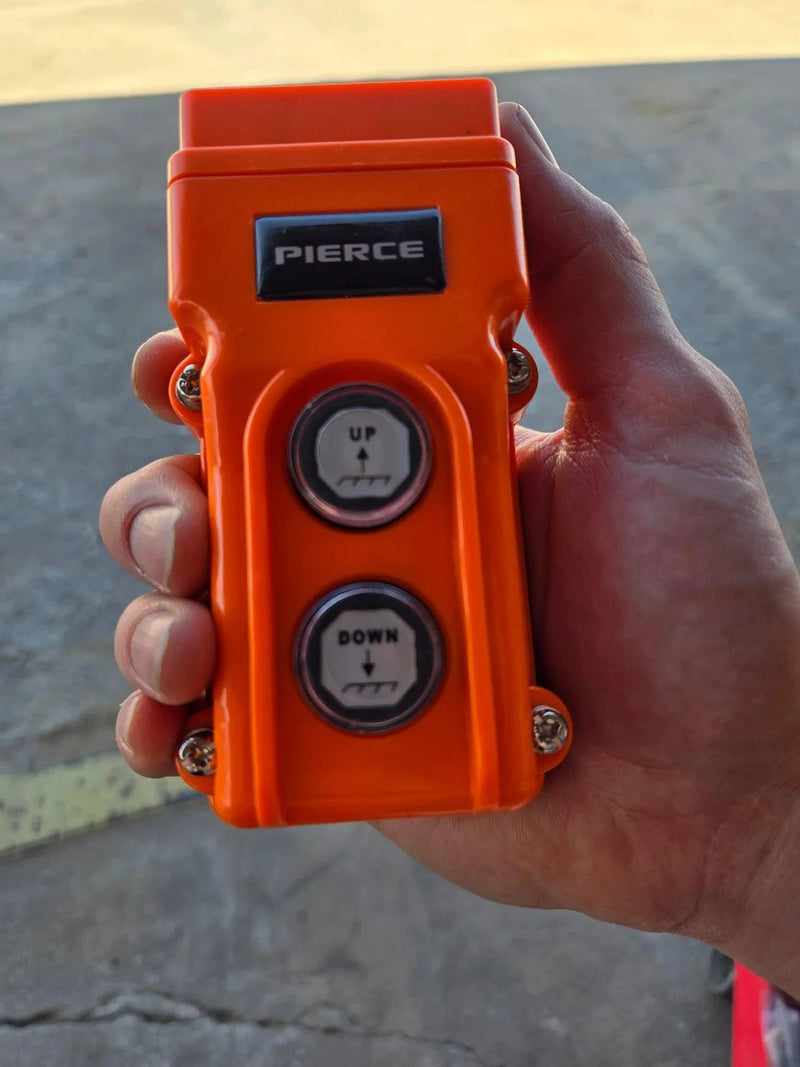

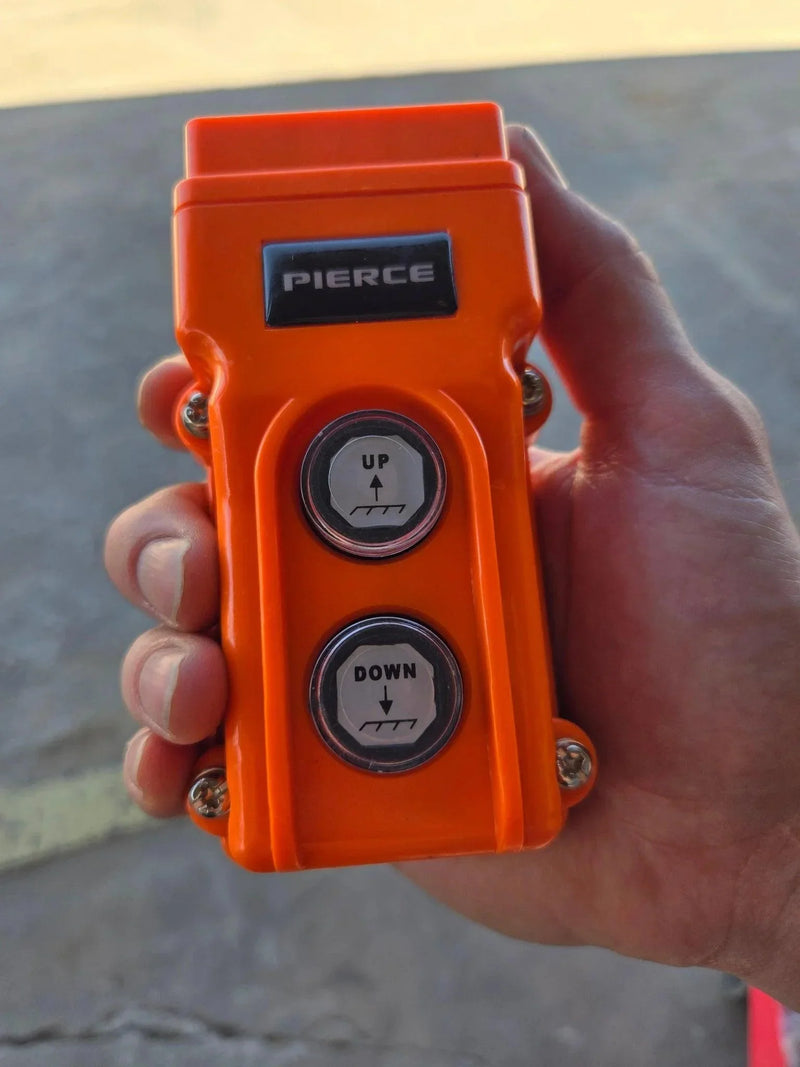

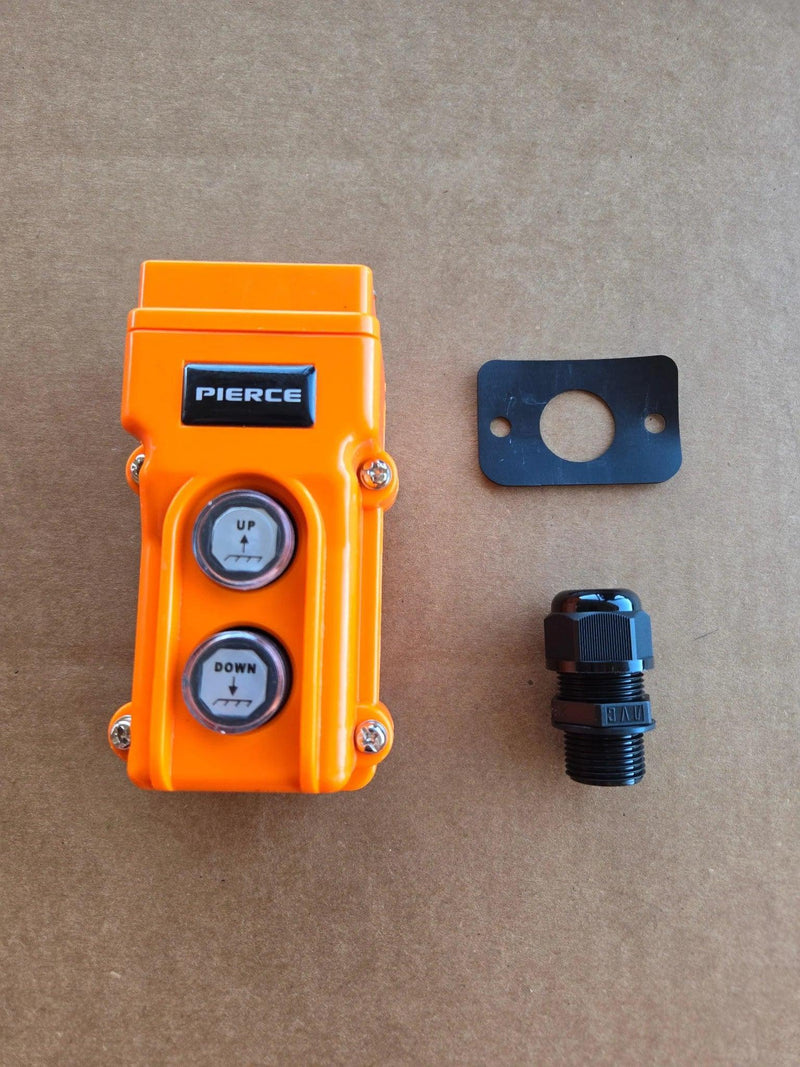

PIERCE 2 function Momentary Control Pendant Only
CP271WOC
Alternatives: PIERCE 2 function Momentary Control Pendant Only
PIERCE 2 function Momentary Control Pendant Only
PIERCE 2 function Momentary Hard-Wired Control Pendant - 15 ft. Cord
PIERCE 2 function Momentary Hard-Wired Control Pendant - 20 ft. Cord with Terminals
PIERCE 2 function Momentary Hard-Wired Control Pendant - 15 ft. Cord with 4 Prong Vulcanized Plug
PIERCE 2 function Momentary Removable Control Pendant - 20 ft. Cord with 4 Prong Steel Plug + Receptacle

PIERCE 2 function Momentary Control Pendant Only
Description
This PIERCE Momentary Control Pendant is designed to replace the CP271 series control pendant and does not have a master function. It includes a water-resistant momentary switch and interlocking buttons, and is suitable for use with 18 gauge wire for all connections. The operating voltage can be set to 12 or 24 volts DC, with a maximum output of 5 amps. The recommended wire gauge is 16-18, and wiring is not included. This control features a momentary push-button switch type.
Specifications
Specification | Details |
---|---|
FUNCTIONS | 2 |
MASTER OUTPUT | No |
MAX AMPS | 5 |
OPERATING VOLTAGE | 12/24 Volts DC |
RECOMMENDED WIRE | 16-18 gauge |
SWITCH TYPE | Momentary - Push Button |
WIRING INCLUDED | None |
