110V Replacement Motor | PS654 Series Winches | 1.5 HP

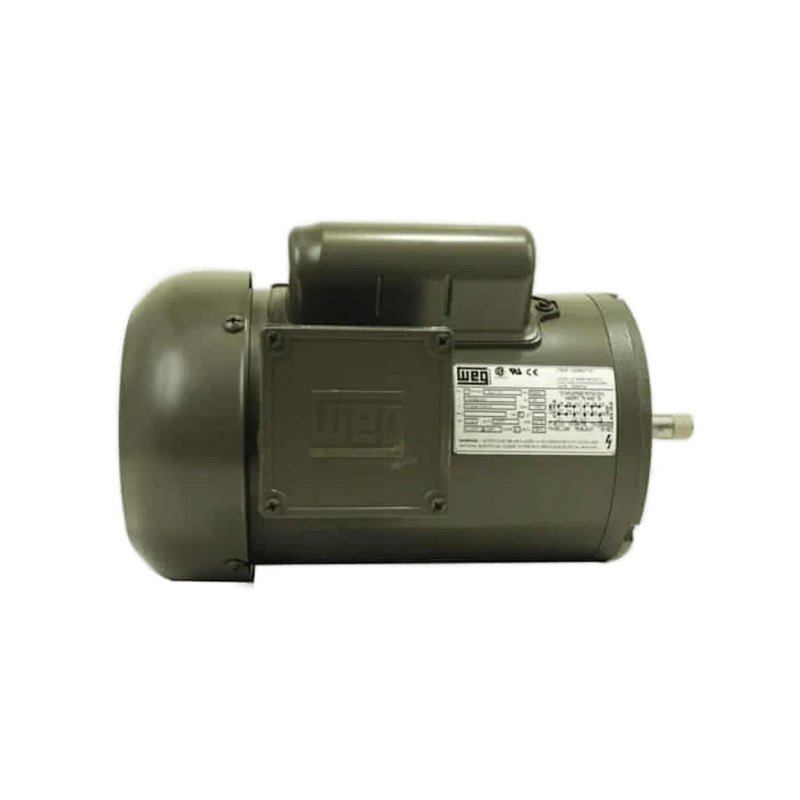

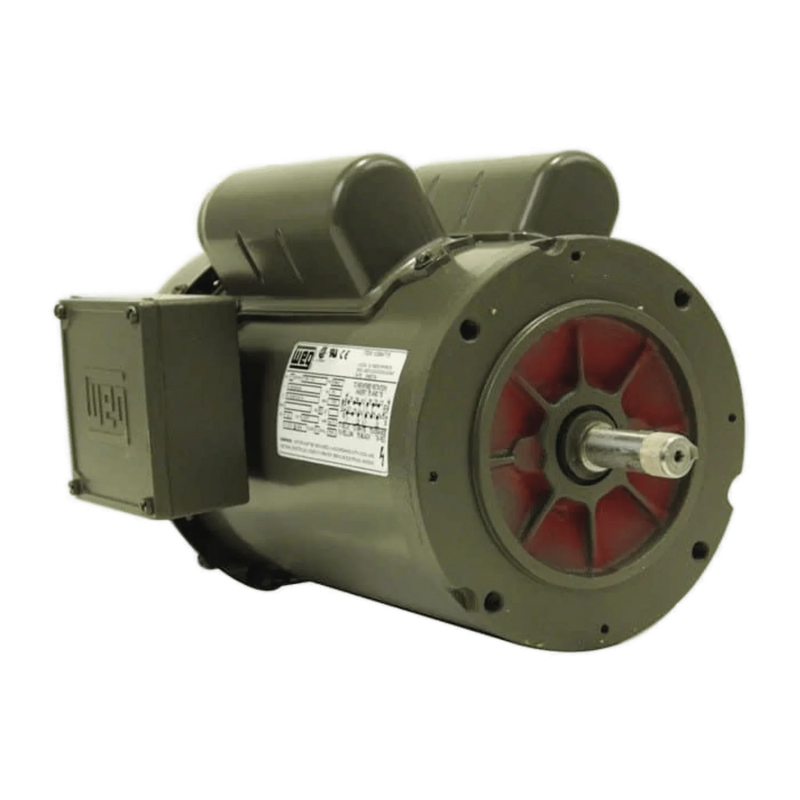

The PSS110 is a 110V single-phase replacement motor for PIERCE PS654-E series worm gear winches — 1.5 HP, 1,800 RPM, NEMA 56C mounting frame. Capacitor-start design with ball bearings, sized for shop and dock duty. Drop-in replacement when the original motor wears out or fails.

When should I replace the motor on a 110V worm gear winch?

Two telltale signs. The motor starts but doesn't pull rated capacity — usually a weak capacitor or worn winding. Or the motor doesn't start at all under load and trips on overcurrent — usually an open winding. Either case, this PSS110 is the OEM-spec replacement.

• 110/220V single-phase, drip-proof
• 1.5 HP, 1,800 RPM
• NEMA 56C mounting frame, NEMA service factor 1.15
• Capacitor-start design with ball bearings
• Direct fit for PS654-E series worm gear winches
• Pierce SKU PSS110 — typically in stock

For the PS654-E winches this motor fits, see the 7,500 lb 110V Worm Gear Winch family. For 12V motor replacements on PSW654 winches, see the 12V Replacement Motor.

⚠️ 110V installation requires a certified electrician. Confirm circuit amperage, grounding, and overcurrent protection before energizing.
