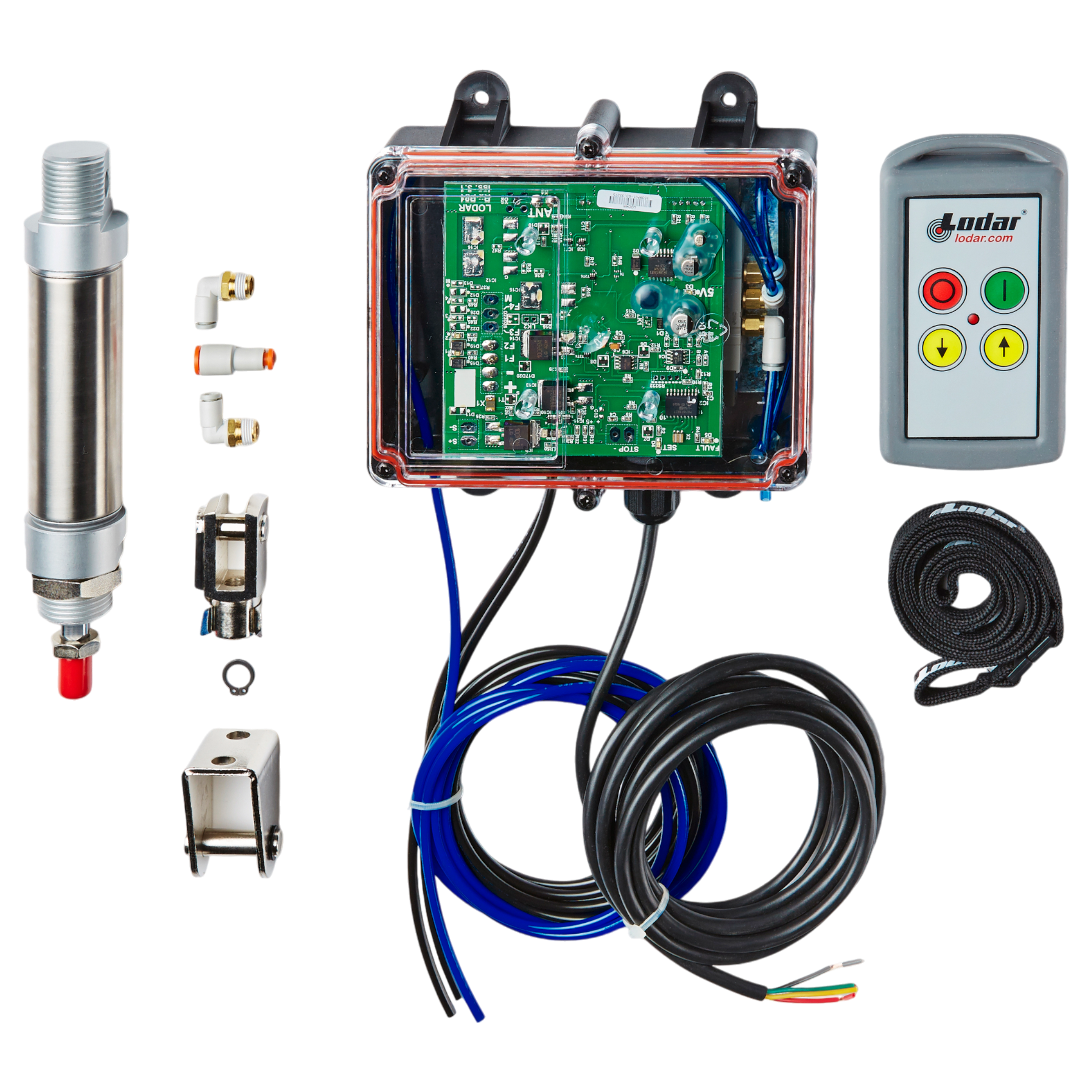

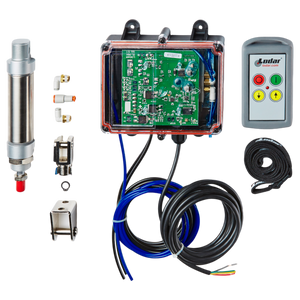

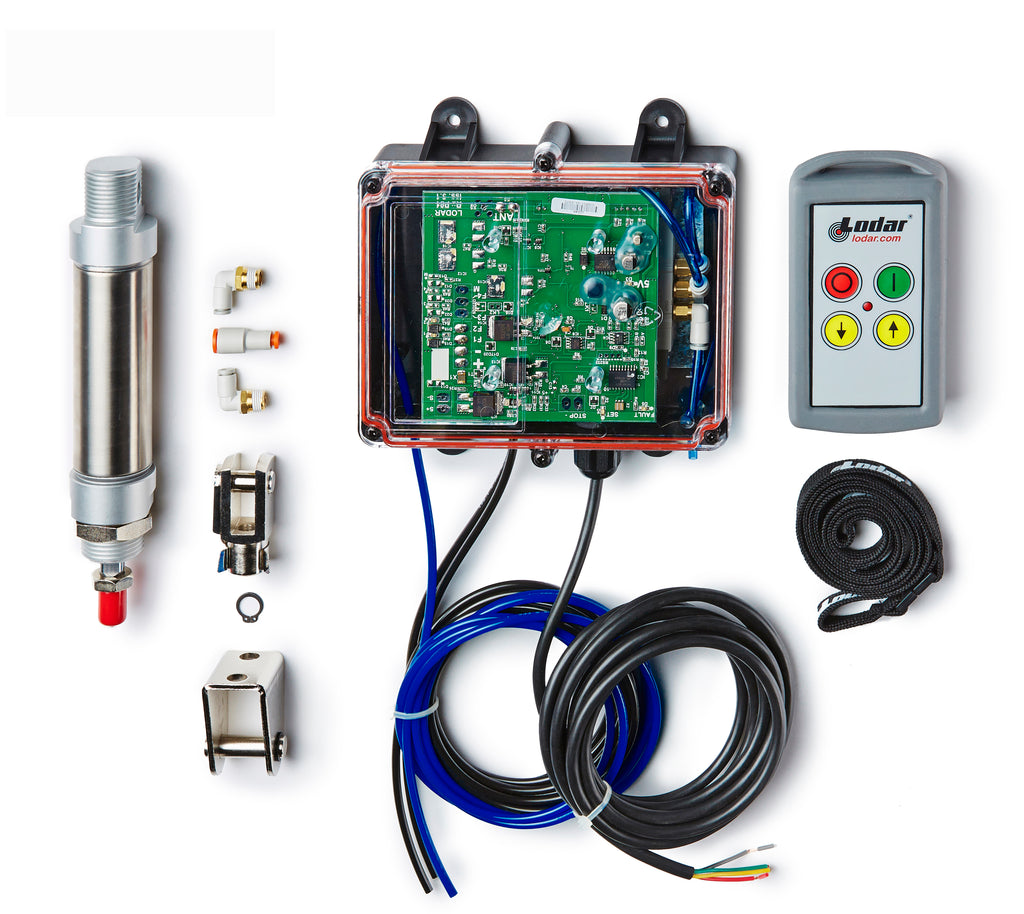

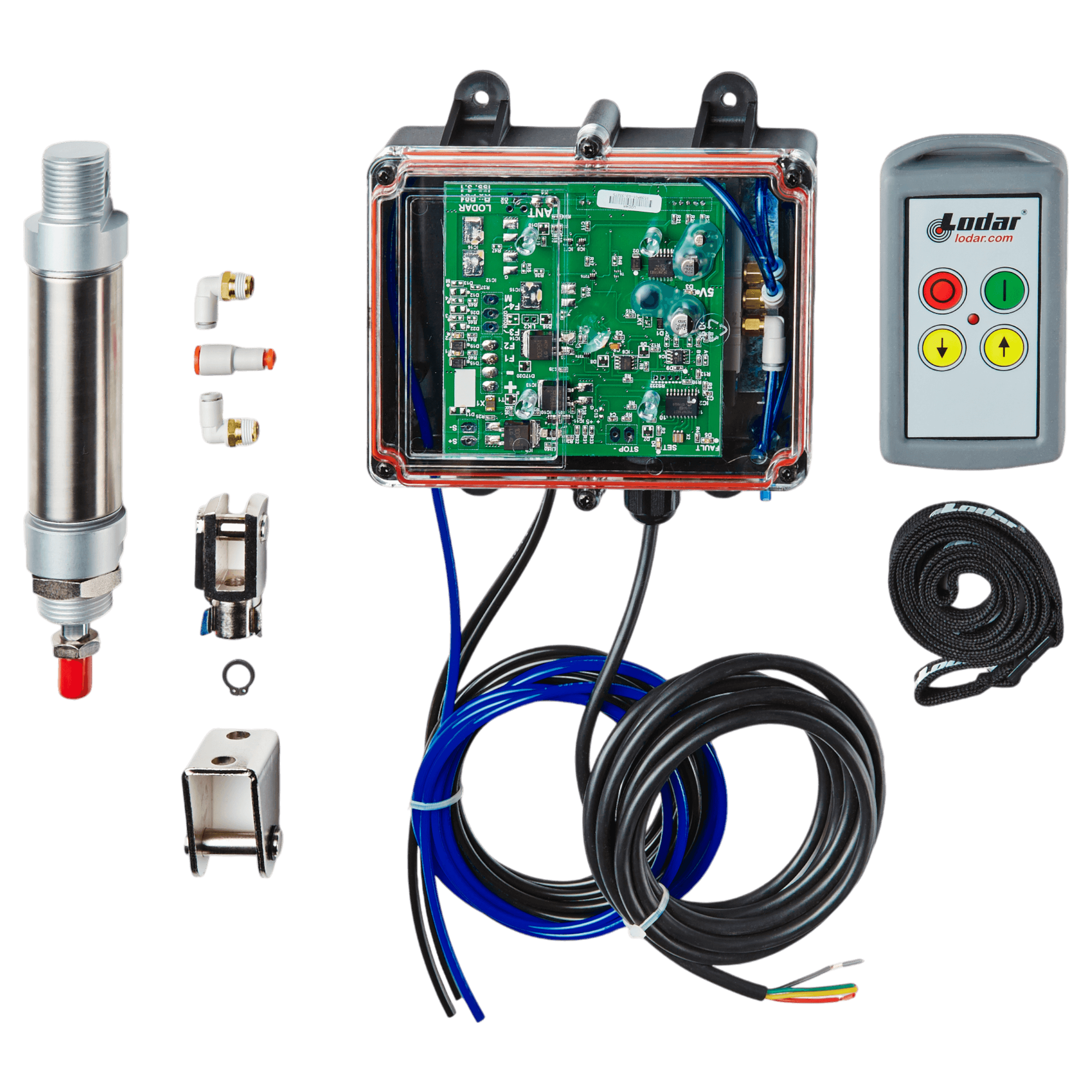

Introducing the 2 Function Standard Wireless Actuator Control System by Lodar LTD, part of the 92 Series with FET Air Receiver. This advanced electronic system includes a circuit board, sensors, and wiring, efficiently paired with a wireless air actuator to ensure seamless compatibility with your air compressor. The sophisticated remote control is elegantly showcased against a sleek black background.

Pairing the 92 Series Lodar Remote & Transmitter

1 2

2 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver

Name: 2 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver
Price: 1008.0 USD
Rating: 5 (1 reviews)

92150-8

$1,008.00

Quantity

In stock

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

2 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver

'

Description

Simple and reliable. This 2-function Lodar wireless air actuator system includes pneumatic actuators for controlling one valve (two directions). Equipped with a Standard transmitter and sealed receiver for dependable operation.

2 functions = 1 valve of wireless control
Includes pneumatic actuator
Standard Series transmitter (IP54) with AAA x 2 batteries
Receiver sealed to IP67
Requires 90–120 PSI air supply and 12V DC power

Applications: Compact hydraulic systems, auxiliary functions, and light-duty equipment.

Included

1 x [9270RX-8] - 2 Function Lodar FET Air Receiver | 92 Series | No Master Output

1 x [92102TX-8] - 2 Function Lodar Standard Transmitter | 9000 Series

1 x [9920] - Lodar Air Actuator

1 x [9918] - Lodar Air Valve

2 x [V08] - Controls | Fitting | Elbow | Air

1 x Instructions

1 x Lanyard

Specifications

Specification	Details
ACTUATOR	Air
FREQUENCY	433 MHz
FUNCTIONS	2
MASTER OUTPUT	No
MAX AMPS	15
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 67
SERIES	9000 Series
SPECIAL FEATURES	Receiver with Air I/O + Air Actuators
TRANSMITTER	Standard
TRANSMITTER BATTERIES	AAA x 2
TRANSMITTER IP RATING	IP 54
TYPE	Full System
WIRING INCLUDED	8 ft. power / 5 ft. air input / 3½ ft. air outputs

Resources

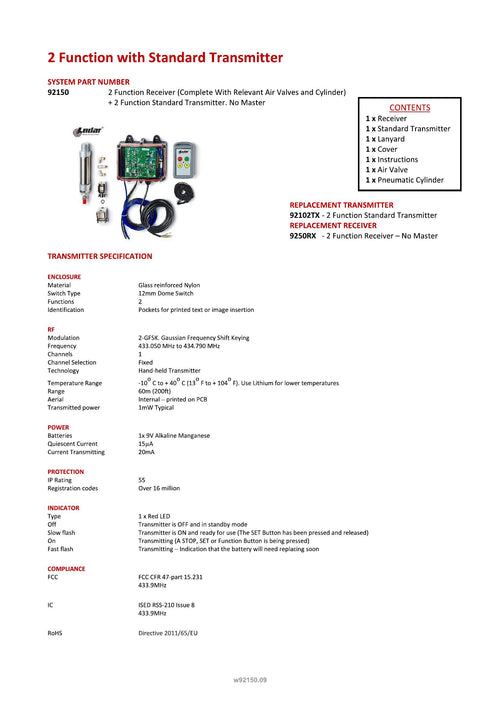

92150 - 2 Function Air System with Standard Transmitter

Spec Sheet

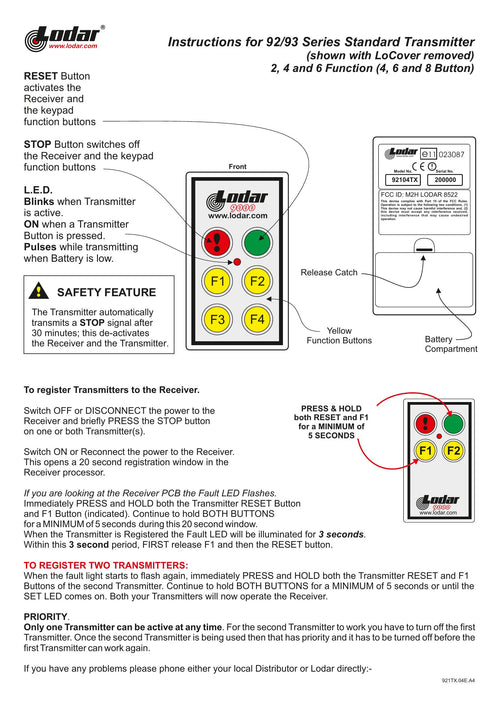

92-93 Series - Instructions Standard Transmitter Coding

Instructions

Videos

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
