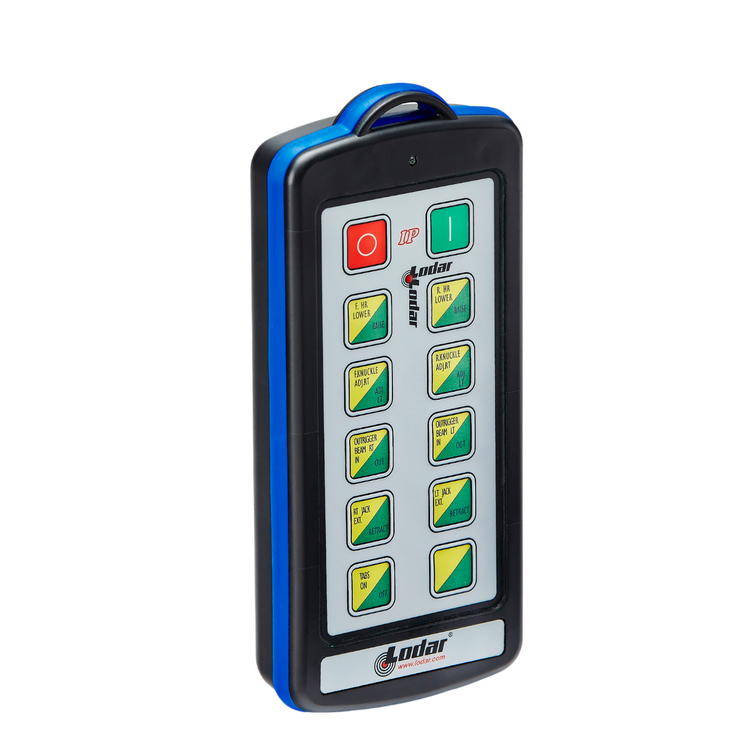

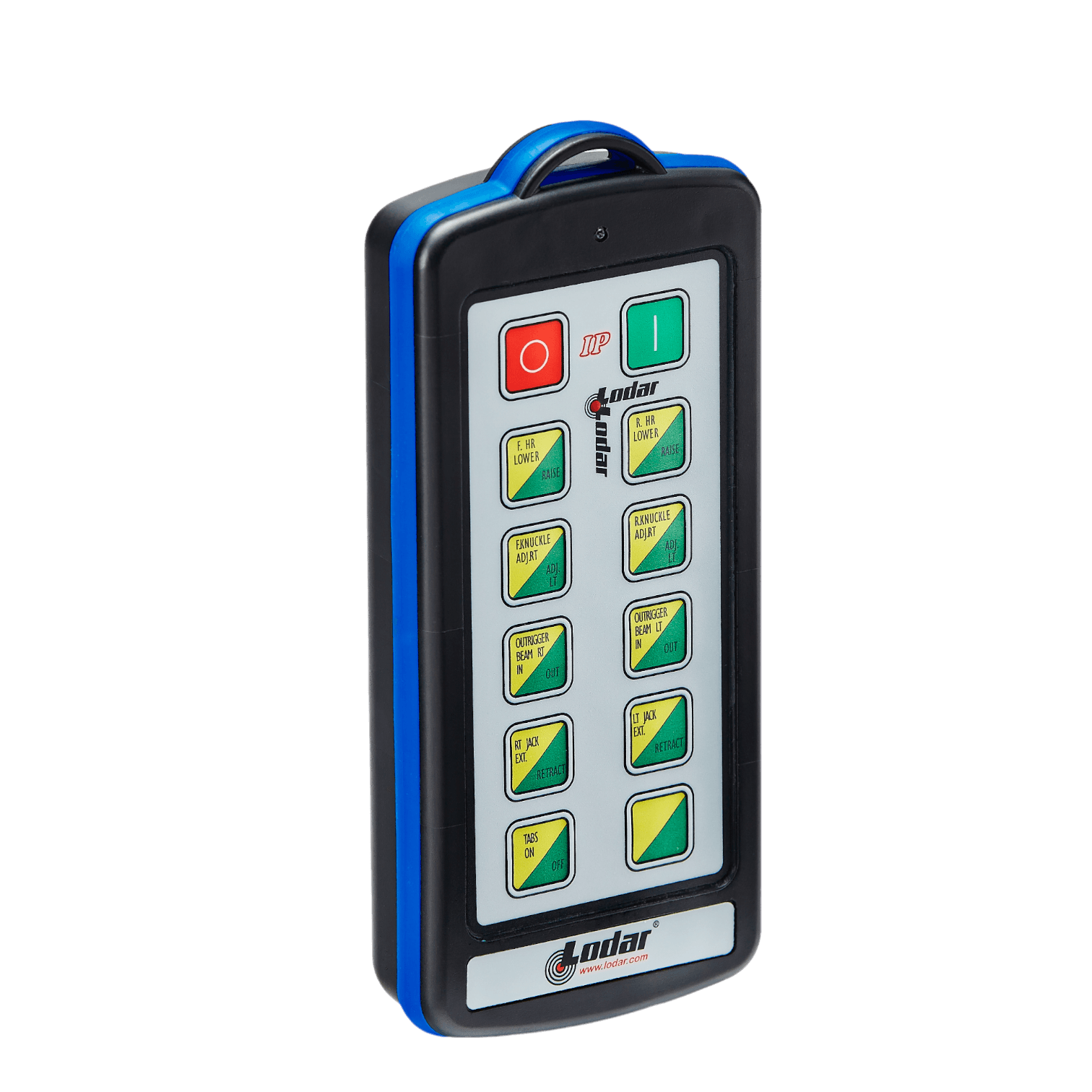

The 20 Function Lodar Replacement IP SHIFT Transmitter from the 9000 Series by Lodar LTD is equipped with ten yellow buttons, along with a red stop button and a green start button. It is engineered to optimize firmware efficiency, guaranteeing reliable performance with every use.

20 Function Lodar IP Shift Transmitter | 9 Series

92320TX-8

$543.00

Custom Order

Replacement transmitter for an existing Lodar 9 Series wireless system — a transmitter is the handheld unit and is not a standalone product. It pairs with a matching receiver on the same series and function count.

The 20 Function Lodar IP Shift Transmitter (92320TX-8) is the Industrial Pro (IP) shift handheld for a Lodar 9 Series system, sending 20 functions of control to the receiver on your equipment. It has a tactile dome PCB keypad with label pockets, runs on 4× AAA batteries, and reaches a 150 ft (45 m) operating range. A shift button expands the keypad, so it commands all 20 functions from a 10-button layout.

Will this transmitter work with my receiver?

Match three things: the series (9 Series), the function count (20), and the receiver it was coded to. Transmitters and receivers are paired on the same RF band, so replace a 9 Series transmitter with a 9 Series transmitter. If you are replacing a lost or damaged handset, confirm the receiver model before ordering.

  • 20 functions of control
  • IP Shift transmitter — tactile dome PCB keypad with label pockets
  • Operates 13°F to 104°F (-10°C to 40°C)
  • Powered by 4× AAA batteries
  • 150 ft (45 m) operating range
  • Shift keypad — commands 20 functions from a 10-button layout
  • Lodar SKU 92320TX-8

Match the trailing code. Lodar 9 Series transmitters and receivers carry a trailing match number. Check the unit you are replacing: no number means -8, the most common code we carry, and some systems use -3. If your existing system or part is coded anything other than -8, contact us so we send the correct unit.

This is a replacement part — it goes on the 20-function 9 Series wireless system. See the complete 20 Function IP SHIFT Wireless Control System or 20 Function IP Wireless Control System or 20 Function Direct Mount Wireless Air System – Miller (Gresen Valves). Pair it with the matching 20 Function receiver on the same system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.
What's Included
Specifications
Transmitter
Industrial Pro SHIFT
Functions
20
Operating Distance
150 ft. (45 m.)
Series
9000 Series
Transmitter Batteries
AAA x 4
Special Features
Shift Transmitter
Type
Transmitter Only
Operating Temperature Range
13ºF - 104ºF (-10ºC to 40ªC)
Switch Type
Tactile Dome on PCB Keypad (Pockets for Text or Image Insertion)
Warranty
Resources
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
