20 Function Lodar IP Wireless System | 9 Series FET

$2,412.00
Skip to product information

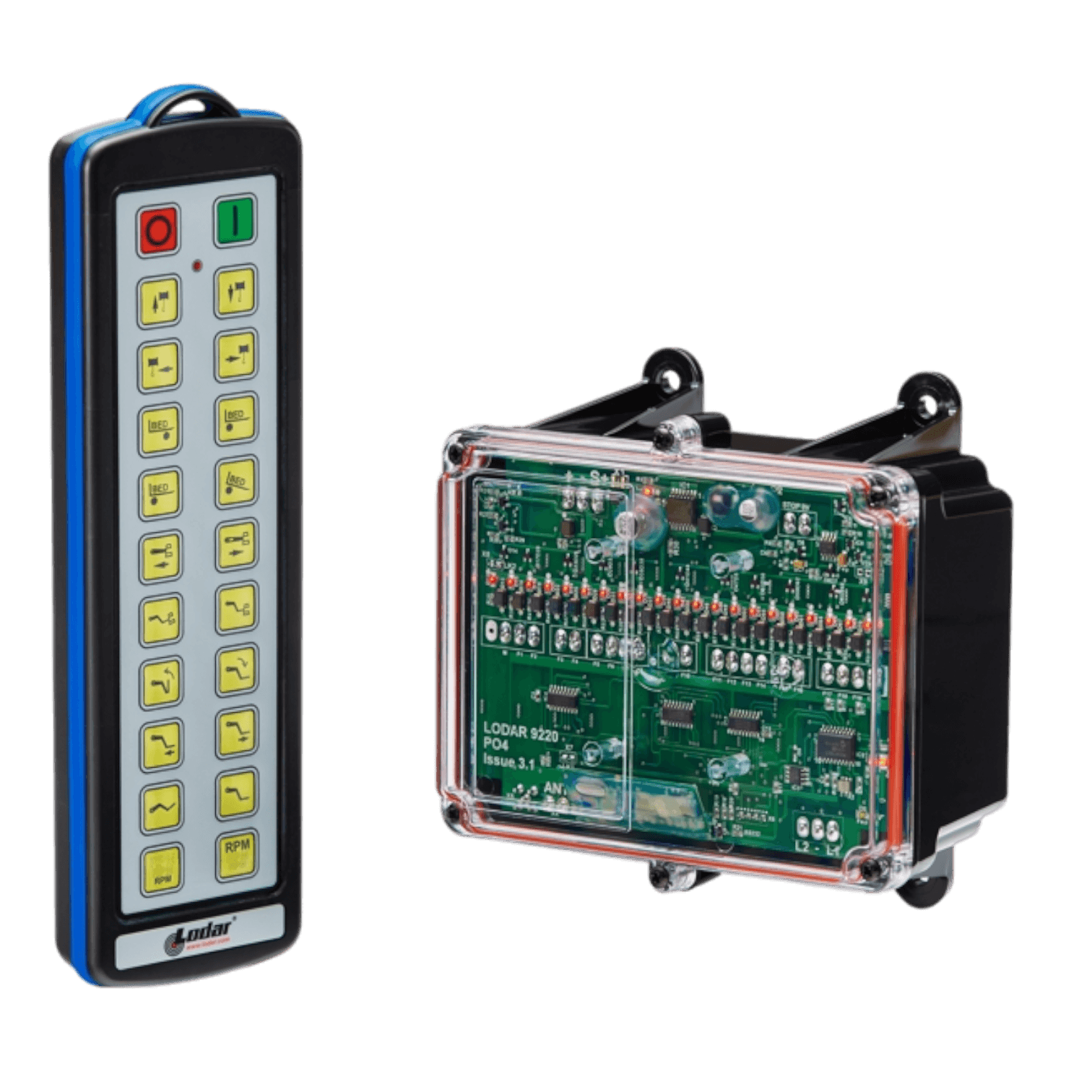

A remote control from Lodar LTD, featuring a transparent electronic circuit board with visible components, offers 20 functions and is ideal for integration within the 92 Series of industrial wireless control systems.
1/2
  • A remote control from Lodar LTD, featuring a transparent electronic circuit board with visible components, offers 20 functions and is ideal for integration within the 92 Series of industrial wireless control systems.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • A remote control from Lodar LTD, featuring a transparent electronic circuit board with visible components, offers 20 functions and is ideal for integration within the 92 Series of industrial wireless control systems.
  • Pairing the 92 Series Lodar Remote & Transmitter
20 Function Lodar IP Wireless System | 9 Series FET

20 Function Lodar IP Wireless System | 9 Series FET

92220-8
1 review
$2,412.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select
F9 Click to select
F10 Click to select
F11 Click to select
F12 Click to select
F13 Click to select
F14 Click to select
F15 Click to select
F16 Click to select
F17 Click to select
F18 Click to select
F19 Click to select
F20 Click to select
In Stock

Complete plug-and-play wireless control system - includes the IP handheld transmitter and the FET receiver, coded together at the factory and ready to wire to your equipment. Operates 20 functions on the Lodar 9 Series.

The 20 Function Lodar IP Wireless System (92220-8) gives you 20-function wireless control with a 150 ft (45 m) range on the 418 MHz band. Dc fet output switching, 10 A per output, 12/24V DC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 20 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 10 A per output. Choose it when your functions draw more than the 5 A a relay receiver handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 20 functions of wireless control
  • IP (Industrial Pro) transmitter - IP 65 rated
  • FET receiver - DC output switching, 10 A per output, 12/24V DC, wide band, IP 65 rated
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range, 418 MHz band
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 92220-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 20-function Lodar system? Compare the 20 Function Lodar Direct-Mount Air System or 20 Function Lodar Direct-Mount Air System. Replacement handsets and receivers are sold separately.

Common uses: Large recovery rigs, municipal service trucks, and industrial equipment with extensive hydraulic or electrical circuits.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Specifications
Channel
Wide Band, Fixed
Frequency
418 MHz
Functions
20
Master Output
Yes
Max Amps
15
Operating Distance
150 ft. (45 m.)
Operating Voltage
12/24 Volts DC
Receiver IP Rating
IP 65
Series
9000 Series
Transmitter
Industrial Pro
Transmitter IP Rating
IP 65
Wiring Included
None
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
20 Function Lodar IP Transmitter | 9 Series
20 Function Lodar IP Transmitter | 9 SeriesSKU: 92220TX-8
$575.00
20 Function Replacement FET Receiver | 9 Series
20 Function Replacement FET Receiver | 9 SeriesSKU: 9220RX-8
$1,840.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources

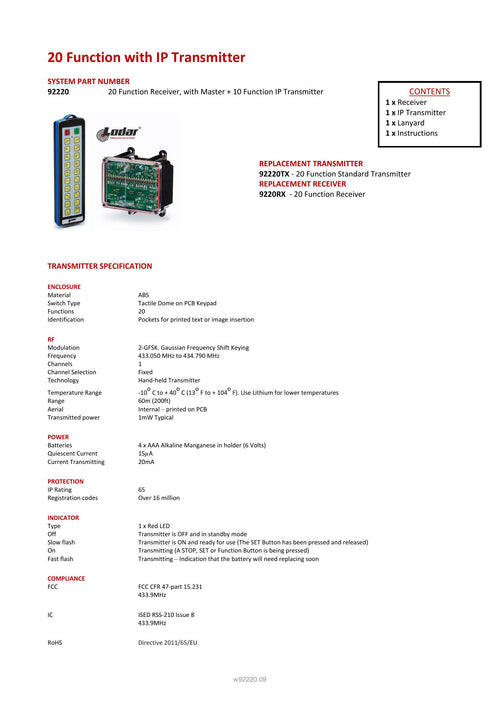

92220 - 20 Function with IP Transmitter Spec Sheet 92-93 Series - Wiring Instructions for 10, 16, 20 Function Receivers Wiring Diagram 92-93 Series - Instructions IP Transmitter Coding Instructions
