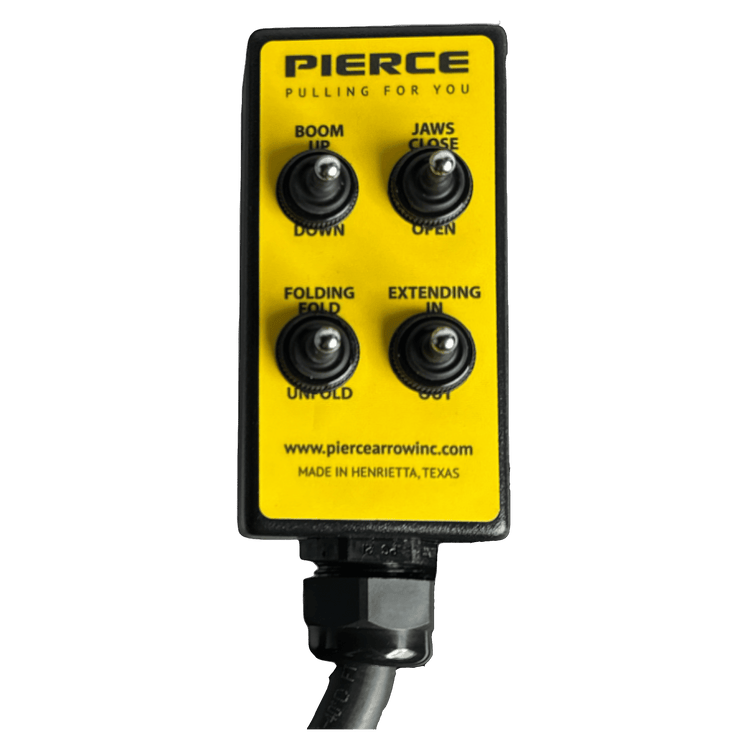

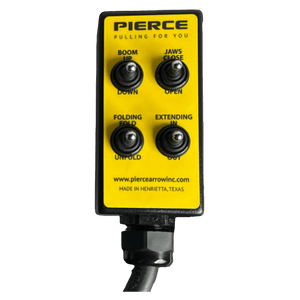

PIERCE 8 Function Wrecker Remote: yellow control panel with four labeled switches for boom, jaws, folding, and extending; compatible with 12/24V solenoid systems and hydraulic power units.

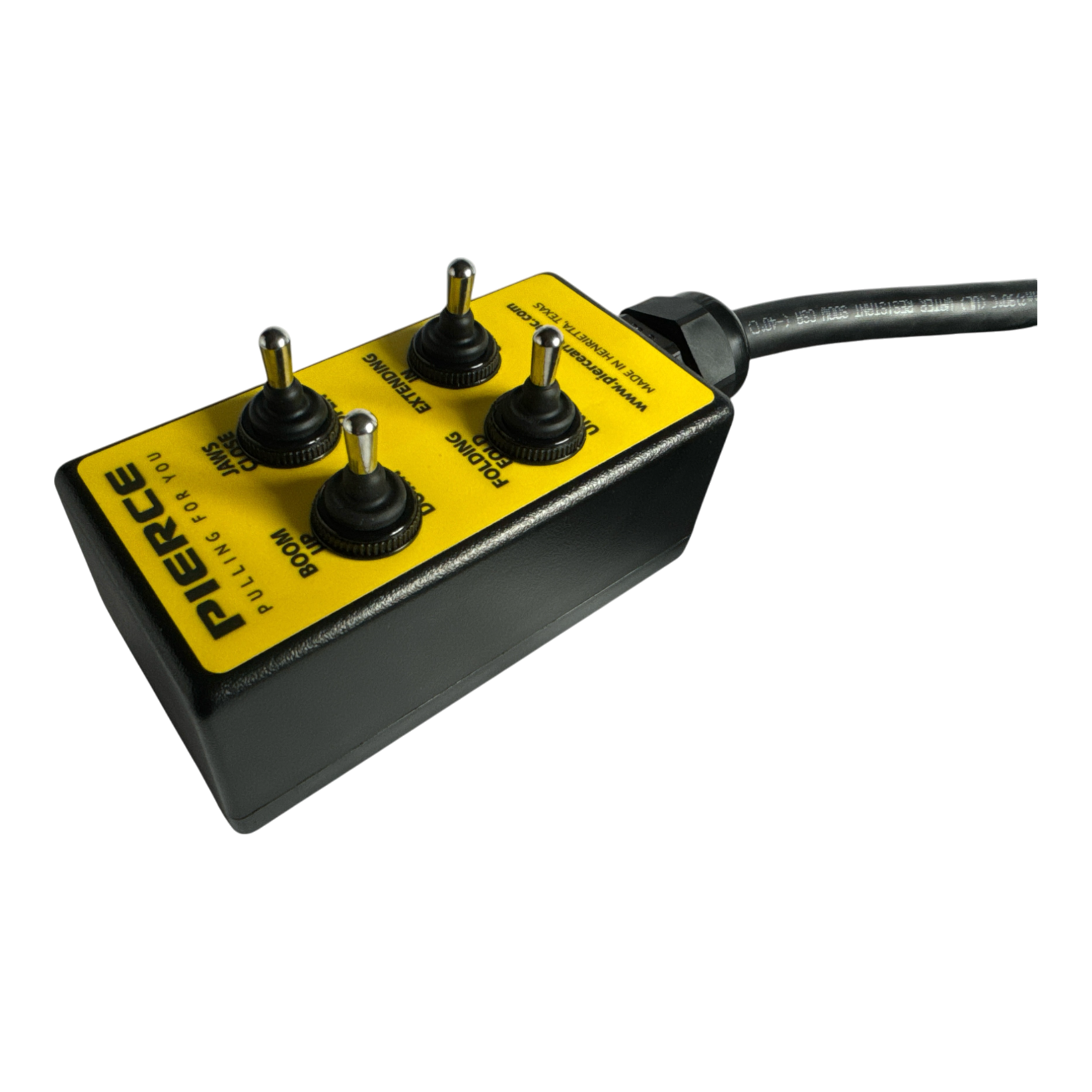

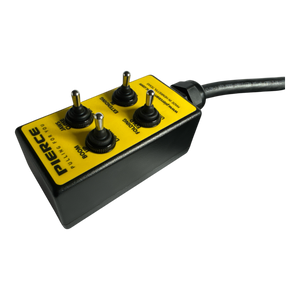

The PIERCE 8 Function Wrecker Remote is a yellow and black wired control box with four switches and a thick cable, compatible with 12/24V solenoid systems or hydraulic power units.

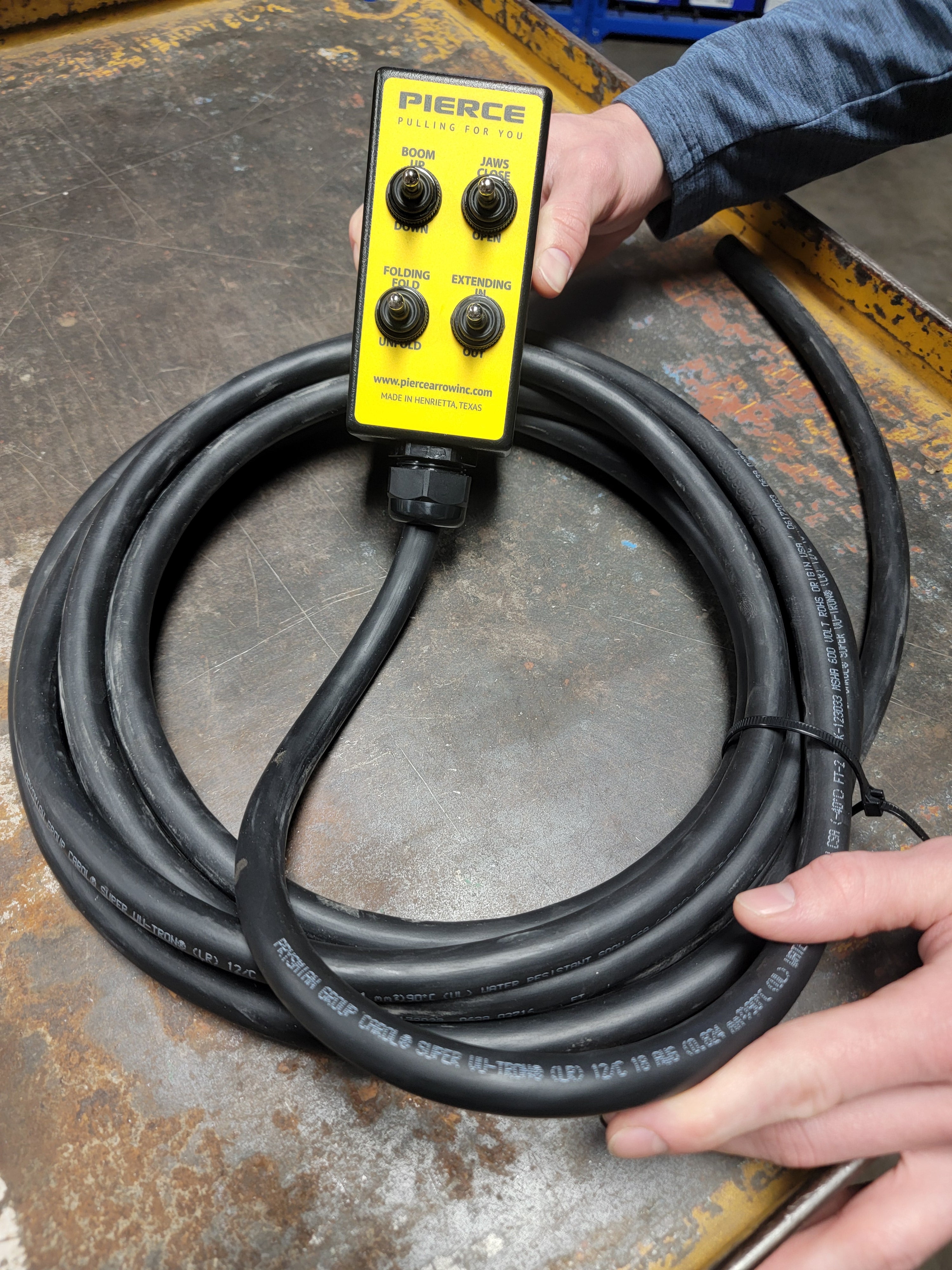

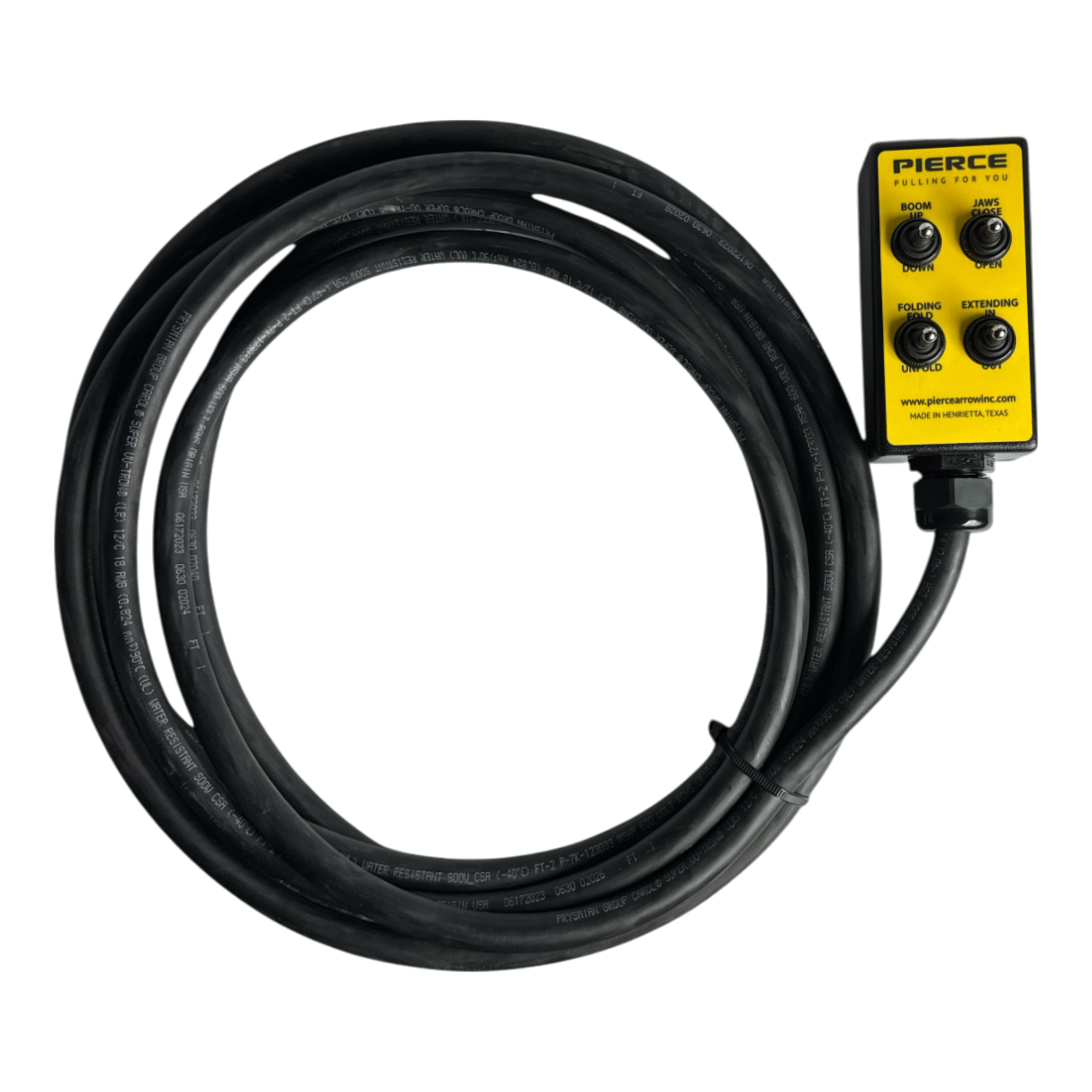

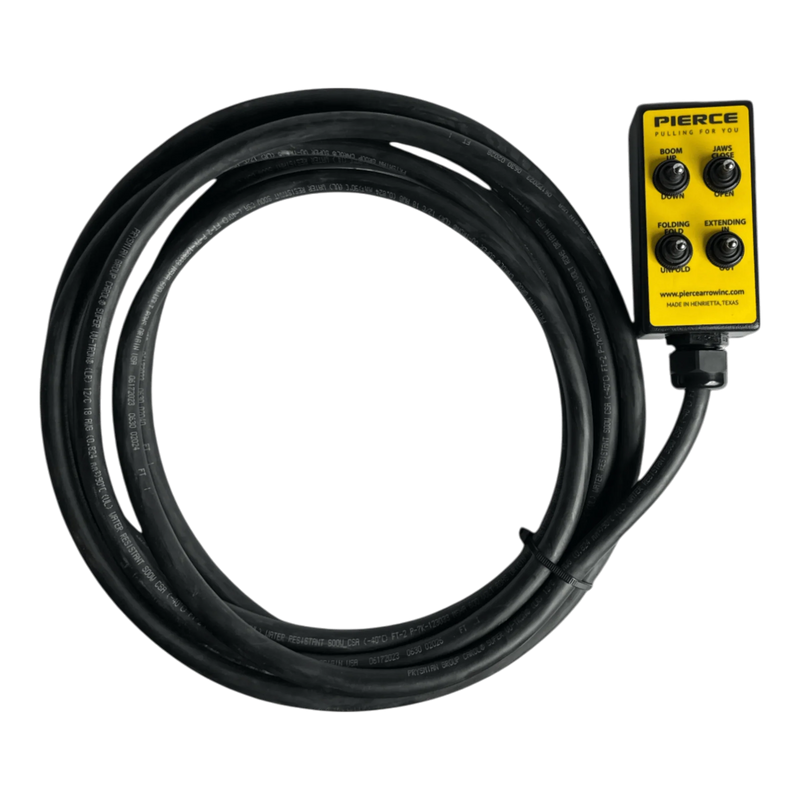

The 8 Function Wrecker Remote from PIERCE, essential for solenoid systems, includes a coiled black cable and yellow rectangular control box. It features a toggle switch wired remote designed for precision tasks in the towing industry.

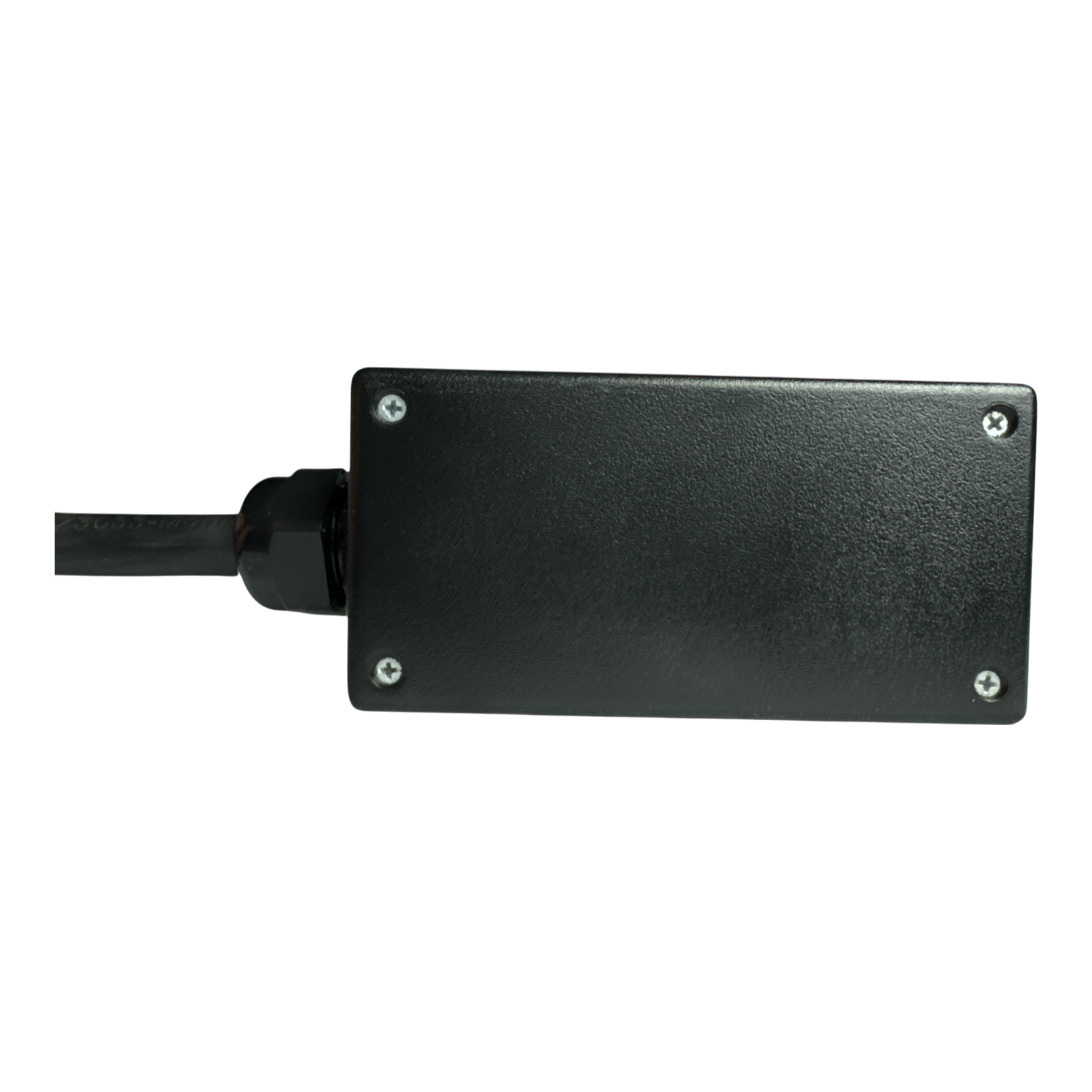

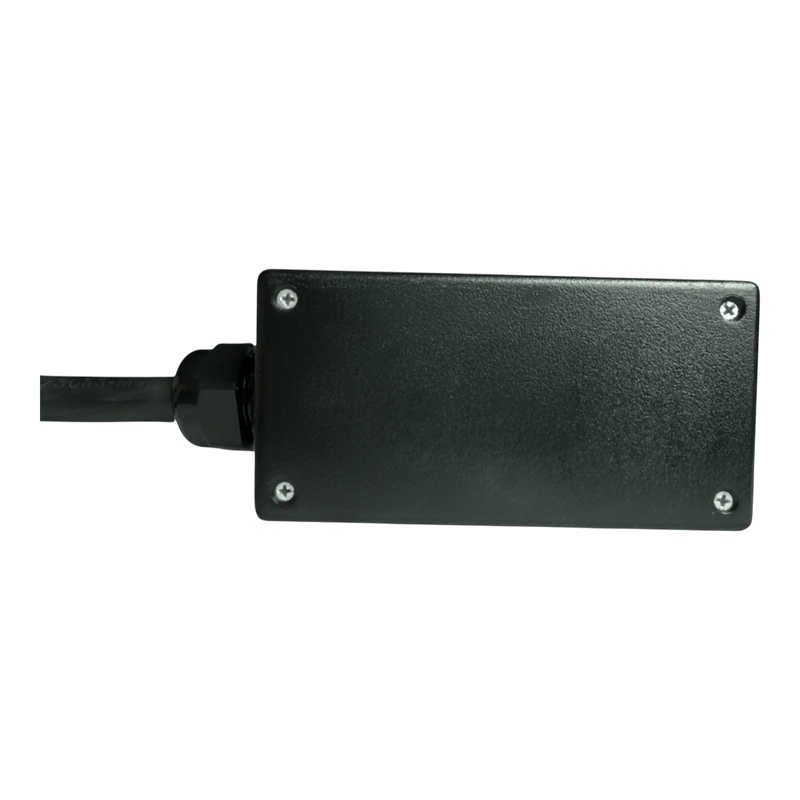

The PIERCE 8 Function Wrecker Remote is a black, rectangular electronic box with a left-side cable and four screws, designed for 12/24V solenoid systems and hydraulic power units.

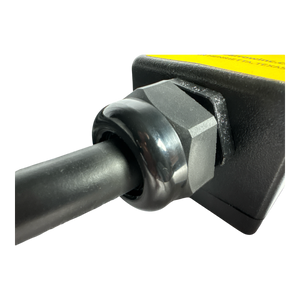

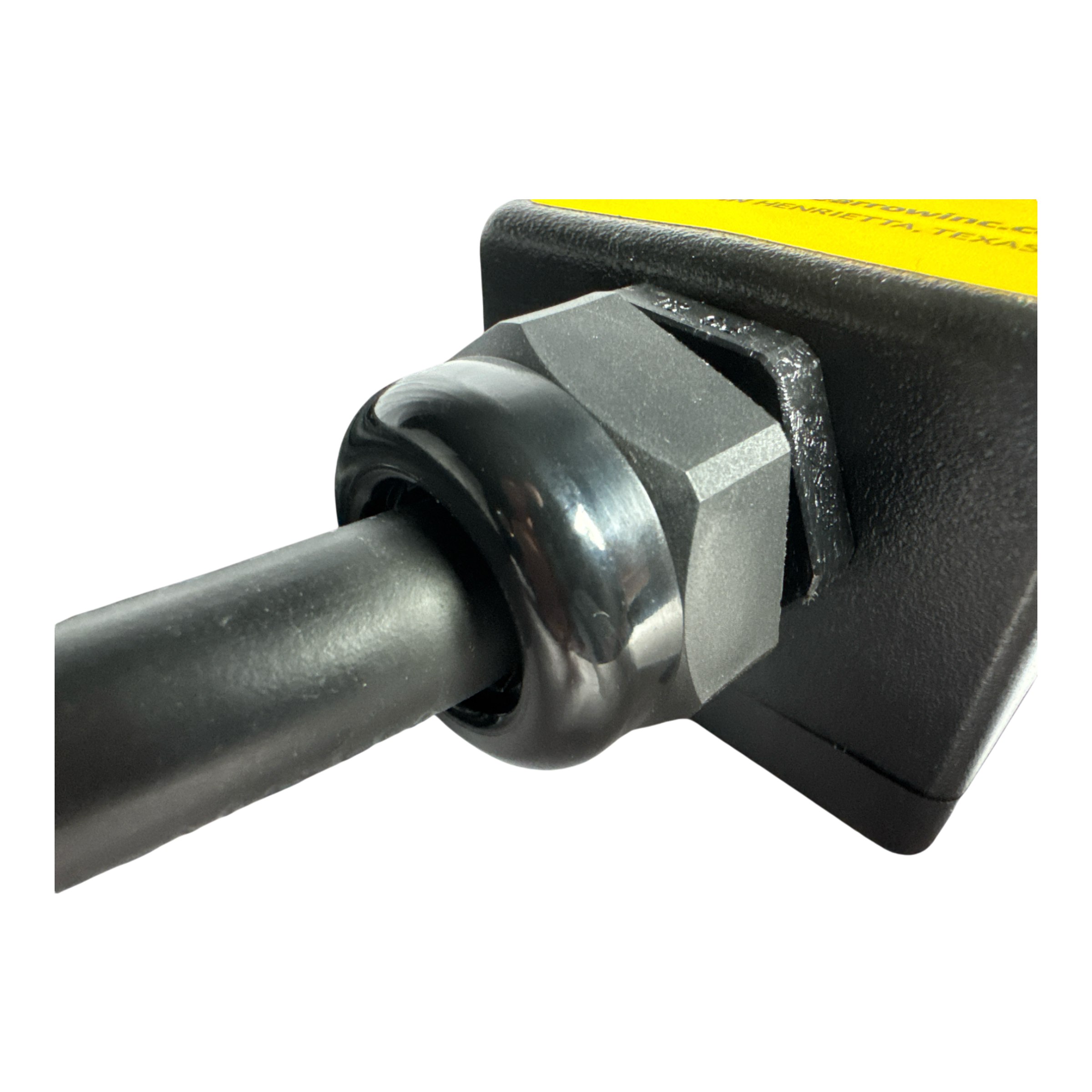

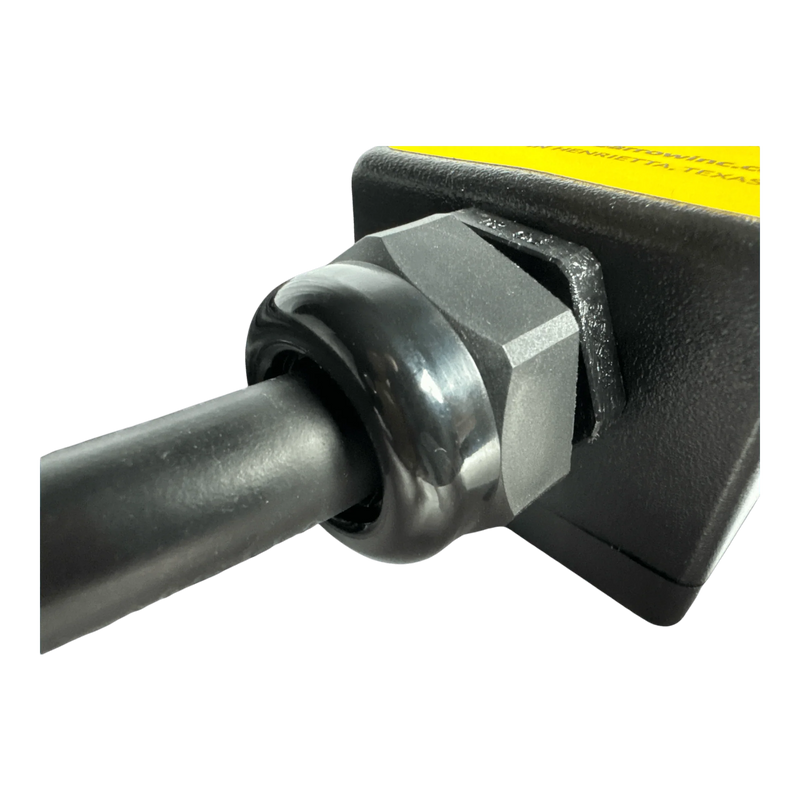

Close-up of a black cable secured with a plastic cable gland to the PIERCE 8 Function Wrecker Remote, commonly used in 12/24V solenoid systems or hydraulic power units.

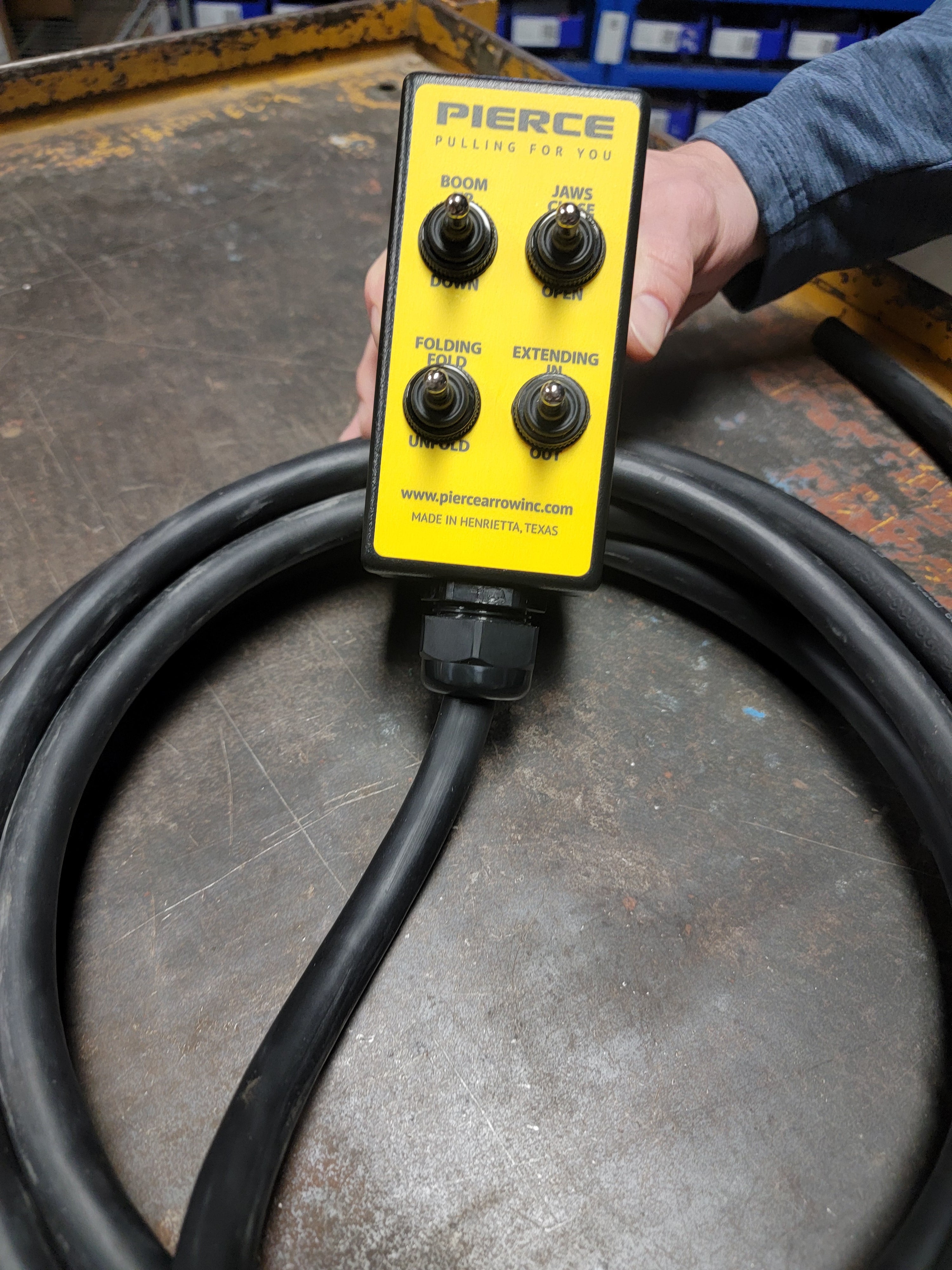

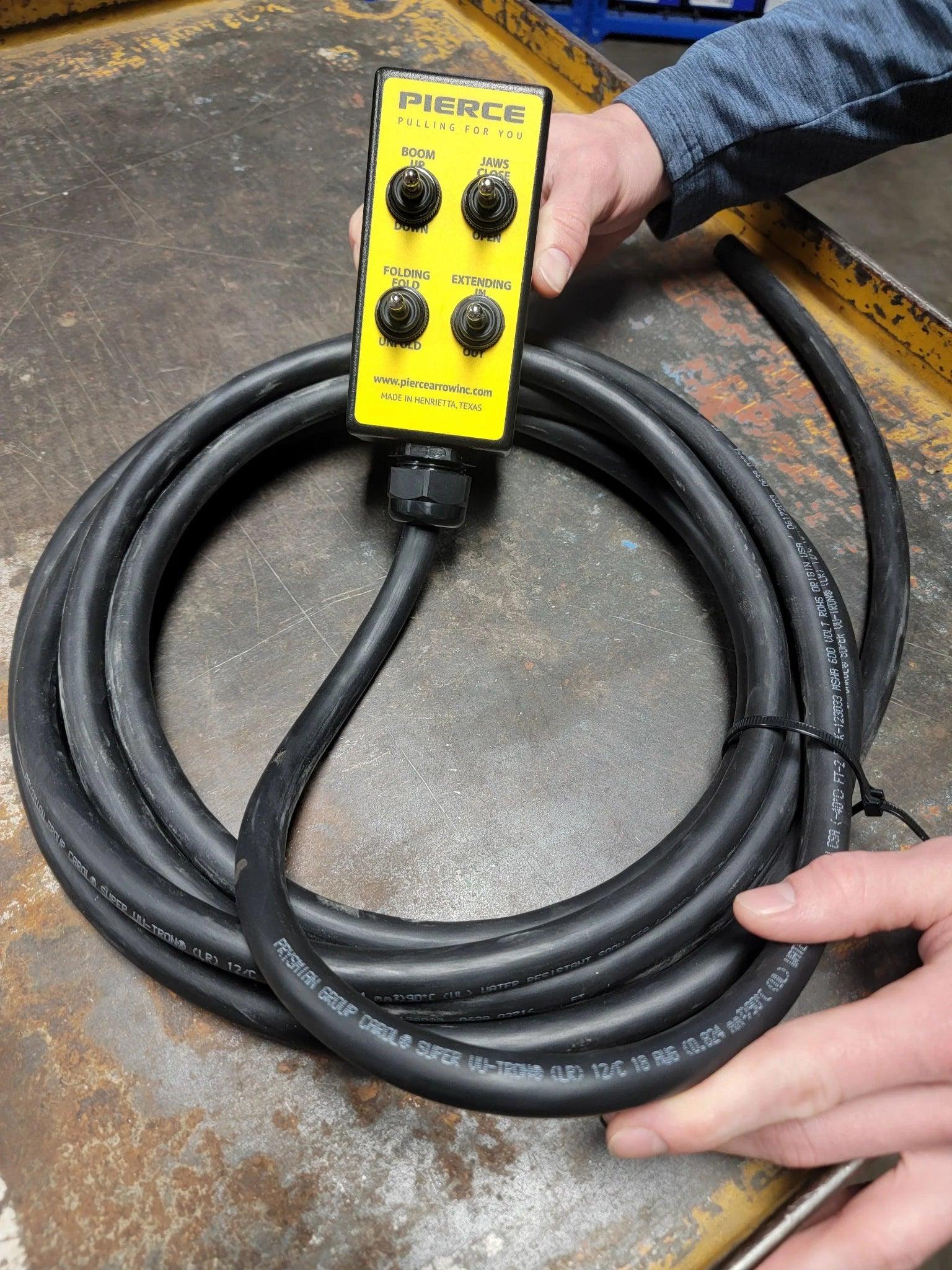

A person holds a PIERCE 8 Function Wrecker Remote, featuring buttons and a long coiled black cable on a metal surface—perfect for operating 12/24V solenoid systems or hydraulic power units.

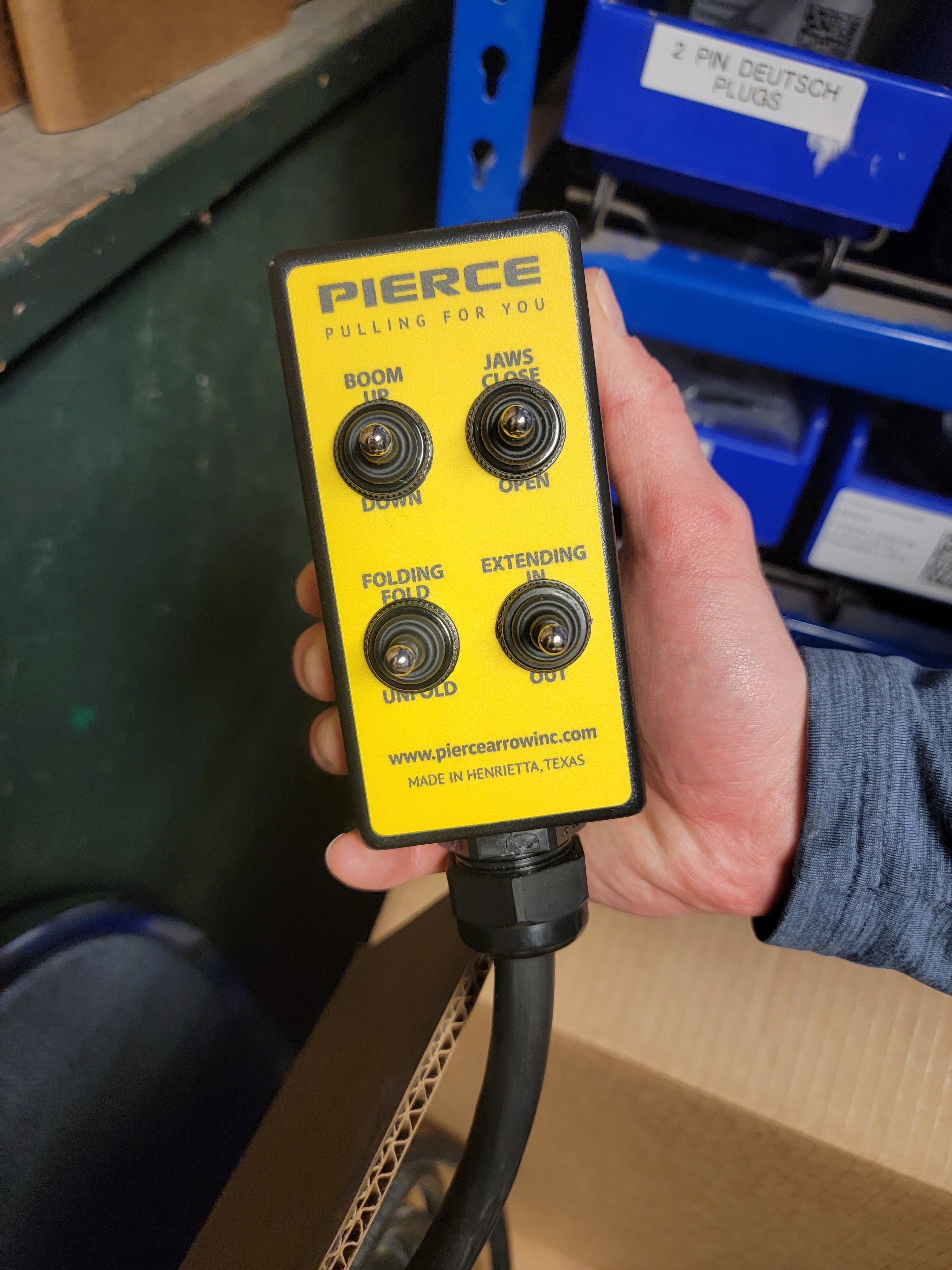

A hand holds a yellow PIERCE 8 Function Wrecker Remote with four labeled switches and a thick black cable, designed for 12/24V solenoid systems, resting on a metal surface.

1 8

8 Function Wrecker Remote

Name: 8 Function Wrecker Remote
Price: 337.0 USD
Rating: 5.0 (1 reviews)

P0408

$337.00

Quantity

In stock

Alternatives: 8 Function Wrecker Remote

6 Function Wrecker Remote 8 Function Wrecker Remote

PIERCE 1 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

8 Function Wrecker Remote

'

Description

Designed for 12/24V solenoid systems, this 8-function toggle switch wired remote system is widely used in the towing industry. It is also compatible with 8 function hydraulic power units and features spring to center toggle switches and a 20 ft. 12 core cable with ring terminals for hard wiring.

Included

1 x [P0408] - 8 Function Wrecker Remote

Specifications

Specification	Details
FUNCTIONS	8
MASTER OUTPUT	No
MAX AMPS	15
OPERATING VOLTAGE	12/24 Volts DC
RECOMMENDED WIRE	16-18 gauge
SWITCH TYPE	Momentary - Toggle
WIRING INCLUDED	20 ft. 12 core cable with ring terminals

Resources

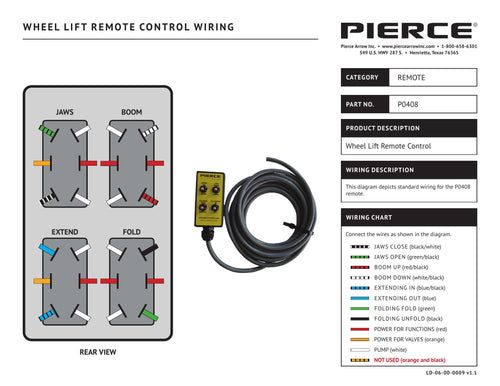

P0408 - Wiring Diagram

Wiring Diagram

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
Parts will be replaced at the manufacturer's discretion.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

Does not include normal wear and tear, misuse, water damage or other forms of abuse.
Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
