Product Information

Characteristics

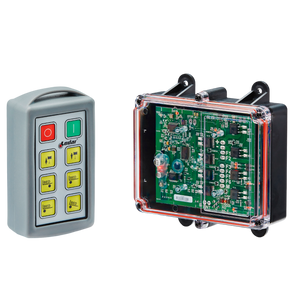

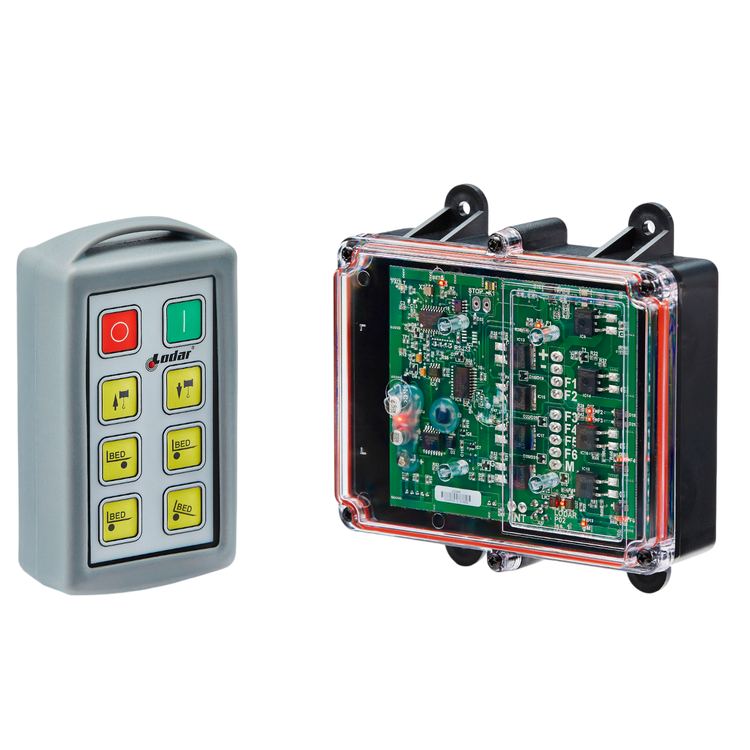

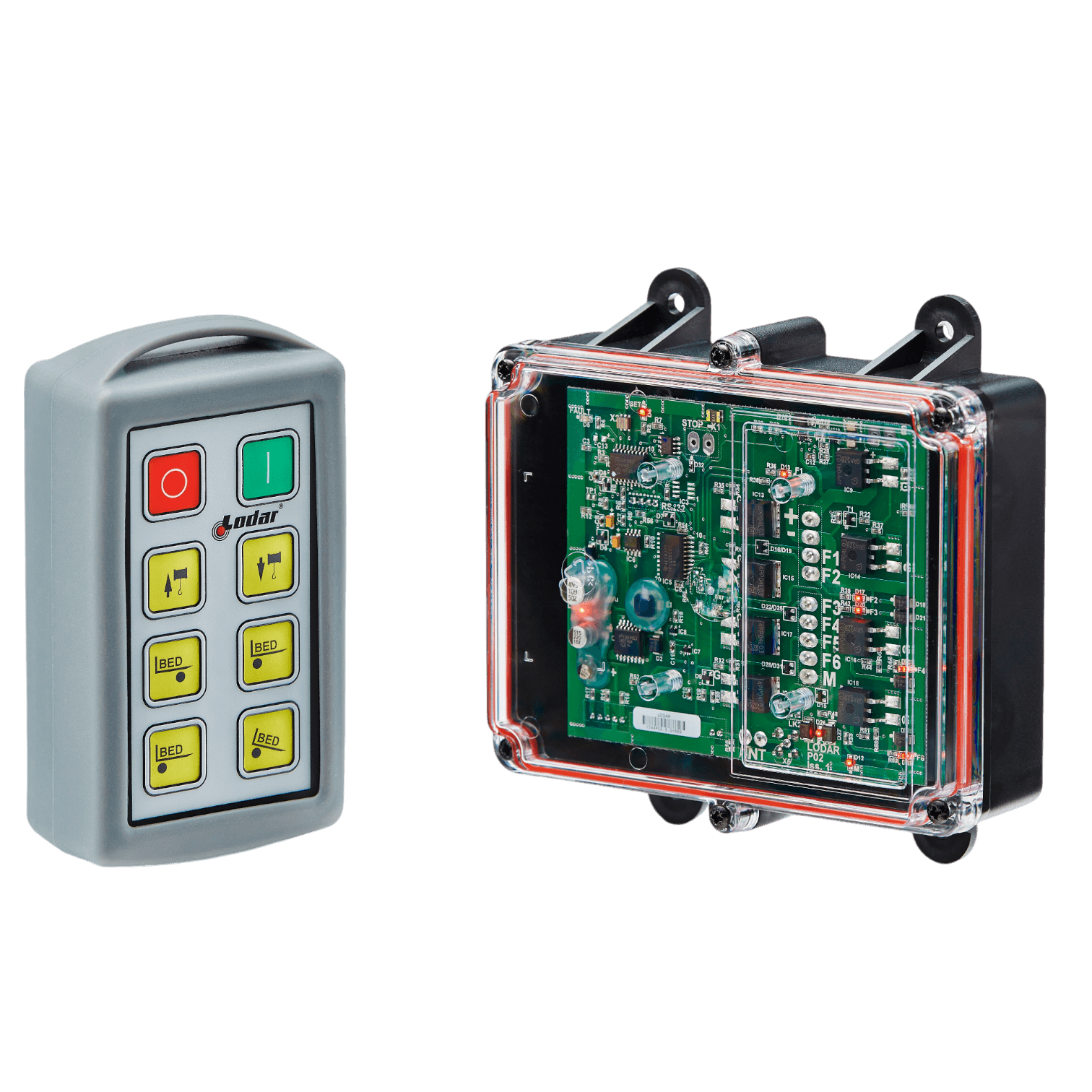

This 92 series wireless control system from Lodar offers 6 functions and a wide range of up to 200 feet for efficient remote operation of equipment. It is compatible with 12-24V solenoid operated equipment and features a master function for versatility and reliability.


What is Included

1 x 9206RX
1 x 6 Function Lodar Standard Transmitter | 9 Series
1 x Lanyard
1 x Instructions

Specifications

Specification Details
TRANSMITTER Standard
FUNCTIONS 6
OPERATING VOLTAGE 12/24 Volts DC
TRANSMITTER IP RATING IP 54
RECEIVER IP RATING IP 65
OPERATING DISTANCE 200 ft. (61 m.)
MASTER OUTPUT Yes
MAX AMPS 15
SERIES 9000 Series
TRANSMITTER BATTERIES 9V x 1
CHANNEL Wide Band, Fixed

Resources

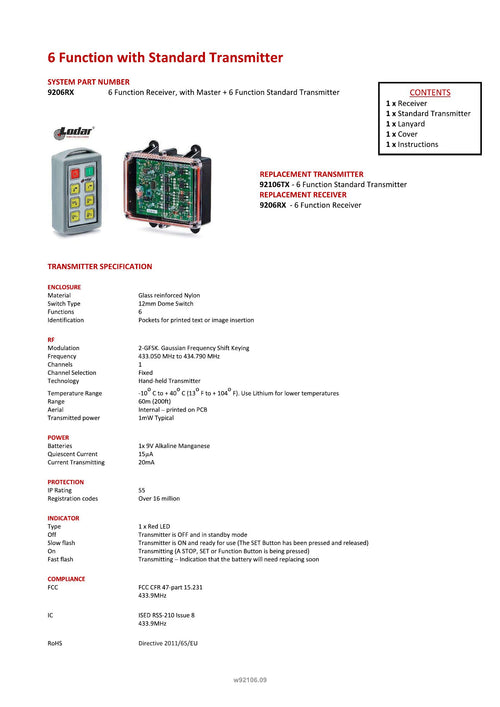

Spec Sheet
92106 - 6 Function with Standard Transmitter

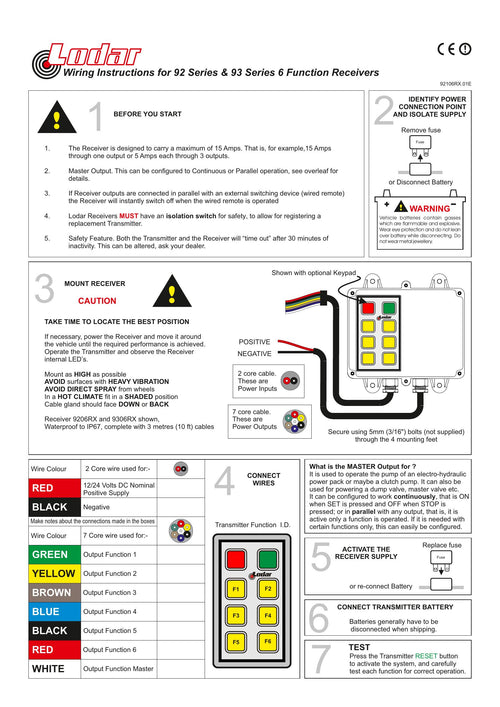

Wiring Diagram
92-93 Series - Wiring Instructions for 6 Function Receivers
Instructions
92-93 Series - Instructions Standard Transmitter Coding

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
Characteristics

This 92 series wireless control system from Lodar offers 6 functions and a wide range of up to 200 feet for efficient remote operation of equipment. It is compatible with 12-24V solenoid operated equipment and features a master function for versatility and reliability.
