PM-3554-0131 - Bucher Pump with Dual Action Wiring Diagram

Download Wiring Diagram PDF

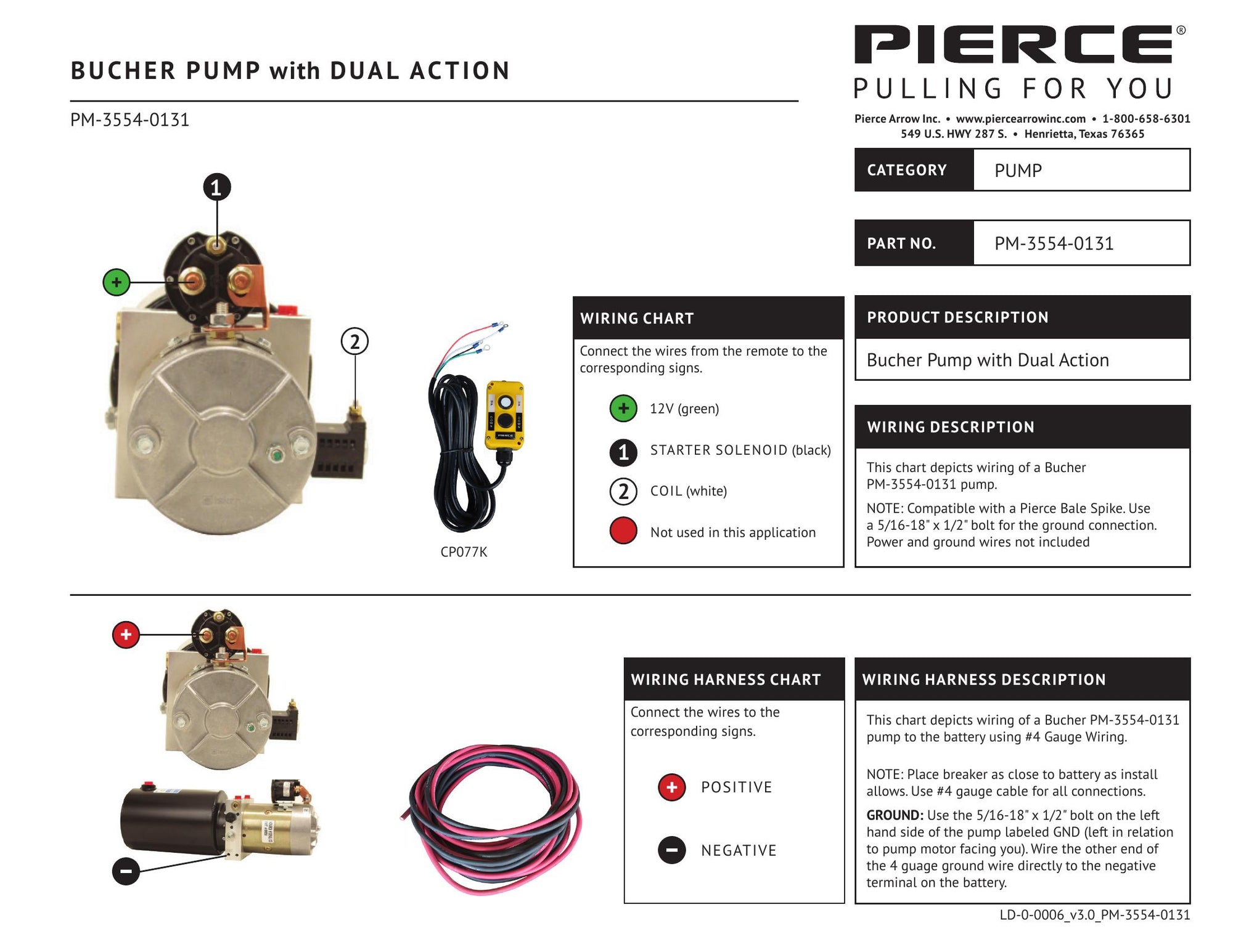

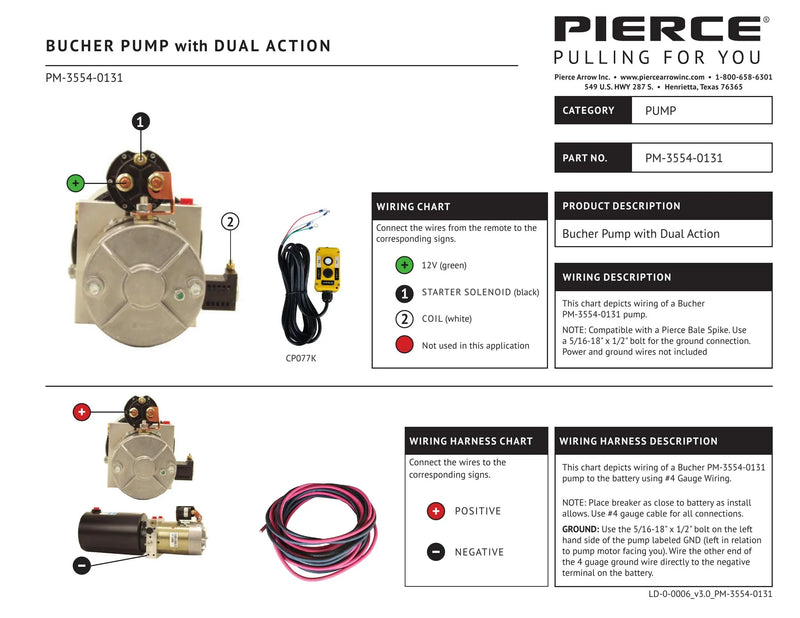

PM-3554-0131 - Bucher Pump with Dual Action Wiring Diagram - Page 1 — Page1
